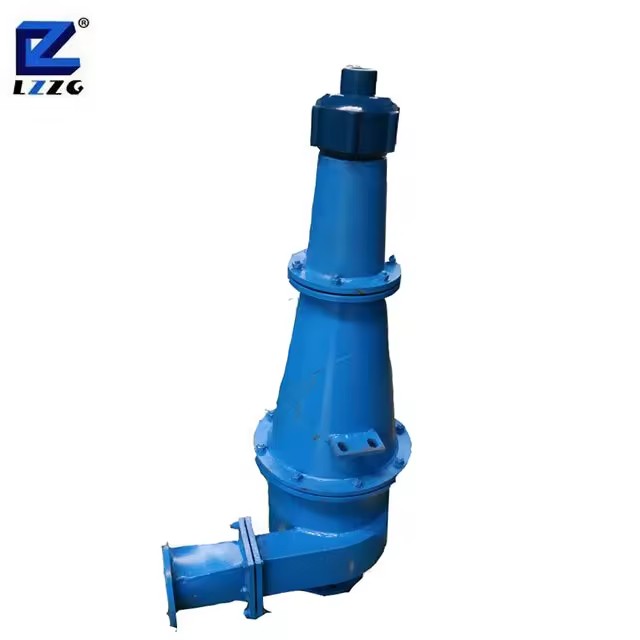

Mining Cyclone Gold Sand Washer Mineral Separator Gravity Separator 20~100T/h Capacity

Gold mining cyclone for gold washer mineral separator with hydrocyclone

1. Description of sand cyclone In closed circuit grinding system, it features high classification efficiency and fine overfall fineness under high mine concentration. Classification efficiency is higher for 5-10% than common screw grader. It benefits for enhancing grader utilizing coefficient. 2. Structure of hydrocyclone

3. Working principle A typical hydrocyclone consists of a conically shaped vessel, open at its apex, or underflow, joined to a cylindrical section, which has a tangential feed inlet.The top of the cylindrical section is closed with a plate through which passes an axially mounted overflow pipe.The feed is introduced under the pressure through the tangential entry which imparts swirling motion to the pulp.This generates a vortex in the cyclone. The light granules will be pulled out by a pump through the overflow pipe, while the heavy particles will be discharged with the pulp through the underflow discharge. 4. Technical Specification of sand cyclone

5. Features of sand cyclone 1). Simple structure, light and flexible, no moving parts. 2). Low equipment cost, easy disassembly, maintenance, less the cost of infrastructure. 3). Large handling capacity, Can handle the small particle size to about 10μm. 4). High efficient classification. 5). Slurry in the cyclone retention volume and time very small, easy to deal with when the machine stops. 6). Long service life, large disposal capability, small land covering, no driving power consumption. 7). High efficient grading & de-sliming equipment of fine -particle material. 6. Application Area 1). Gas / Fume filtration for industrial boiler 2). Metallurgy Furnace fumes filtration 3). Woodworking plant 4). Machine processing plant 5). Powder processing plant 6). cement production process

Q: How about the quality of your products?

A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use

Q: How about the price?

A: We are manufactory, and we can give you lower price than those trade companies. Besides, customers from can get a discount.

Q: Do you provide after-sale service?

A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.

Q: Do you provide equipment operation training?

A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.

Q: Can you test our samples?

A: Yes. You can send your samples to us for test and analysis.

Q: Do you provide beneficiation flow chart?

A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
