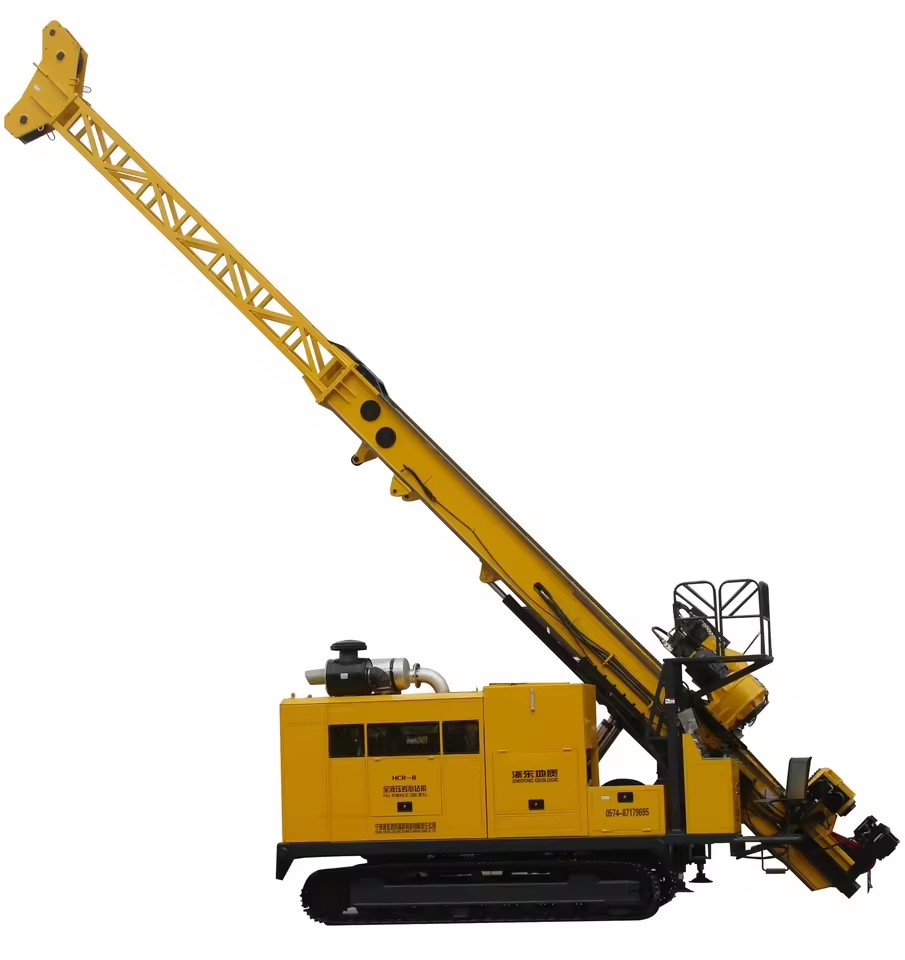

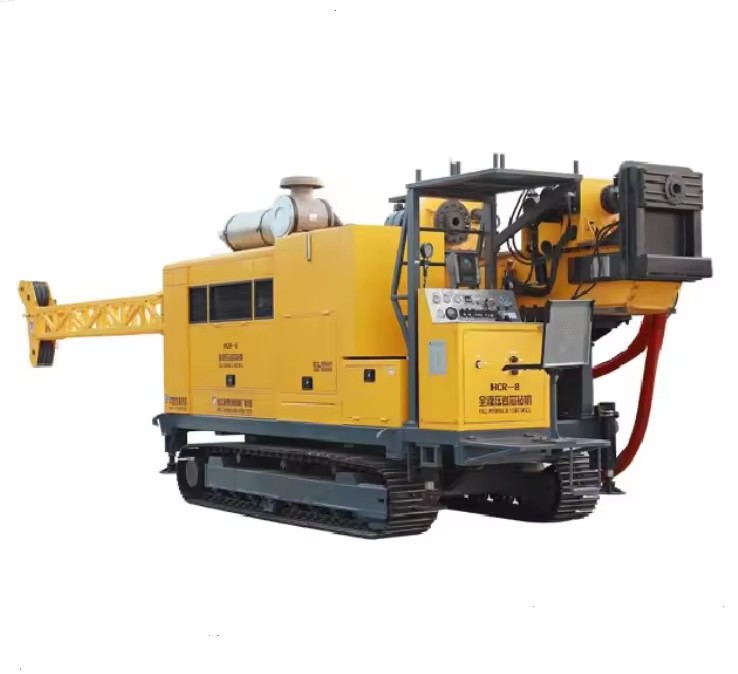

Drill 3000m Deep HCR-8 Full Hydraulic Bore Hole Mine Core Drilling Rig for Exploration Mining

Product Importer Gallery 01 · bcc6dd0988

Product Importer Gallery 02 · bb46bce8fa

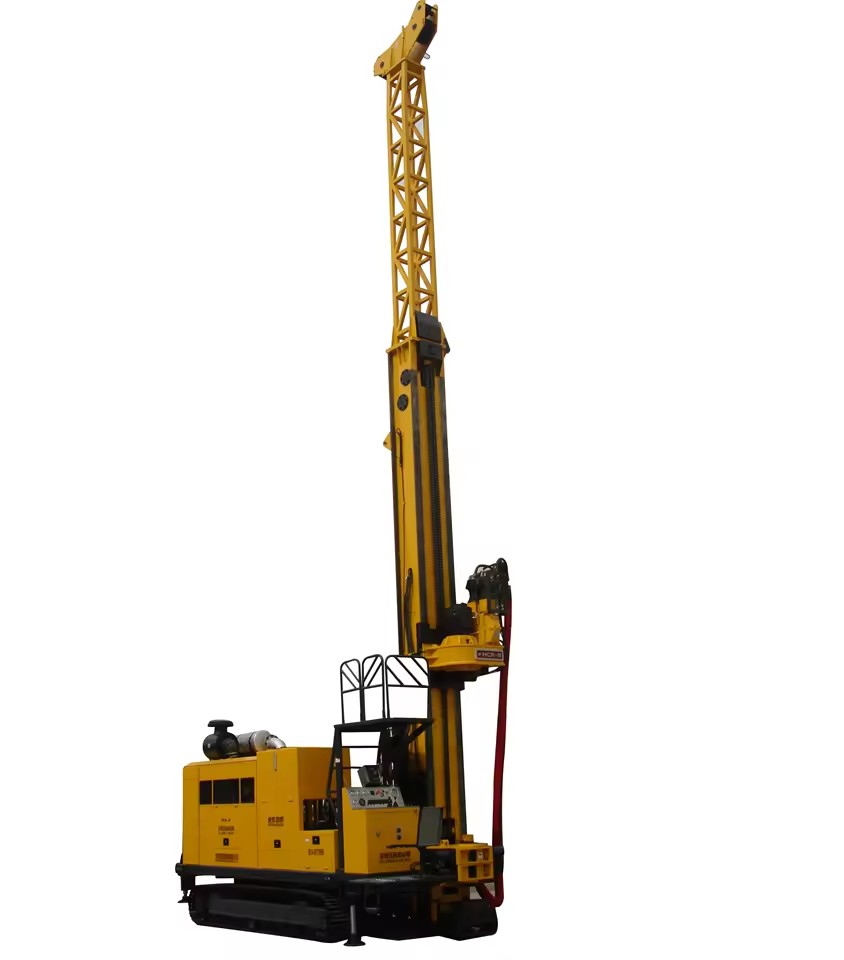

Product Importer Gallery 03 · f2d89fac18

Product Importer Gallery 04 · 510a703f60

Product video

Drill 3000m Deep HCR-8 Full Hydraulic Bore Hole Mine Core Drilling Rig for Exploration Mining

Name: Drill 3000m Deep HCR-8 Full Hydraulic Bore Hole Mine Core Drilling Rig for Exploration Mining
SKU: N4FZ-68SW-NBKR
Price: 361810.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 361,810.00 361810.0 USD $ 361,810.00

Minimum order quantity: 1 Units

Key attributes

View all

Usage

Ore

Type

Core Drilling Rig

Drilling Depth

Max.3000m

Drilling Diameter

114mm

Power Type

Diesel

Voltage

276KW

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Drill Capacity	NQ	3000m
HQ	2400m
PQ	1700m

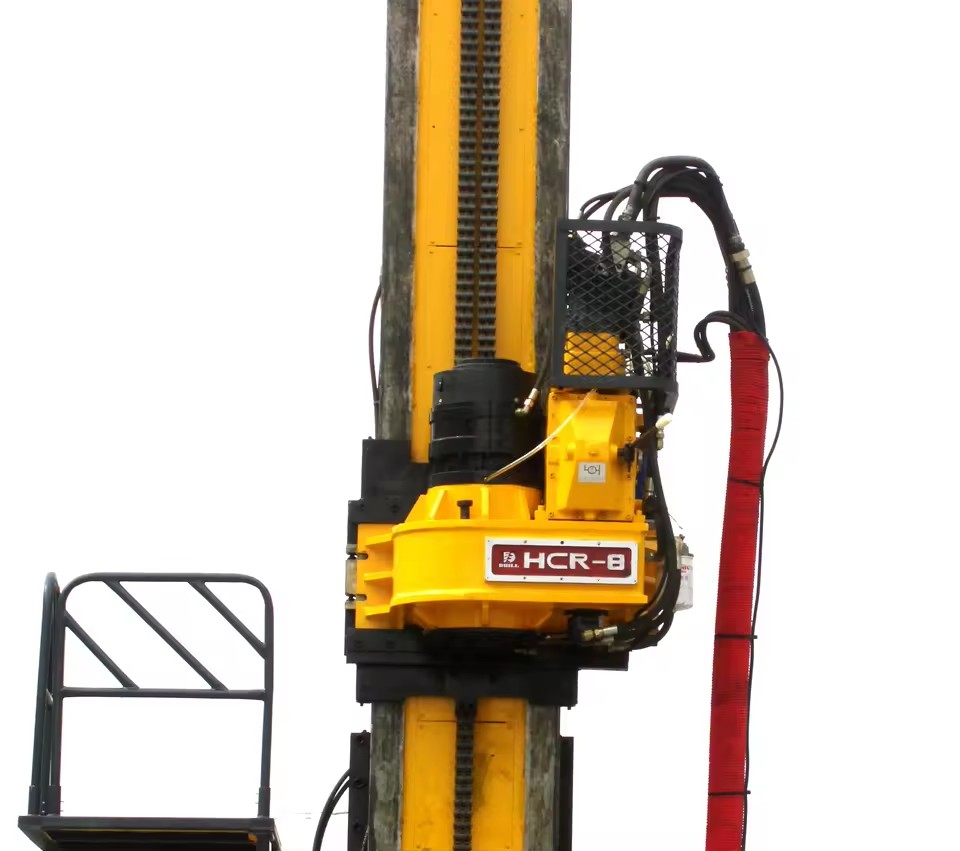

Power Head Capacity	Rotate Speed	0-1250rpm
Max. Rotary Torque	7200N·m (170rpm)
1300N·m (1250rpm)
Spindle Bore	121mm
Max. Pulling Force	295KN
Max. Feed Force	152KN
Diesel Engine	Model	Weichai WP12.375
Power	276KW
Rotate Speed	2100rpm
The Main Hoist Capacity	Elevating Force	120KN
Diameter of Steel Wire	22mm
Length of Steel Wire	50m
The Wire Line Hoist Capacity	Hoisting Force (Single Wire)	15KN
Steel Wire Diameter	6.3mm
Steel Wire Length	2800m

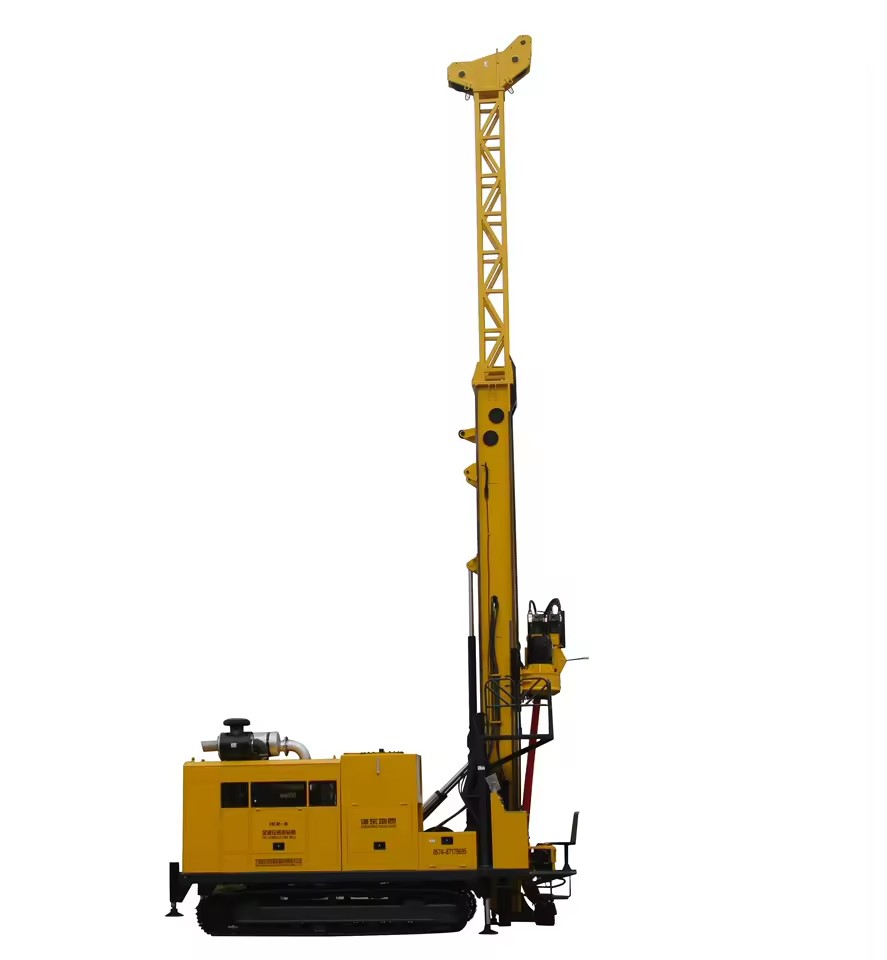

Mast	Effective Hoisting Height	9.6m
Adjusting Angle	0°-90°
Drilling Angle	45°-90°
Feeding Stroke	4700mm
Slippage Stroke	1100mm
Foot Clamp	Clamping Scope	55.5-117.5mm
Mud Pump	Type	Triplex Plunger Reciprocating Pump
Model	BW320
Stroke	110mm
Flow	320, 230, 165, 118 L/min
Pressure	4, 5, 6, 8MPa
Others	Move Mode	Steel Crawler Self-Propelled
Moving Speed	2.5km/h
Climbing Capacity	30°
Dimension （L×W×H）	6020×2475×14745mm (Working )
8165×2530×3030mm (Transport )
Weight	25000kg

$2,950-3,200 / set

Back To Homepage

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

25 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 33 fields

Usage

Ore

Type

Core Drilling Rig

Drilling Depth

Max.3000m

Drilling Diameter

114mm

Power Type

Diesel

Voltage

276KW

Core components

Gear, Engine, Pump

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Multifunctional

Place of origin

Zhejiang, China

Weight

25000 kg

Dimension (L*W*H)

6020*2475*14745mm

Mobility

Self-propelled steel crawler

Power

276KW Diesel Engine

Drill capacity

3000m/NQ

Spindle Torque

7200Nm

Feeding stroke

4700mm

Spindle Bore (Specification)

121mm

Lifting force

295KN

Feeding force

195KN

Wire Rope

26mm

Mast Height

9.6m

Mud Pump

320L/MIn

Packaging Details

40HQ FCL

Port of dispatch

Any port in China

Selling Units

Single item

Single package size

80X50X70 cm

Single gross weight

68.0 kg

Supply Ability

15 sets per Month

Model number

HCR-8

Power (W) (Product option)

276KW

Lead time

25 days

Minimum order

1 Units
