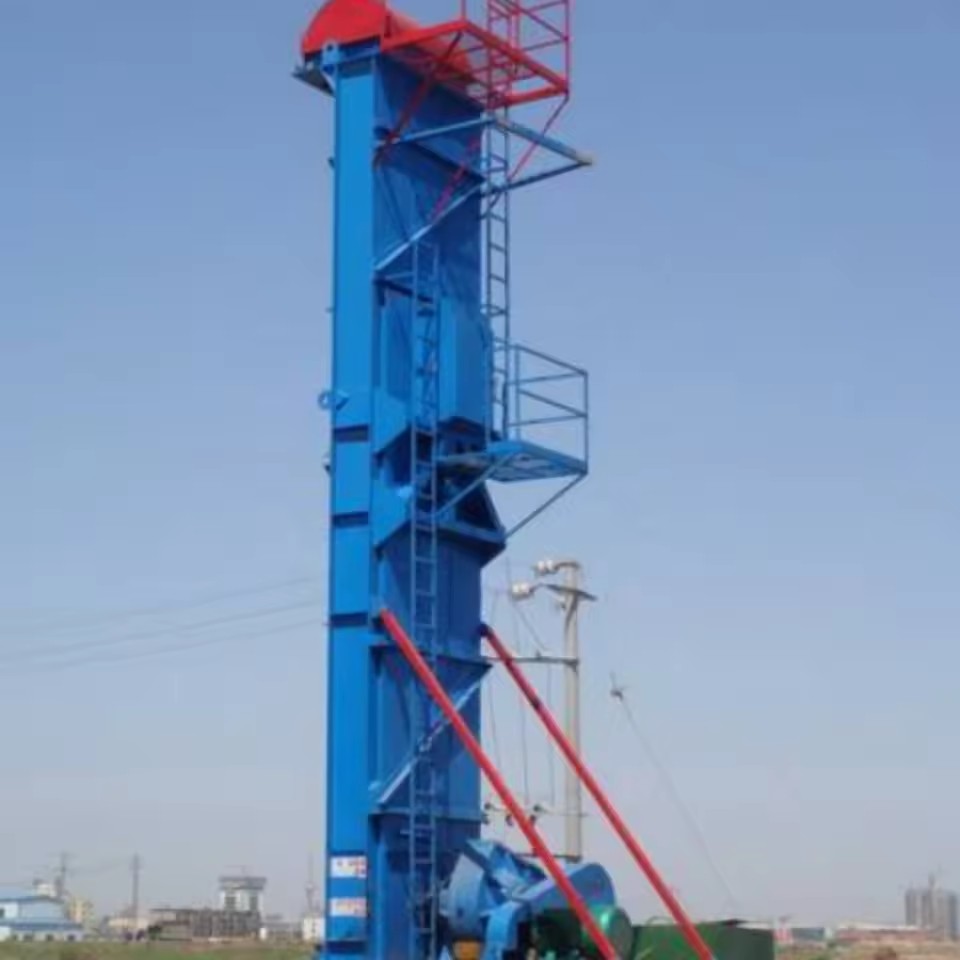

Oilfield Belt Pumping Unit with Long Stroke (48-216inch) Engine-Driven Oil Pump for Heavy Oil Well Production

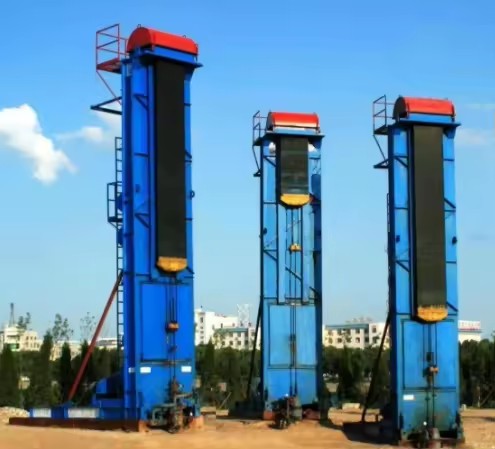

Product Importer Gallery 01 · b62feb09e5

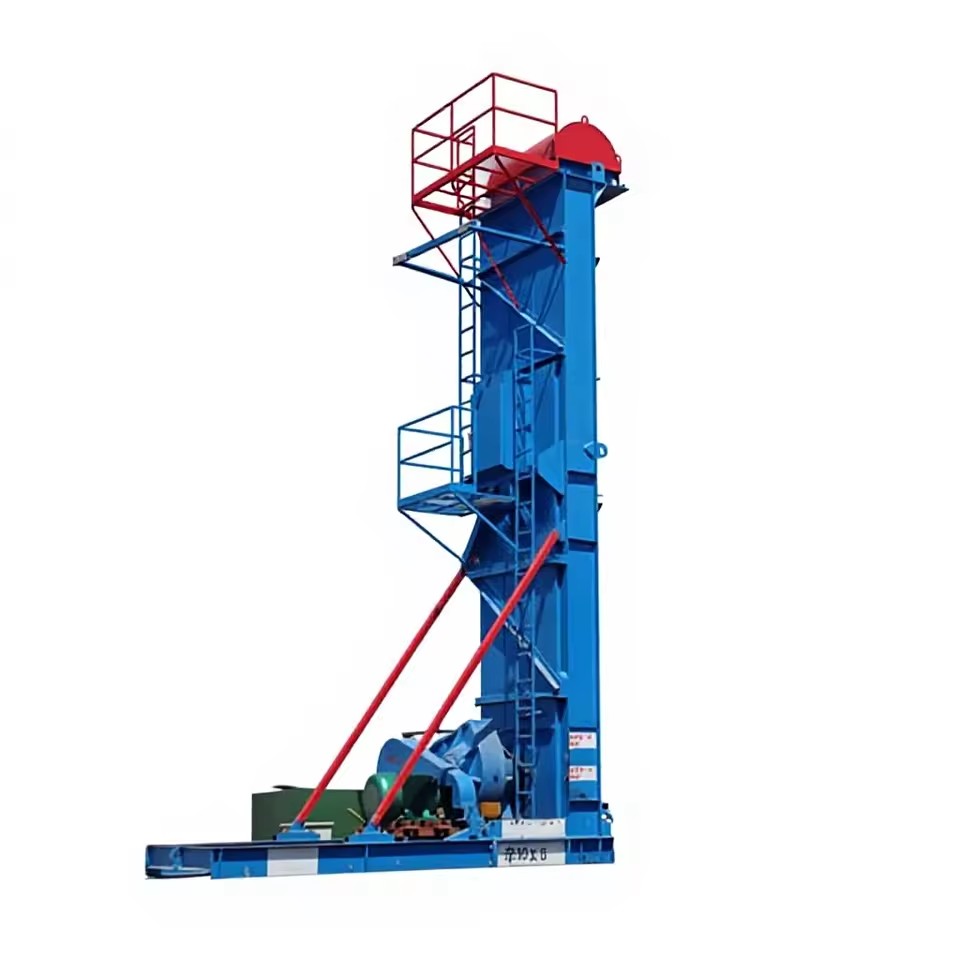

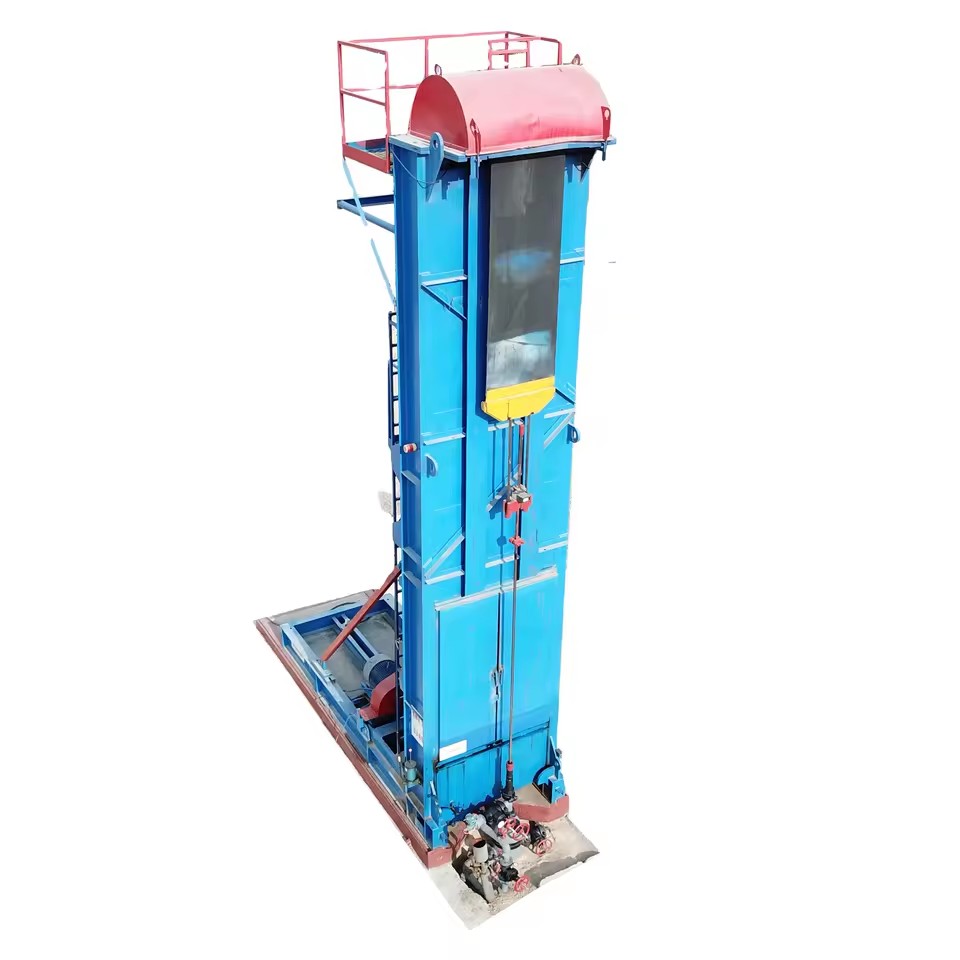

Product Importer Gallery 02 · f9414b5f2f

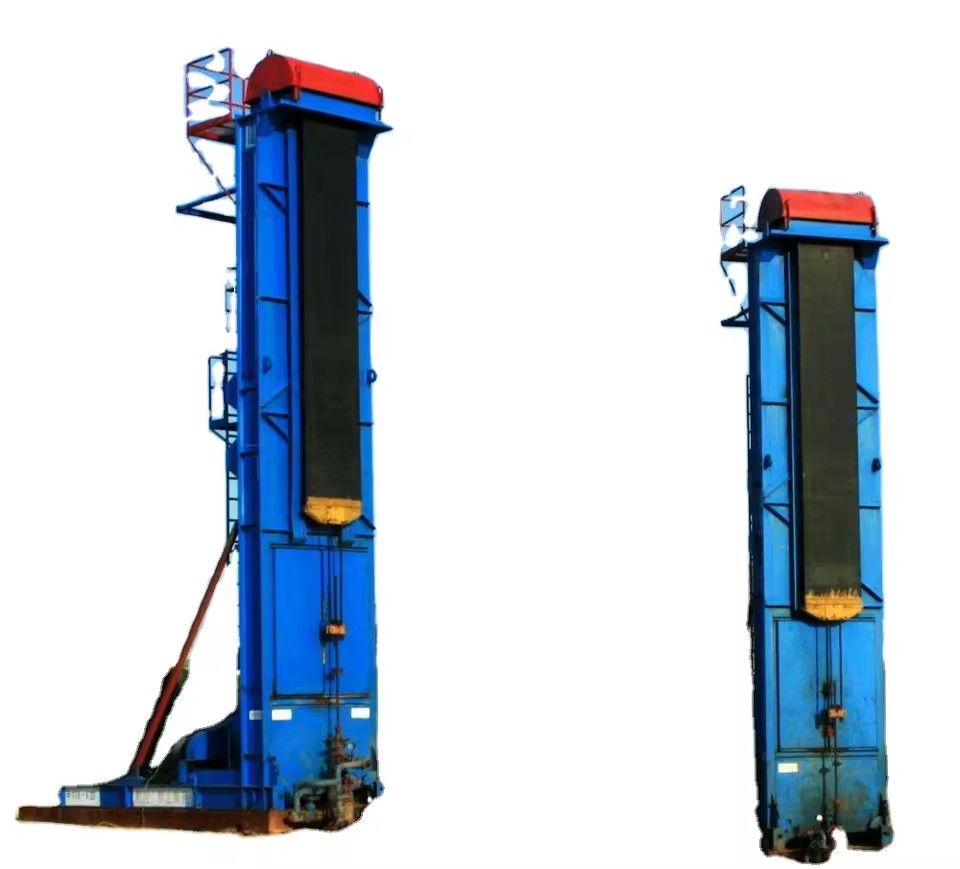

Product Importer Gallery 03 · c489015034

Product Importer Gallery 04 · 01973dfb98

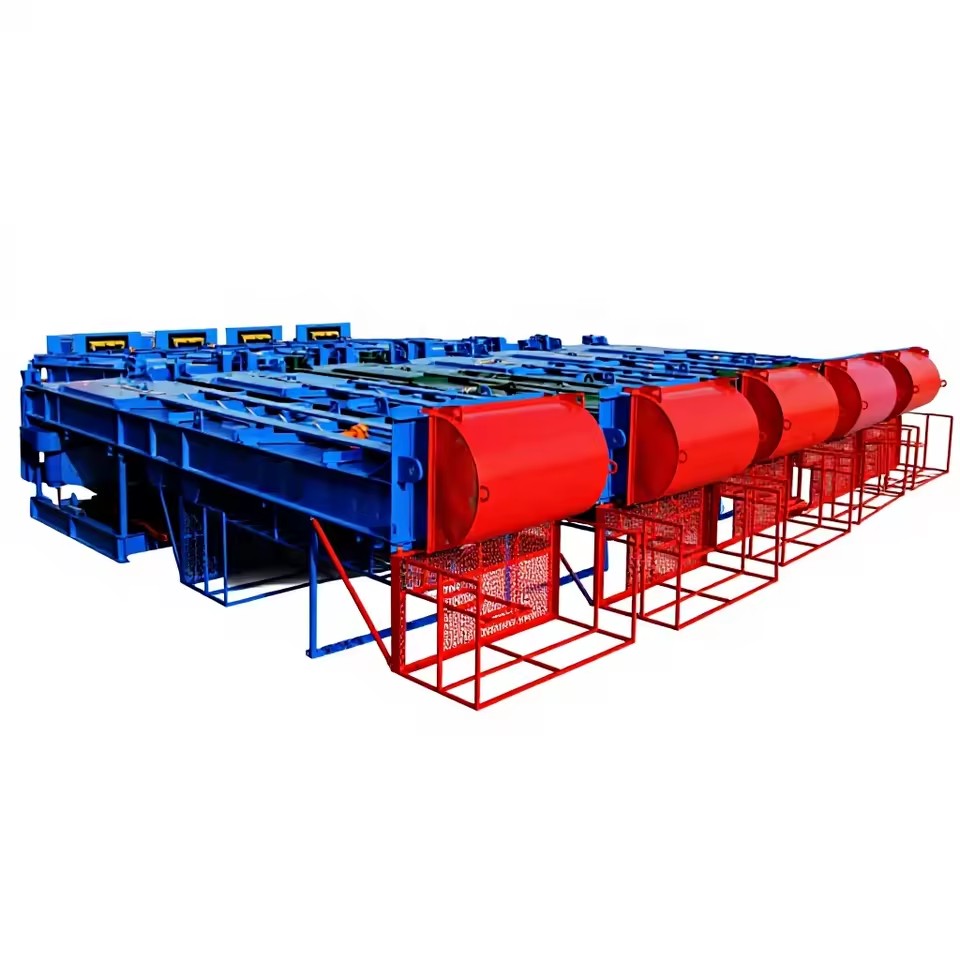

Product Importer Gallery 05 · 002d4bbf27

Product video

Oilfield Belt Pumping Unit with Long Stroke (48-216inch) Engine-Driven Oil Pump for Heavy Oil Well Production

Name: Oilfield Belt Pumping Unit with Long Stroke (48-216inch) Engine-Driven Oil Pump for Heavy Oil Well Production
SKU: N27A-SJ98-QPDF
Price: 34400.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 34,400.00 34400.0 USD $ 34,400.00

Minimum order quantity: 1 Units

Key attributes

View all

Voltage

380V/220V 380V/220V

Core components

Bearing, PLC, Gear, Engine, Gearbox

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Production Capacity

100

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Reducer Model	Peak Torque Rating(in-lbs)	Reduction Ratio	Gear Box Oil Capacity(US Gallons)	Sheave Dimensions	Crankshaft Diameter
1824D	1,824,000	28.889	246	Bore 5 1/2'',68''/12C	9.84''
1280D	1,280,000	28.672	208	Bore 5'',58''/10C	9.84''
912D	912,000	28.79	180	Bore 4 3/8'',50''/8C	7.87''
640D	640,000	27.21	100	Bore 4 3/8'',50''/6C	7.87''
456D	456,000	28.255	100	Bore 3 5/8'',44''/5C	7.87''
320D	320,000	28.807	75	Bore 3 1/2'',44''/4C	6.89''
228D	228,000	28.873	42	Bore 3'',36''/4C	6.89''
160D	160,000	28.507	27	Bore 2 5/8'',30''/3C	5.91''
114D	114,000	29.818	25	Bore 2 1/2'',30''/3C	5.13''
80D	80,000	31.747	13	Bore 1 9/16'',25''/3B	3.54''

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

70 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 24 fields

Voltage

380V/220V 380V/220V

Core components

Bearing, PLC, Gear, Engine, Gearbox

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Production Capacity

100

Place of origin

China, Shandong

Weight

25000 kg

Model number (Specification)

API Spec 11E pumping unit

Dimension (L*W*H)

7.4,2.6,13.4

Features

Resistance to stretching

Standard

API Spec 11E

Gear reducer lubricant

200# Gear Lubricant

Balance

Crank

Model

1100

Stroke Length

48~216inch

Rated Torque

40000~1824000in.lbs

Crank direction

Clockwise

Gear Type

Double Circular Arc Gear Reducer

Product

Oil Equipment

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Power (W) (Product option)

Model 500

Lead time

70 days

Minimum order

1 Units
