API Standard Oilfield Breakout Machine Bucking Machine Bucking Unit

Drilling Equipment Hydraulic Bucking Machine for Sale

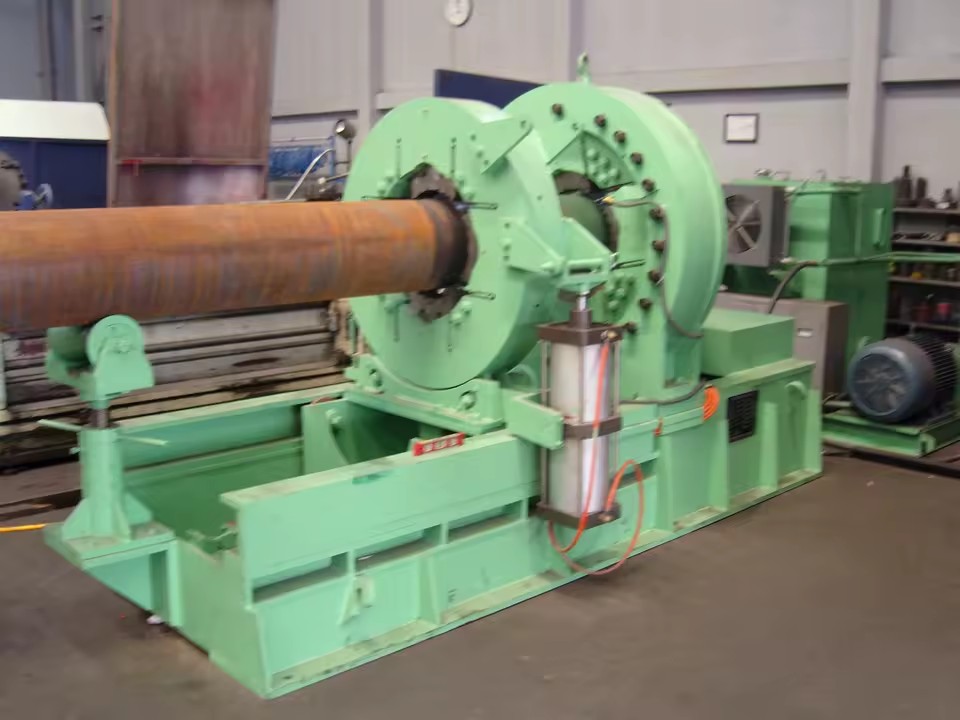

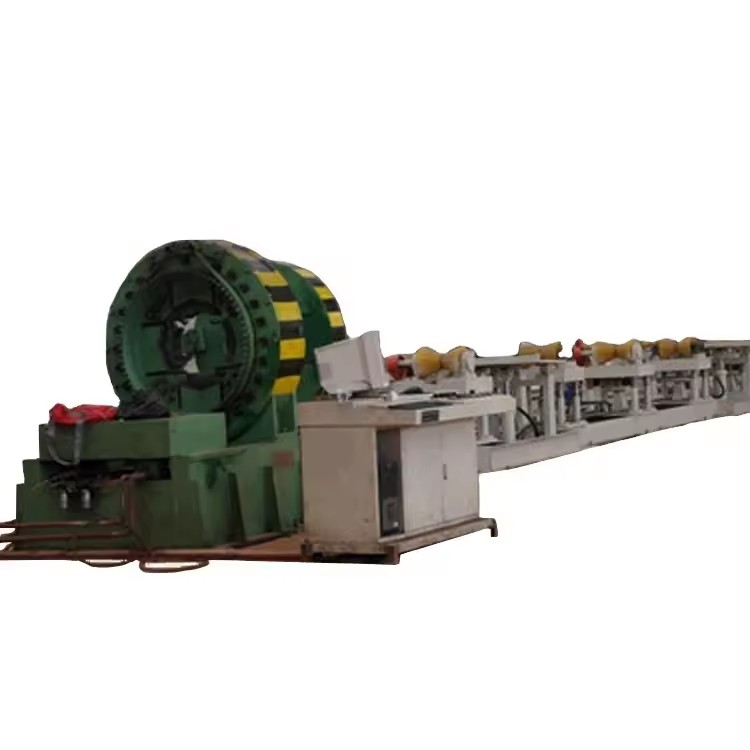

BHT570 bucking machine is a special equipment used to make up and break out 13 3/8", 16", 18 5/8", 20" coupling and pipes.

The machine has six parts: power tong, backup tong, hydraulic system,pneumatic system,control system and machine body.

BHT570 h y draulic bucking machine of power tong is driven by hydraulic motor and it is used to make up or break out. The backup tong is driven by pneumatic and it is used to fix the pipe. The make up torque value is output by tension sensor and controlled by PLC system.

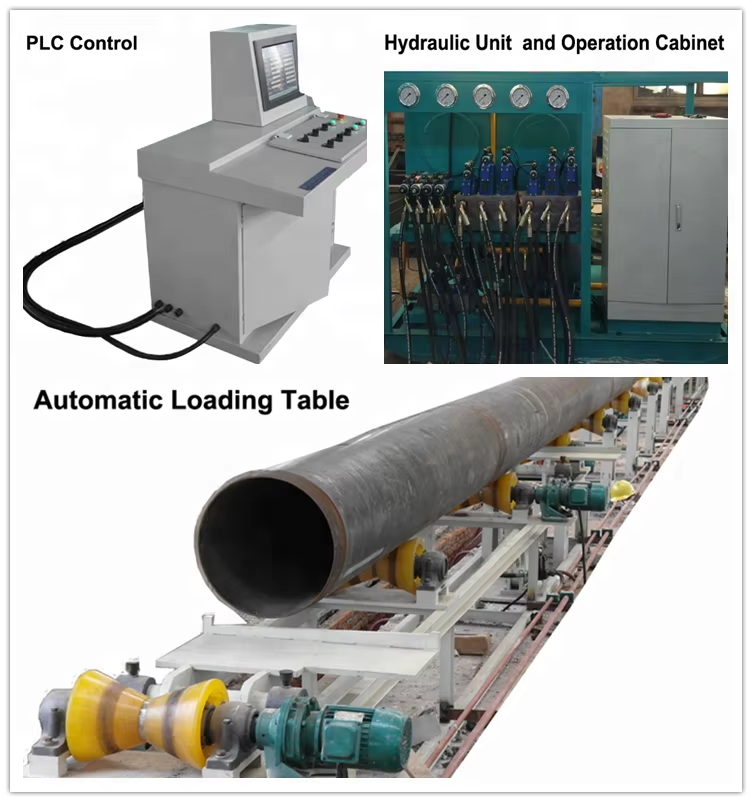

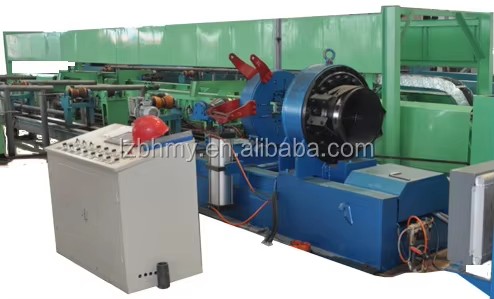

On site installation of h ydraulic bucking machine

The configuration of the torque machine

1.BHT 570 bucking machine is driven and controlled by both hydraulic and pneumatic system. T he system is simple, also has c onvenient and flexible manipulation.

2. The system is controlled by pneumatic except for power tong hydraulic motors so that can greatly reduce the oil leak age.

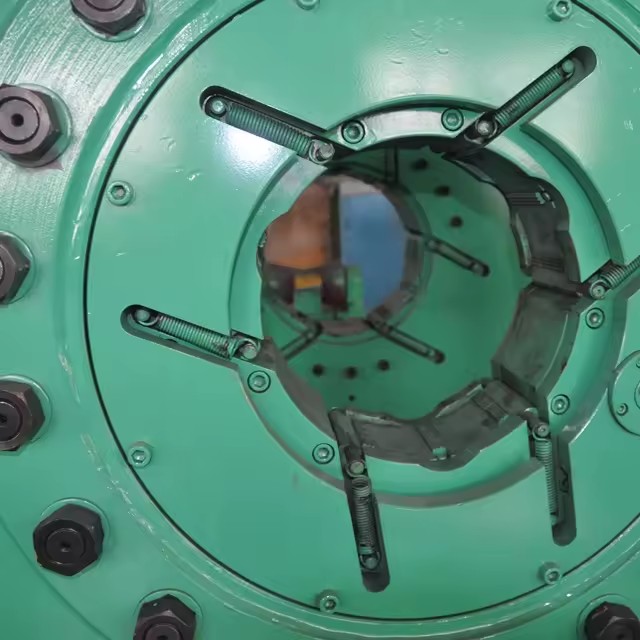

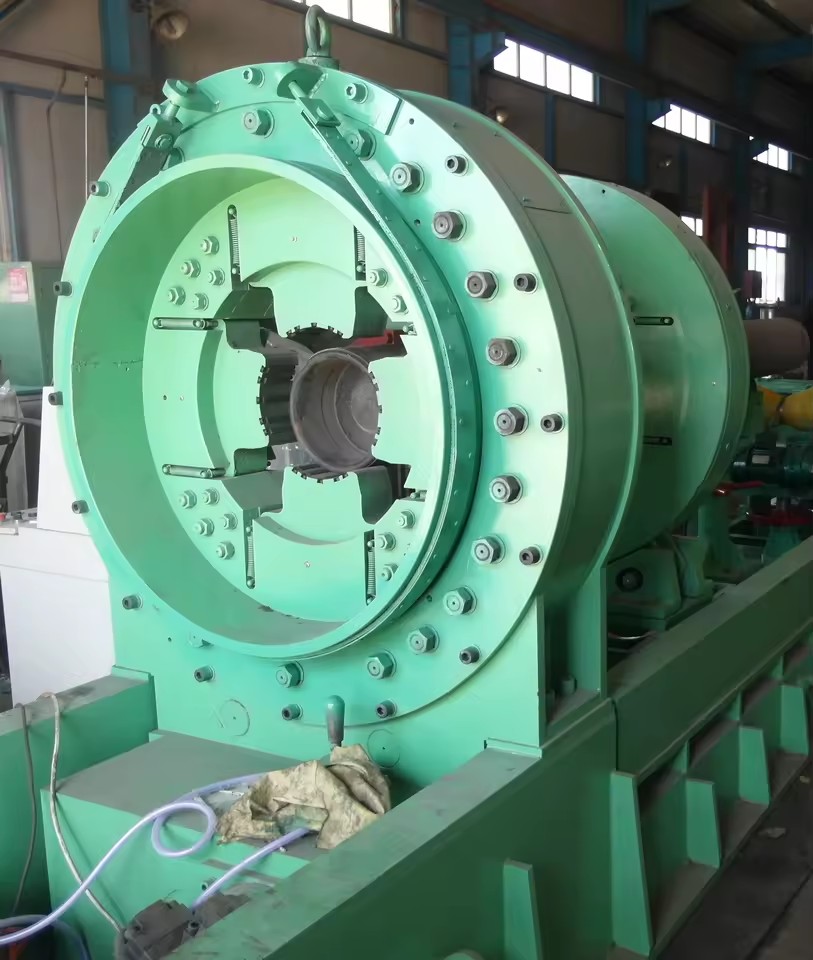

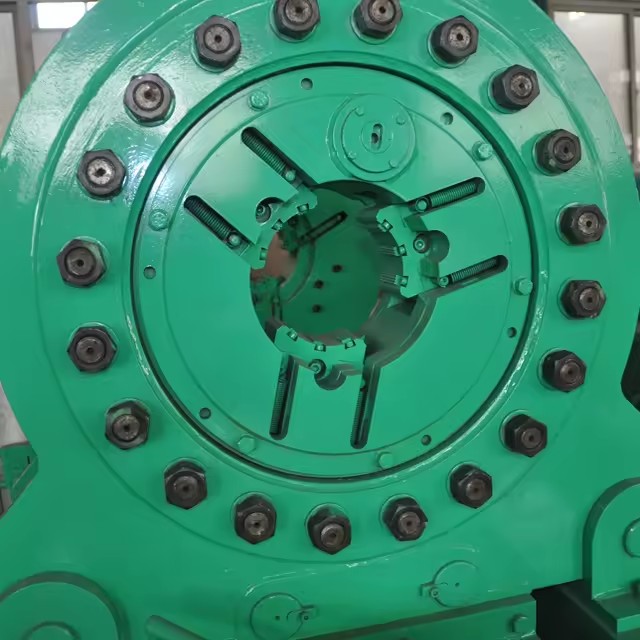

3. T he power tong uses closed form, which is driven by hydraulic motor with roller climbing clamping. The clamp head include 4 jaw plates with 90º proportional distributing, every jaw plate has 4 - 6 teeth. A total of 1 6 - 24 teeth contact the coupling surface with reliable clamping. Teeth marks accord with API standard. T he clamp head is reset by means of automatic positioning machinery, quickly and reliabl y.

4. T he backup tong also uses closed form, which is driven by the pneumatic cylinder. T he jaw clamping rollers climbing principle is similar to the driving clamp.

5. The power tong and the backup tong can automatically regulate to meet the casing and coupling which have a little bending.

6.The replacement of dies is convenient.

7. The backup tong is equipped with tension sensor which is used to measure torque (the unit is k.Nm ). Control system will contrast the torque value and screw circles to the setting value, so that the bucking machine operates automatically.

1.The bore diameter is 570 mm, which is applied to 13 3/8 " -20″ coupling and pipes, the 4 sets of jaw plates 13 3/8", 16", 18 5/8", 20 " are delivered with the machine.

2. S teel grade of the applicable pipe: H40,J55,K55,N80,L80,C90,95,P110,Q125.

3. T he screw on torque is applicable for API standard connection or premium connection.

4. Take double-pump as power, and the speed is stepless changed manually.

The rotate speed of driving clamp:0.7-24r/min.

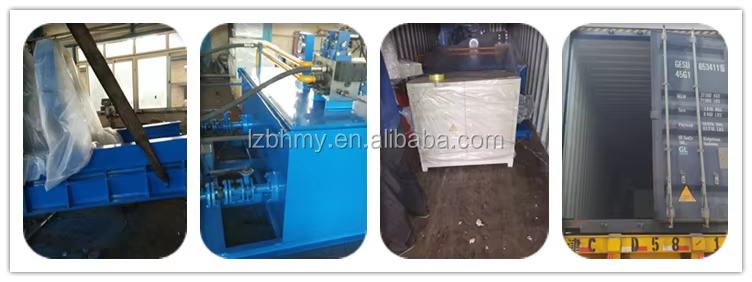

1.Without package,plywood wooden case and free fumigating wooden case.We can supply fumigation package and certificate.

rton packing.

3. Shipping, train, express or upon clients' demands.
