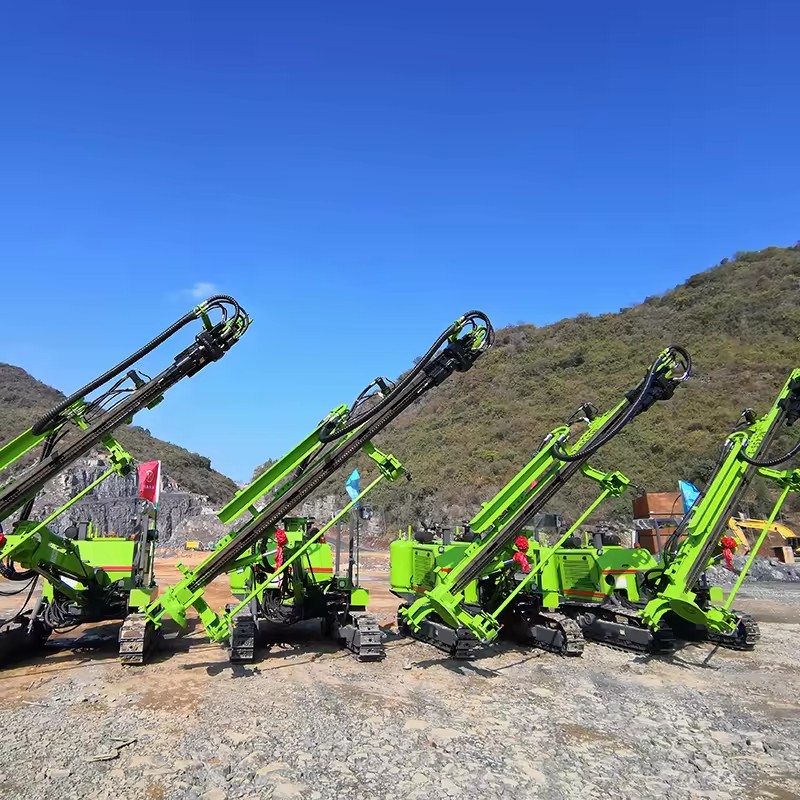

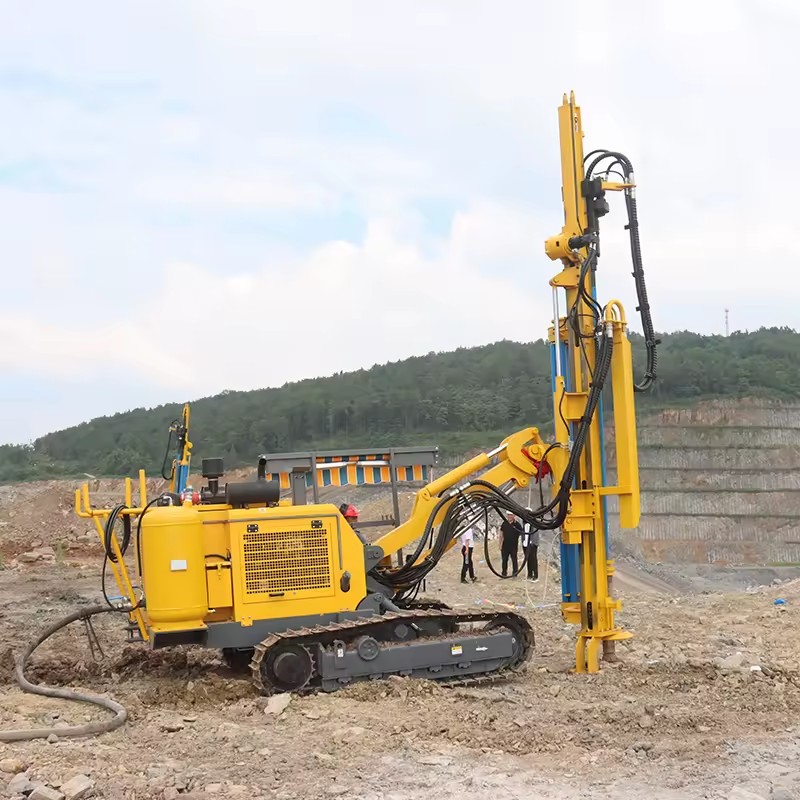

KS368 High Quality Hydraulic DTH Drill Rig 100m Depth Blast Hole Drilling Machine for Coal Mining Quarry & Construction

Available for enquiry 0.0 · 0 reviews
USD

$ 64,040.00 64040.0 USD $ 64,040.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
mining and constuction drilling
Type
dth drill rig
Drilling Depth
Max.100m
Drilling Diameter
300 mm(11.81in), 200 mm(7.87in), 350 mm(13.78in), 150 mm(5.91in), 140mm(5.51in), 90 mm(3.54in), 115mm(4.53in)
Power Type
Diesel
Core components
Motor, Engine, Pump
Product description
Usage Information
Hole DiameterSingle Motor: Ø90-200mm Double Motor: Ø90-350mm
Drilling Rod SpecificationØ76/89
Hammer4"/5"/6"/7"/8"
Hydraulic Rotary Head
Maximum Rotation Speed70rpm
Maximum Rotation TorqueSingle Motor: 3800Nm Double Motor: 4800Nm
Hydraulic Motor Driven Propulsion Beam
Propulsion Length3750mm
Advancing Compensation1260mm
Propulsion Speed0.59m/s
Maximum Propulsion1.2T
Maximum Lifting Force3T
Total Length5600mm
Rod Change MethodAuxiliary Rod Change
Chassis
Travel Speed3.5km/h
Crawler Frame Levelling Angle±12°
Ground Clearance500mm
Climbing Ability32°
Engine
Yuchai EngineNational Stage Iii Emission Standards
Rated Power73.5
Transport Dimension
Length6500mm
Width2240mm
Height2450mm
Weight7200kg
Fuel Tank Capacity90L
Dust CollectionStandard Dry Type Two-Stage
OptionalWaterborne Dust Collection

1.

Description images

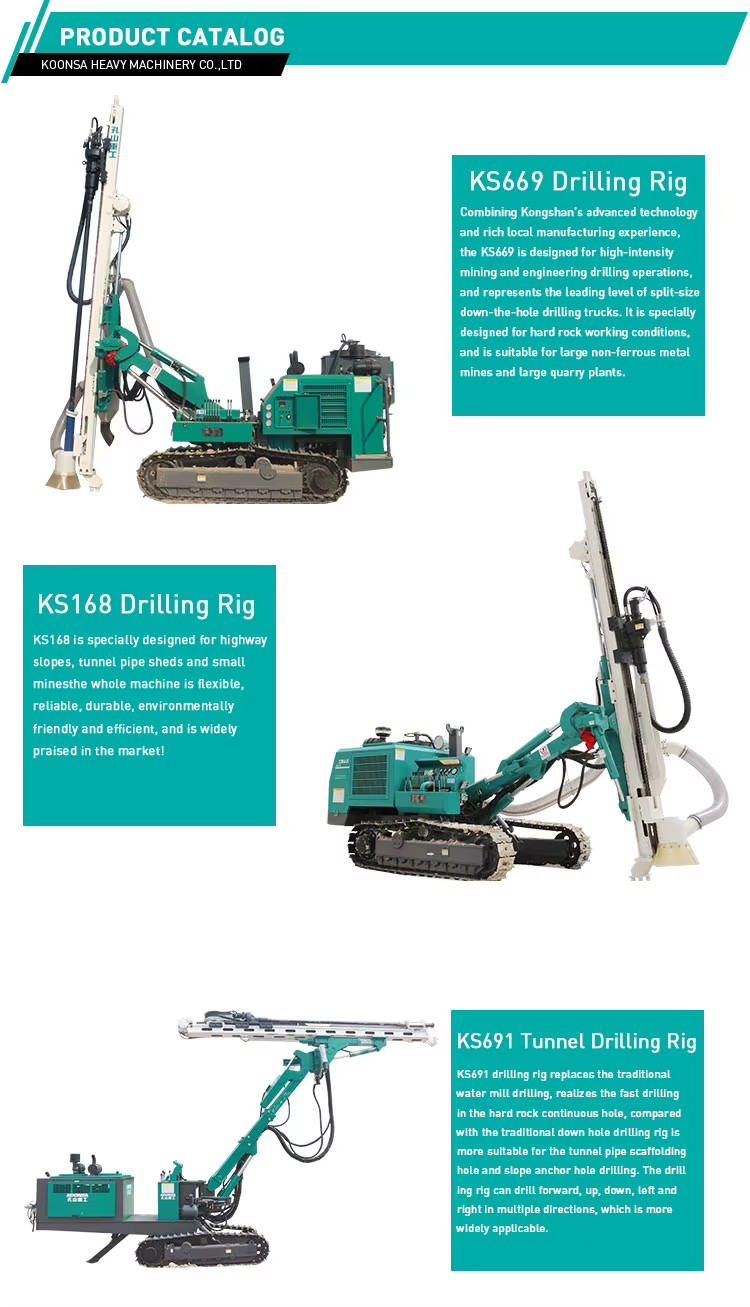

KS368 High Quality Hydraulic DTH Drill Rig 100m Depth Blast Hole Drilling Machine for Coal Mining Quarry & Construction

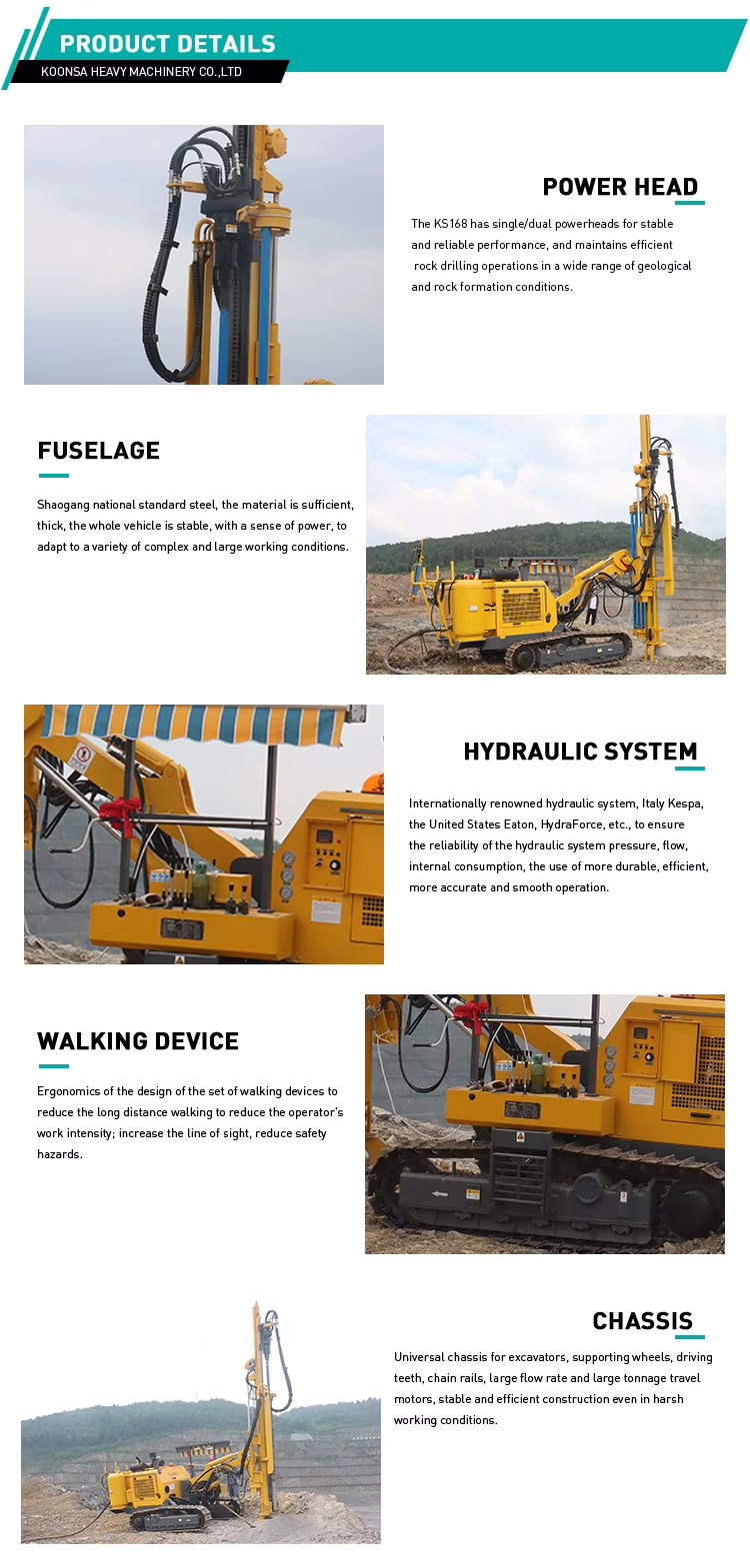

KS368 High Quality Hydraulic DTH Drill Rig 100m Depth Blast Hole Drilling Machine for Coal Mining Quarry & Construction

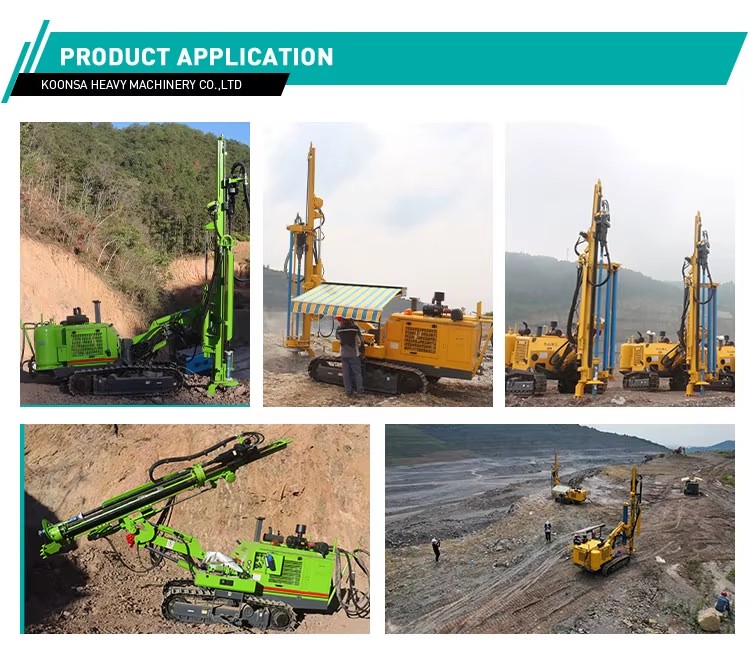

KS368 High Quality Hydraulic DTH Drill Rig 100m Depth Blast Hole Drilling Machine for Coal Mining Quarry & Construction

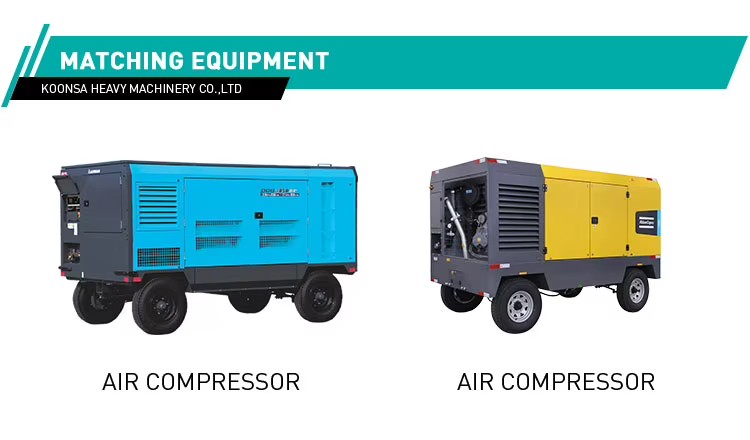

KS368 High Quality Hydraulic DTH Drill Rig 100m Depth Blast Hole Drilling Machine for Coal Mining Quarry & Construction
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    7 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 28 fields
Usage
mining and constuction drilling
Type
dth drill rig
Drilling Depth
Max.100m
Drilling Diameter
300 mm(11.81in), 200 mm(7.87in), 350 mm(13.78in), 150 mm(5.91in), 140mm(5.51in), 90 mm(3.54in), 115mm(4.53in)
Power Type
Diesel
Core components
Motor, Engine, Pump
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Eco-Friendly and low maintenance cost
Place of origin
Zhejiang, China
Weight
7200 KG(15873.28lb)
Dimension (L*W*H)
6500*2240*2450MM(255.91*88.19*96.46in)
Mobility
Crawler
Application
mining and constuction drilling
Hole Diameter
90-350mm
Max Drilling Depth
100m
Engine
YUCHAI Diesel Engine
Rated power
73.5kw
Walking speed
3.5km/h
Drill pipe diameter
76/89/102
Drill pipe length
3m
Rotate speed
0-70r/min
Selling Units
Single item
Single package size
650X224X245 cm
Single gross weight
7200.0 kg
Model number
ks368
Power (W) (Product option)
73.5kw(98.56hp)
Lead time
7 days
Minimum order
1 Units
