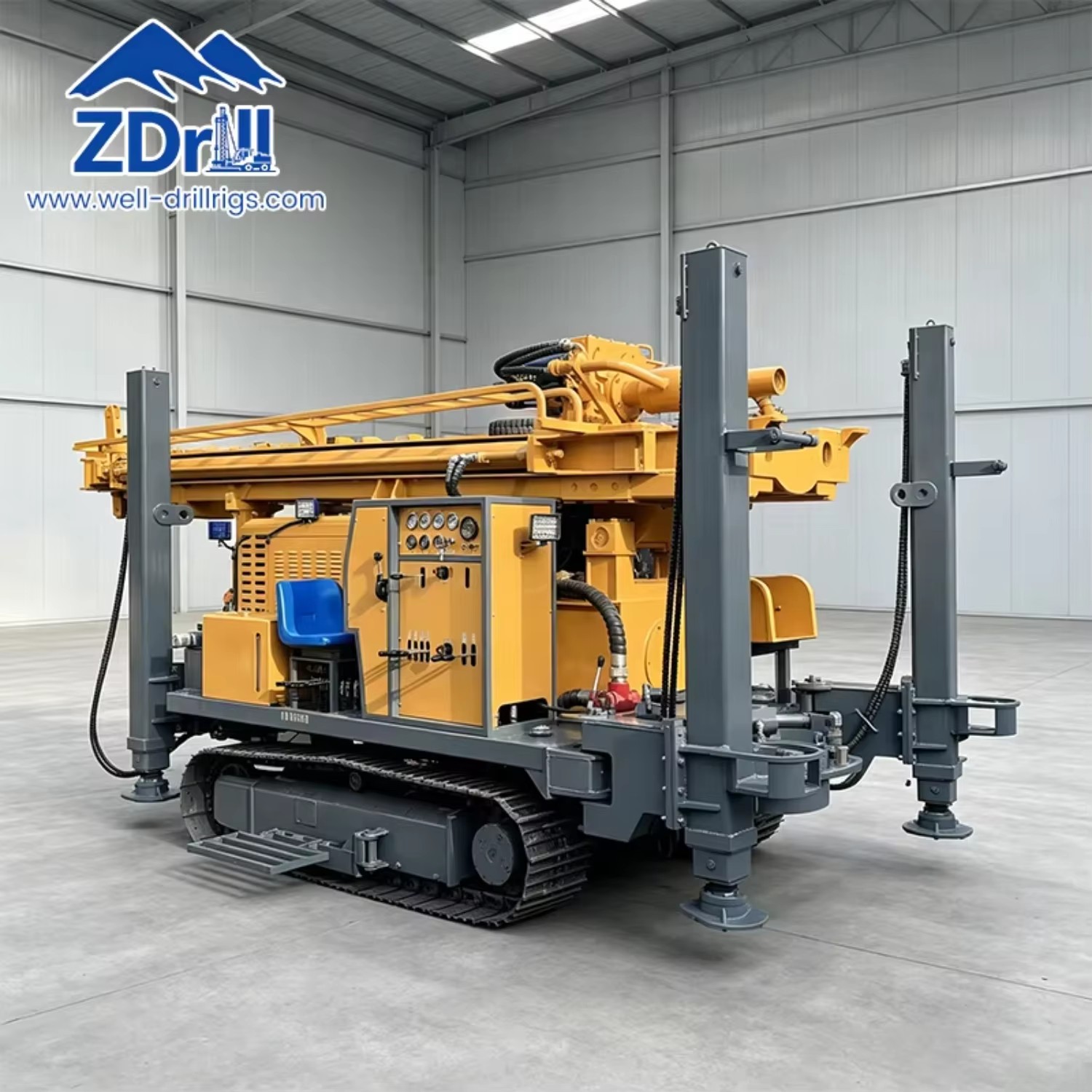

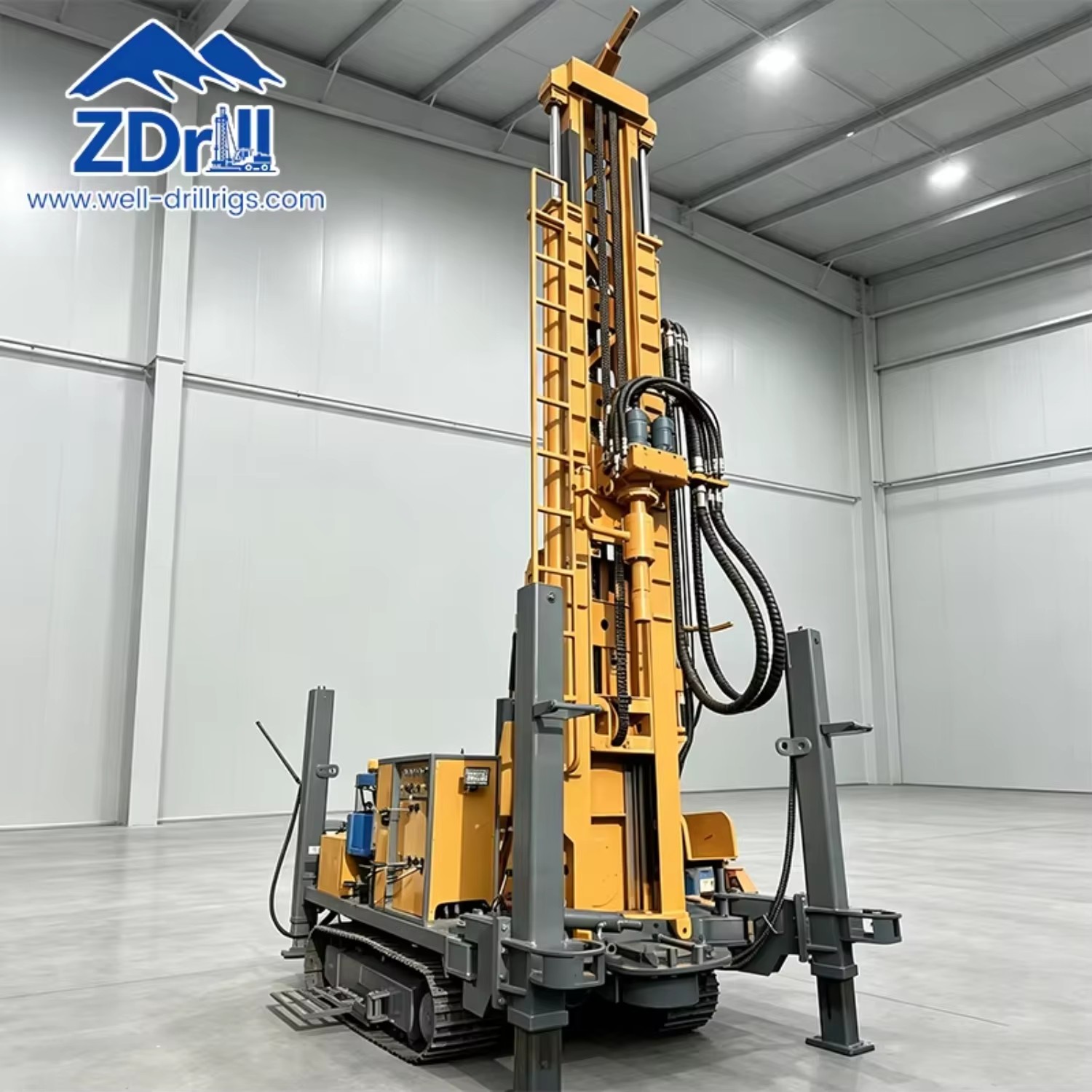

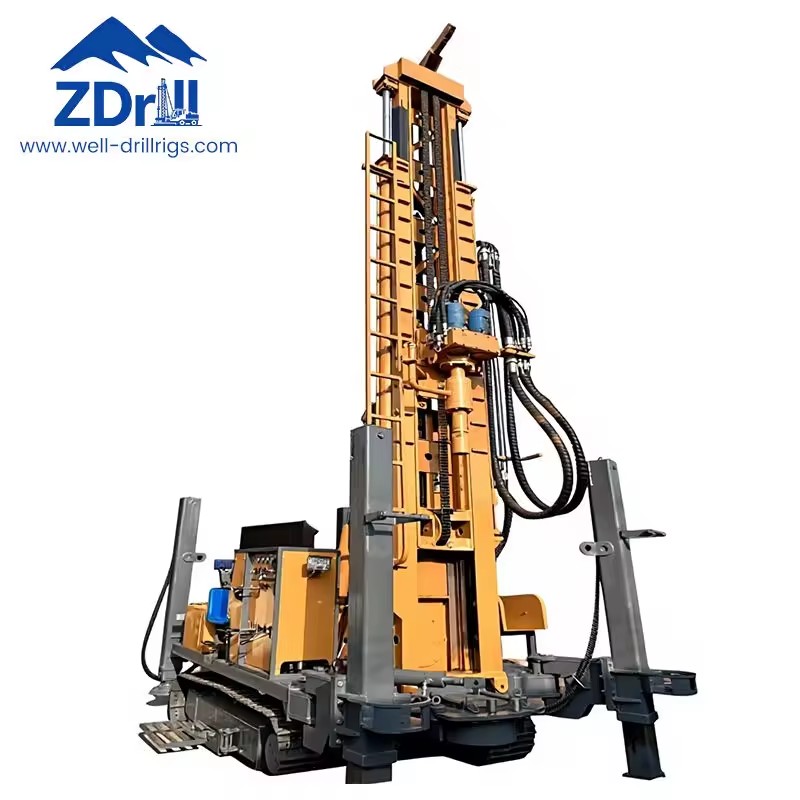

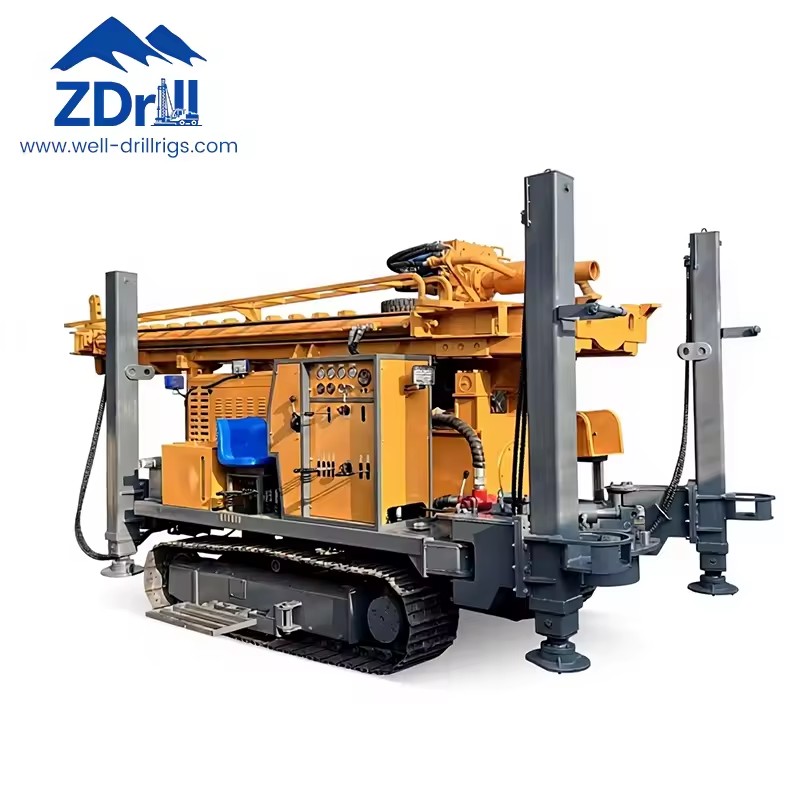

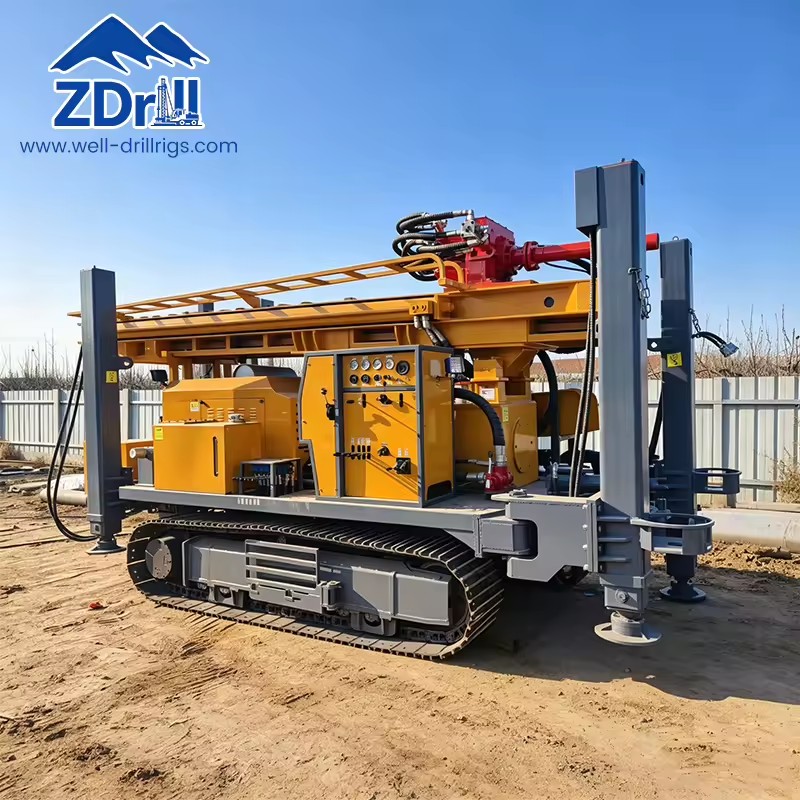

Multifunctional ZD1200 Hydraulic and Pneumatic Drilling Rig Crawler-type Water Well Drilling Rig

Available for enquiry 0.0 · 0 reviews
USD

$ 80,550.00 80550.0 USD $ 80,550.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Usage
  • Type
  • Drilling Depth
  • Drilling Diameter
  • Power Type
  • Core components
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Place of origin
  • Weight
  • Dimension (L*W*H)
  • Mobility
  • Engine
  • Selling Units
  • Single volume
  • Single gross weight
  • Model number
  • Power (W) (Product option)
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Usage
Water Well
Type
ZD1200
Drilling Depth
Max.1200m
Drilling Diameter
105-900mm(4.13-35.43in)
Power Type
Diesel
Core components
Bearing, Motor, Gear, Engine, Pump, Gearbox
Product description

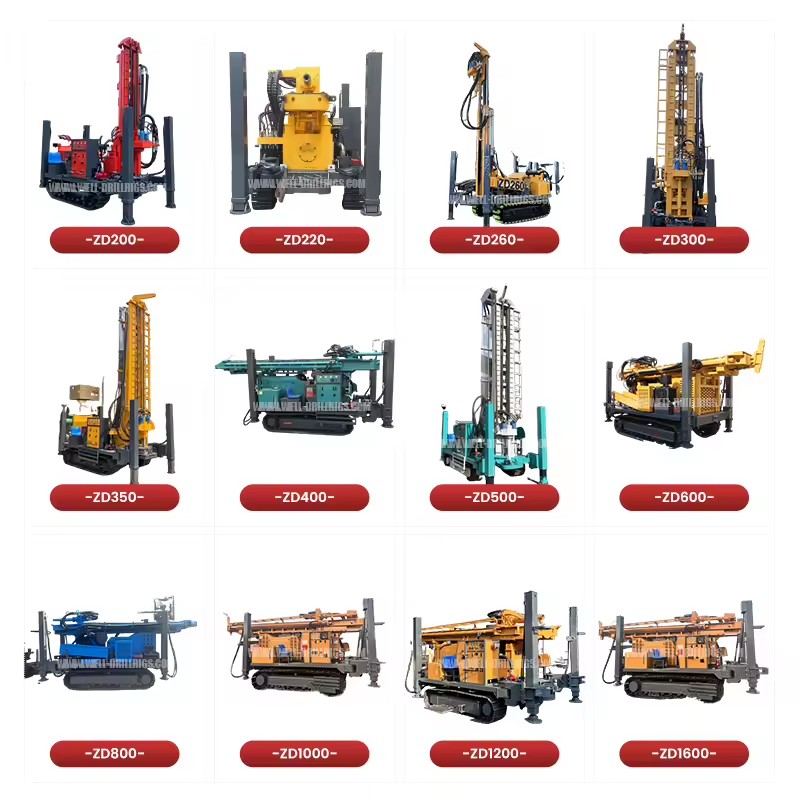

  • ZD1200 Deep Water Well Drilling Rig is high-power full-hydraulic pneumatic drilling equipment, widely used for deep drinking water wells, geothermal wells and large mine water supply well construction. Equipped with high-pressure pneumatic system and strong load capacity, it runs steadily during deep hard rock drilling. We offer customized crawler water well drilling rigs from 200m to 2000m drilling depth to meet the needs of global water well, agricultural, and infrastructure projects.
  • The ZD1200 can automatically adjust the pressure and torque during drilling in hard rock or complex mixed formations, preventing the hydraulic pump, motor and drill pipe from being damaged due to overload, significantly reducing unexpected maintenance costs and greatly extending the overall service life of the drilling rig.
  • Equipped with durable crawler travel chassis, the ZD1200 drilling rig has outstanding terrain passing performance. It can flexibly travel and shift positions on muddy ground, mountain slopes, rugged wilderness and other harsh construction sites, which greatly saves the time and labor cost of equipment transportation and relocation between different construction well locations, bringing higher construction efficiency for field well-drilling work.
    • Product nameZD1200 water well drilling rig
    Maximum drilling depth1200mm
    Drilling diameter105-900mm
    Air consumption16-120m³/min
    Drill pipe length6 m
    Drill pipe diameter127mm
    Axial pressure13t
    Lifting force60T
    Fast lifting speed29m/min
    Fast forward speed40m/min
    Maximum turning torque24000-12000Nm
    Rotation speed75-160r/min
    Tool winch lifting force4T(Big Main Winch)，1.5吨(Small Winch)
    High hydraulic outrigger stroke1.7m
    Walking speed3.5Km/h
    Climbing ability35°
    Machine weight20T
    Dimensions6.6m×2.25m×3m
    Optionalmud pump, electric welding generator, tube expander, air compressor
    Adaptation conditionsLoose layer and bedrock, hard rock
    Drilling modeTop drive hydraulic slewing and propulsion, underhole impactor or mud drilling
    Certifications & compliance
    CE
    Complies with EU standards
    Description images

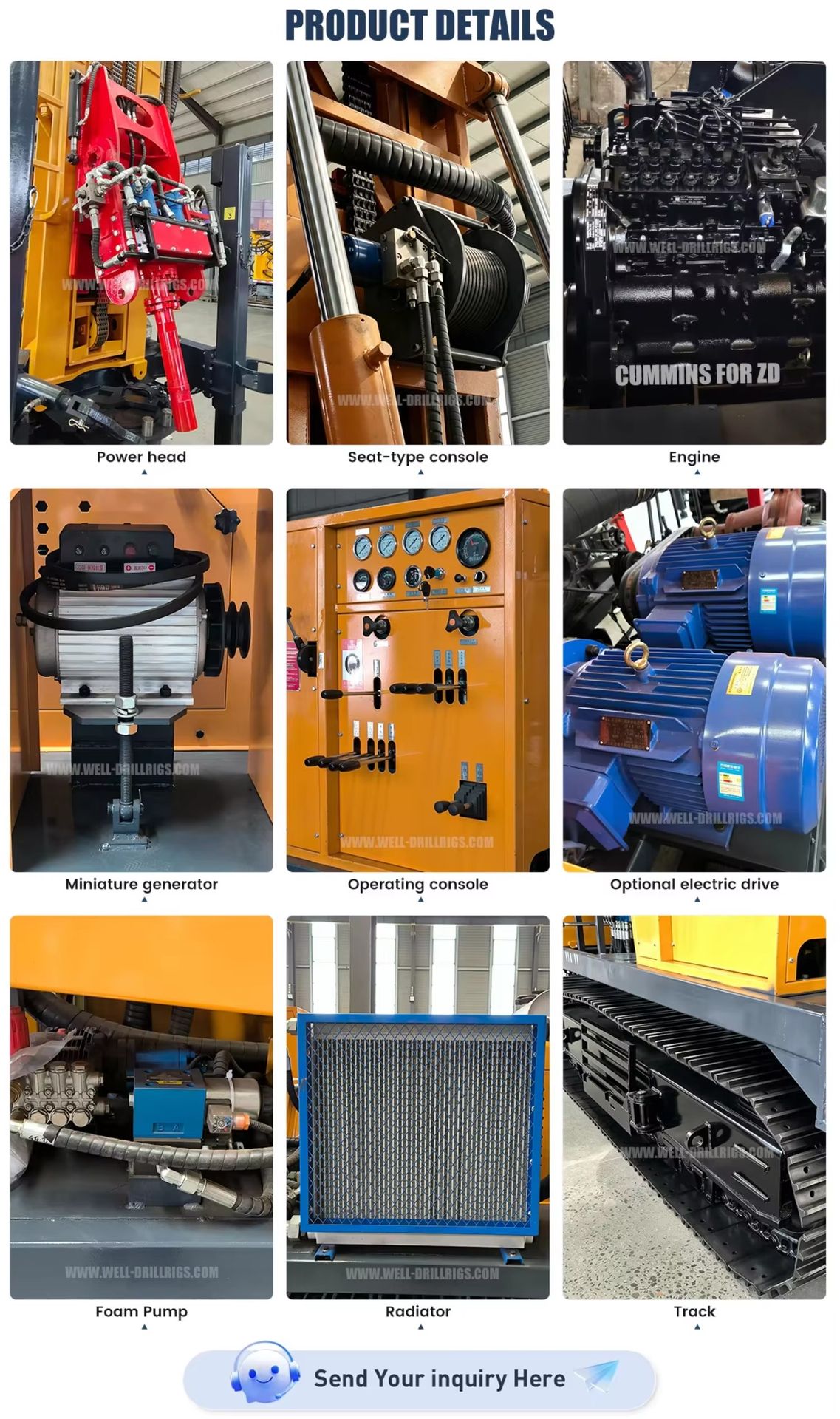

    Product detail
    Multifunctional ZD1200 Hydraulic and Pneumatic Drilling Rig Crawler-type Water Well Drilling Rig
    Multifunctional ZD1200 Hydraulic and Pneumatic Drilling Rig Crawler-type Water Well Drilling Rig
    Product detail
    CE
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      30 days

    • Step 3

      Packaging and dispatch

      Packaging details are available on request.

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 21 fields
    Usage
    Water Well
    Type
    ZD1200
    Drilling Depth
    Max.1200m
    Drilling Diameter
    105-900mm(4.13-35.43in)
    Power Type
    Diesel
    Core components
    Bearing, Motor, Gear, Engine, Pump, Gearbox
    Warranty
    1 Year
    Machinery test report
    Provided
    Video outgoing-inspection
    Provided
    Key selling points
    Easy To Operate
    Place of origin
    China, Hebei
    Weight
    20000 KG(44092.45lb)
    Dimension (L*W*H)
    6.6*2.25*3m(21.65*7.38*9.84ft)
    Mobility
    Crawler
    Engine
    Yuchai, Weichai, Cummins, Quanchai
    Selling Units
    Single item
    Single volume
    0 cm3
    Single gross weight
    0.0 kg
    Model number
    ZD1200
    Power (W) (Product option)
    Engine:Cummins, Yuchai, Weichai, Quanchai, 250kw(335.26hp)
    Certifications & Compliance
    CE
    Lead time
    30 days
    Minimum order
    1 Units
