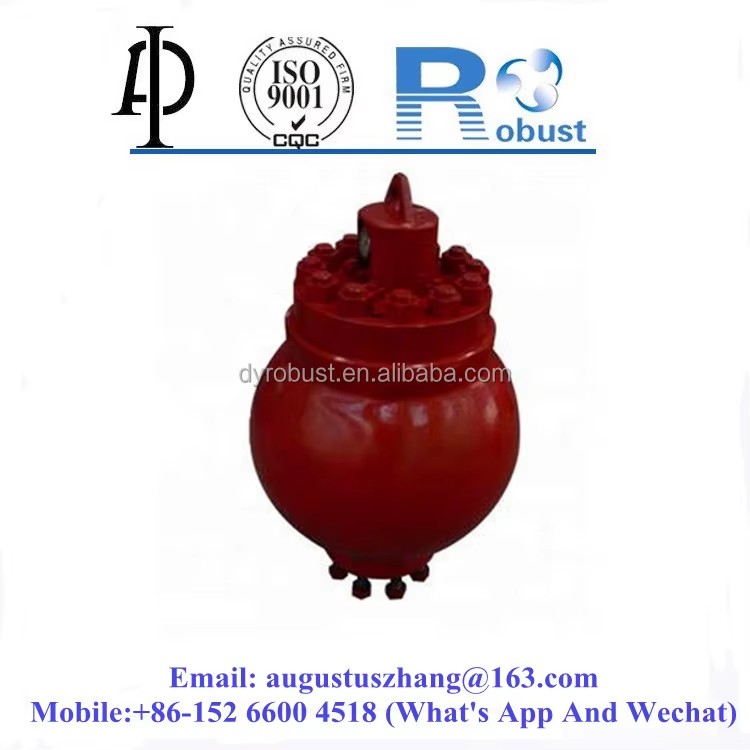

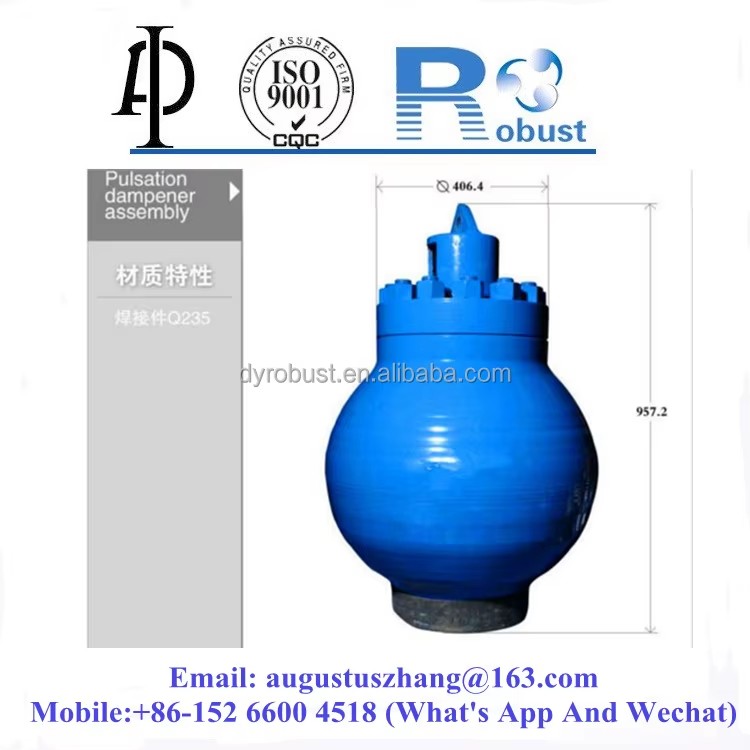

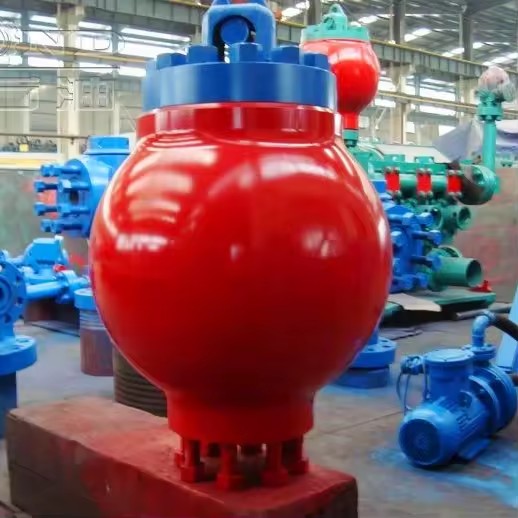

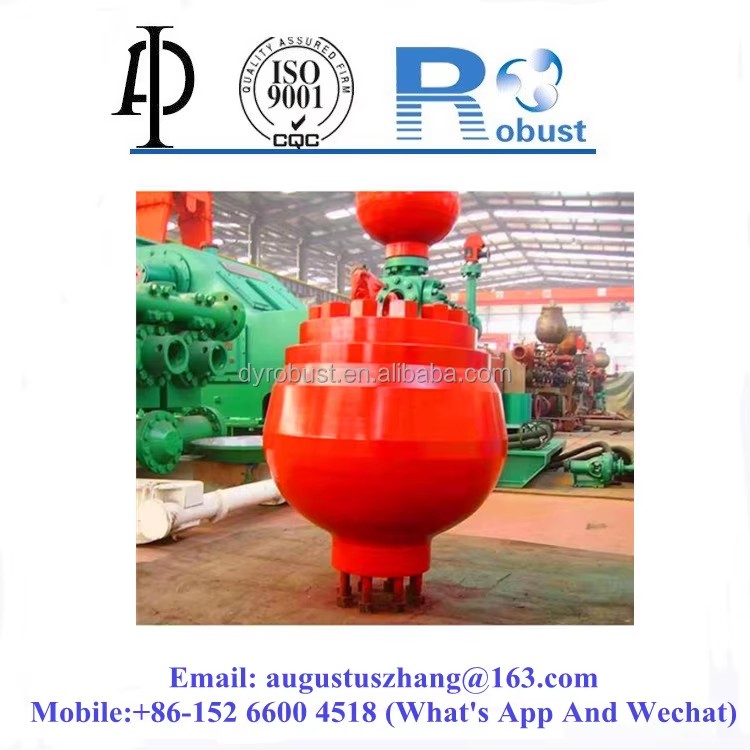

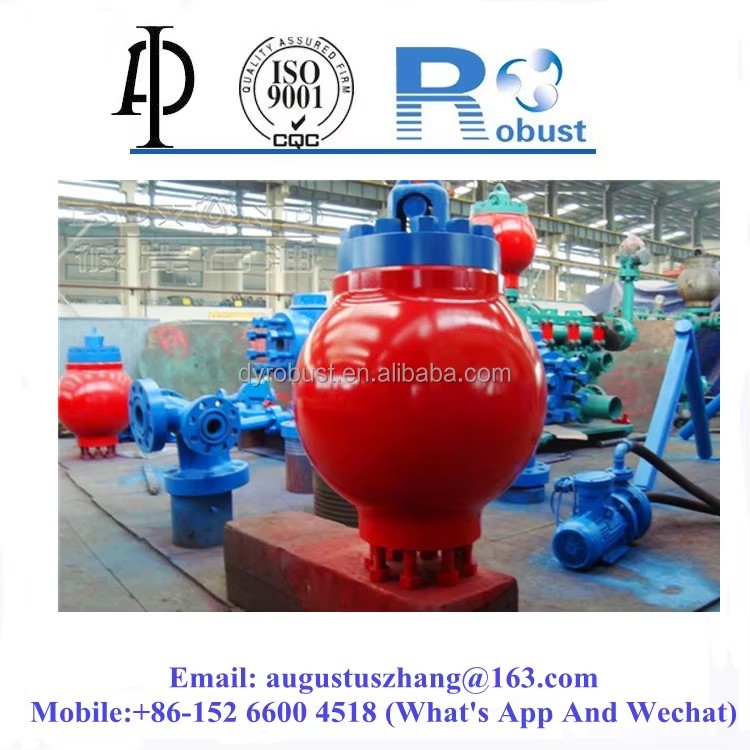

Pulsation Dampener//Dampener/Air Bag/Air Chamber K10/K20, Kb45/Kb75/Pd44/Pd45 for Oil Drilling Triplex/Duplex Mud Pump Emsco

Pulsation Dampener//Dampener/Air Bag/Air Chamber K10/K20, Kb45/Kb75/Pd44/Pd45 for Oil Drilling Triplex/Duplex Mud Pump Emsco/Bomco/Gardner Denver/Oilwell/Tsc

Mud pump pulsation dampener is the mud pump discharge end main component, installs in the hydraulic end discharge pipe one end, plays the stable pressure and the pressure compensation function, the air bag work pressure is the mud pump work pressure 80%.Attention should be paid to the use of air bag, must be the first pressure relief.The mud pump of F500/F800 USES kb-45 air bag, and the mud pump of F1000/F1300/F1600 USES kb-75 air bag.The middle tie rod produced by

Proper installation and use of pulsation dampener can effectively reduce pressure fluctuations in the discharge system, thus achieving a more uniform fluid order to achieve a high service life of the air bag, always maintain the recommended ratio between the pump pressure and the air bag precharge pressure (generally not more than 2/3 of the pump discharge pressure, the maximum should not exceed 4.5mpa).

Warning: 1. Only compressed nitrogen or compressed air can be used when charging · flammable and explosive gases such as oxygen or hydrogen cannot be used.

2. In the maintenance of air bag, air bag pressure must be zero, the pump pressure must be nnot rely on the pressure gauge to judge, because the residual pressure is small, the pressure gauge can not be displayed, but this low pressure will also lead to accidents!

1.OEM 2.wear and oil resistant 3.NR,CR,etc. petitive price with international quality

BOMCO EMSCO HYDRIL Mud Pump Pulsation Dampener with Bladder Manufacturer Pulsation Dampener//Dampener/Air Bag/Air Chamber K10/K20, Kb45/Kb75/Pd44/Pd45 for Oil Drilling Triplex/Duplex Mud Pump Emsco/Bomco/Gardner Denver/Oilwell/Tsc

Function

Reduce the drilling pump pressure fluctuations of instantaneous displacement change

Make the pump pressure smoothly, protect equipment from damage caused by severe vibration.

Filled with nitrogen in the air or inert gas, in the absence of them,air can replace.But oxygen or combustible gas is forbidden.

Inflation pressure is 20% ~ 30% of the maximum working pressure. The advanced filling pressure is 2.0-2.5 MPa.

Usage

Mainly applicable to 25 to 35 Mpa drilling, to meet the needs of high pressure jet drilling

Proformance

1. Low-speed Long Strong design lengthens liftetime of vunerable fluid related parts.

2. Forced and splash lubrication for more effective lubrication.

3. Advanced durable design ensures smooth operation.

4. Meets the special requirements required if you wish to drill medium deep wells.

5. Interchangable and compact suction and discharge valves.

6. Fluid end is independent making examination and maintenance more convenient.

EMSCO:F-1300,F-1600,FB1300,FB1600,F-800,F-1000,F-500,F-350,DB-550,DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700

IDECO: T-500, T-800, T-1000, T-1300, T-1600

NATIONAL: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400

GARDNER DENVER:PZ7,PZ8/9,PZ10/11,FK-FXK,FY-FXD,FD-FXX,FG-GXG, FG-FXG

KG-KXG, FQ-FXQ, FF-FXF,FF-FXP

OILWELL: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

And other brand spare parts for Wirth,Opi,Ellis Williams,Wilson,Gaso,Skytop/Brewster.

1. Q: Can I get some centralizer samples? A: We are honored to offer you samples for quality check.

A: We are honored to offer you samples for quality check.

2. Q: Do you have the products of casing centralizer in stock? A: No. All bikes are to be produced according to your order including samples.

A: No. All bikes are to be produced according to your order including samples.

3. Q: What’s the delivery time? A: It usually takes about 25 working days to produce an order from MOQ to 40HQ container. But the exact delivery time might be different for different orders or at different time.

A: It usually takes about 25 working days to produce an order from MOQ to 40HQ container. But the exact delivery time might be different for different orders or at different time.

4. Q: Can I mix different models of bow spring centralizer in one container? A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.

A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.

5. Q: How does your factory do regarding quality control? A: Quality is priority. Highper People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.

A: Quality is priority. Highper People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.

6. Q:What's your warranty terms? A: We offer different warranty time for different products. Please contact with us for detailed warranty terms.

A: We offer different warranty time for different products. Please contact with us for detailed warranty terms.
