High quality motor butterfly valve electric actuator 220V
Product Specification
Electric actuator On-off type: feedback signal: Passive contact signal/4-20mA/ resistance signals. Regulation type: Input signal 4-20mA/0-10V/1-5V; Feedback signal: 4-20mA/0-10V/1-5V Voltage: AC220V\380V\110V\24V,DC12V\24V etc; Special voltage can be customized. Explosion-proof class: Can be choose explosion-proof type EX d IIBT4
| Type | Control type | Function |
| Electric actuator | ON-OFF type | Feedback: the active signal, passive contact signal, resistance, 4-20mA |
| Regulation type | Input and output signal: 4-20mA, 0-10v, 1-5v, switch, MODBUS, PROFIBUS field bus |
| Filed operation | The field, remote control switch regulation and MODBUS, PROFIBUS field bus |
Electric actuator control way
Specification of Electric Actuator
| Items Parameter | FOSD-05 | FOSD-10 | FOSD-16 | FOSD-30 | FOSD-60 | FOSD-125 | FOSD-250 | FOSD-400 |
| Output torque | 50Nm | 100Nm | 160Nm | 300Nm | 600Nm | 1250Nm | 2500Nm | 4000Nm |
| Rated travel time | 20S | 15S/30S | 30S/60S | 100S | 100S | 100S |
| Rotation angle | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° | 0°-90° |
| Working current | 0.25A | 0.48A | 0.68A | 0.8A | 1.2A | 2A | 2A | 2.7A |
| Starting power | 0.25A | 0.48A | 0.72A | 0.86A | 1.38A | 2.3A | 2.3A | 3A |
| Motor power | 10W/F | 25W/F | 30W/F | 40W/F | 90W/F | 100W/F | 120W/F | 140W/F |
| Weight | 3kg | 5kg | 5.5kg | 8kg | 8.5kg | 15kg | 15.5kg | 16kg |
| Power | AC220V, AC24V, AC110V, AC220, AC380, DC24V (choose options) |
| Input signal | 4-20mA ( Modulating type ) |
| Output signal | 4-20mA ( Modulating type ) |
| Insulation resistance | 100M/500VDC |
| Pressure withstanding | 1500 VAC, one minutes |
| Inbreaking protection | IP65/IP67 |
| Installation angle | 360° any angle |
| Electrical Interperation | one G1/2 CNCO,one Power cord connection port,one signal wire connection port |
| Ambient humidity | 30°C to +60°C |
| Pilot circuit options | A:with limit position switch style (standard) B: with neutral position switch style ( passive contact) C:with potentiometer style D: both potentiometer and neutral position switch style E: with control module style ( Modulating Applications) F: DC motor control circuit style G:Three-phase current 380V control circuits style H:Three-phase current 380V, both neutral position switch and potentiometer style |

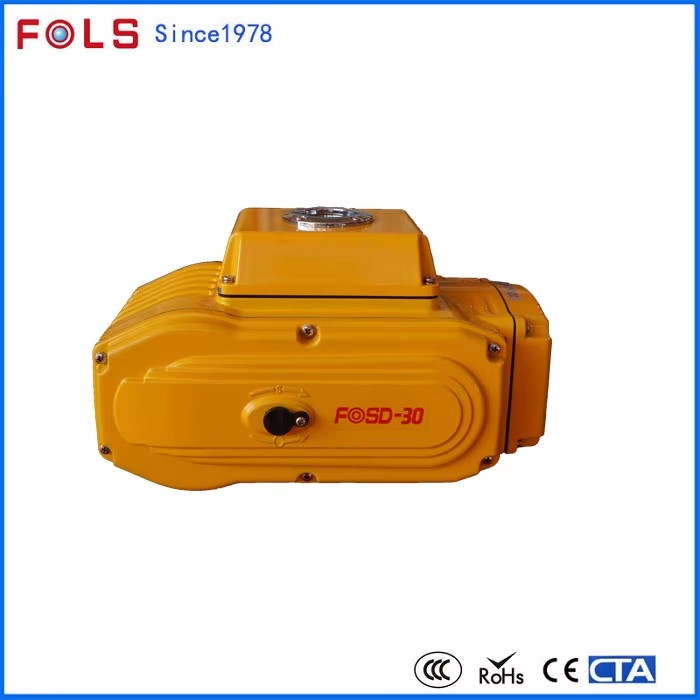

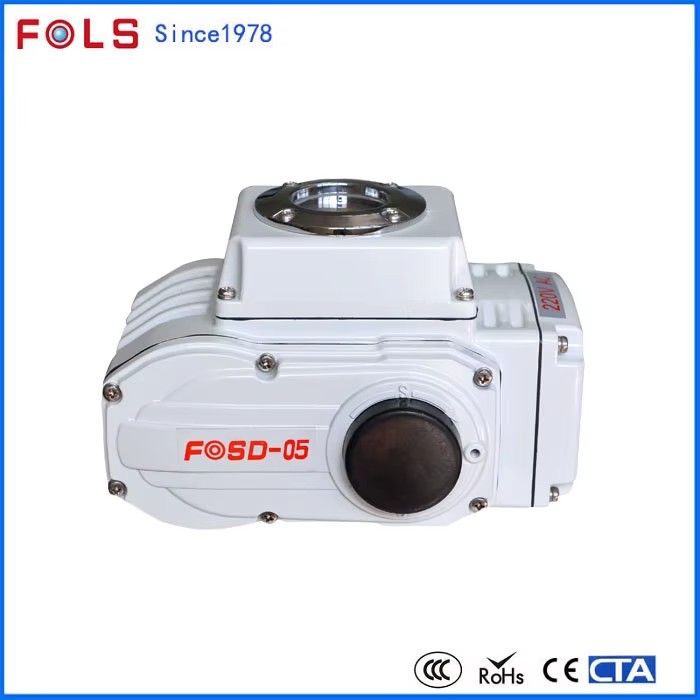

Picture of electric actuator
Products Application
pneumatic valve actuator, and in the research, development, production, sale and service of automatic
control system
Our main products the series of electric actuator are elaborately designed and ma nufactured by the
most advanced technology according to the practical situation. The series of electric actuator are
ch aracterized by driving device and transmission gear in one, small volume, light weight, good-looking
appearance, and remarkable performance. They have been widely used in various fields, such as paper
making, pharmaceuticals, food, chemical, petroleum, electricity, fire protection, air-condition, water supply
and industrial automation and so on.
Certifications
Trade Terms 1. Trade term: EXW FOB CIF etc. 2. Delivery way: By express, By Sea, By air. 3. Payment term: TT Western Union L/C etc. 4. Payment condition: Payment: T/TSample cost: 100% payment. Order payment: T/T, 35% deposits before production, 65% balance to be paid before dleiverying
5. Delivery time: Sample days: 5 working days Order days: 15 days 6. Shipping freight are quoted under your requests 7. Shipping port: Guangzhou, Shenzhen 8. Discounts are offered based on order quantities 9. MOQ:1pcs sample
Packing detail: we use standard export wooden paking
