Product Introduction
power-handling capability
50hp(30KW)
Maximum pressure range
420Mpa
Maximum cutting thickness
100mm
Maximum
3.7L/min
Maximum single nozzle diamete
0.33
Working voltage and power suppl
380V50Hz
Environmental operating temperature
lowest:40℉(5℃) highest:104℉(40℃)
Store at ambient temperature
lowest:36℉(2℃)
outline dimension, physical dimension, external dimensions
1500*1400*1500
Water supply information by weight
2460lbs（1120kg）
Minimum water supply flow
4gpm(15.1lpm)
Minimum water supply pressure
35PS0.24MPa
Reservoir capacity
1L
Tank capacity cooling system
30Gal.(114L)
Cooling water consumption
3gpm(11.4pm)
Minimum pressure of cooling wate
0.3MPa
1.Cutting system: (AB five-axis) 2.Main technical parameters
Number of control shafts
5 shafts
Axis A rotation Angle
±12°
B-axis rotation Angle
Angle control accuracy
±0.01
Model
QR-ACL3520
Overall dimensions
4000*3300*1900
Cutting range
3000*2500
Z-axis travel
100
Control accuracy
±0.1
Cutting accuracy
Repeat positioning accuracy
±0.025
The maximum no-load moving speed of the machine tool
8000
1. Metal processing industry: "Cold cutting + high precision", addressing the pain points of laser/plasma cutting such as thermal deformation, hardened layer, and the need for secondary grinding, is suitable for precision fields like aerospace. 2. Stone/Glass industry: "Wide cutting range + good edge quality", seamless cutting of brittle materials such as marble and rock plates, smooth edges without chipping, eliminating the need for edge grinding processes, suitable for high-end decoration scenarios. 3. Composite materials/thermosensitive materials industry: "Cold cutting + material adaptability", no carbonization or delamination when cutting carbon fiber, food, etc., solving the problem of "inability to cut or poor cutting" in traditional methods.
00:00
Product parameters
Product matching

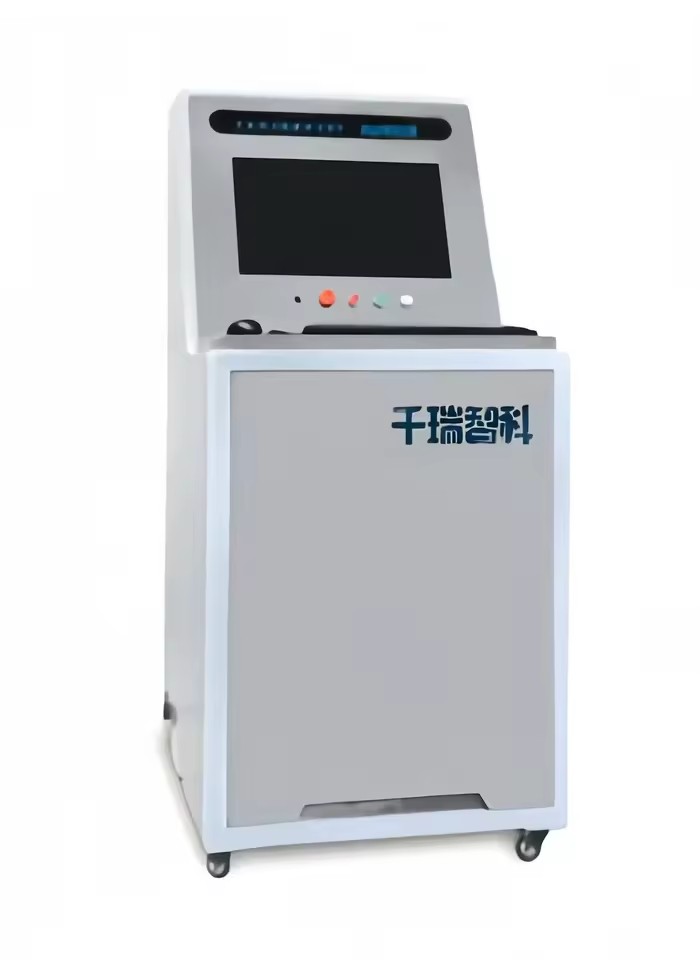

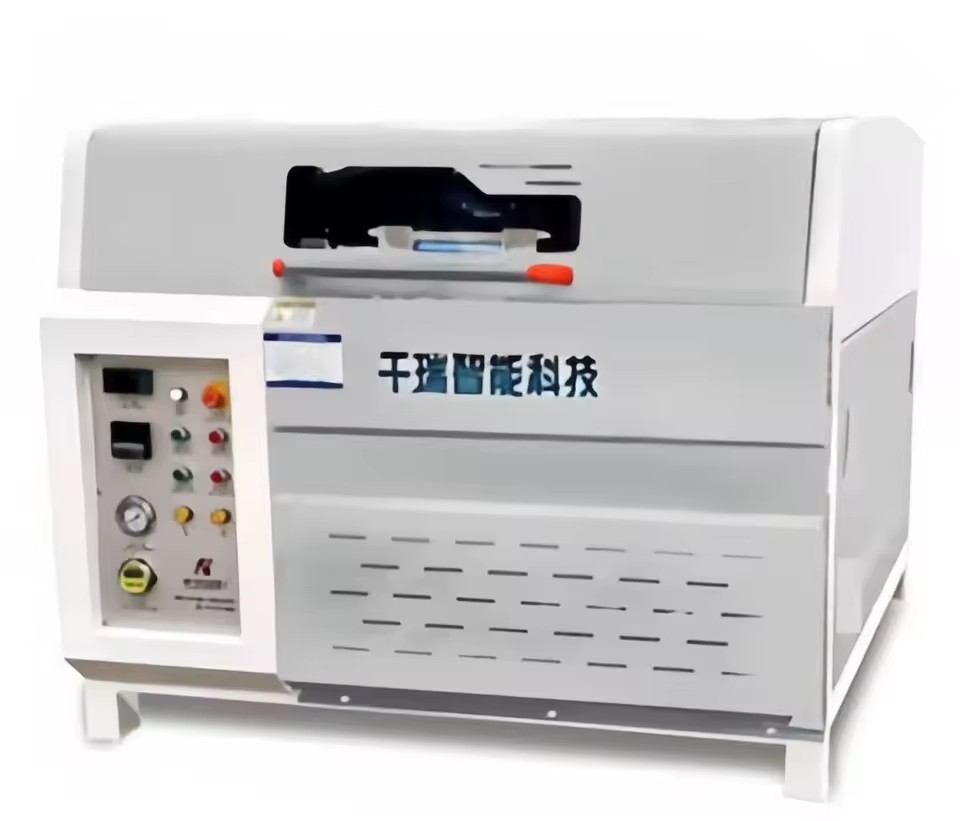

The high pressure supercharger adopts the international advanced high pressure system, with stable working pressure of 300-350Mpa
and maximum pressure of 420Mpa. It has the advantages of high stability and continuous production
The system adopts a unique independent high-voltage intelligent control panel, and the system control achieves a closed loop Operation of the control system. The operation panel can be used to control the high-voltage system independently or to control the high-voltage system It can be used for the control of high-voltage systems. The operation is simple and convenient, and the performance is stable

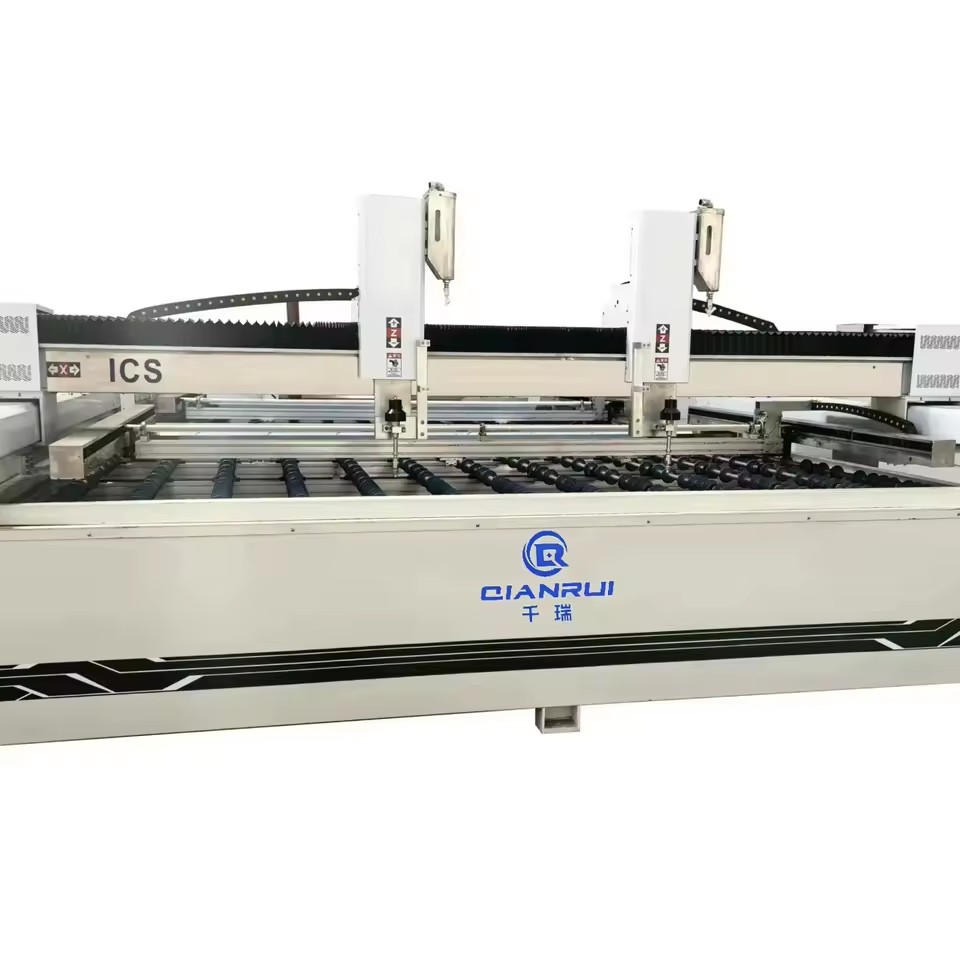

1.Cutting system: (AB five-axis)
2.Main technical parameters
The integration of General Electric's AUTOCAD software with our company's automatic programming system enables the effective generation of CNC program responses. This innovative approach eliminates the need for manual configuration of high-pressure components, pneumatic valves, sand control valves and oil pumps. The control software automatically manages all parameters based on the geometry. The DXF files generated by autocad can be directly called in the CNC system software without the need for additional conversion tools. The system will automatically link the graphic elements in the DXF files.
Pneumatic valves enable instant opening and closing of high-pressure water. ● Blade heads can tilt at any angle for cutting
ensuring precise vertical alignment or slope. ● Equipped with the latest servo drive and motor systems. ● Utilizes advanced
reducers for compact design and enhanced motion accuracy. ● The innovative AB-axis structure achieves five-axis coordination (X,Y, Z, A, B)
QR automatic sand supply system · 1 set The pressure-fed sand supply system uses 0.2MPa compressed air to intermittently push the abrasive in the pressure vessel through the hose into the ring-shaped sand tank on the working table. The sand flow rate is automatically distributed according to the needs of cutting, with small gas consumption, slow flow velocity and little wear, and the failure rate is nearly zero
.Main features: Feng Shui double cooling is the most unique, safe and stable cooling method. The bidirectional cooling has better effect. The water cooling is economical and convenient, with low operating cost and simple maintenance cost.
Cut the sample
Question: What factors affect the cutting speed? Answer: It mainly depends on the material properties (hardness/thickness), water jet pressure, abrasive type and particle size. Question: Which vulnerable parts need to be replaced regularly? Answer: High-pressure seals (300-500 hours), nozzles and mixing tubes (80-120 hours), water filter elements (15-30 days). Question: How much water and abrasive are consumed? Answer: Pure water cutting is 15 to 25 liters of water per hour. Abrasive cutting: 10 to 20 liters of water + 2 to 5 kilograms of abrasive per hour. Question: What are the requirements for the installation environment? Answer: Stable 380V power supply, clean water source + drainage outlet, 1-1.5 meters of space around the equipment, temperature 5-40℃. Question: Is the maintenance cost high? Answer: Medium. The average monthly cost of vulnerable parts is 300 to 800 yuan, electricity cost is 6,000 to 12,000 yuan, and annual maintenance cost is 1,000 to 3,000 yuan. Question: What is the maximum cutting thickness? Answer: Pure water cutting soft materials ≤50mm; Abrasive cutting: metal ≤150mm/stone ≤ 200mm at 420MPa and stone ≤300mm at 600MPa.
