Name: Mini Exhaust 1/4"1/2" BSPT NPT Male Thread Stainless Steel SS304 0.5-10Bar Pressure Relief Air Release Valves FKM Seat Seal
SKU: B2B-9106
Price: 30.0 USD
Availability: PreOrder

Product description

Product Name	Mini Exhaust 1/4"1/2" BSPT NPT Male Thread Stainless Steel SS304 0.5-10Bar Pressure Relief Air Release Valves FKM Seat Seal
Material	SS304
Standard	According to customers
Size	1/4",3/8",1/2"
Pressure	6 bars
Temp.	40 to 150 degree
Connection	Threaded ends fitting
Used	Beverage,beer,water treatment,comestic

Sanitary Pressure Relief Valve for Vessel (304 Stainless Steel, NPT Threaded)

This product is a compact, spring-loaded sanitary pressure relief valve designed specifically to protect small to medium-sized vessels, tanks, and pipelines in hygienic processing applications.

Primary Function: Its critical role is to serve as a safety device, automatically venting excess pressure from a sealed system to prevent over-pressurization

which could lead to equipment damage, product loss, or safety hazards. It activates when the internal pressure exceeds a pre-set limit and reseals once normal operating pressure is restored.

Key Features & Specifications

Hygienic Construction: Manufactured from 304 Stainless Steel, this valve offers excellent corrosion resistance and is suitable for use in food, beverage

dairy, pharmaceutical, and biotech industries where cleanliness is paramount. The smooth surface finish minimizes areas for bacterial entrapment.

Connection Type: Features standard NPT (National Pipe Taper) threads for a secure, leak-proof connection to compatible pipework and vessel fittings.

Available Sizes: Offered in three common inlet sizes to fit various system designs

1/4" NPT

3/8" NPT

1/2" NPT

Pressure Range: Designed for low to medium-pressure applications. The standard setting range is typically between 0 to 150 PSI (pounds per square inch) or equivalently 0 to 10 bar.

Also we can produce higher pressure,like 16 bars,20bars,30 bars,40 bars.This is customzied pressure.We're manufacturer,and accept customzied requirements.

The valve is preset or adjustable to a specific cracking pressure within this range before shipment.

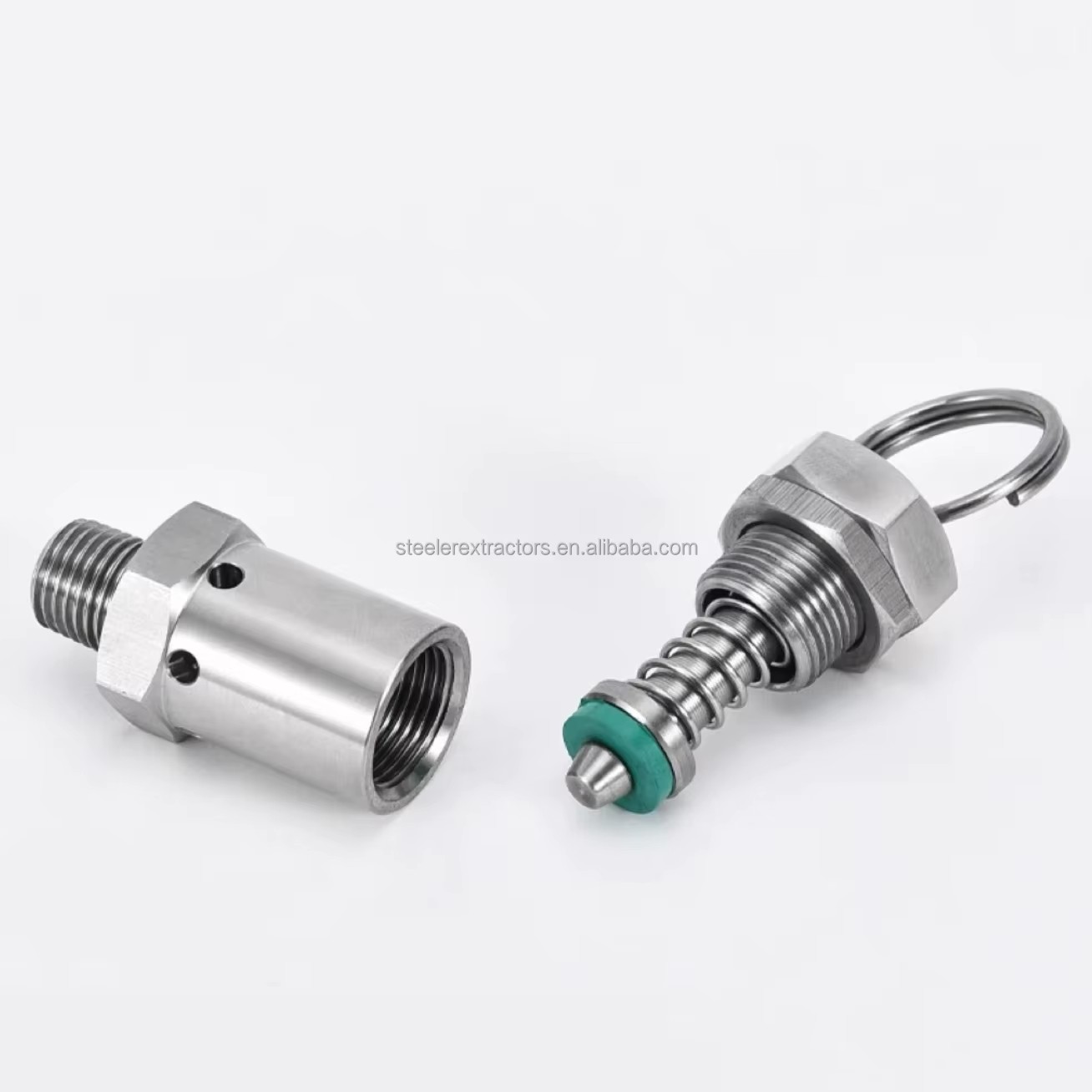

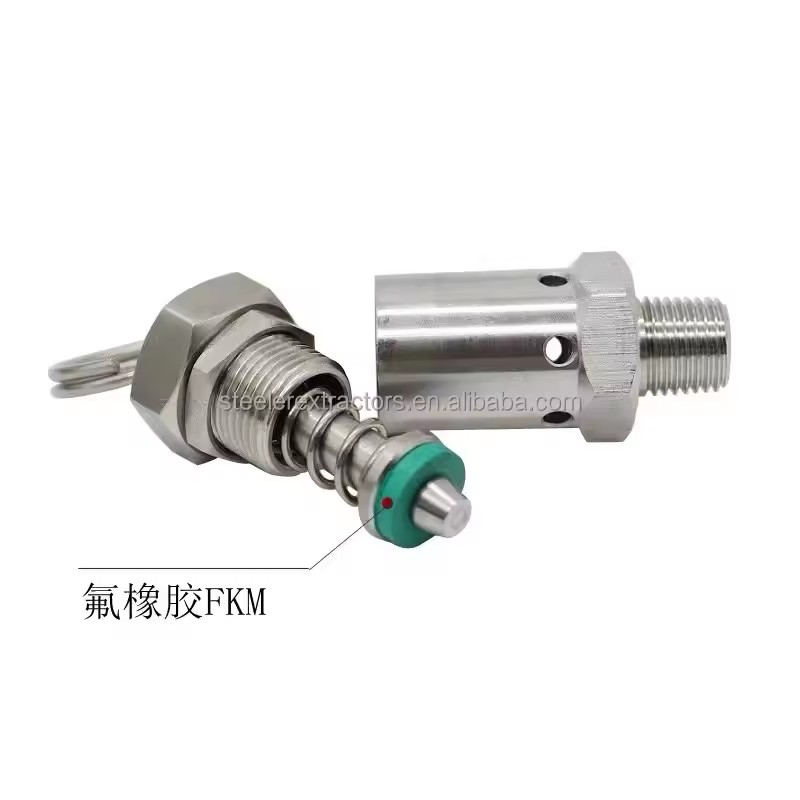

Spring-Loaded Mechanism: Utilizes a precision stainless steel spring to control the cracking pressure. This mechanism provides reliable and repeatable operation.

Compact Design: Its small form factor makes it ideal for installation where space is on pressure vessels, filter housings, or CIP systems.

Typical Applications: This valve is ideal for protecting

Small processing and mixing tanks

Positive pressure vessels

Sanitary pipeline systems

Filter housings

Utility stations

Disclaimer: This valve must be selected and set for a pressure lower than the Maximum Allowable Working Pressure (MAWP) of the vessel

it is protecting. Installation and service should be performed by qualified personnel in accordance with relevant safety codes and standards.

For any Questions

Description images

Mini Exhaust 1/4"1/2" BSPT NPT Male Thread Stainless Steel SS304 0.5-10Bar Pressure Relief Air Release Valves FKM Seat Seal

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 2 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

Lead time will be confirmed with your quotation.
Step 3

Packaging and dispatch

Standard · Estimated delivery: Sep 9–Sep 19 (7–17 days)

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 24 fields

Type

Safety Relief Valves

Media

Water

Port Size

1/4",3/8",1/2"

Temperature of media

Medium Temperature

Application

General

Power

Manual

Structure

Pressure relief valve

Customized support

OEM, ODM

Warranty

1 Year

Place of origin

Zhejiang, China, CN, ZHE

Model number (Specification)

1/4",3/8",1/2"

Usage

Food Grade

Standard

according to customers

Feature

Durable

MOQ

1 Piece, 5 Pcs

Materail

SS304,SS316L

Working pressure

0-10 bars

Packing

Wooden Case

Selling Units

Single item

Single package size

10X10X10 cm

Single gross weight

0.4 kg

Material (Product option)

SS304

Pressure (Product option)

Medium Pressure

Size (Product option)

1/2 in, 1/4 in, 3/8 in

Minimum order

2 Units
