Mineral Separator Iron Mining High Gauss CTB1018 Magnetic Machine

Available for enquiry 0.0 · 0 reviews
USD

$ 11,870.00 11870.0 USD $ 11,870.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Type
  • Voltage
  • Core components
  • Machinery test report
  • Warranty
  • Video outgoing-inspection
  • Key selling points
  • Production Capacity
  • Place of origin
  • Weight
  • Dimension (L*W*H)
  • Application
  • Usage
  • Color
  • After-sales Service Provided
  • Packaging Details
  • Port of dispatch
  • Selling Units
  • Single package size
  • Single gross weight
  • Supply Ability
  • Model number
  • Power (W) (Product option)

This combination is unavailable.

Key attributes

View all
Type
Magnetic Separator
Voltage
220V/380V
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox, Other
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Product description

Mineral Separator Iron Mining High Gauss CTB1018 Magnetic Machine

Product Description

Magnetic separator is one essential equipment in the ore dressing process which can separate raw materials with different magnetic is mainly used for screening the magnetic and non-magnetic material from the mineral powder and mineral pulp.The magnetic system of a magnetic separator is a compound of fine ferrite material and rare earth magnets.The average magnetic induction intensity of the surface of the cylinder is 100~600mT.

Advantages of Magnetic Separator

1. Small floor space, good separation for magnetic minerals, reduce the load of next process.

2. Many magnetic filed intensity for option according to different mineral ores.

3. The magnetic circuit is reasonable and the permanent magnet with high coercivity and high remanence is strictly selected,ensure that the magnetic does not decrease for a long time.The overall structure is reliable and durable.

Detailed Images

Working Principle

When the ore pulp entering magnetic field area, the ferromagnetic materials are sucked up on the surface of the drum, weak magnetic substance and nonmagnetic minerals are washed away by water, the absorbed magnetic minerals on the surface of drum are rotated with the drum and taken out of magnetic field area.The rotary one is suitable to dry separate the fine particle strong magnetic ore, because of speedy rotation, the magnetic particle rolling more times than other magnetic separator, which is effectively destroy the reunite of magnetic and arise the high-grade ore, the ore are divide into magnetic and nonmagnetic after separation, and discharge from the own road. This machine is suitable for the roughing and cleaning of particle size in 6-0mm size.

Main Technical Parameters

ModelCTB612CTB618CTB712CTB718CTB918CTB924CTB1018CTB1024
Diameter(mm)Φ600Φ600Φ750Φ750Φ900Φ900Φ1050Φ1050
Length (mm)12001800120018001800240018002400
Speed (r/min)3535353520202020
Gauss1200-15001200-15001200-15001200-15001200-15001200-15001200-15001200-1500
Feeding size (mm)0-0.40-0.40-0.40-0.40-0.40-0.40-0.40-0.4
Feeding density(%)20-2520-2520-2520-2525-3525-3525-3525-35
Work clearance(mm)30-4030-4030-4030-4045-7545-7545-7545-75
Capacitydry ore (t/h)10-1515-2015-2030-3535-5040-6050-10070-130
pulp (m3/h)10-1515-2015-2030-35100-150120-180170-120200-300
Power (kw)2.22.22.234445.5
Weight (kg)12001500183020453500400040955071
Overall dimension (mm)2280×1300 ×12502280×1300 ×12502256×1965 ×15002280×1965 ×15003000×1500 ×15003600×1500 ×15003440×2220 ×18303976×2250 ×1830

Mining Cases

  • The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, machinery expands its business in more than 160 countries and regions.

    • Our Workshop

    FAQ

    Small And Medium Capacity Stone Breaker Machine PE 200x300 And Different Types Jaw Crusher For SaleGold ore quartz rock stone powder making hammer crusher mill PC400x300 PC600x400Quarry aggregates and gravel making hydraulic spring PYB900 Cone Crusher Crushing breaker machine
    Rock stone Double two roller crusher mill machine for sand making crusher 2PG400x250 2PG610x400 modelGood quality 1100 1200 1200a 1200b gold wet pan mill grinding mill machine for saleGold Stone Mining dry wet type small rotary Ball Mill Stone Grinding Mill crusher 900x1800 1200x2400 model

    For more information, pls

    Description images

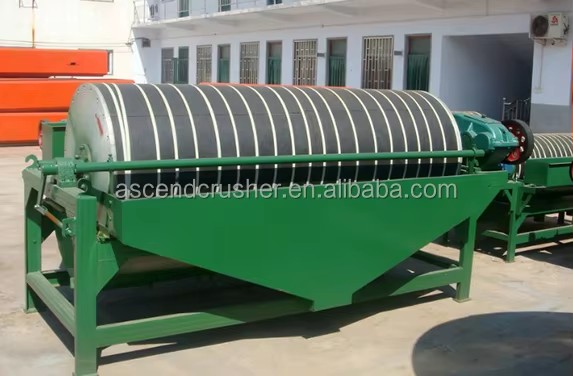

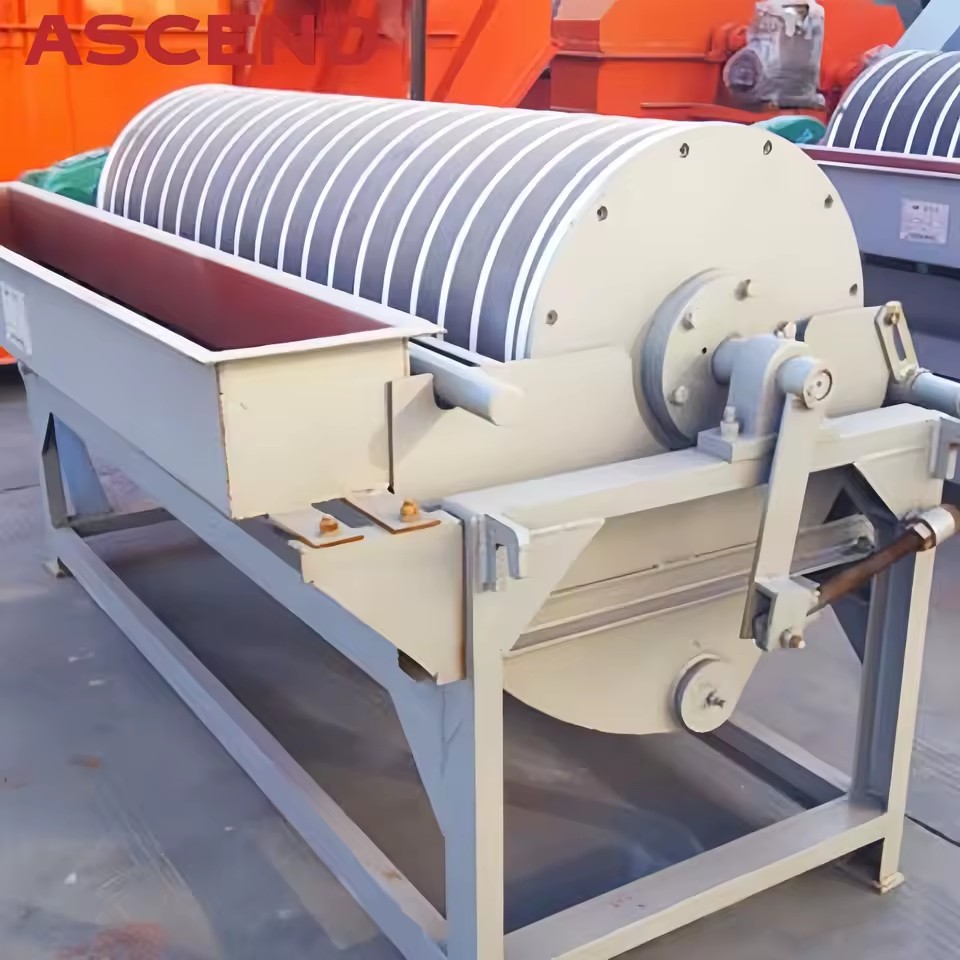

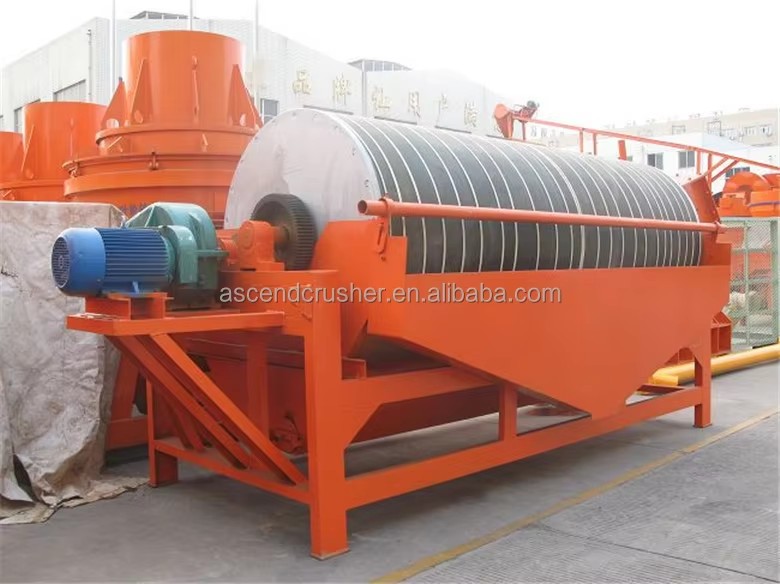

    Mineral Separator Iron Mining High Gauss CTB1018 Magnetic Machine

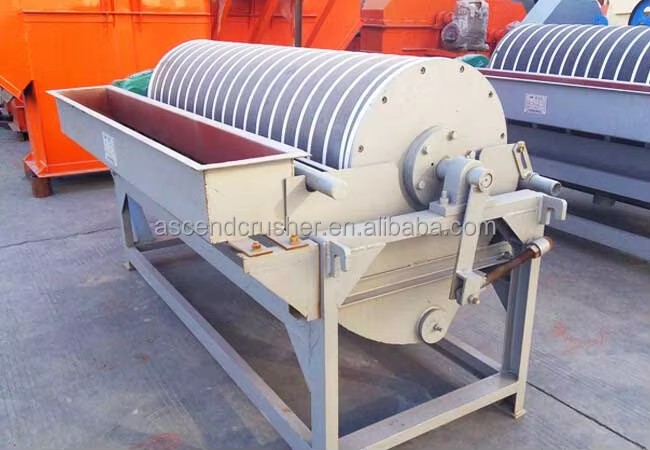

    Mineral Separator Iron Mining High Gauss CTB1018 Magnetic Machine

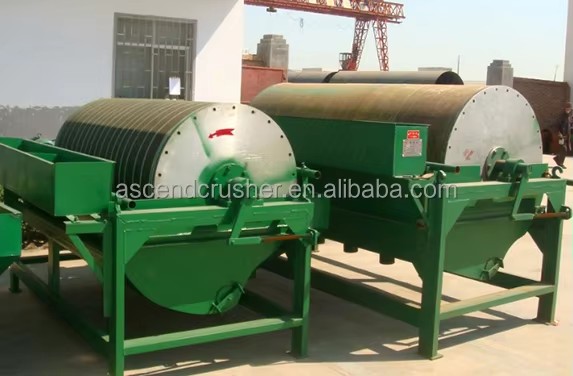

    Mineral Separator Iron Mining High Gauss CTB1018 Magnetic Machine
    Mineral Separator Iron Mining High Gauss CTB1018 Magnetic Machine
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      10 days

    • Step 3

      Packaging and dispatch

      Packaging details are available on request.

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 23 fields
    Type
    Magnetic Separator
    Voltage
    220V/380V
    Core components
    Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox, Other
    Machinery test report
    Provided
    Warranty
    1 Year
    Video outgoing-inspection
    Provided
    Key selling points
    Easy To Operate
    Production Capacity
    98%
    Place of origin
    China, Henan
    Weight
    2000 kg
    Dimension (L*W*H)
    depend on different models
    Application
    Mining Separation
    Usage
    Separate Gold
    Color
    Customized Making
    After-sales Service Provided
    Service Machinery Overseas
    Packaging Details
    Wooden box or container
    Port of dispatch
    Qingdao, ShangHai, ningbo
    Selling Units
    Single item
    Single package size
    100X100X1000 cm
    Single gross weight
    40.0 kg
    Supply Ability
    300 sets per Month
    Model number
    CTB1024, CTB618, CTB612, CTB918, CTB924, CTB1018, CTB712, CTB718
    Power (W) (Product option)
    2.2KW, 5.5KW, 3kw, 4kw
    Lead time
    10 days
    Minimum order
    1 Units
