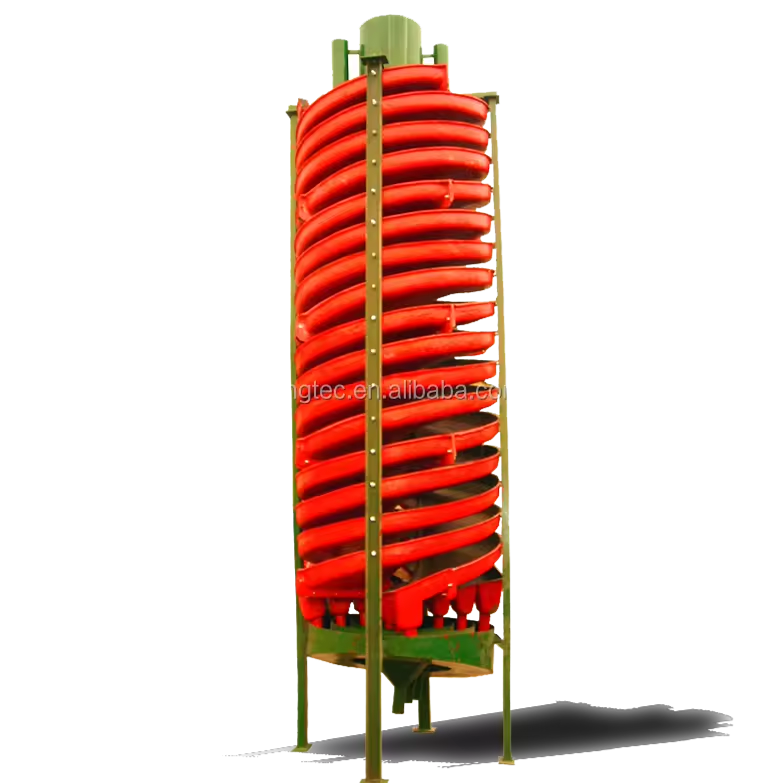

Name: Mineral Separator Equipment Spiral Chute Concentrator for Mineral Washing Process
SKU: B2B-29894
Price: 990.0 USD
Availability: PreOrder

Product description

Spiral Concentrator Working Principle

Spiral Concentrator Features

Model	5LL-2000	5LL-1500	5LL-1200	5LL-900	5LL-600	5LL-400
Outside dia (mm)	2000	1500	1200	900	600	400
pitch (mm)	1200	540, 720	900, 720, 540	675, 540, 405	450, 360, 270	240, 180
Pitch Dia Ratio	0.6	0.75, 0.6, 0.45	0.75, 0.6, 0.45	0.75, 0.6, 0.45	0.75, 0.6, 0.45	0.6, 0.45
Lateral slope	9°	9°	9°	9°	9°	9°
Maximum starts per column	2	4-2	4-2	4-2	2	2
Feeding Size (mm)	2-0.04	0.3-0.02	0.3-0.03	0.3-0.03	0.2-0.02	0.2-0.02
Feeding Density(%)	30-55	25-55	25-55	25-55	25-55	25-55
Capacity (T/H)	7-10	6-8	4-6	2-3	0.8-1.2	0.15-0.2
Length (mm)	2120	1560	1360	1060	700	460
Size Width (mm)	2120	1560	1360	1060	700	460
Height (mm)	5600	5230	5230	4000	2600	1500
Weight (Kg)	1200	800	600	400	150	50

Pre-Sales Service：

1.We can help you select equipment model and design resonable and complete

After-Sales Service：

order to make sure there is no quality problem,we shall pre-check and test the products before sending them out.We take pictures of finished products before delivery. 2.We shall track the logistic information until the products are well received.

3.We shall prepare the documents of custom clearance to help you receive your goods smoothly. 4.We can send professional engineers to help you install and debug the machine,train the operators and technical personnel and meet some other requirements if you need on site.

5.We can provide lifelong service of quick-wear part and technical exchanging for you. 6.We shall make prompt response to any problem about the machine within 24 hours if you have.And shall provide trouble-shooting solutions until the fault is completely eliminated. 7.To establish long-term friendship, we will regulary contact with

Q1: For providing you the suitable quotation we need to know the following information

1.What is the raw material to handle? Minerals eg: gold,coltan,diamond,tin, etc 2. What is the capacity per hour you required? 5tph,50tph,100 tph 3. What is the maximum input size of the raw material? 130mm,200mm,50mm 4. What is the output size and application for the final product? Once we get your answers, I can provide you the best quotation immediately.

Q2: Do you provide ODM/OEM service?

A: OEM/ODM is welcome.A lot of clients placed an customized order from

Q3. What warranty do you give for your machine?

A: · We can supply spare parts. · The quality assurance date we give is one year for the main parts after commissioning. · We provide lifelong maintainence and technical support.

Q4.What is your Payment Terms? A: We usually the follwoing payment terms.

Q5：What’s your means of transportation? A:We have these means of transportation as below.

Q6. What is your delivery time? A:Pls find the answers as below.

Product	Lead time
shaking table	<=10days
laboratory mining equipment	<=10days
large mining equipment	30-40 days.
customized machine	30-40 days.
Tip:Exact delivery shall be confirmed when placing the order.

Please do not hesitate to contact with us!

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 18 fields

Type

Gravity Separator

Voltage

220V/380V

Warranty

1 Year

Production Capacity

98%

Place of origin

China, Jiangxi

Weight

158-665KG(348.33-1466.07lb)

Dimension (L*W*H)

Different Model

After-sales Service Provided

Engineers available to service machinery overseas

Feeding density

10%-30%

Maximum Feeding Size

2mm

Packaging Details

Our lab shaking table will be packed in wooden cases or iron frame, which makes sure of their safety during the international transportation.

Port of dispatch

Xiamen, Guangzhou, Shenzhen

Selling Units

Single item

Single package size

20X30X40 cm

Single gross weight

68.0 kg

Supply Ability

200 sets per Month

Power (W) (Product option)

no power for spiral chute

Model number

5LL-400, 5LL-600, 5LL-900, 5LL-1200, 5LL-1500

Lead time

7 days

Minimum order

1 Units
