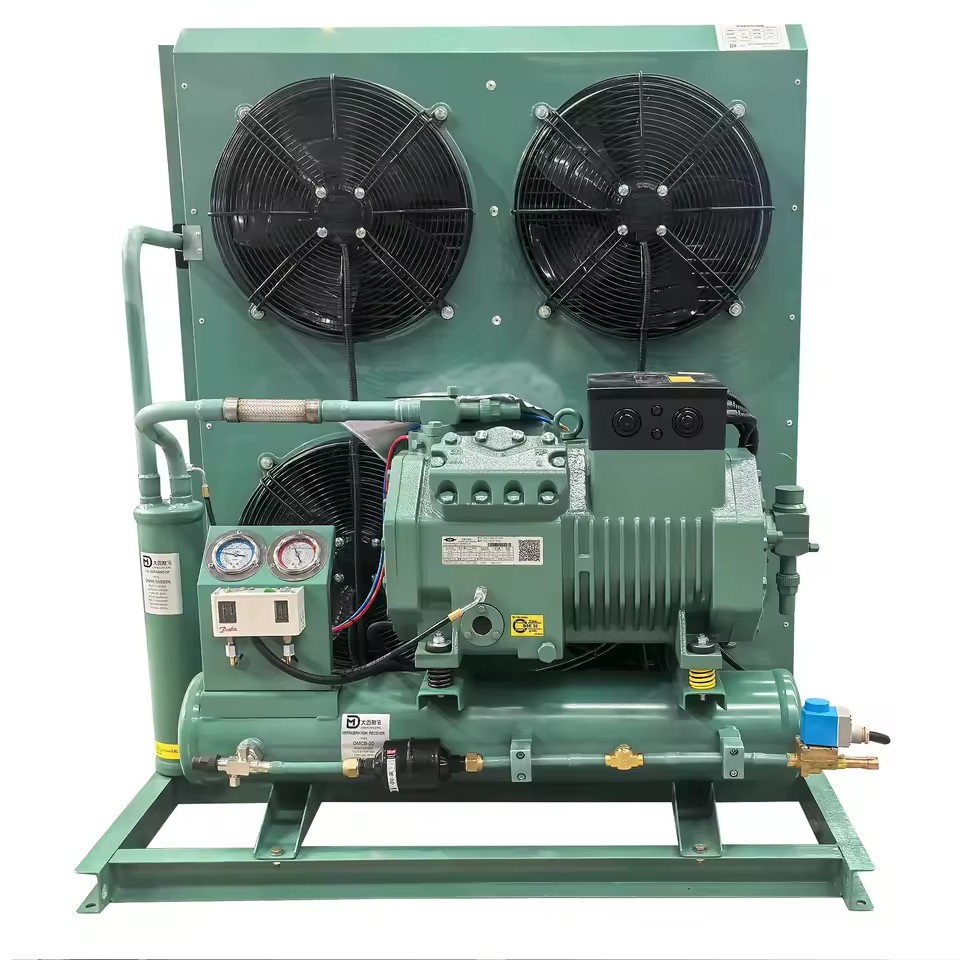

Energy Saving H-Type Piston Compressor Condensing Unit for Low Temperature Cold Room Freezer Vegetable Meat Storage

Product Importer Gallery 01 · eede54d50c

Product Importer Gallery 02 · 90afbda746

Product Importer Gallery 03 · e94e0ad53e

Product Importer Gallery 04 · d65a16e848

Product Importer Gallery 05 · 0497574821

Product video

Energy Saving H-Type Piston Compressor Condensing Unit for Low Temperature Cold Room Freezer Vegetable Meat Storage

Name: Energy Saving H-Type Piston Compressor Condensing Unit for Low Temperature Cold Room Freezer Vegetable Meat Storage
SKU: MET8-9GG8-ZKZG
Price: 2450.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 2,450.00 2450.0 USD $ 2,450.00

Minimum order quantity: 1 Units

Key attributes

View all

Temperature

10°C`-35°C

Voltage

380 V

Compressor Type

piston

Refrigerant

R-404A

Compressor brand

Bitzer

Core components

Compressor, Condenser

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Highlights at a glance

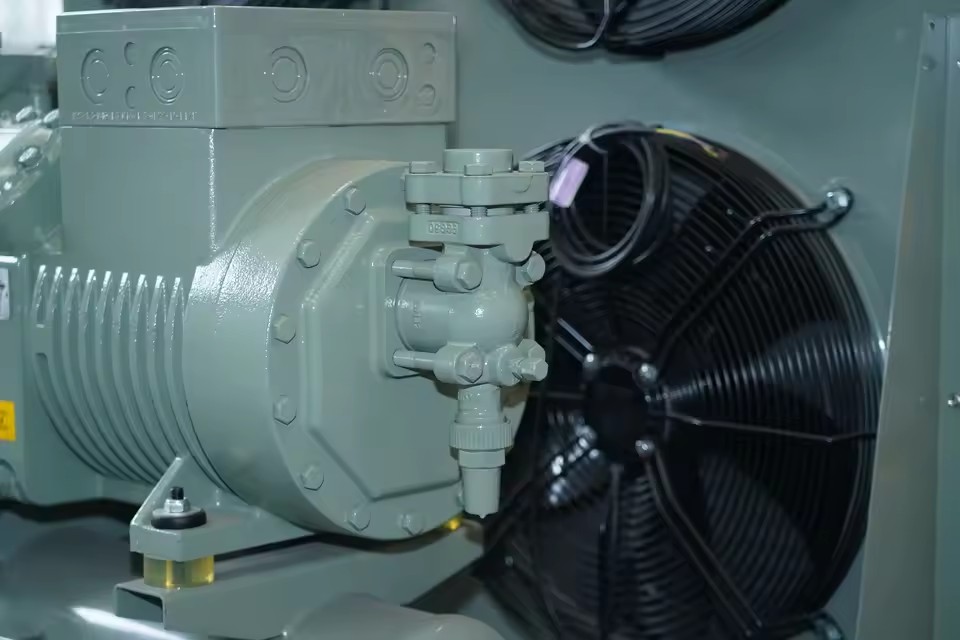

Equipped with genuine Bitzer piston semi-hermetic compressors (2DES-6FE series), featuring surface-hardened eccentric shafts, low-friction bearings, solid valve plates with impact-resistant spring steel valves, and hard chrome-plated piston rings. Each compressor ships with a verifiable serial number registered with Bitzer.

Evaporating temperature range -10C to -35C, supporting cold room temperatures from -18C to -30C. Cooling capacity spans 6.61KW to 38.8KW across the series, perfectly sized for small-to-medium freezer rooms, meat processing, and seafood storage.

Each unit ships with a precision-matched FNH-series air-cooled condenser (copper tube + aluminum fin, 2m2-240m2 heat exchange area). Every condenser undergoes a 3.0MPa pneumatic leak test before shipment. Two fin types available: high-efficiency pitting sheet and corrugated sheet. Fin spacing adjustable 1.7mm-3.0mm.

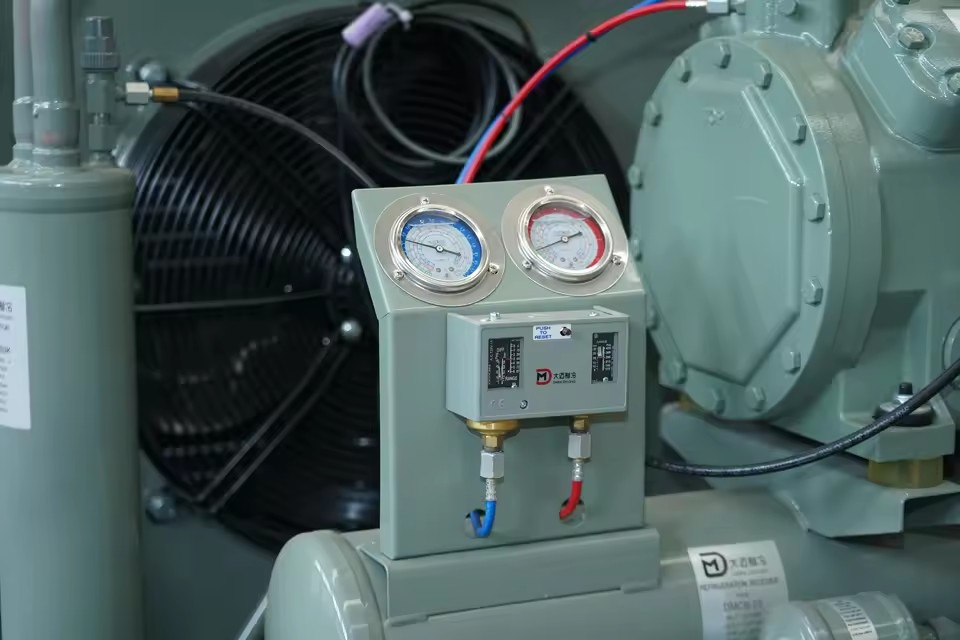

All refrigerant piping, electrical wiring, and nitrogen holding charge completed at factory. On-site procedure: connect suction/discharge lines and main power supply. Reduces installation labor by 50%+. Standard equipment includes liquid receiver, filter drier, dual pressure control, gauges, and solenoid valve.

operates a 30,000m2 factory with 150+ employees and 96 patent certificates (11 invention patents). 20+ years of refrigeration manufacturing experience. ISO 9001 certified. OEM/ODM flexible production supports custom voltage (360-460V/50-60Hz), private labeling, and custom packaging.

Frequently asked questions

Yes, we use 100% genuine Copeland (ZB/ZFI series) and Bitzer (2DES~6FE series) compressors sourced through official channels. Each compressor comes with a serial number for verification. We also offer cost-effective brand compressors as an alternative if budget is a concern.

Our H-type piston condensing units (DMD-H Series) cover -10℃ to -35℃, V-type units cover -10℃ to -40℃, and U-type units cover -10℃ to -40℃ for low temperature applications. For medium/high temperature (0℃ to +7.5℃), we recommend our V-type and U-type scroll units with Copeland ZB compressors. Please refer to the technical parameter tables in our catalog for exact cooling capacity at each evaporation temperature.

Absolutely. As a one-stop manufacturer with 20+ years of experience, we can supply the complete refrigeration system: condensing unit + air-cooled condenser (FNH/FNV series) + ceiling-mounted air cooler (DD/DJ/DL series) + electrical control panel. Just tell us your cold room size, target temperature, and product stored, and our engineers will provide a full matching solution.

They differ mainly in space efficiency and airflow design: H-type units are compact with horizontal airflow, suitable for -height spaces. V-type units offer higher capacity in a smaller footprint with V-shaped condenser placement. U-type (box shape) units are compact, all-in-one designs ideal for smaller cold rooms where installation space is tight. We recommend the best type based on your installation site conditions.

Our units support R22, R404A, and R507A. For medium temperature applications, R22 is commonly used. For low temperature applications (-18℃ and below), we recommend R404A or R507A for better performance. If your country has strict environmental regulations, we can also configure units for R407A/R407F as lower-GWP alternatives-please let us know in advance.

Yes, all our condensing units are designed for outdoor installation with IP54-rated fans and weather-resistant powder-coated steel frames. The electrical box is sealed to IP65 standards. For coastal or highly corrosive environments, we can upgrade to stainless steel casing - please specify when ordering.

Yes, every unit ships with a detailed installation manual, wiring diagram, and commissioning checklist in English. We also provide video call support via

Sample orders of 1 unit are welcome for testing. Regular production lead time is 15-25 days depending on order quantity and customization. Urgent orders can be expedited to 10-12 days. We pack each unit in fumigation-free plywood crates suitable for sea freight.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 16 fields

Temperature

10°C`-35°C

Voltage

380 V

Compressor Type

piston

Refrigerant

R-404A

Compressor brand

Bitzer

Core components

Compressor, Condenser

Warranty

1 Year

Key selling points

Automatic, Easy To Operate, High-Accuracy, High Productivity, Eco-Friendly

Place of origin

China

Weight (kg)

270

Model number (Specification)

Condensing unit--H Type

Type

Air-Cooled, Water-Cooled

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Power(W) (Product option)

1.5-16.89

Lead time

7 days

Minimum order

1 Units
