YCWJ Waterjet Cutter with Premium Components HIWIN Hypertherm for Religious Building Decoration, Wholesale Price CE Certified

Max5 axis waterjet cutting machine

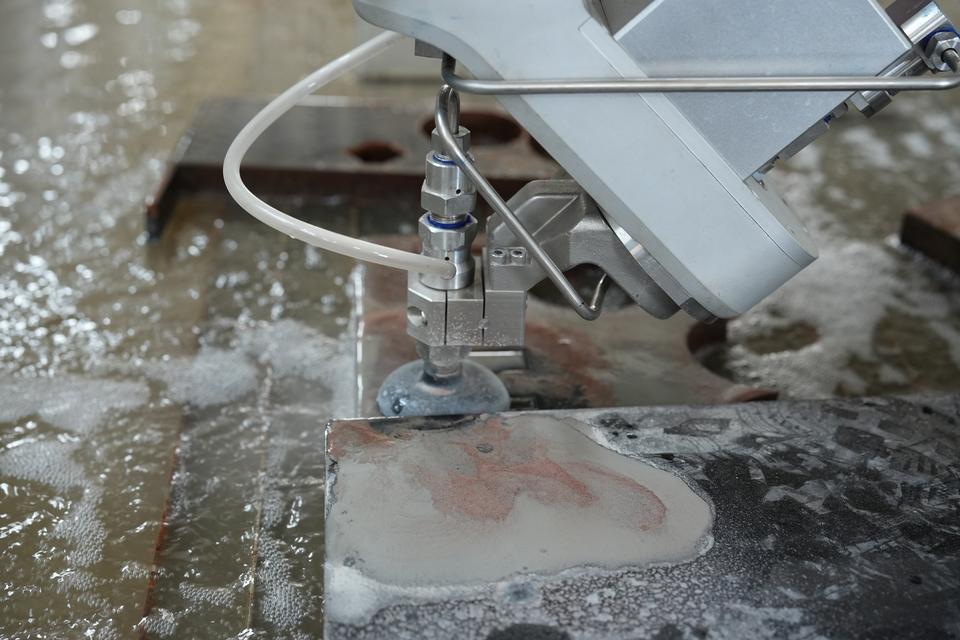

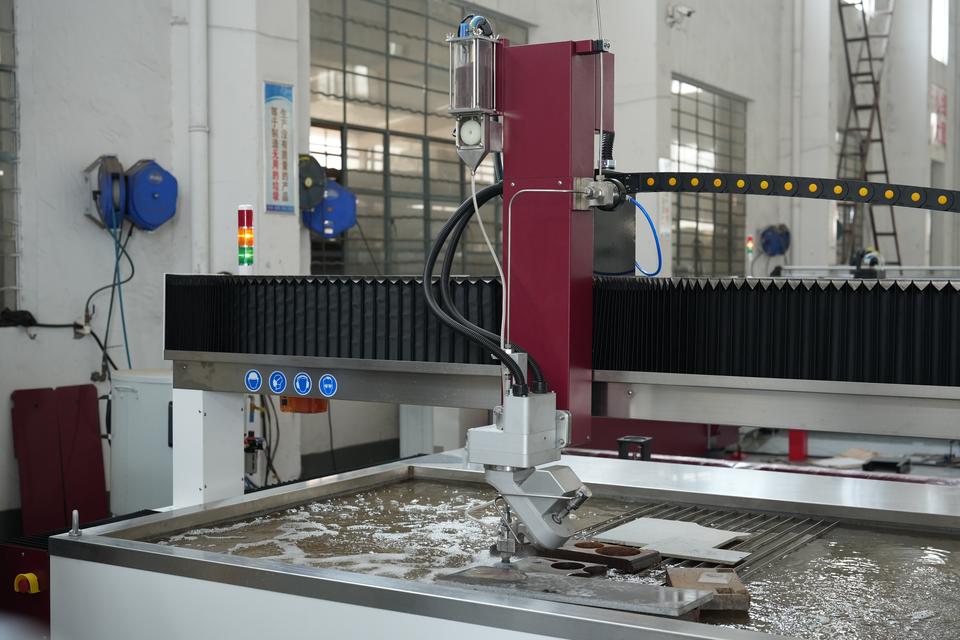

MAX5 series 5 axis water jet cutting machine unlike a conventional 3-axis waterjet cutting machine, this product is added with A-axis (in a vertical direction) and C-axis (which rotates around the Z axis).By using state-of-the-art technology and the Italian ECS control system, it can produce 0-±45° inclined cuts with a maximum rotation angle of up to ±540°. Currently, this state-of-the-art cutting equipment has been applied by a wide variety of advanced processing industries.

It can cut the product cross section without inclination, and cut bevel at any angle, as well as cut the workpiece vertically, especially cut cone, curved impeller, gear, etc.

Technical Parameters

Bevel axis (A): ±45°

Rotary axis (C): ±540°

Control accuracy: ±0.01mm

Angle accuracy: 0.01°

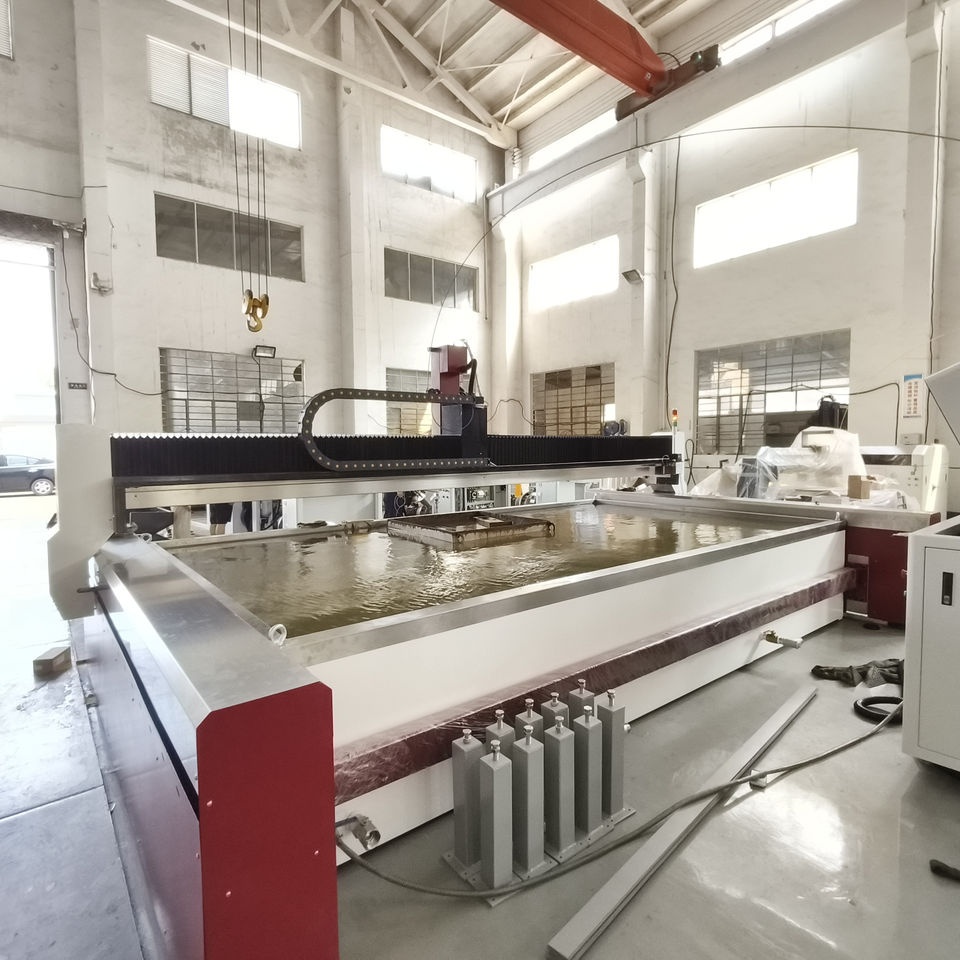

1. Water jet cutting platform

Cnc Waterjet Cutting Machine

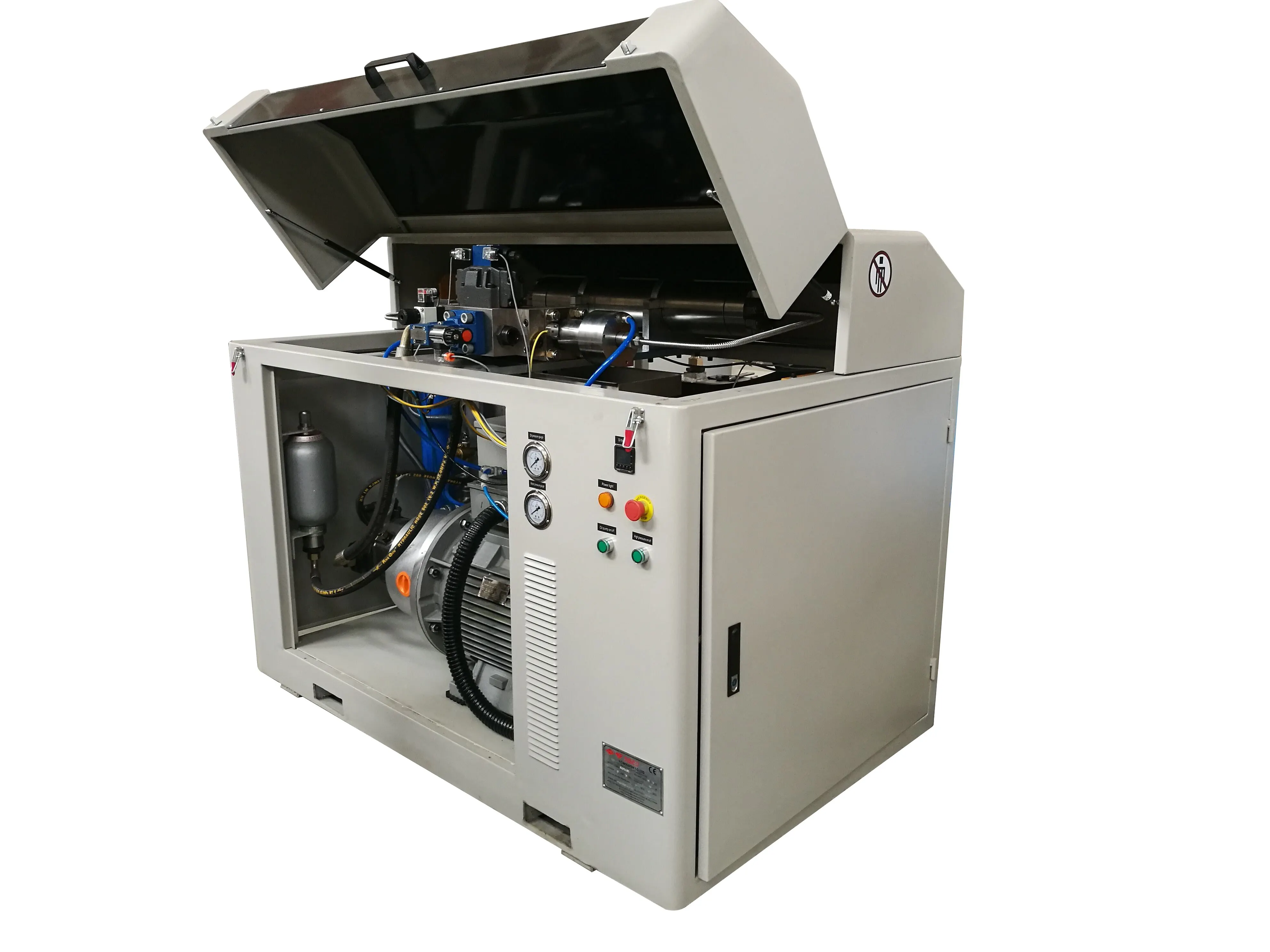

2. Water jet high pressure system

Main Feature: Control: PLC Shifting: electro-hydraulic Control Cooling: cooler/oil heat exchanger Inlet water filter accuracy: ≤0.45μm Oil-return filter accuracy: 20 μm Working temp: 0-50°c Outlet: UNF 3/8" Cooling in/out-let: NPT1" Max orifice size: 0.33mm

Development

1999, was established by Mr. Min, mainly engaged in manufacturing large

2019,YC has sold the products to more than 50 countries.

Why us

We are engaged in machinery manufacturing since the year 1999,there are more than 20% workers with more than 8 years experience in water jet cutting field.

Our chief engineer Mr. Tian who started research of water jet when he was a university student has 20 years experience in water jet cutting field, and other technical persons have over 10 years experience. YC is the partner of Accustream/Hyperthem, every year we have technical meetings with engineers.

For different customers in different industries we will provide different solutions, Your water jet is tailored based on your individual needs. Our Engineers go to many countries for installation and debugging every year.
