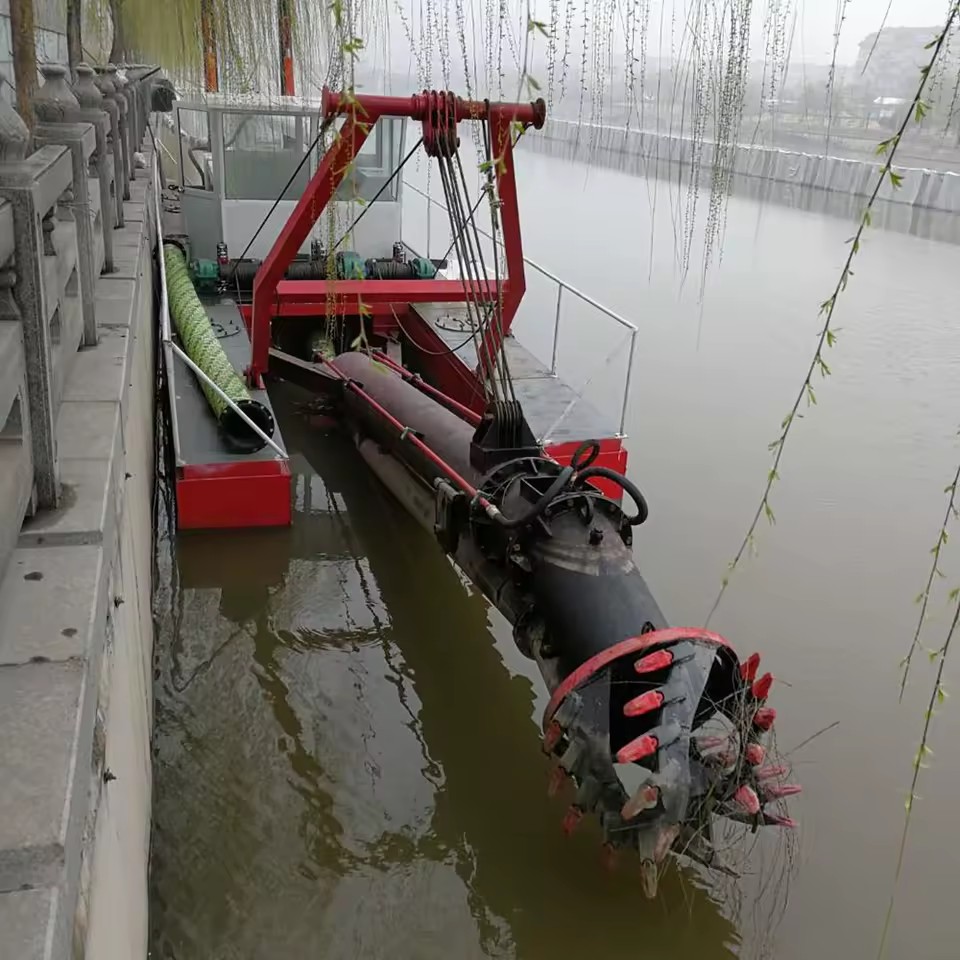

JM 180m/h Diesel Cutter Suction Dredger Pump Engine Motor PLC Siemens Hydraulic Control System 315kw 2000m Discharge River

Model

Digging depth

water flow

Discharge distance

Capacity

Power

6-26 inch

Max 25m

200-6000m 3 /h

Max 4000m

40-1200m 3 /h

122kw-3000kw

The engine or motor provides power,then the gearbox wil transit it to the sand pump,the sand pump is driven to rotate andcreat vacuum in suction pipe,in this way,the mixturecomposed of the mud,sand and water by the cutter head is sucked intothe sand pump through the inlet pipeline,and then discharged to appointed place through outlet pipeline which is connectedto the outlet of the sand pump.

When the dredger is being anchored,one of the two spuds at the stern and driven into the sand stratum,the left and right winches release and retrieve respectively,to make the dredger move around the spud,the ladder winch control ladder lift oidown,to realize the dredger operation. The dredger move ahead by two spuds alternately lifting or down.

200-6000m

3

/h

40-1200m

00:00

00:45

Q: Hello, may I ask how much each of your cutter suction dredgers costs?

A: Hello sir, the cutter suction dredger we produce is customized according to the situation of your construction site. You need to answer the following questions before I can give you an accurate price.

Q: What questions do you need to know?

A: 1.How many meters of depth do you need to excavate from the horizontal plane?

2.How many tons of solid material do you want to extract per hour?

3.How long pipe do you need to connect to discharge the material onto the shore?

4. Are you using it in the sea or in the river?

By answering the above questions, I can give you an accurate price

Q: Okay, you will get the answer. What is the production cycle of the cutter suction dredger?

A: Generally, it takes 50-90 working days, depending on the size of the model.
