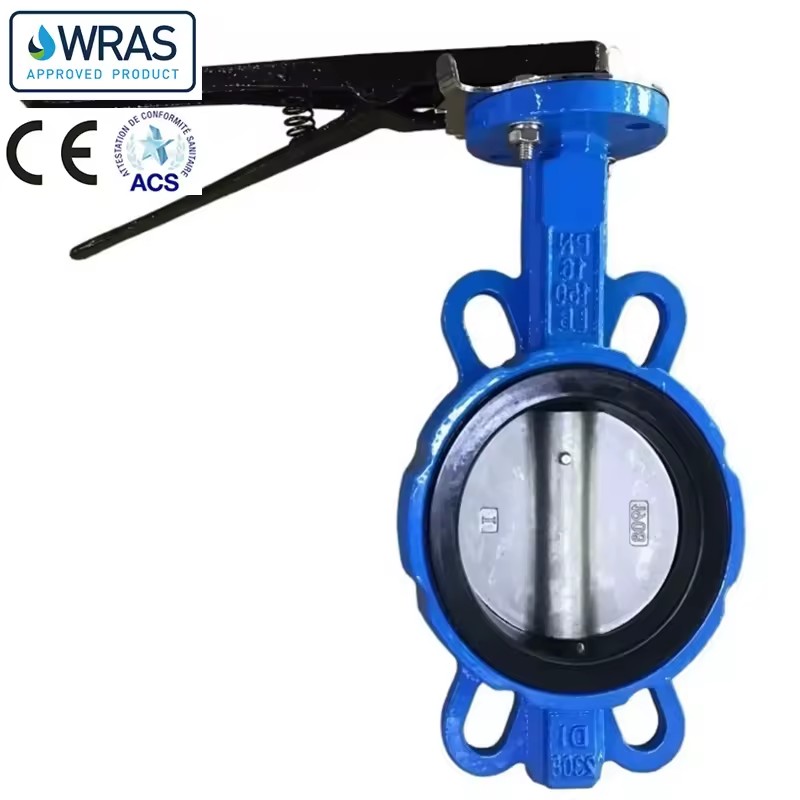

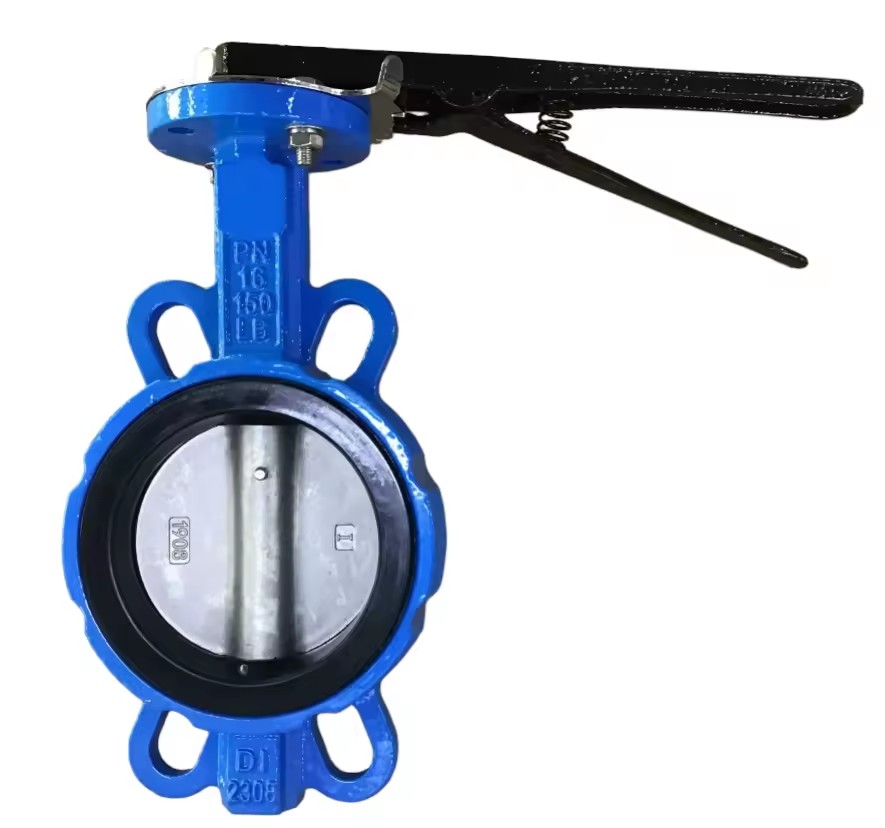

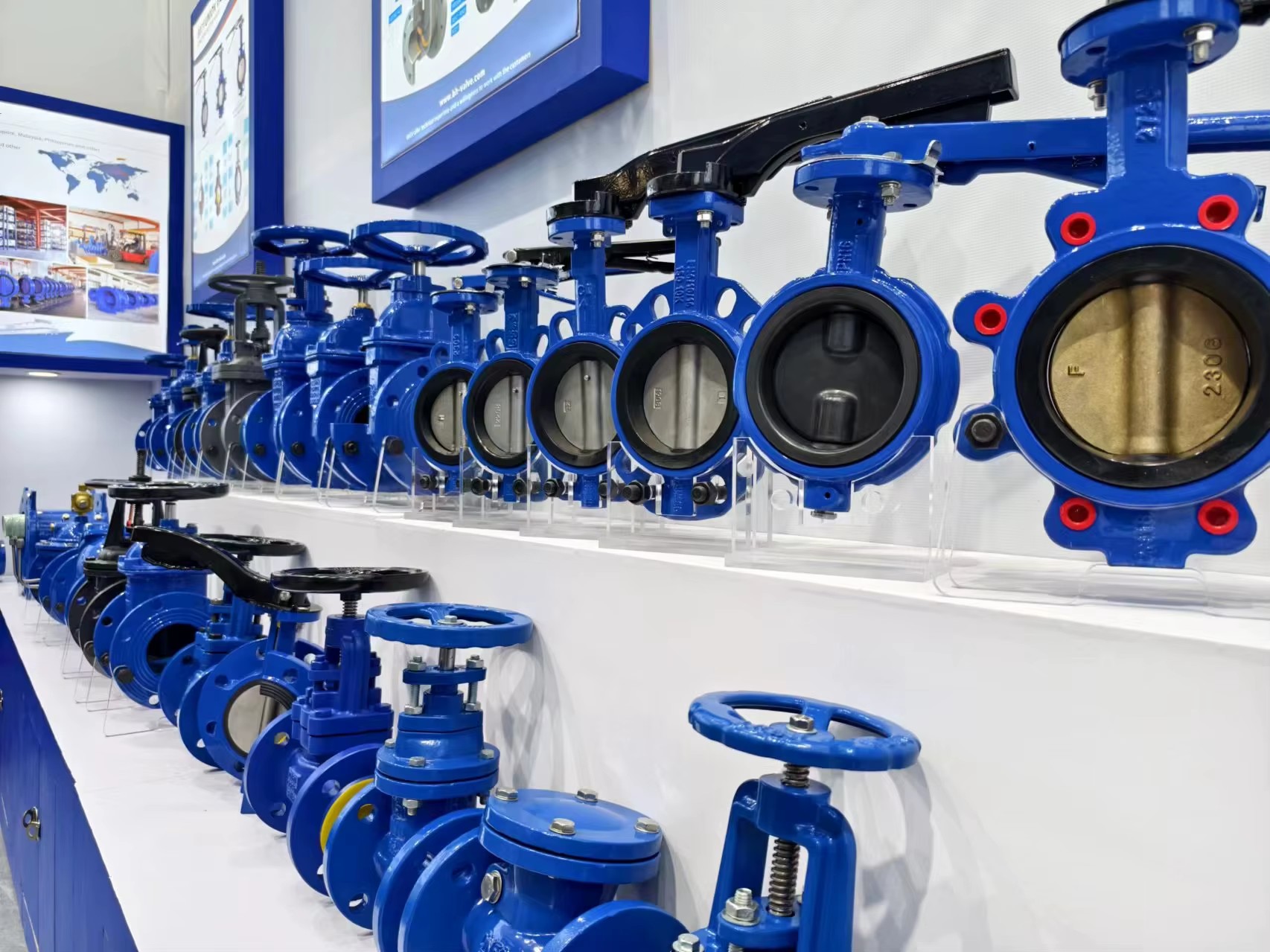

Manufacturer Supply Wafer Type Butterfly Valve for Water Control Project
Features
1. Small in size, light in weight, easy installation and maintenance.
2. Simple and compact construction, quick 90 degree on-off operation.
3. Minimized operating torque, energy saving.
4. Flow curve tending to straight line, excellent regulation performance.
5. Long service life, standing the test of tens thousands opening/closing operations.
6. Wide selection of materials, applicable to various medium.
Performance
| Nominal pressure(Mpa) | 1.0 | 1.6 |
| Nominal diameter(mm) | 50-1200 | 50-1000 |
| Test pressure | Shell | 1.5 | 2.4 |
| (Mpa) | Seal | 1.1 | 1.76 |
| Applicable temperature | 150 |
| Applicable medium | Fresh water, Sewage, Sea water |
| Operating mode | Hand Lever, worm gear, pneumatic, electric, etc. |
Standard
| Design & Manufacture | Flange Connection | Face to Face Dimension | Test & Inspection |
| MSS SP-67 API609 EN593 | DIN PN10/16/25; ANSI B 16.1 BS4504; ISO PN10/16 JIS B 2212/2213 BS 10 table D; BS 10 table E | API609 ISO5752 series 20 BS5155 | API 598 |

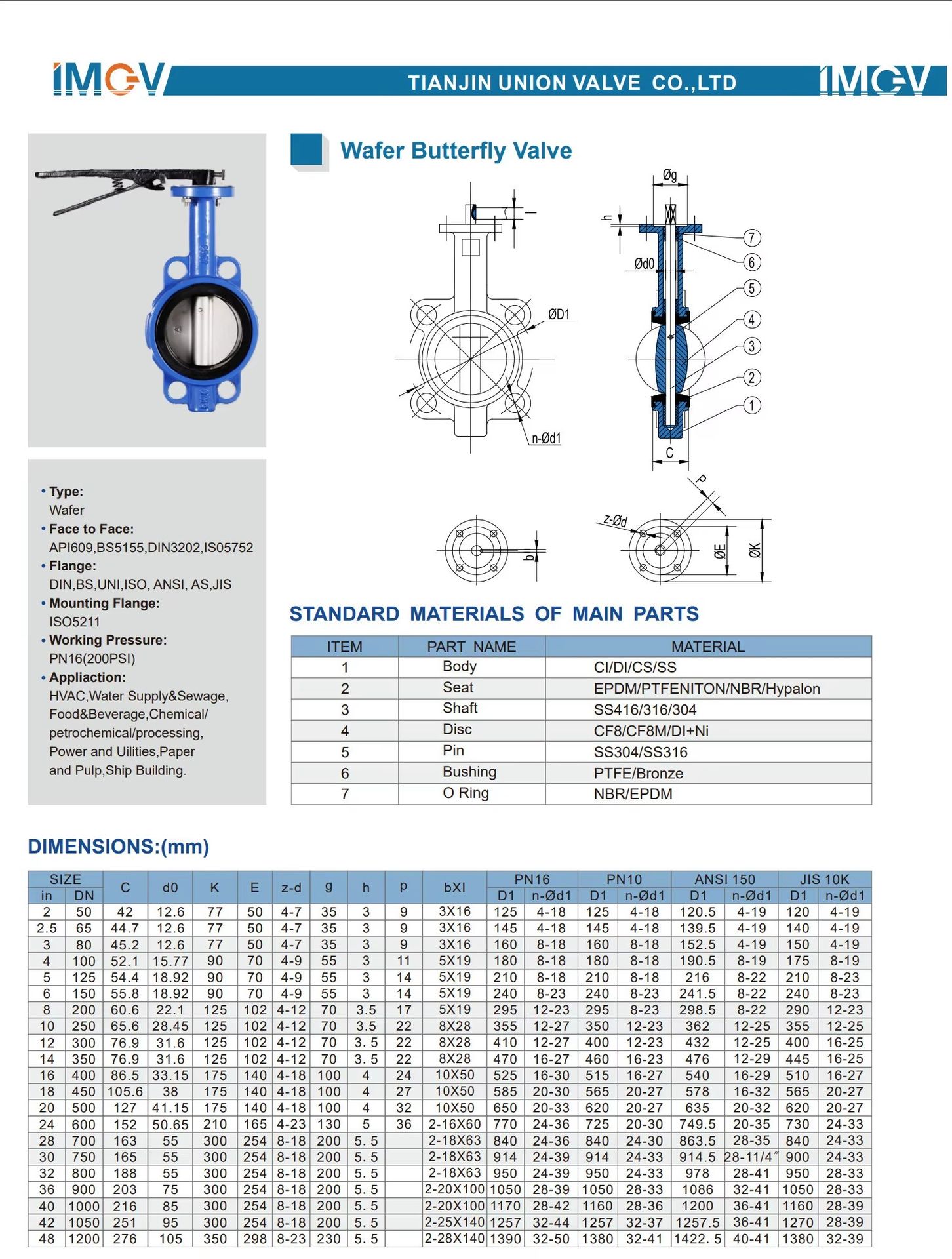

Material List
| NO. | Part Name | Material |
| 1 | Body | Cast Iron/Ductile Iron/Carbon Steel/Stainless Steel/ Al-Bronze |
| 2 | Disc | CF8/CF8M/Al-Bronze/Ductile iron |
| 3 | Seat | EPDM/PEFE/Buna/NBR/Hypalon |
| 4 | Stem | Stainless Steel304/Stainless Steel416/Carbon Steel |
| 5 | Bushing | PTFE/Lubricating |
| 6 | O ring | EPDM/PEFE/Buna/NBR/Hypalon |
| 7 | Pin | SS316/SS416/SS304 |
Typical Application: Water works and water resource project Environment protection Public facilities Power and Public utilities Building industry Petroleum,chemical Steel,metallurgy Paper making industry Foods,Beverage

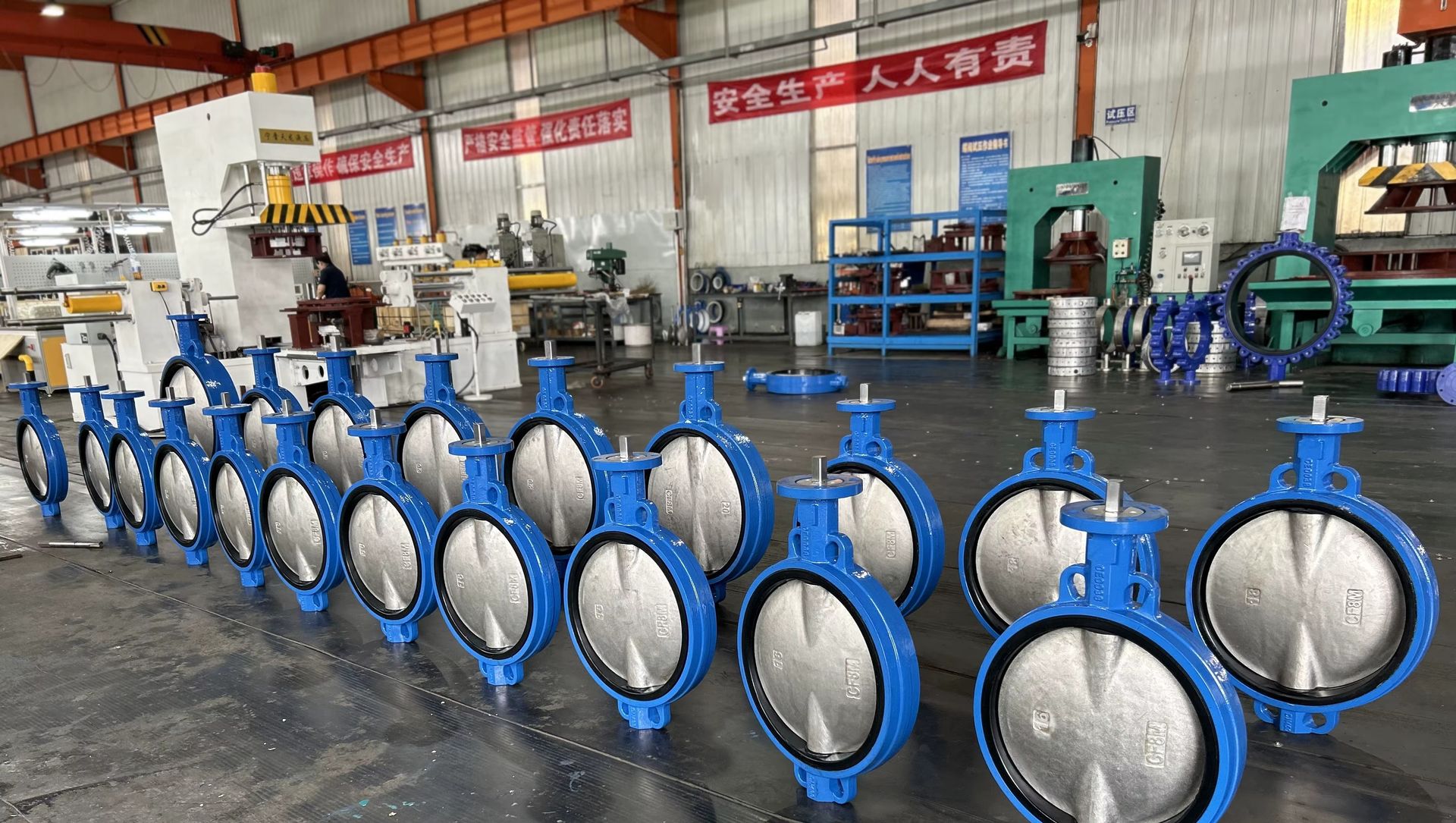

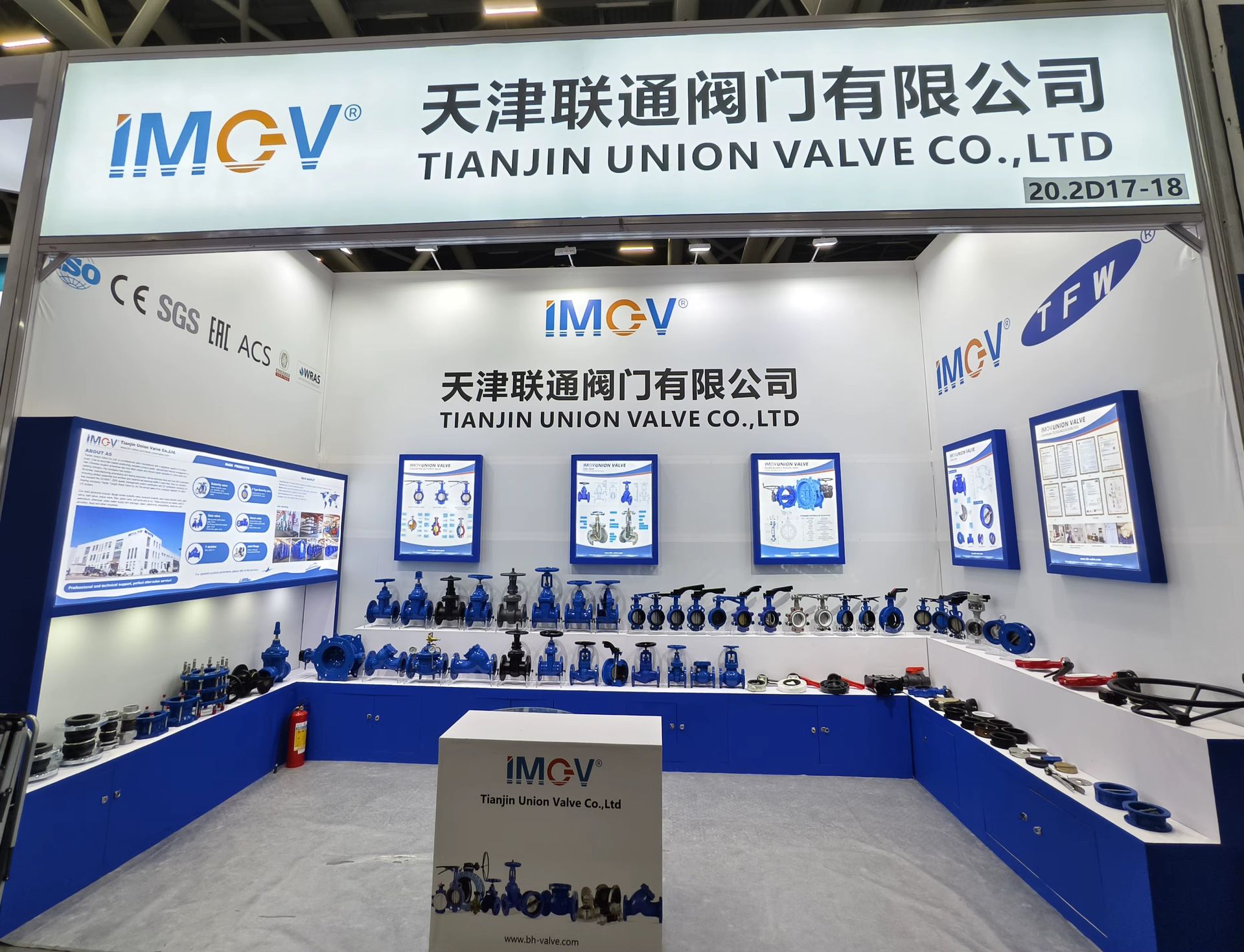

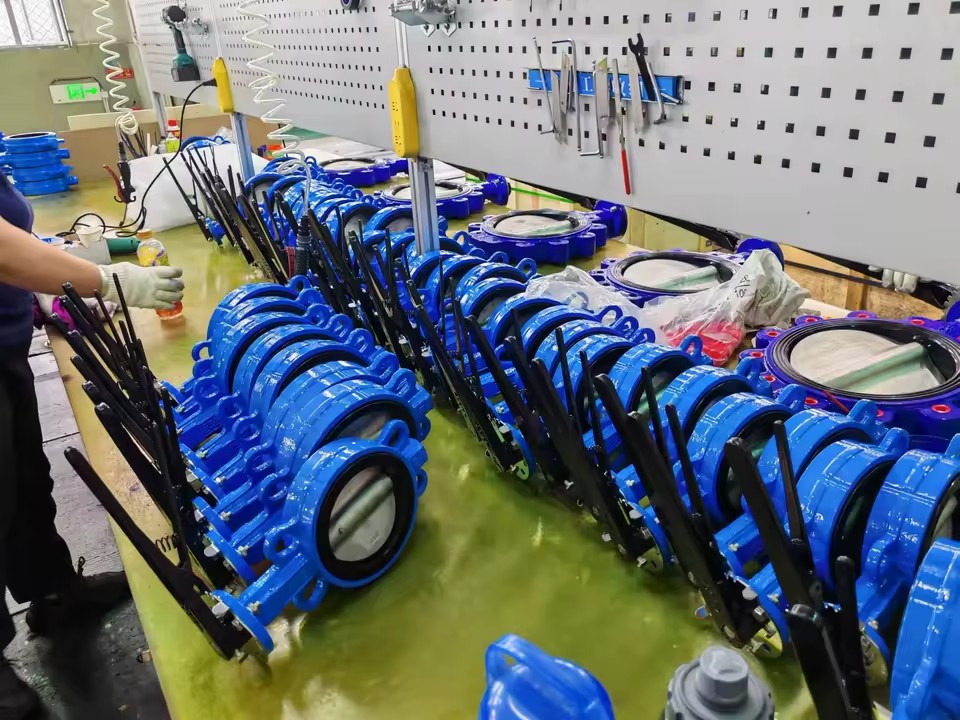

We have More than 200 employees, more than 30 years of professional experience, skilled technicians and operators, the products passed ISO 9001:2015 and CE certification, our main products are concentric butterfly valve,eccentric butterfly valve, triple-eccentric butterfly valve, soft seat gate valve, ball valve, check valve, Y-strainer, rubber joints, etc. With product quality and perfect service system, it is sold in dozens of countries and regions such as Europe, America, Southeast Asia, Middle East,, North Africa,,, and so on.
1. Q
A
2. Q: Do you have agent or representative abroad?
A: We dont have agent abroad,please
3. Q: What's your product range?
A: We can produce Butterfly valve,Gate valve,Check valve,Y strainer,Rubber Joint
by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
4. Q: Is there any stock in your factory? and how about your lead time?
A: We stock valves with normal sizes. The lead time depends on your quantity
generally 30-35 days.
5. Q: Which countries do you export to?
A: We export directly to vast majority of countries in the world.
6. Q: What certificates will you provide?
A: We can provide CE/ ISO / WRAS
7. After-sales service 18 monthes year warranty for all kinds of products As an experienced manufacturer, you can rest assured of the quality and sales service
8. Payment T/T, L/C, OA, D/P, D/A

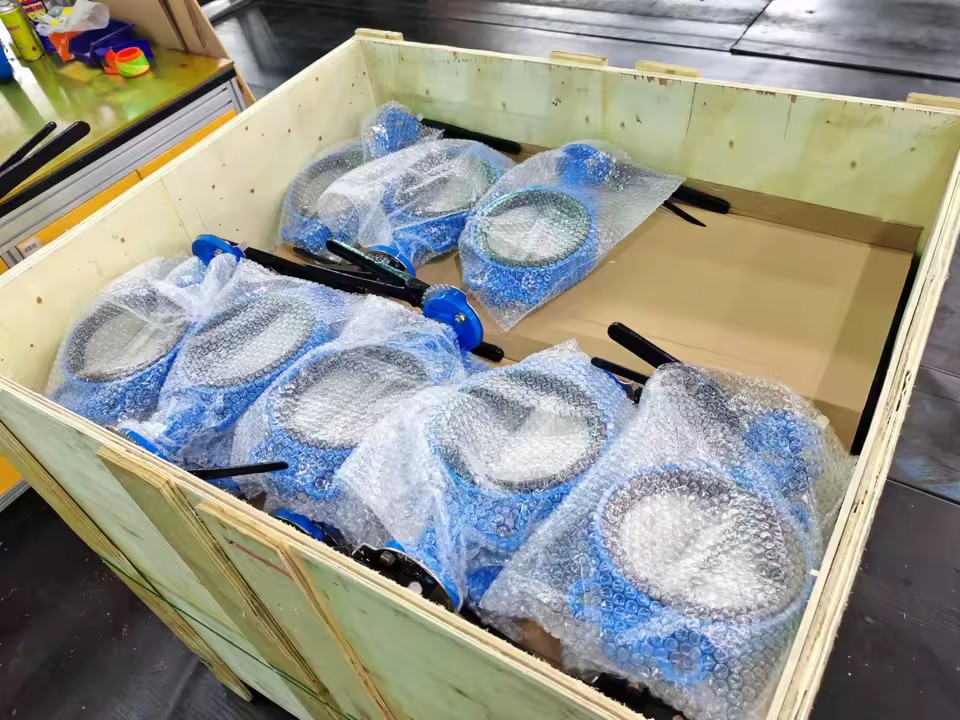

9.Transportation Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea
10. Do you provide free sample? Free sample is ok for us.
11. Do you accept custom design on size? Yes, if the size is reasonable
Certifications & compliance
ACS
Water Safety Certified
PED(2014/68/EU)
Pressure Equipment Directive compliant
WRAS
Water Safety Certified
