Product video
Certifications ISO9001

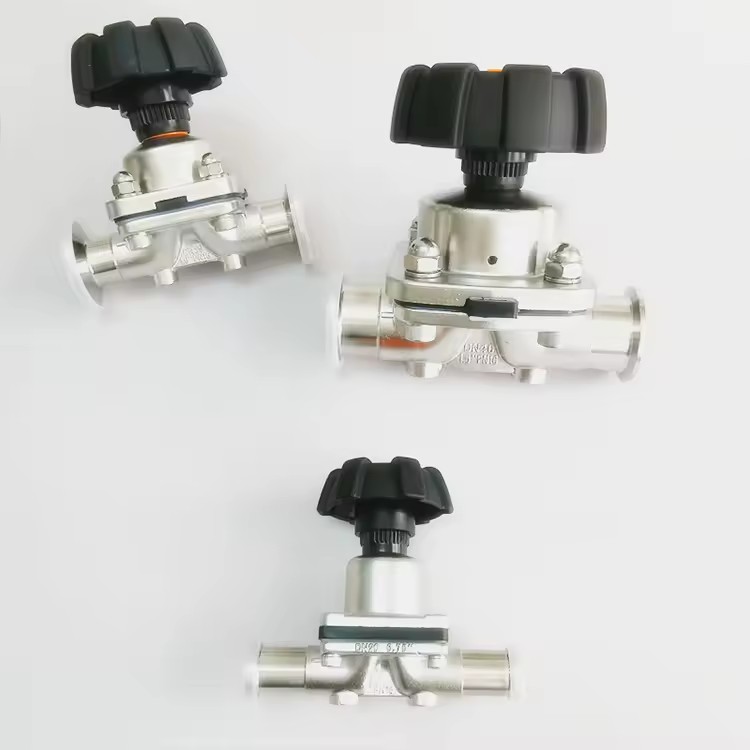

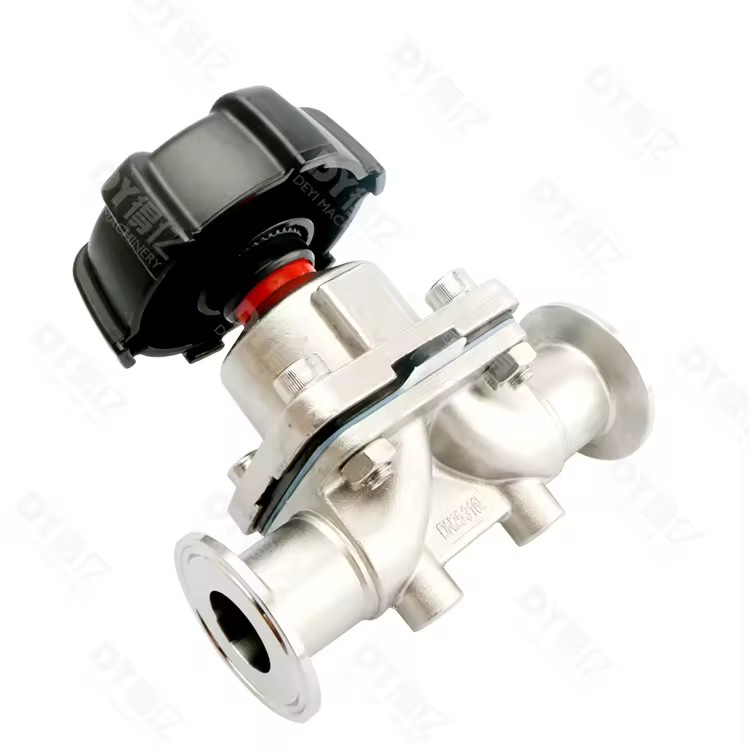

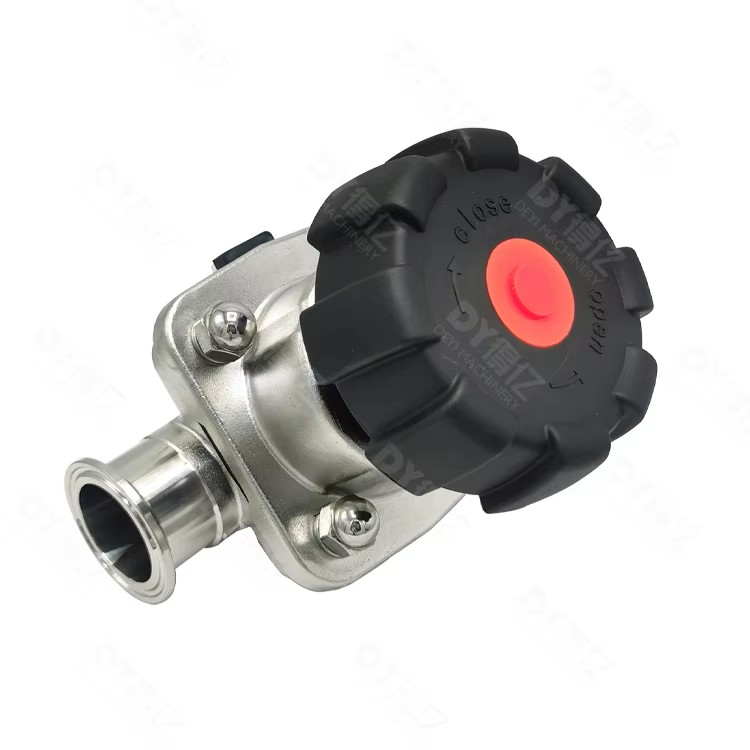

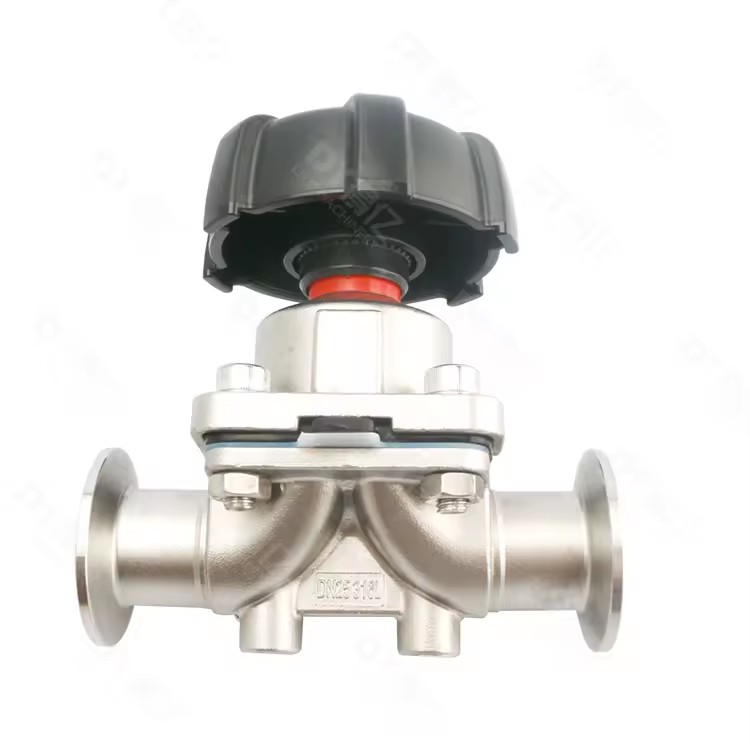

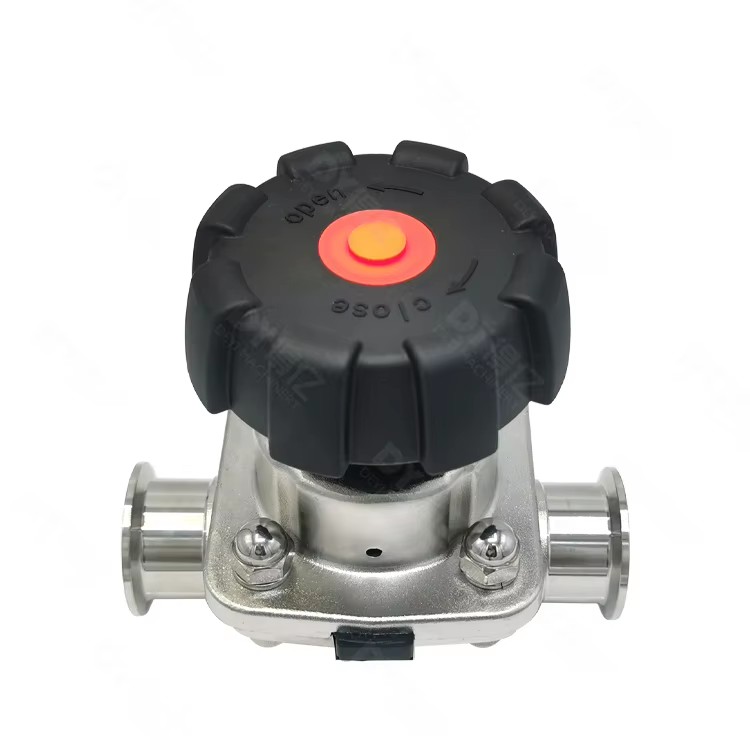

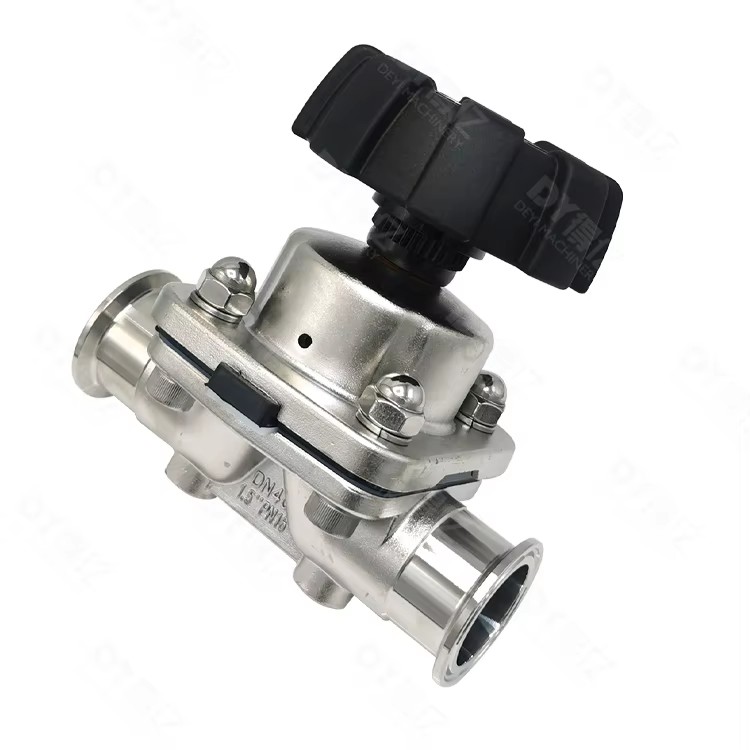

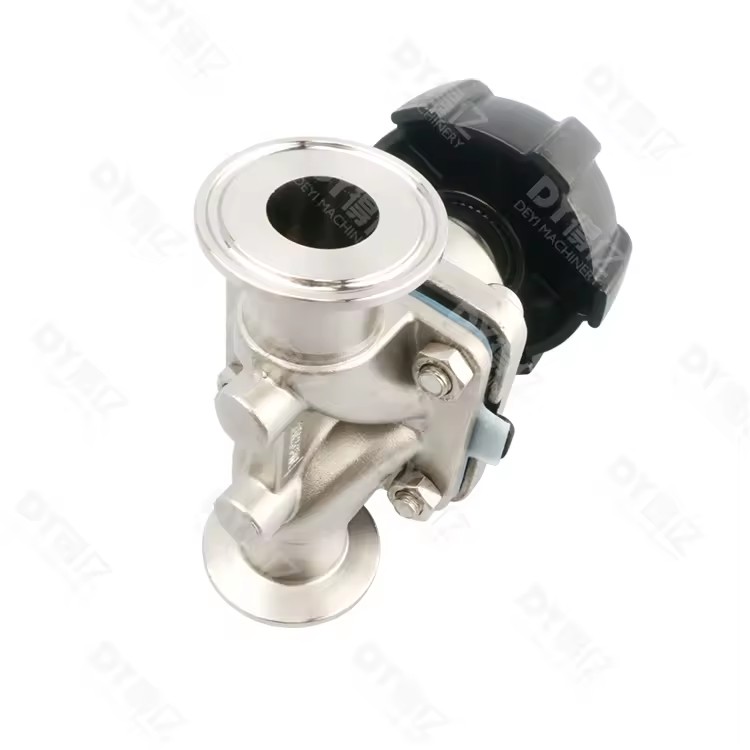

Made Stainless Steel Sanitary Manual Diaphragm Valve Two-Way Triclamp with EPDM+PTFE Membrane

Available for enquiry 0.0 · 0 reviews
USD

$ 90.00 90.0 USD $ 90.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Type
  • Media
  • Port Size
  • Temperature of media
  • Application
  • Power
  • Structure
  • Customized support
  • Warranty
  • Place of origin
  • Model number (Specification)
  • Max pressure
  • Connection(standard)
  • Body combination
  • Seal Material
  • Flow direction
  • Internal surface
  • External surface
  • Availably Connection
  • Application scope
  • Certification
  • Selling Units
  • Single package size
  • Single gross weight
  • Material (Product option)
  • Pressure (Product option)
  • Size (Product option)

This combination is unavailable.

Key attributes

View all
Type
diaphragm valve
Media
pharmaceutical
Port Size
1/2"~4", DN15~DN100
Temperature of media
Medium Temperature
Application
Microbiology and Pharmacy
Power
Manual
Product description

Diaphragm valves

Manual or air actuated.are specially designed for hygienic and asepsis processes in pharmacy industry.This valve is excellent for controlling as well as on/off fluid.

Diaphragm seals the valve body and seat.

The is no way to contact the environment.So this valve is suitable for asepsis process.When the valve is off.The pressure seal that holding up diaphragm moves towards to the sealing face of valve body.When the pressure plate moves,the diaphragm bending.forced towards to seat area of body center.So that to shut off the flow path to valve body.The relevant of valve body and pressure plate prevents the diaphragm pressing.The valve can be manual and air actuated,also can be operated by control top and soleniod valve.

Features

Valve body which contacts with liquid is made of SS316L. The non-contacting part is made of SS304 material.

Operation: Manual, Air actuator

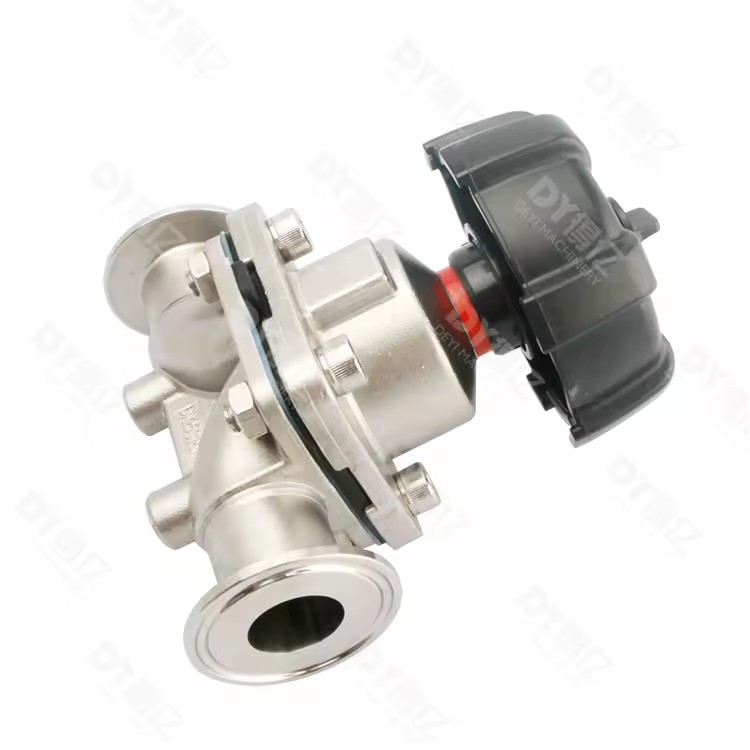

Valve body type: Two way mirror type, three way, U type, T type

Gasket: EPDM/PTFE double membrane, EPDM+PTFE integrated membrane

Max. Pressure: 10bar

Max. Temperature: -10 to +120 degree

Material quality: SS 316L

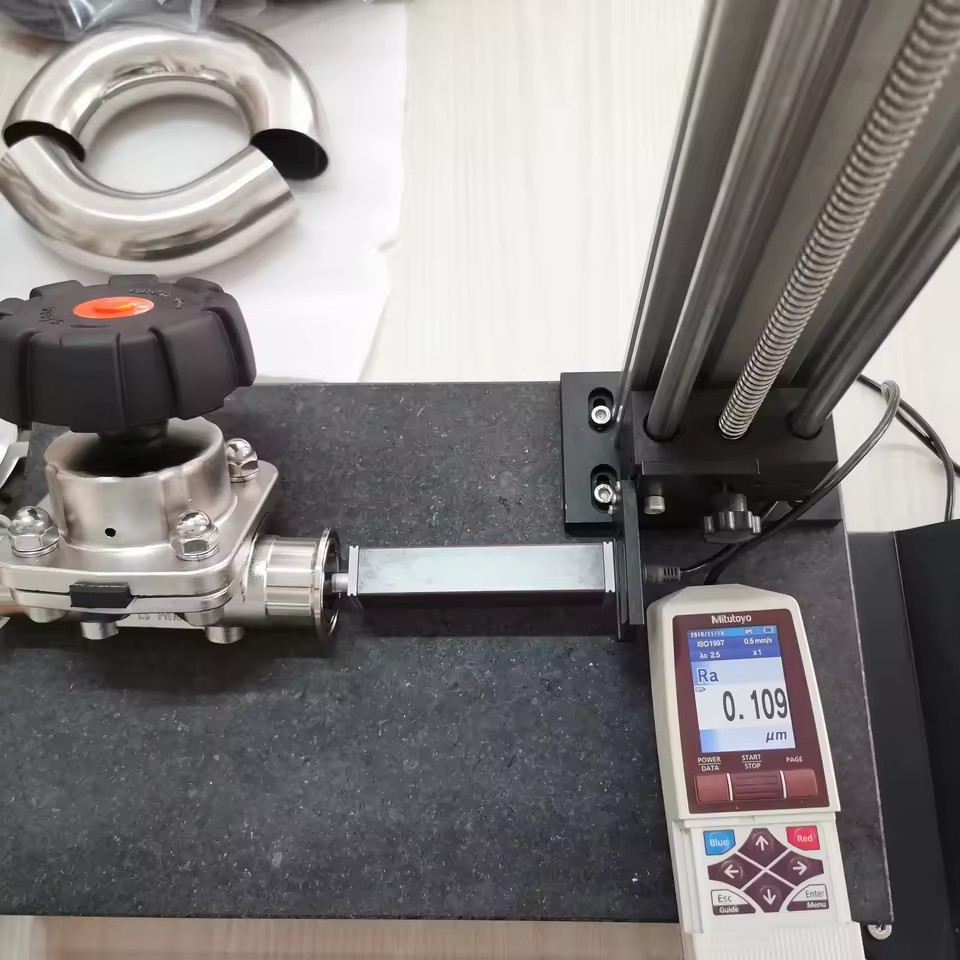

Inside surface finish: less than Ra0.4

Standard: DIN, SMS

Connection: welded, clamped, flanged

Size: DN10-DN100

Comparing with other valves,this valve has obvious advantage on the flow control.Easy clean,good at dealing with grain medium.The phenomenon of air pocket is rare on the applicationof flow control.

Technical data

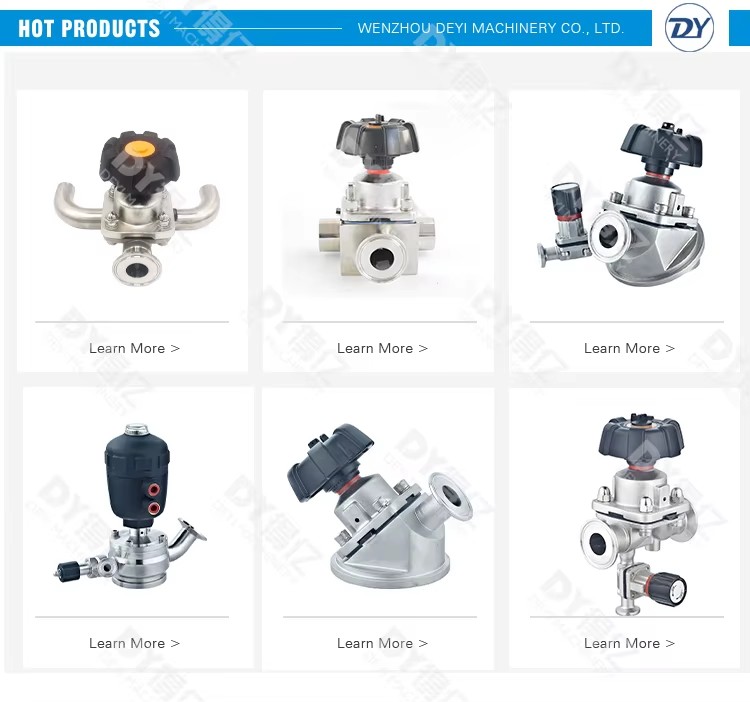

Related valves photos

SHIPPING INFO

MOQ: 1Set

Supply ability: 1, 000 pieces/month

Payment terms: T/T,Western Union, Paypal, L/C

Packaging: Shrink wrapped-in seaworthy wooden cased

Delivery time: D epends on quantity

Shipping mode: By sea,by air,by express

On samplesBuyer bear the air fee, but this fee will be reduced from order directly
OnFree replacement if there is any quality problem
On deliveryNever delay delivery time
On MaterialsEnsure material pure
OEMWelcome

We specializes in sanitary valves,pipe fittings and pumps,which is applied for milk,food,beer, p harmaceutical and other fields.We can quote you favourable price&high quality&best after-sale services.Welcome to any enquiry and visit

  • High-quality + competitive price + fast delivery + 12years quality guarantee
  • Wide excellent experiences with after-sale service
  • Every process will be checked by responsible QC which insures every product's quality
  • High-quality stainless steel with reasonable price
  • Professional packing teams which keep every packing safely
  • Trial order can be done in one week
  • Samples can be provided as your requirements

    • 1.Sanitary valve

    Sanitary Butterfly Valves

    Sanitary Check Valves

    Sanitary Ball Valvess

    Sanitary Reversal Valve

    Sanitary Diaphragm Valves

    Sanitary Sample Valves

    2. Sanitary Pipe Fittings

    Sanitary Elbow

    Sanitary Tee

    Sanitary Reducer

    Sanitary Cross

    Sanitary Triclamp Ferrule

    Sanitary Cap

    Sanitary Pipe Hanger

    Sanitary Tank Cleaning Ball

    Sanitary Hose Joint

    Sanitary Unions

    Sanitary Sight Glass

    Sanitary Strainer

    3. Sanitary Manways

    Sanitary Round Manway without Pressure

    Sanitary Round Manway with Pressure

    Sanitary Square Manway

    Sanitary Oval Manway

    4. Sanitary Pumps

    Sanitary Centrifugal Pump

    Sanitary Lobe Pump

    Sanitary Self Priming Pump

    5.Sanitary Tanks

    Storage Tank

    Fermentation Tank

    Mixing Tank

    Warm-keeping Tank

    6.Sanitary Tube

    Seamless Tube

    Weldless Tube

    7.Sanitary Gasket

    Silicone/EPDM Gasket for Triclamp

    Silicone/EPDM Gasket for Union

    Silicone/EPDM Gasket for Butterfly Valve

    Silicone/EPDM Gasket for Manhole Cover

    Description images
    Made Stainless Steel Sanitary Manual Diaphragm Valve Two-Way Triclamp with EPDM+PTFE Membrane
    Made Stainless Steel Sanitary Manual Diaphragm Valve Two-Way Triclamp with EPDM+PTFE Membrane
    Made Stainless Steel Sanitary Manual Diaphragm Valve Two-Way Triclamp with EPDM+PTFE Membrane
    Product detail
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      10 days

    • Step 3

      Packaging and dispatch

      Economy · Estimated delivery: Sep 29–Oct 23 (29–53 days)

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 27 fields
    Type
    diaphragm valve
    Media
    pharmaceutical
    Port Size
    1/2"~4", DN15~DN100
    Temperature of media
    Medium Temperature
    Application
    Microbiology and Pharmacy
    Power
    Manual
    Structure
    Diaphragm
    Customized support
    OEM
    Warranty
    1n year
    Place of origin
    Zhejiang, China
    Model number (Specification)
    DY-DV25
    Max pressure
    10bar(145 PSI)
    Connection(standard)
    welding, thread, clamp, flange
    Body combination
    three ways, two way, U type
    Seal Material
    EPDM+PTFE
    Flow direction
    Bidirectional
    Internal surface
    Ra≤0.4um(mechanical polishing or electropolishing)
    External surface
    Shot blasting
    Availably Connection
    Clamp/Weld/Thread/Special Connection
    Application scope
    Food, Dairy, Beverage, Pharmacy, Cosmetic, etc
    Certification
    ISO9001
    Selling Units
    Single item
    Single package size
    30X25X25 cm
    Single gross weight
    3.0 kg
    Material (Product option)
    SS316L
    Pressure (Product option)
    Medium Pressure
    Size (Product option)
    1 in, DN25
    Lead time
    10 days
    Minimum order
    1 Units
