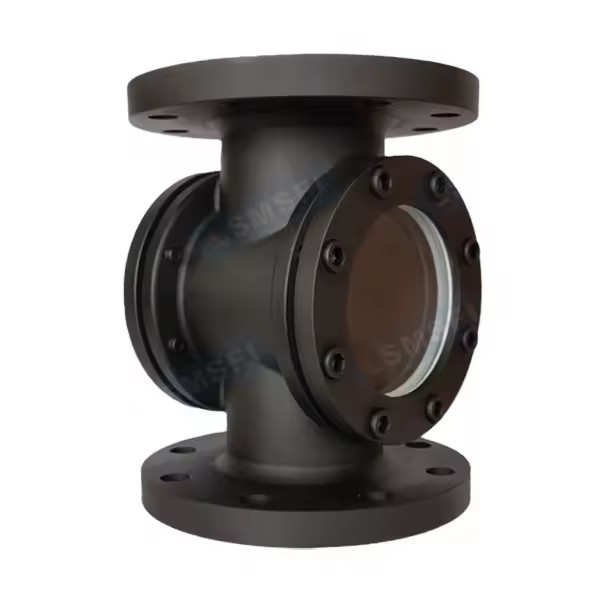

LSMSFI WCB Double Window Sight Glass
LSMSFI Brand Flow Indicator is committed to helping customers to monitor and verfify the flowing mediums such as petroleum products,liquefied gases,solvents or hazardous and corrosive chemicals and liquids.Monitoring, Sensing and Revealing the fluids in operation,to help you keep them under your control for safety and trouble shooting in economical ways. Flow Indicators Types are divided into Flapper Flow Indicator, Paddle Wheel Flow Indicator, Floating
Ball Flow indicator and Sight Glass Flow Indicator by
Application Fileds
I. Power Plants; II. Waste Water Treatment; III.Chemical Industry; IV. Petroleum Industry; V. Manufacturing
Structure & Performance
| Parts | Materials | Max.Pressure or Temperature |
| Body & Covers &Bolts | 304 Stainless Steel | 112°F to 797°F |
| 316 Stainless Steel | 320.8°F to 1202°F |
| 316L Stainless Steel | 320.8°F to 1472°F |
| Windows | Tempered Soda Lime Glass | 235psig@212°F |
| Tempered Borosilicate Glass | 290psig@248°F |
| Tempered Quartz Glass | 362psig@392°F |
| Sealing Gaskets | NBR | 4°F to 248°F |
| Viton | 13°F to 400°F |
| PTFE(Teflon) | 40°F to 500°F |
| Flange Standard | ANSI 150Lb/300Lb/DIN/JIS 5K/10K/Ghost/GB |
rton Package with Bubble Boxes
II.Plywood Package with Carton Boxes or Other Protection
Shipping Methods
ternational Express(DHL/FedEx/TNT/UPS);r Transportation;3.Sea Transporation.

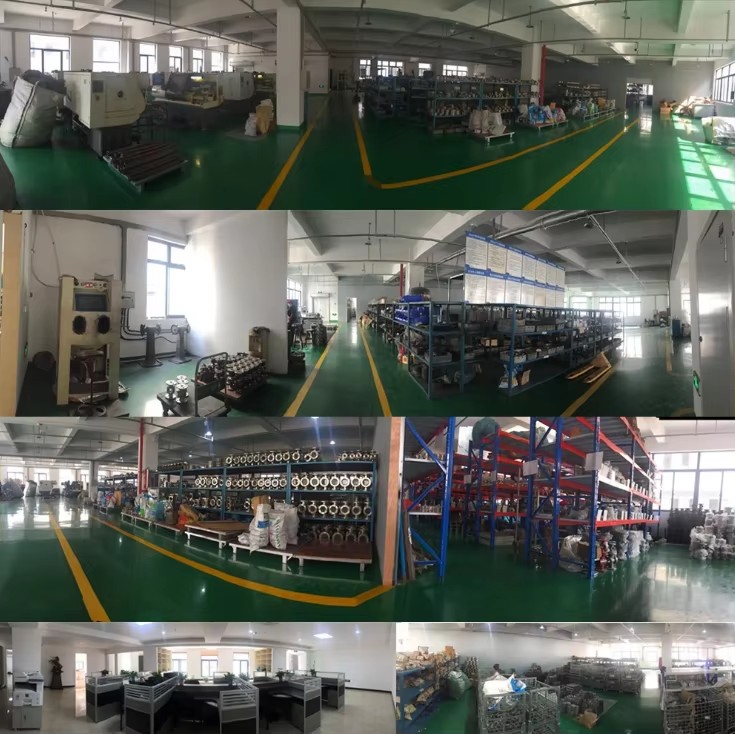

Production Department and Tools
FAQ
FAQ for LSMSFI WCB Double Window Sight Glass I. Can you advise suitable LSMSFI WCB Double Window Sight Glass to me? A:According to your reply on Pressure,Temperature,Size,Connection Method and Flowing Medium
A:According to your reply on Pressure,Temperature,Size,Connection Method and Flowing Medium
we will advise suitable double window sight glass goods to you with detailed parameters and prices. II. Can you send your catalog to us for business in future? A:Considering that we have over 100 kinds of sight glass,we will send our latest datasheet to you but
A:Considering that we have over 100 kinds of sight glass,we will send our
it does not have is better to offer three suitable double window sight glass types to you
at least according to your needs. II I. What is your MOQ?Is there any free sample? A:MOQ for any types is one piece of double window sight glass,we can offer double window sight
A:MOQ for any types is one piece of double window sight glass,we can offer double window
glass sample to you according to its value and the possibility of business relationship between us.
There is a Chinese saying · Give to Get. IV. Whether there are some discounts for large quantities or not? A:To be honest,we not only offer discounts to you because of quantity but also discounts to you when
A:To be honest,we not only offer discounts to you because of quantity but also discounts to you when
we do the promotion during double window sight glass purchase season. V. To be continuted...................................................
