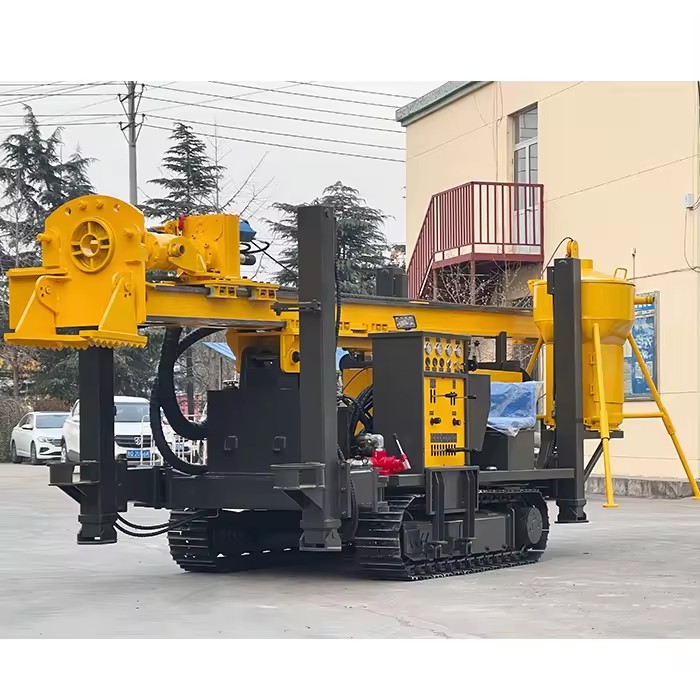

Large Hole 200m 500m Mine Reverse Circulation Drilling Rig Rc Drilling Rotary Head Exploration Rc Drill Rigs

Available for enquiry 0.0 · 0 reviews
USD

$ 35,080.00 35080.0 USD $ 35,080.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Usage
  • Type
  • Drilling Depth
  • Drilling Diameter
  • Power Type
  • Voltage
  • Core components
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Place of origin
  • Weight
  • Dimension (L*W*H)
  • Mobility
  • Application
  • Feature
  • Hole Diameter
  • Swing Speed
  • Rig Lifting Force
  • Rapid rise speed
  • Walking speed
  • Equipped capacitor
  • Dimension
  • Selling Units
  • Single package size
  • Single gross weight
  • Model number
  • Power (W) (Product option)

This combination is unavailable.

Key attributes

View all
Usage
Ore
Type
Rotary Drilling Rig
Drilling Depth
Max.500m
Drilling Diameter
500 mm, 200 mm
Power Type
Diesel
Voltage
Diesel Engine Driving
Product description
ModelSM200SM500
The weight（T）69.5
Drill pipe diameter（mm）Φ89 Φ102Φ102 Φ114
The hole diameter（mm）130-254130-350
One-time advance length（m）3.64
Swing speed（rpm）45-7066-140
Rig lifting force（T）1522
Rapid rise speed（m/min）2020
Using air pressure（MPA）1.7-2.51.7-3.4
Walking speed（km/h）2.52.5
Width of loading（m）2.42.7
Equipped capacitor（kw）77.3132KW
Drill pipe length（m）1.5/2.0/3.01.5/2.0/3.0
Drilling depth（m）200500
The penetration efficiency（m/h）10-3515-35
Swing torque（N.m）5300-76008500-12000
Hoisting force of winch（T）1.52
Fast feeding speed（m/min）4040
Air consumption（m³/min）17-3117-36
Climbing angles（Max.）3030
Dimension（mm）6000×1750×23506750×2200×2650
Description images

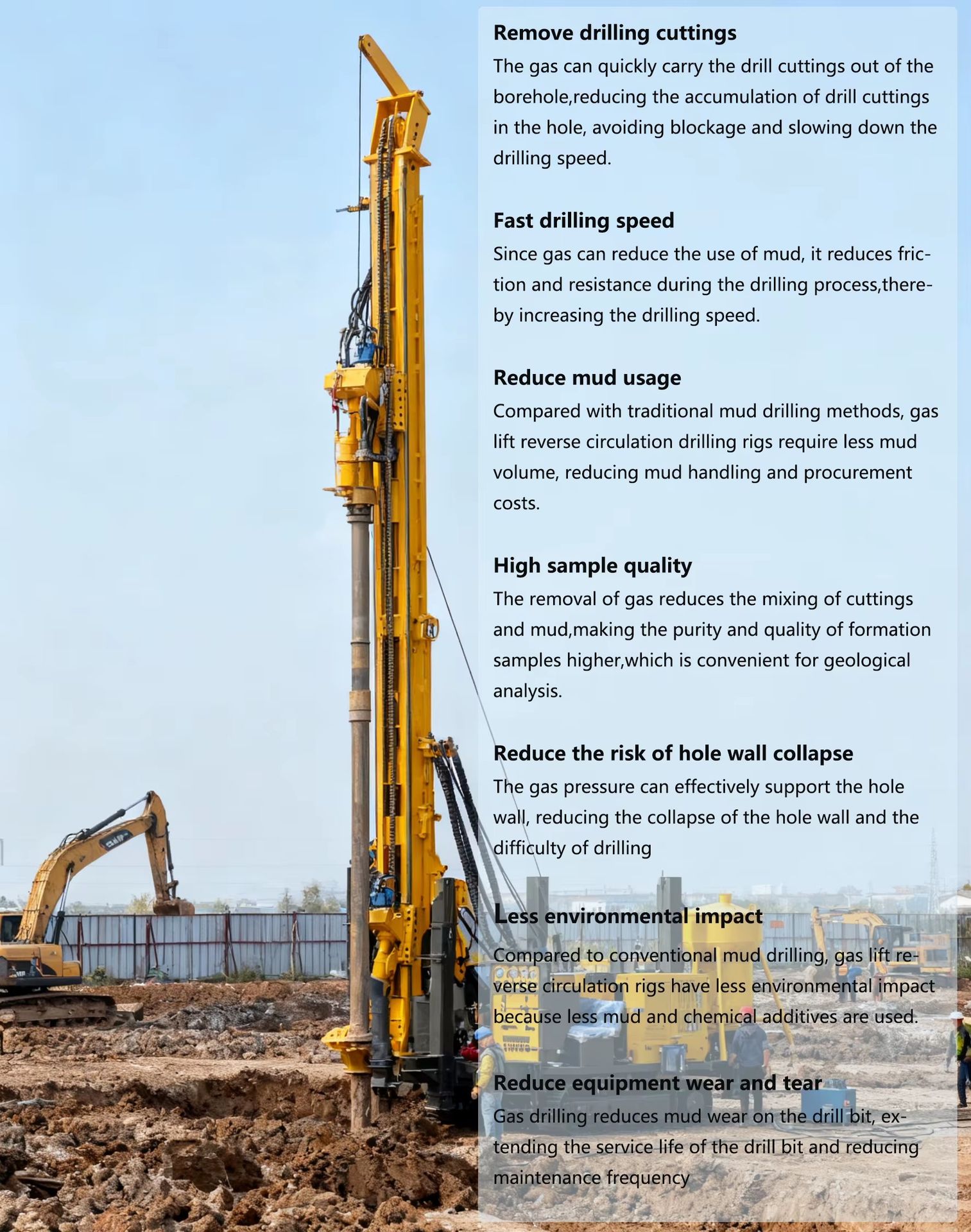

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    35 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 29 fields
Usage
Ore
Type
Rotary Drilling Rig
Drilling Depth
Max.500m
Drilling Diameter
500 mm, 200 mm
Power Type
Diesel
Voltage
Diesel Engine Driving
Core components
Engine
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Easy To Operate
Place of origin
Zhejiang, China
Weight
5000 kg
Dimension (L*W*H)
6750*2200*2650mm
Mobility
Crawler Movable
Application
Construction
Feature
High Efficiency
Hole Diameter
130-254/130-350mm
Swing Speed
45-70/66-140rpm
Rig Lifting Force
15/22T
Rapid rise speed
20m/min
Walking speed
2.5km/h
Equipped capacitor
77.3/132kw
Dimension
6750*2200*2650mm
Selling Units
Single item
Single package size
5760X1800X2440 cm
Single gross weight
8000.0 kg
Model number
SM200, SM500
Power (W) (Product option)
132kw, 77.3KW
Lead time
35 days
Minimum order
1 Units
