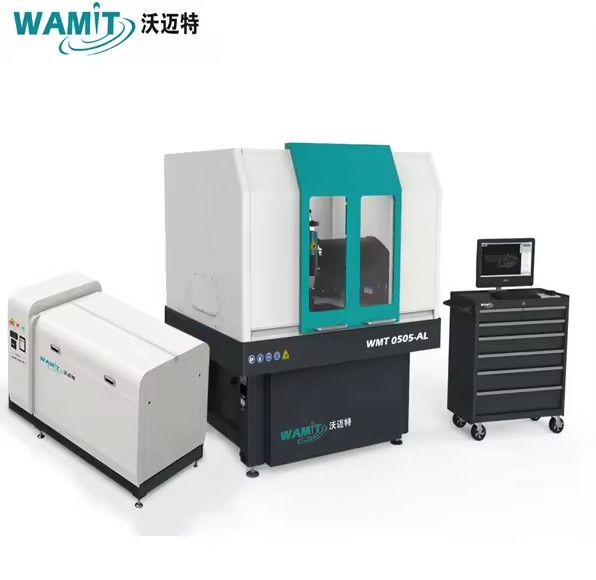

desktop small waterjet cutter with 30000psi direct drive pump widely used in laboratory and home work
SPECIFICATIONS FOR WATER JET CUTTING MACHINE
Model
WMT 1010
WMT 2050
WMT 3020
WMT 3080
WMT 5030
Cutting table
X axis(mm)
1200
2200
3200
5200
Y axis(mm)
8200
Max.cutting range(mm)
1000
2000
3000
5000
8000
Z axis(mm)
250
Remove impurities such as surface oxide scale to improve appearance can improve the fatigue fracture resistance of materials, prevent fatigue failure, plastic deformation and brittle fracture, and improve fatigue life.
Test the straightness and parallelism of linear guide rail with precision measuring instruments.
Guaranteed higher precision when the equipment is running after the linear guide rail is installed.
Calibrating equipment precision with a laser interferometer.guaranteed more accurate cutting precision.
Material
Specification
Speed(mm/min)
Servo direct drive pump
Hydraulic intensifier pump
Carbon steel plate
10mm
330
270
12mm
280
220
14mm
240
180
16mm
200
140
20mm
170
110
22mm
85
Aluminum plate
800
600
30mm
160
Glass
5mm
1600
8mm
1800
1400
1500
1100
900
700
Ceramic tile
Microcrystal stone
Marble
25mm
Products Description

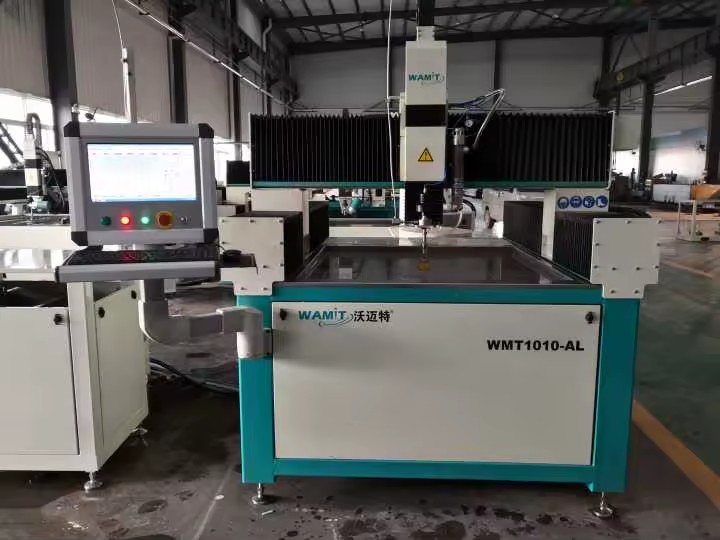

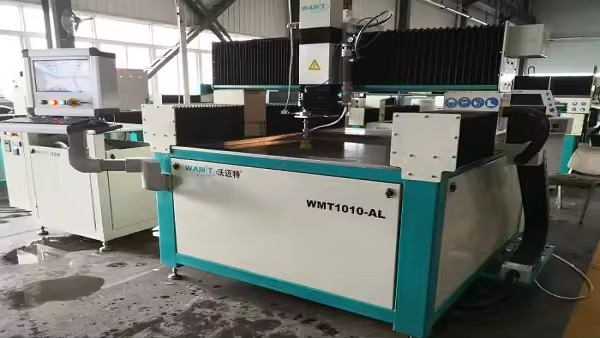

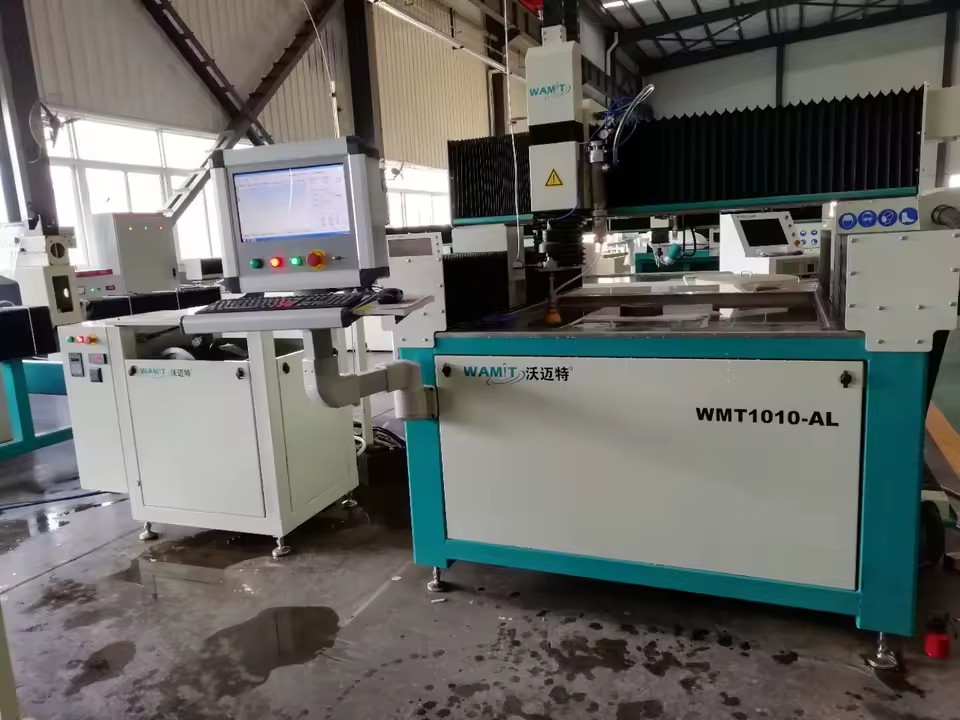

desktop small waterjet cutter with 30000psi direct drive pump
widely used in laboratory and home work

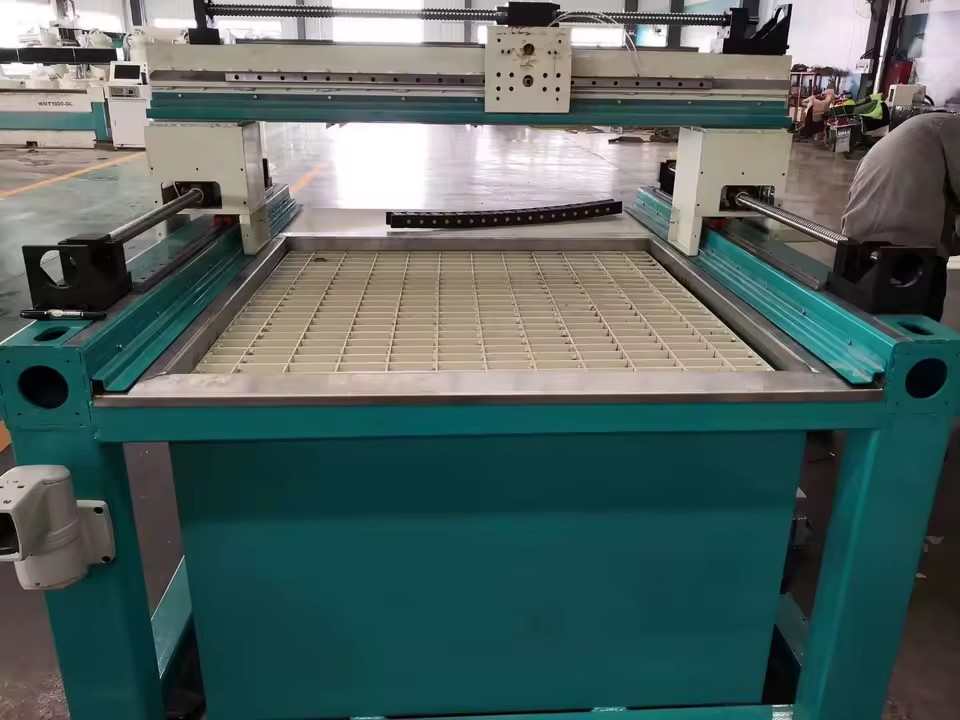

The gantry-style balanced design structure is more stable and improves the accuracy of the machine. Ultra-high pressure cutter head, which can be cut with pure water and sand. It has 3-axis and 5-axis cutter heads for vertical and non-vertical cutting with a maximum cutting angle of 60 degrees. The X/Y axis adopts the labyrinth waterproof and sandproof double protection system. The X/Y axis adopts 's high-quality guide rail and Swedish ball screw. It is durable and the Z-axis fully enclosed structure is guaranteed to be free from water and sand. Heavy-duty machine tools, high-temperature forging, so that the machine will not be deformed during use. 's first generation of self-designed ultra-high pressure servo direct drive pumps are more energy efficient, environmentally friendly and light, and ultra high pressure booster pumps are easier to operate and maintain. The CNC control system uses the WEIHONG professional waterjet cutting CNC system.
we also have imported software which support more than 20 languages.
1. Automatic lubrication system from the Valley of.
2. The internal components are selected from Schneider International brand, with first-class quality and reliable work.
3. Way of drive: Servo ( drives and motors are YASKAWA ).
4. High precision, Ensure cutting results.
5.
Provide customizable services.
6.
After-sales Service
Field maintenance and repair service
Online support
Field installation, commissioning and training
Video technical support
Free spare parts.
7.ECL cutting head
Control system
Adopt industrial PC
Dedicated water jet cutting software with graphic simulation running function, graphic input automatic programming function. • Support for DXF files. • Support forward and reverse processing functions. • Uniform speed control function. • Two modes of segmentation and smooth machining. • Automatic processing with small arc speed. • Coordinate recovery function after power off. • Double lift speed parameter function. • With cycle processing. • Convenient pause to continue and start machining in any segment. • Free time delay setting. • Apply SIEMENS PLC instead of relay, buttons are Schneider.
Can provide imported ECS software which can provide more than 20 languages
Size
Can be customized to any size, mini platform or ultra-large platform or other size can be customized.
servo direct drive pump represents a new generation of high-efficiency, energy-saving ultra-high pressure pump, which is the first large R&D. Servo motor driven direct drive intensifier system.

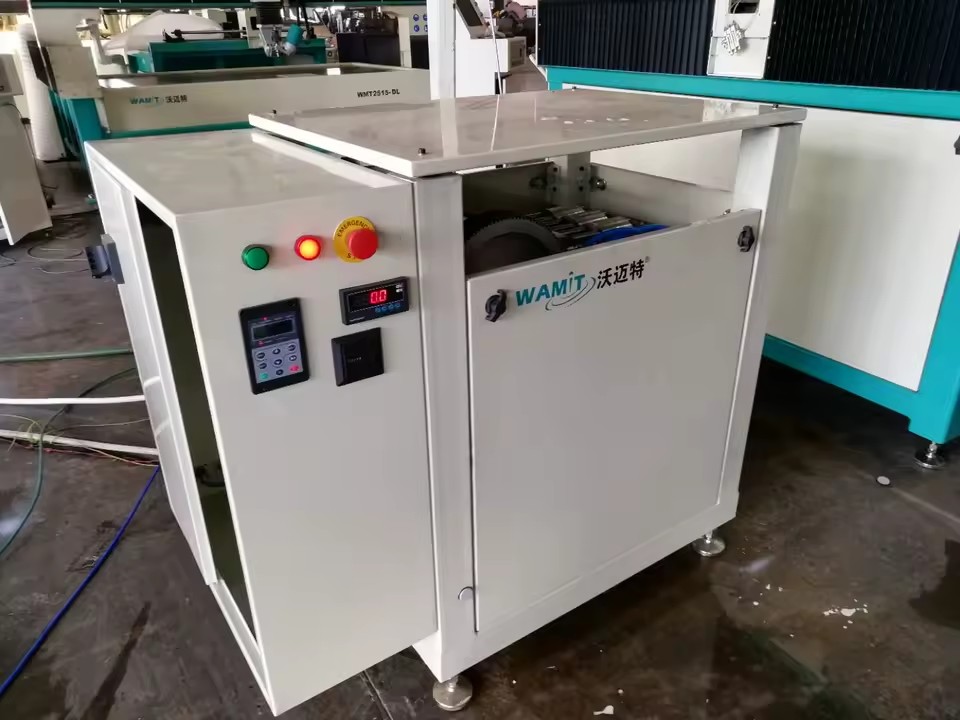

7.5kw direct drive pump
Model: WMT SDD 20
Maximum pressure: 30000Psi.
Gemstone aperture: 0.33mm.
Displacement: 3.0 l/min.
Inlet pressure: 0.4MPa.
Main motor power: 7.5KW.
Dimensions: 1680*900*1100mm
Double row water filtration system (5Micron, 1micron, series)
Intelligent start and stop function.
Over-pressure automatic shutdown and under-pressure automatic protection.
A: Energy saving: The main motor adopts a torque motor of 15KW, compared with the motor of the 37KW hydraulic high pressure intensifier system, the power consumption can be saved by 60%-70%. B: Environmental protection: the use of servo direct drive, no hydraulic system, with self-cooling function. As we all know, hydraulic The hydraulic intensifier system must be filled with 110L of anti-wear hydraulic oil to work, and the heat generated by the hydraulic oil is also cooled by the oil cooler. The direct drive pump is completely free of hydraulic oil and cooling system. C: High efficiency: Direct drive pump provides a higher pressure output ratio, cutting speed is 20 to 50% faster than the same equipment in the market. E: Low noise: almost no noise when working. F: Small weight: The total weight of the direct drive pump is less than 600kg, and the movement is flexible. The weight of the hydraulic intensifier pump is 1000kg. G: Beautiful appearance: The structure is reasonable in design and beautiful in appearance, because the direct drive pump does not have a hydraulic system, Thereby avoiding the leakage of the hydraulic oil (the hydraulic seal will be damaged for a long time use, causing the hydraulic oil to leak), eliminates the contamination of equipment by oil stains.
Production Process
620 degrees in the furnace for 5 hours, down to 300 degrees for 3 hours, then naturally cooled in the furnace.eliminate internal stress in the welded frame.no deformation occurs during frame use,guarantee better cutting precision.
Cutting Speed
Our Customer
Packaging & Shipping
Recommended by seller
€3,947.79-4,825.08
set
€14,912.99-23,393.71
FAQ
1. Are you manufacturer or trading company?
We are manufacturer of water jet cutting machine in JINAN city, Shandong,.
2. What kind of material does your water jet cutting machine can cut?
There are plenty materials our water jet cutting machine can cut, such as stone, ceramic, quartz, glass, foam, plastic, rubber, copper, brass, aluminum, mild steel, pre-hardened steel, titanium, inconel and cast alloy.
3. What's your CNC water jet cutting machine's max. cutting thickness?
Generally speaking, if cut steel the max thickness of our water jet cutting machine can be up to 240mm, but we suggest cut no more than 150mm for smooth cutting. Now our Z axis distance is 170mm, we can customize for customers. Regular thickness please refer to: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm.
4. How we supply after-service?
Some countries we have after-service department, we will provide local service, if have no local service, we will arrange engineer for overseas installation and training. The installation and training time is generally 7-10 days. And we also can provide installation videos.
5. What's your delivery time?
Generally speaking is 30 days. if have stock, 7-15 days.
