Product description

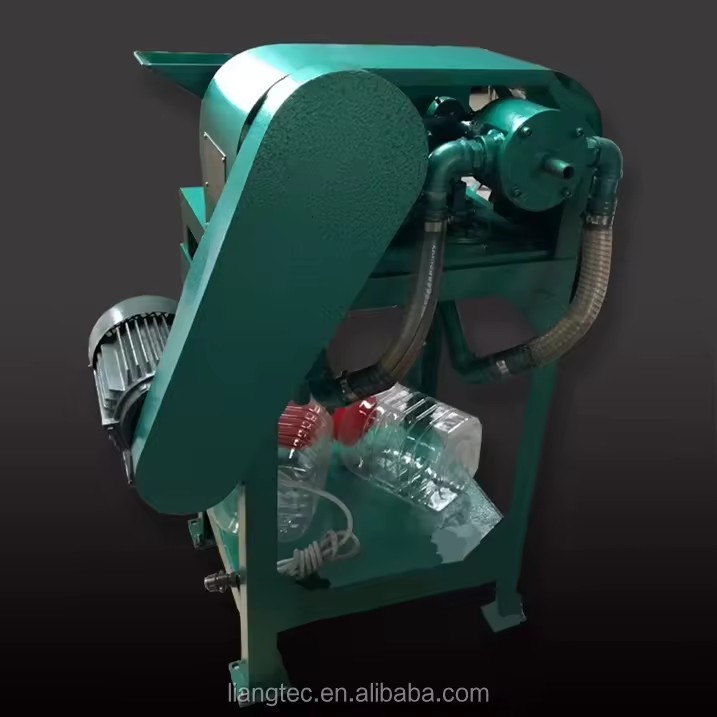

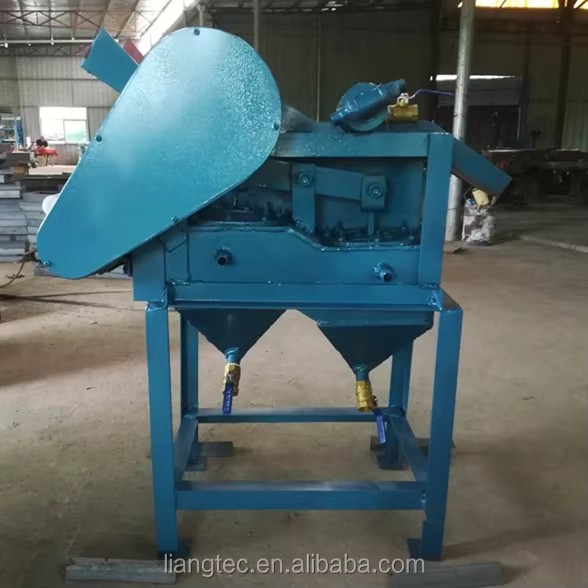

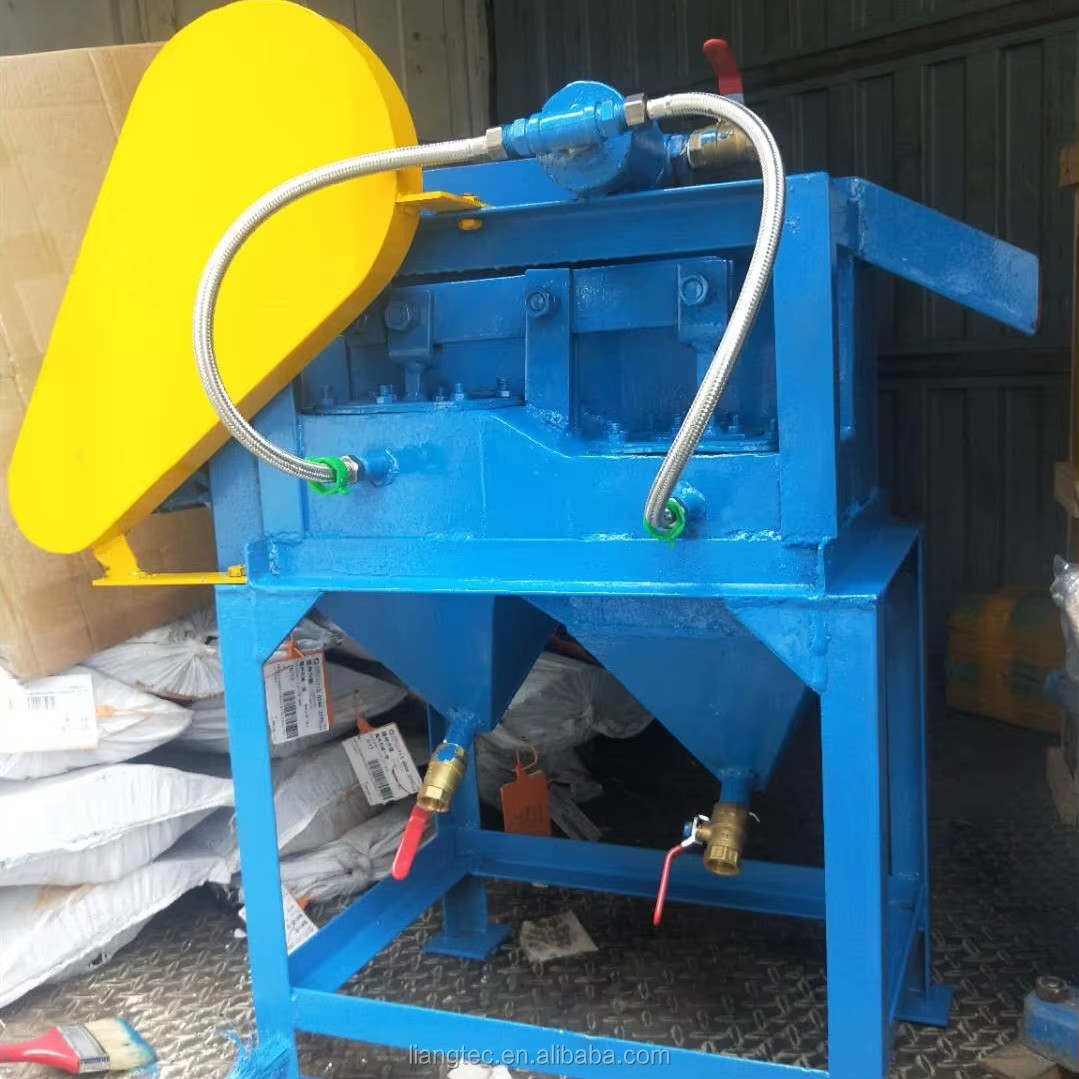

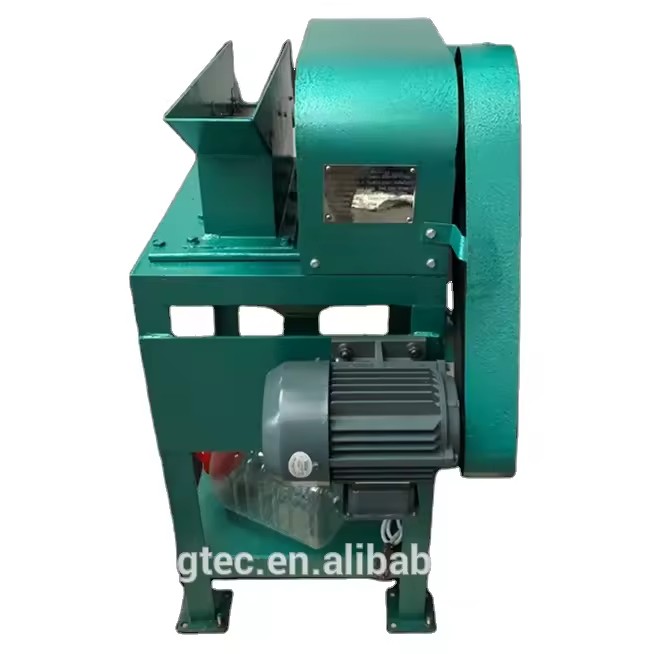

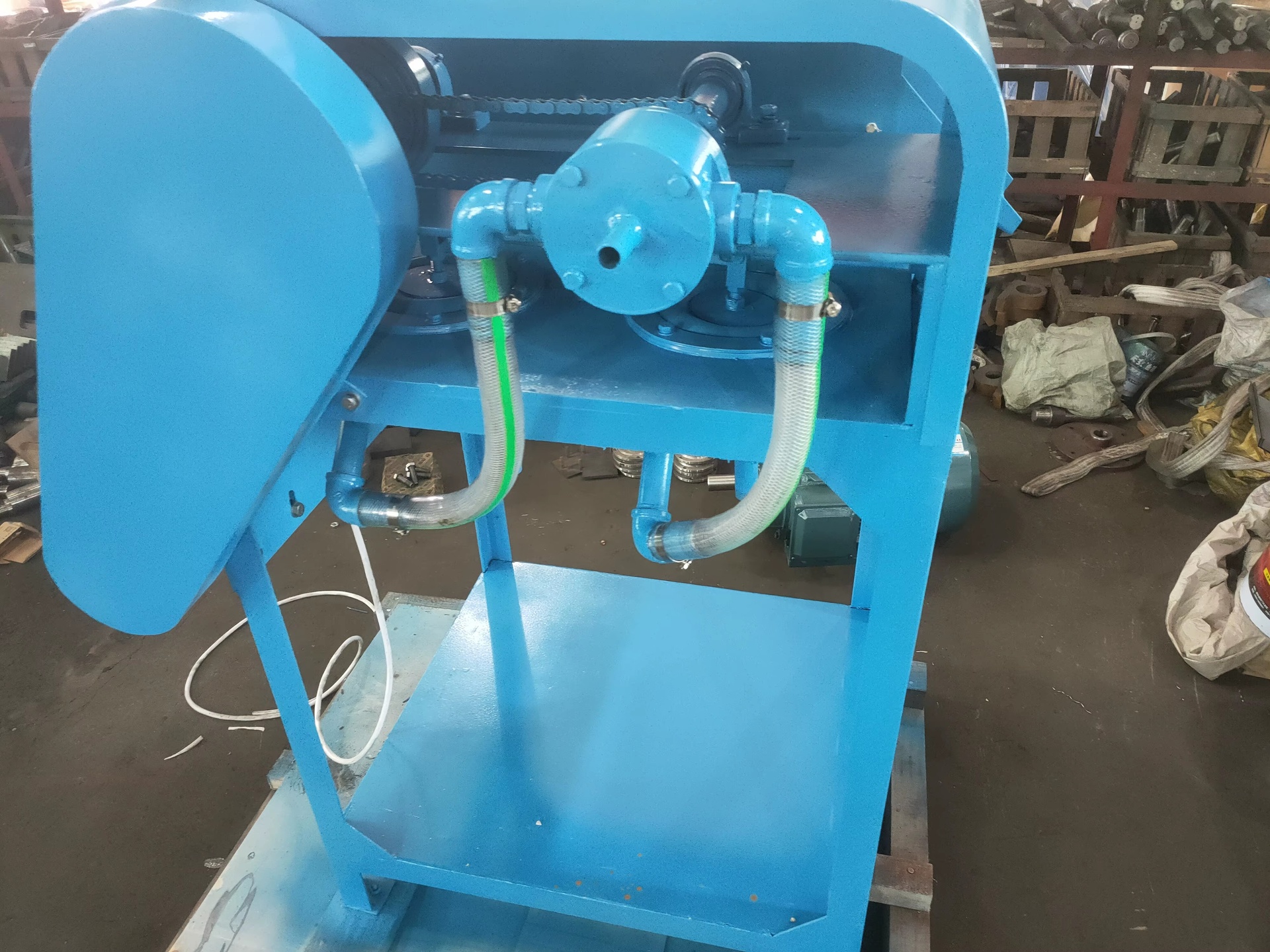

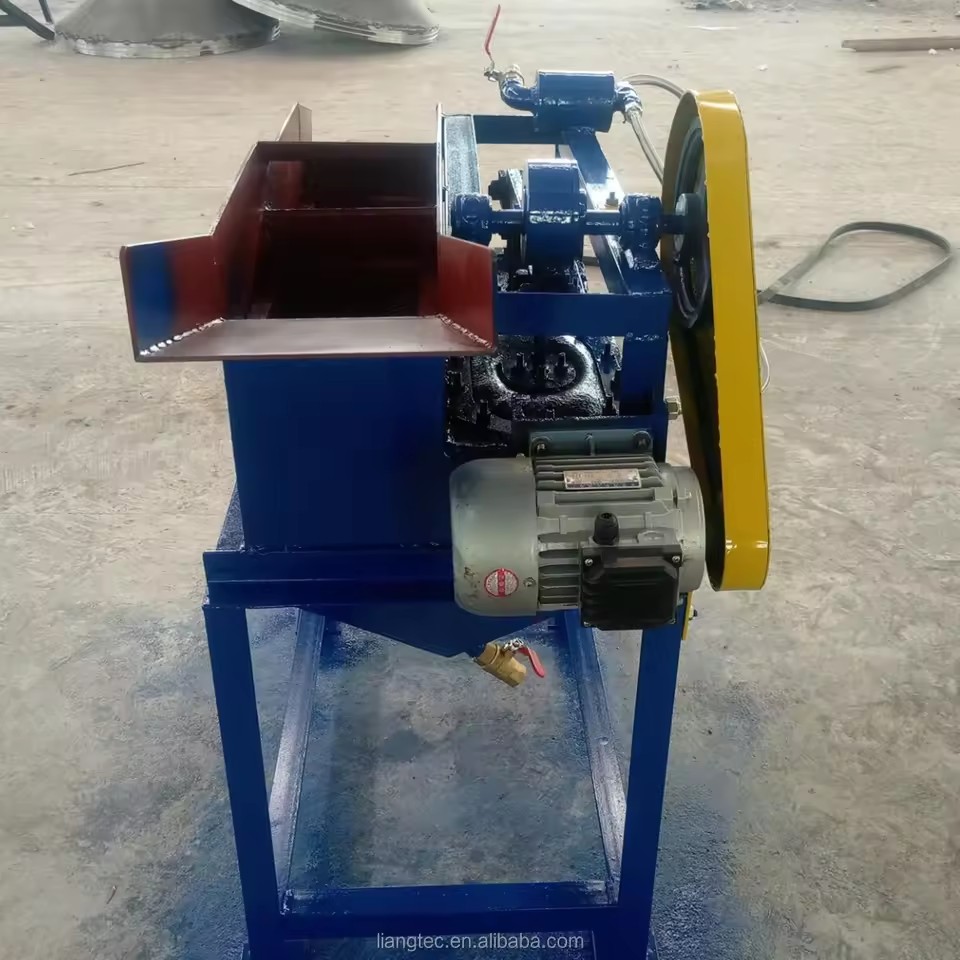

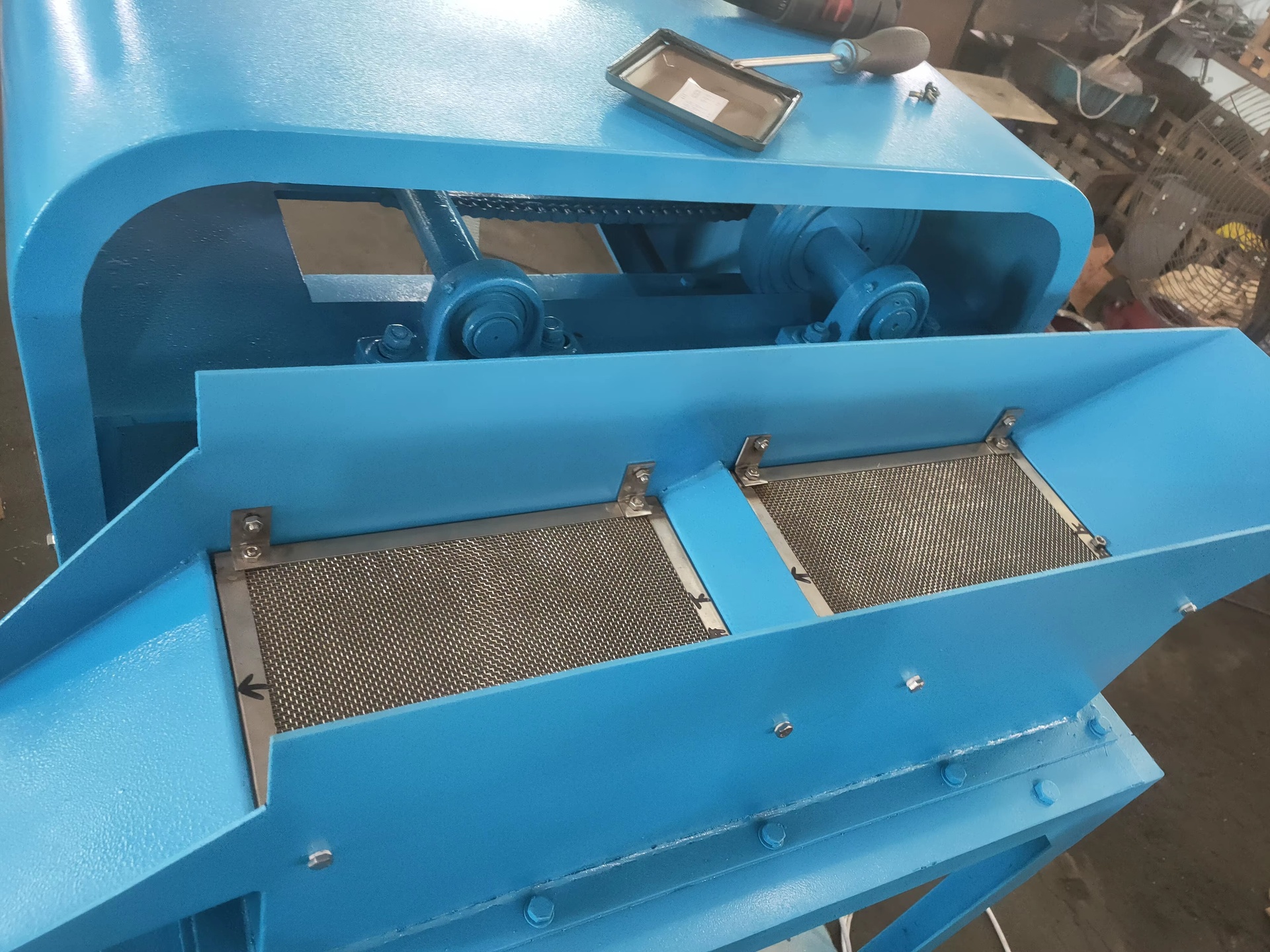

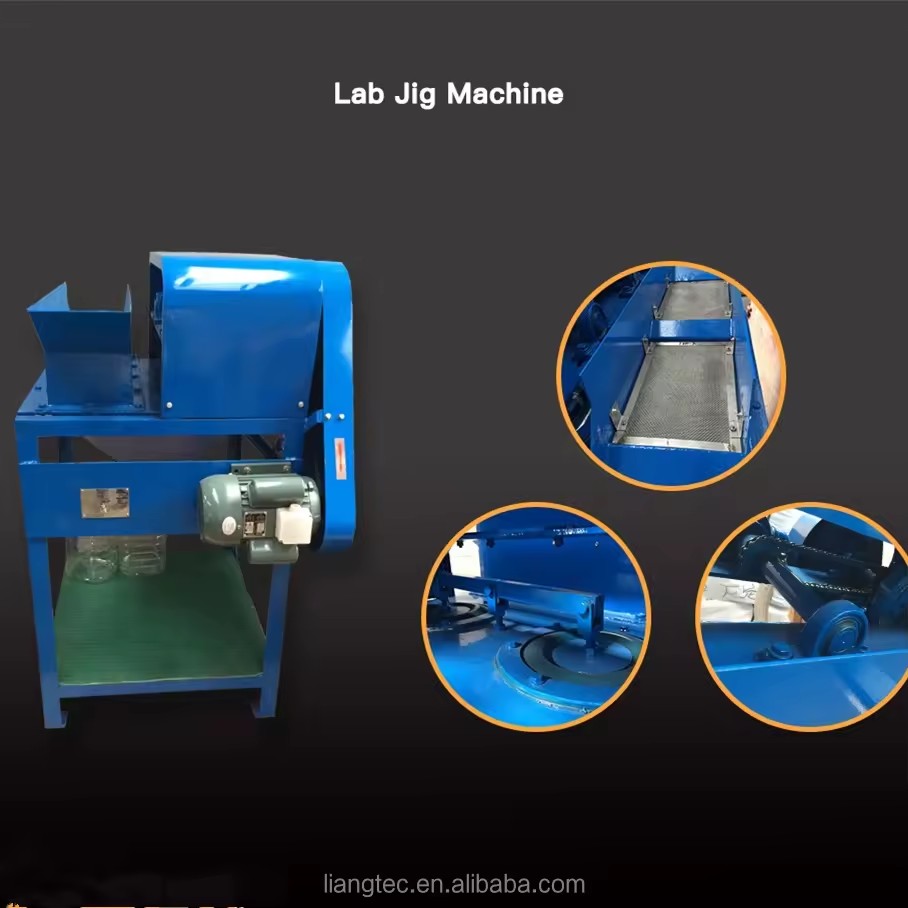

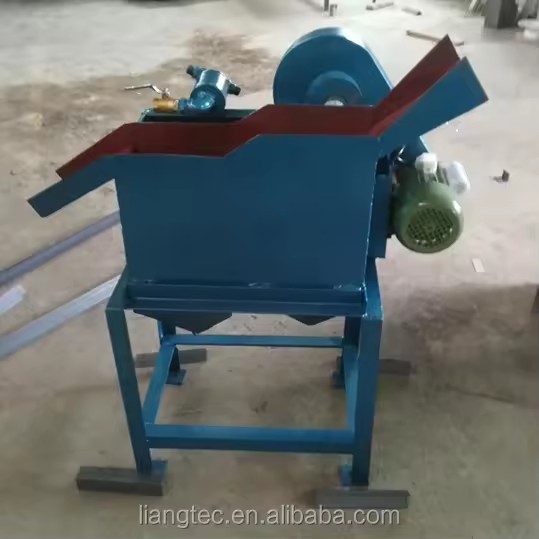

Laboratory Jig Separator

Working Principle

Model	XCT-100×150	XCT-200×300
Chamber Size	Length (mm)	150	300
Width (mm)	100	200
Chamber Number	2	2
Chamber Area (m²)	0.03	0.06
Eccentric Maximum Stroke (mm)	≤20	≤32
Feeding Size (mm)	≤3	≤6
Stroke Frequency (times/min)	420	346
Capacity (kg/hr)	20-70	70
Backwater Consumption (kg/min)	0.117	4
Feeding Water Consumption (kg/min)	0.1	2.4
Motor	Power (kW)	0.55	0.75
Rotation Speed (rpm)	1400	1390
Dimensions	Length (mm)	760	1100
Width (mm)	530	820
Height (mm)	1135	1270
Weight (kg)	170	200

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 29 fields

Type

Gravity Separator

Voltage

220V/380V

Core components

Motor, Engine

Machinery test report

Not Available

Warranty

12 Months

Video outgoing-inspection

Provided

Key selling points

Long Service Life

Production Capacity

98%

Place of origin

China, Jiangxi

Weight

158-665KG(348.33-1466.07lb)

Dimension (L*W*H)

Different Model

After-sales Service Provided

Engineers available to service machinery overseas

Chamber Number

Chamber Area

0.03

Eccentric Maximum Stroke (mm)

≤20

Feeding Size (mm)

≤3

Strok

8.5-12,10-17,12-21 adjustable

Stroke Frequency (times/min)

420

Capacity (kg/hr)

0.05 MPA

Capacity

20-70

Feeding Water Consumption (kg/min)

0.10

Packaging Details

plywood package

Port of dispatch

Xiamen, Guangzhou, Shenzhen

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Supply Ability

200 sets per Month

Model number

XCT-100x150, XCT-200x300

Power (W) (Product option)

0.55kw(0.74hp), 0.75kw(1.01hp)

Lead time

7 days

Minimum order

1 Units
