Crawler Rock Mining Drilling Rig Machine

Name: Crawler Rock Mining Drilling Rig Machine
SKU: KZSF-7WMC-QT3Z

Available for enquiry 0.0 · 0 reviews

USD

$ 0.00 0.0 USD $ 0.00

Minimum order quantity: 1 Units

Key attributes

View all

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

SWDE 120S

Item	Unit	SWDE120S
Operation parameters
Drilling range	mm	90-138
DTH hammer	"	3.5‘’ or 4‘’ or 5‘’
Drill pipe diameter	mm	76
Drill pipe length	m	4m*7
Maximum hole depth	m	28
Dust removal device	Dry (standard); water mist (optional)
Display operating language	English/French (customization)
Air compressor
Pressure	Bar	20
FAD	m³/min	17.6
L/s	293
Power Group
Brand	YuChai
Model	YCK09310-T300
Power	kW/rpm	228/2200
Fuel tank volume	L	450
Feed
Total length	mm	7350
Feed extension	mm	1200
Feed force	kN	30
Pitch angle	°	140
Turning angle	°	20°~90°
Drill boom
Lifting angle	°	50 · 20
Swing angle	°	L20 R32
Carrier
Traveling speed	km/h	3.2
Max.traction	kN	110
Gradeability	°	25
Track oscillation	°	±10
Ground clearance	mm	438
Rotary head
Slewing speed	rpm	0-120
Slewing Torque	Nm	3400
Dimension
Weight	kg	14500
L × W × H (Working)	m	7.9x2.5x7.7
L × W × H (Transportation)	m	10.0x2.5x3.5

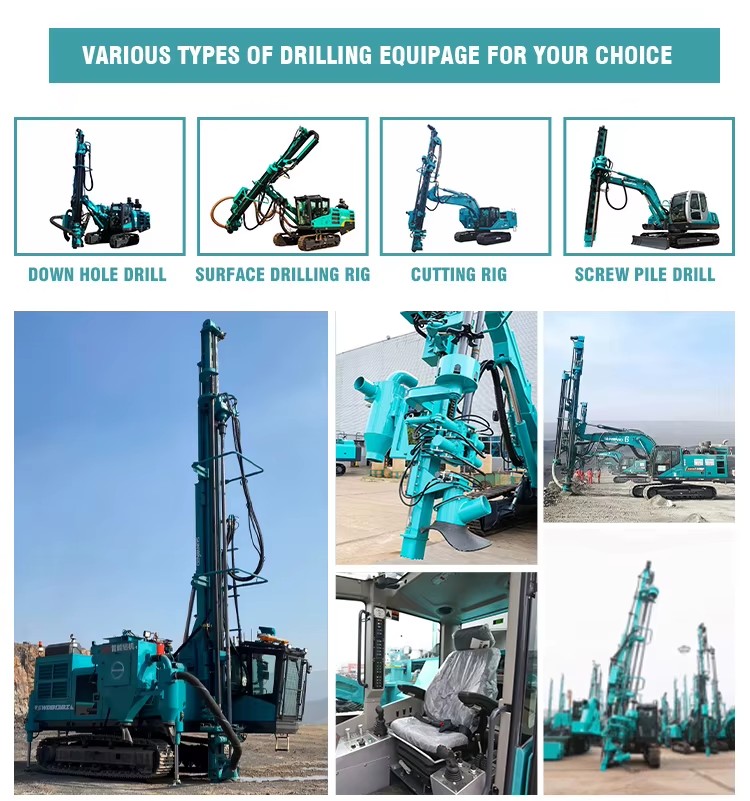

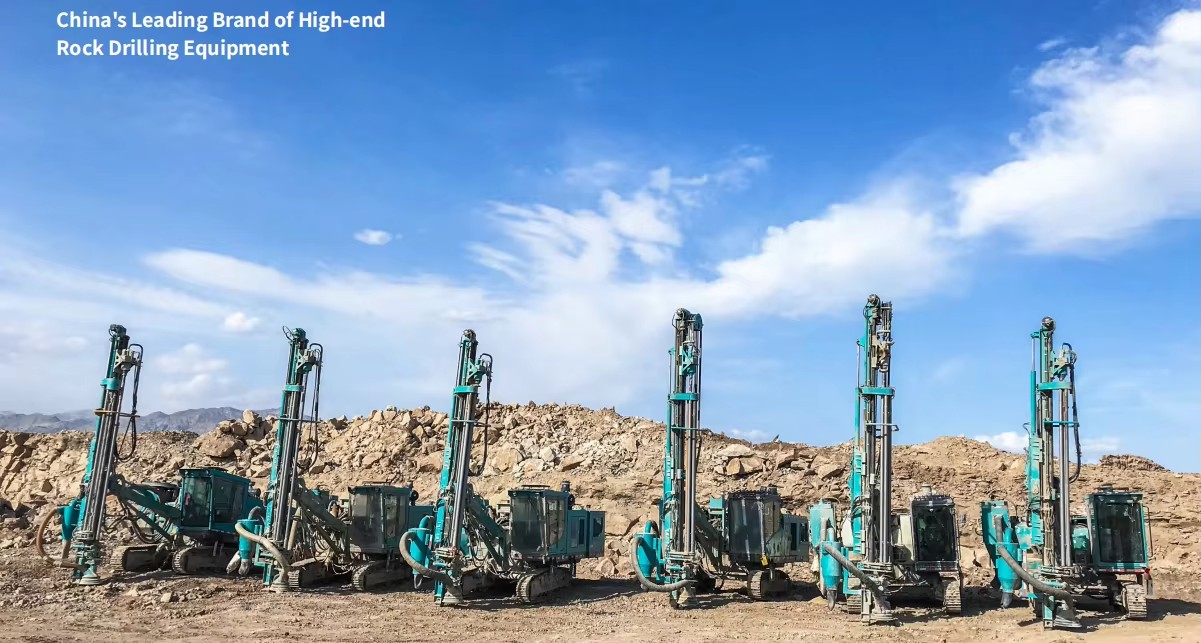

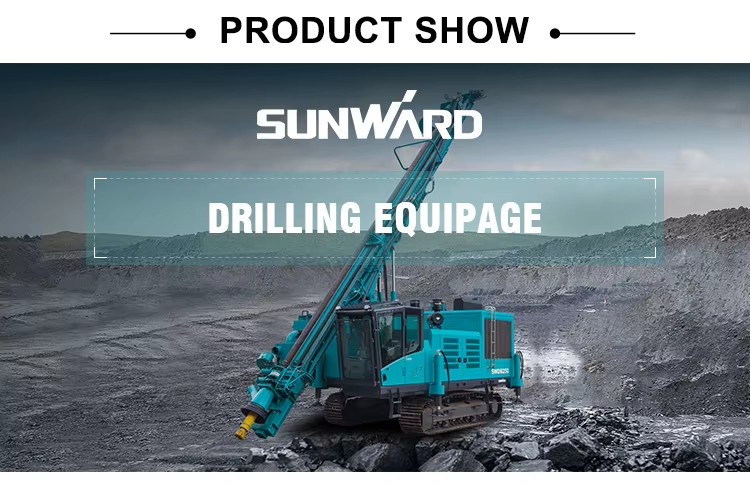

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

Lead time will be confirmed with your quotation.
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.
