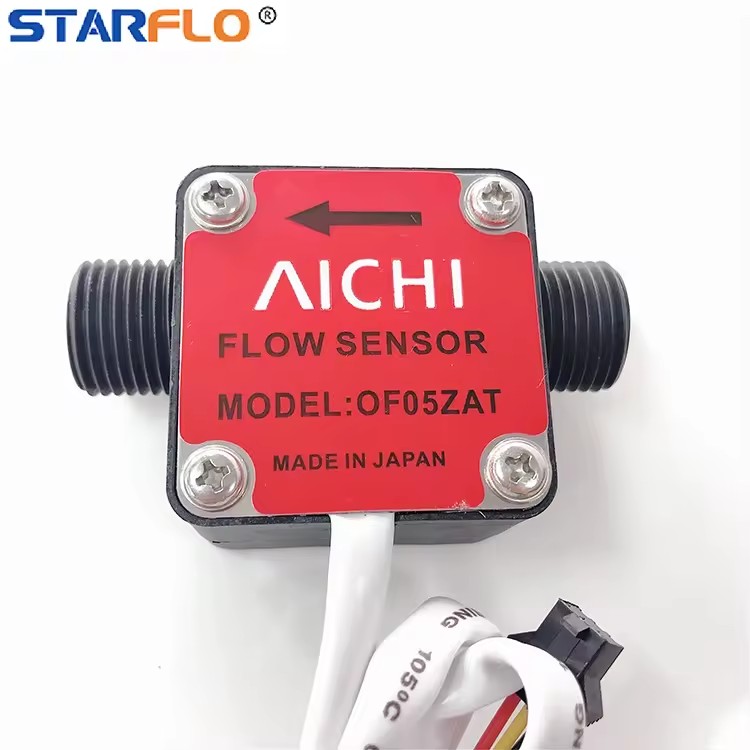

OF05ZAT Factory Price Liquid Fuel Oil 12v Water Flow Sensor with 0.5% High Accuracy 3-300L/H
Product video
Certifications CE

OF05ZAT Factory Price Liquid Fuel Oil 12v Water Flow Sensor with 0.5% High Accuracy 3-300L/H

Available for enquiry 5.0 · 2 reviews 10 sold
USD

$ 30.00 30.0 USD $ 30.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Flow Sensor Type
Liquid
OUTPUT
DC5--18V
Type
Liquid Flow Sensor
Theory
Gear Type
Usage
Measure the liquid
Mounting Type (Specification)
Horizontal installation/ Vertical installation
Product description
Factory Price Liquid Fuel Oil 12v Water Flow Sensor With 0.5% High Accuracy Model Number SFOF05ZAT Connection Size G 1/2" Pulse Characteristic F=2.5*Q (L/min) Maximum Inner Diameter/ Outer Diameter 10mm/ 20.5mm Accuracy 3-30L/H +1% (test for the liquid of water) Working Voltage 5-18VDC; Can be customized 24VDC Working Current <10mA (DC5V) Flow Range 3-300L/H Temperature Range < 80℃ Humidity Range 5% ~ 90% RH (no frost condition) Liquid Pressure < 1.2MPA Storage Temperature -20 ~ +80℃ Storage Humidity -25% ~ 95% RH Application Non-corrosive and high viscosity liquid APPLICATION FOR THE FLOW METER
Model NumberSFOF05ZAT
Connection SizeG 1/2"
Pulse CharacteristicF=2.5*Q (L/min) Maximum
Inner Diameter/ Outer Diameter10mm/ 20.5mm
Accuracy3-30L/H +1% (test for the liquid of water)
Working Voltage5-18VDC; Can be customized 24VDC
Working Current<10mA (DC5V)
Flow Range3-300L/H
Temperature Range< 80℃
Humidity Range5% ~ 90% RH (no frost condition)
Liquid Pressure< 1.2MPA
Storage Temperature20 ~ +80℃
Storage Humidity25% ~ 95% RH
ApplicationNon-corrosive and high viscosity liquid
Model NumberSFOF05ZAT
Connection SizeG 1/2"
Pulse CharacteristicF=2.5*Q (L/min) Maximum
Inner Diameter/ Outer Diameter10mm/ 20.5mm
Accuracy3-30L/H +1% (test for the liquid of water)
Working Voltage5-18VDC; Can be customized 24VDC
Working Current<10mA (DC5V)
Flow Range3-300L/H
Temperature Range< 80℃
Humidity Range5% ~ 90% RH (no frost condition)
Liquid Pressure< 1.2MPA
Storage Temperature20 ~ +80℃
Storage Humidity25% ~ 95% RH
ApplicationNon-corrosive and high viscosity liquid

PRODUCT CATALOG

Certifications & compliance
CE
Complies with EU standards
Description images
OF05ZAT Factory Price Liquid Fuel Oil 12v Water Flow Sensor with 0.5% High Accuracy 3-300L/H
OF05ZAT Factory Price Liquid Fuel Oil 12v Water Flow Sensor with 0.5% High Accuracy 3-300L/H
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    5 days

  • Step 3

    Packaging and dispatch

    Air + Express via FLY Logistics · Approx. shipping fee: $ 4.00 for 1 piece · Transit time: Est. 8-9 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 25 fields
Flow Sensor Type
Liquid
OUTPUT
DC5--18V
Type
Liquid Flow Sensor
Theory
Gear Type
Usage
Measure the liquid
Mounting Type (Specification)
Horizontal installation/ Vertical installation
Manufacturer Part Number
OF05ZAT-1
Description
water flow sensor
Place of origin
China, Fujian
Series
OF05ZAT-1
Port Size
G1/2" or 3/8" Hose Barb Or NPT 1/2"
Voltage - Input
DC 5 V
Sensing Range
5-600L/H ( For the liquid of diesel)
Voltage
DC5--18V
Body Material
PPS+SS COVER
Flow Range
30-1200L/H ±0.5%
Connection
1/2", Customize
Working temperature
20°C - +85°C
Accuracy
2.5*Q ±0.5%
Medium
Fuel Oil Milk Diesel Water Viscous Liquid
Selling Units
Single item
Single package size
10.4X3.6X3.6 cm
Single gross weight
0.15 kg
Mfg. Date Code
2026 and Newer
Certifications & Compliance
CE
Lead time
5 days
