Laboratory LYN(S)-1100×500 Aluminum Alloy Shaker Usage
Laboratory Aluminum Alloy Shaker It is used for laboratory ore selectivity studies,Common equipment used for gravity separation in tests and small-scale ore processing plants,Mineral Sludge Type (LYN) Mineral Sand Type (LYS) The distinction. Laboratory Aluminum Alloy Shaker Suitable for fine and ultra-fine grains of rare metals,Black Metal,Non-ferrous metal,Precious Metals,Mineral and Coal can not only independently perform mining operations,Can also be used with a jigging reel,Spiral Mineral Concentrator,Centrifugal Concentrator and Other Mineral Processing Equipment Used in Combination.
This equipment selects based on the density difference of selected minerals and their layered performance in the transverse water flow on an asymmetrically moving and inclined bed surface.Minerals with different specific gravity are clearly zoned on the bed surface,High-quality concentrate,Features Such as Ease of Operation and Adjustment.

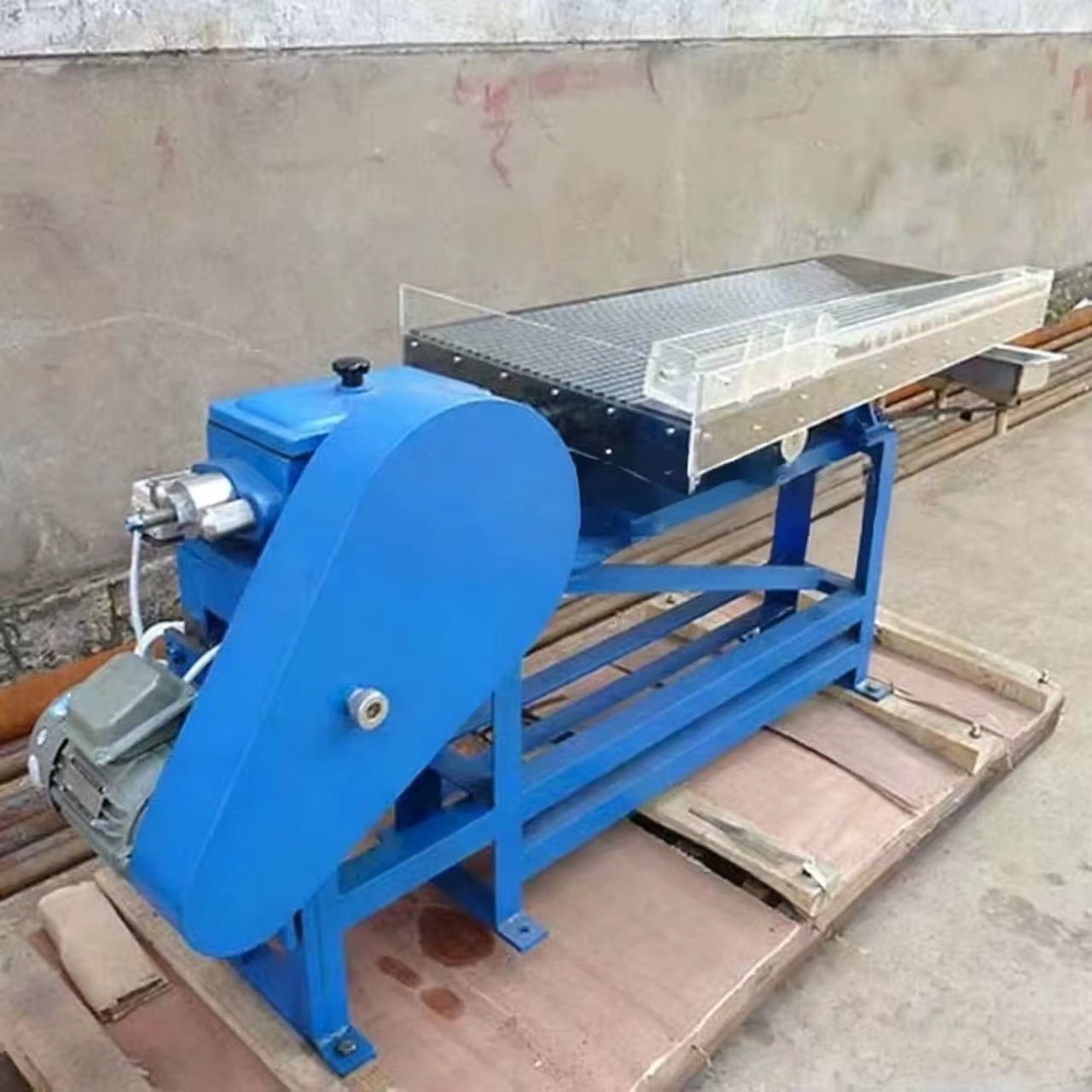

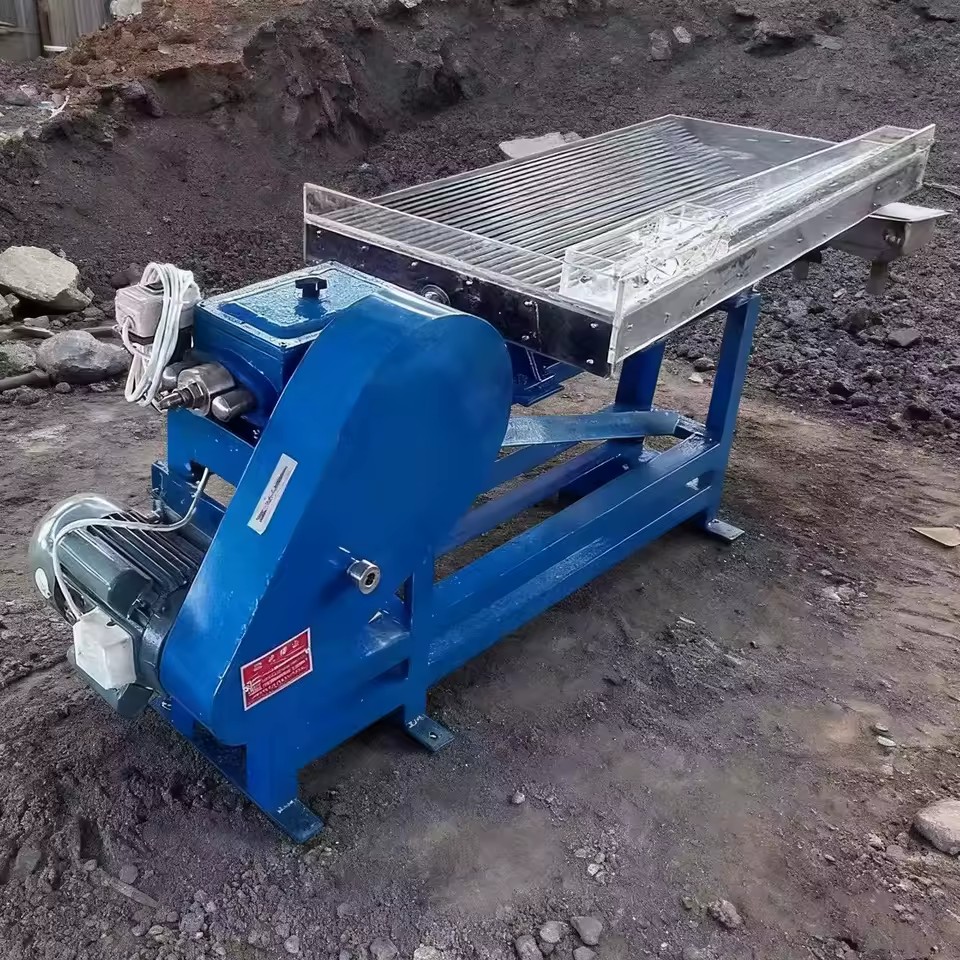

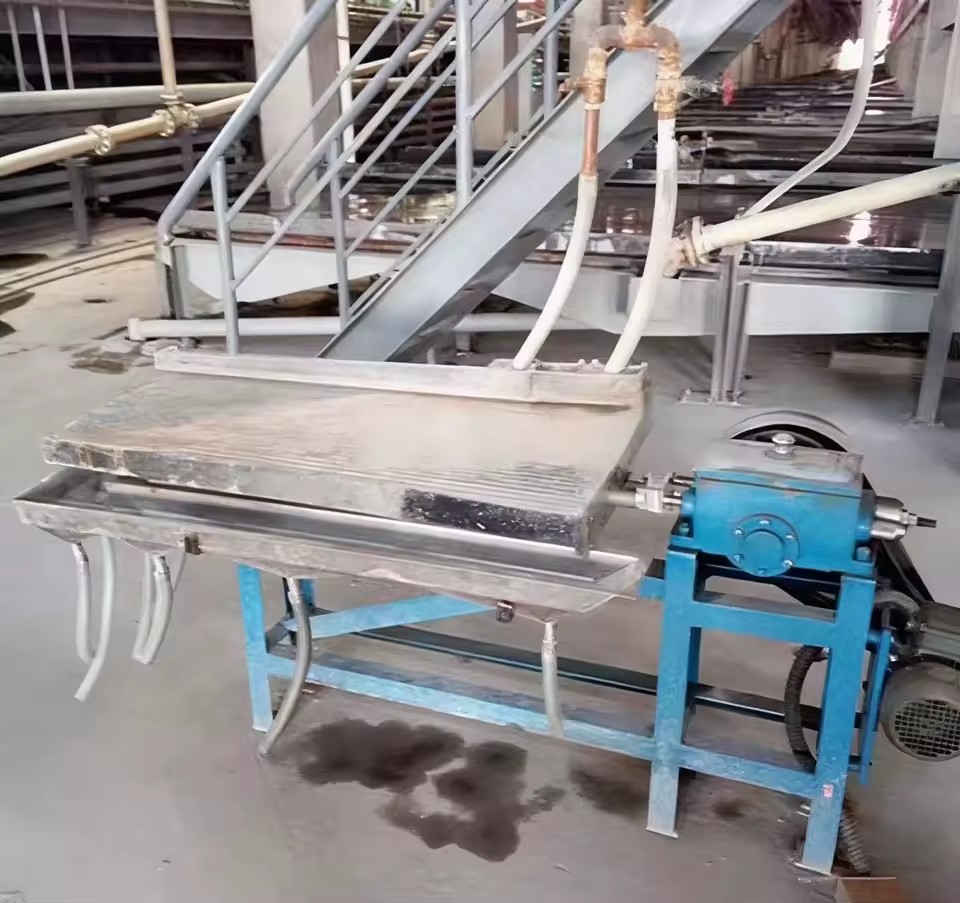

Aluminum Alloy Shaker Overall Diagram and Description of Main Structures
This machine comes with a bedside box,Bed Surface,Rack,Consists of Three Main tailed structure as shown in the diagram(One).
1,The structure of the bedside box is a double-curve connecting rod design,When the eccentric shaft rotates,The Connecting Rod Moves up and nnecting rod moving downward,Elbow spread.The right elbow plate supports on the support frame fixed together with the pull rod,The left elbow plate supports on the adjustable support(This Seat Only Allows up and down Movement),Installed together with special bolts and brackets.One End of the Spring Is Attached to the Support,The other end is placed on the adjustment screw plate of the fixed sleeve.
The motor drives the eccentric shaft through a secondary pulley,Push the elbow pad down with the side lever to compress the spring,Push the Lever Forward to Move the Bed Surface;When the lever is raised,Utilize spring tension,Push the Bed to Move It Backwards,This Exercise Is Repeated Continuously,Then the rotational motion becomes longitudinal linear reciprocating motion.
Stroke size,Obtained by Twisting Special Studs.
The entire mechanism is placed in a bedside box case.

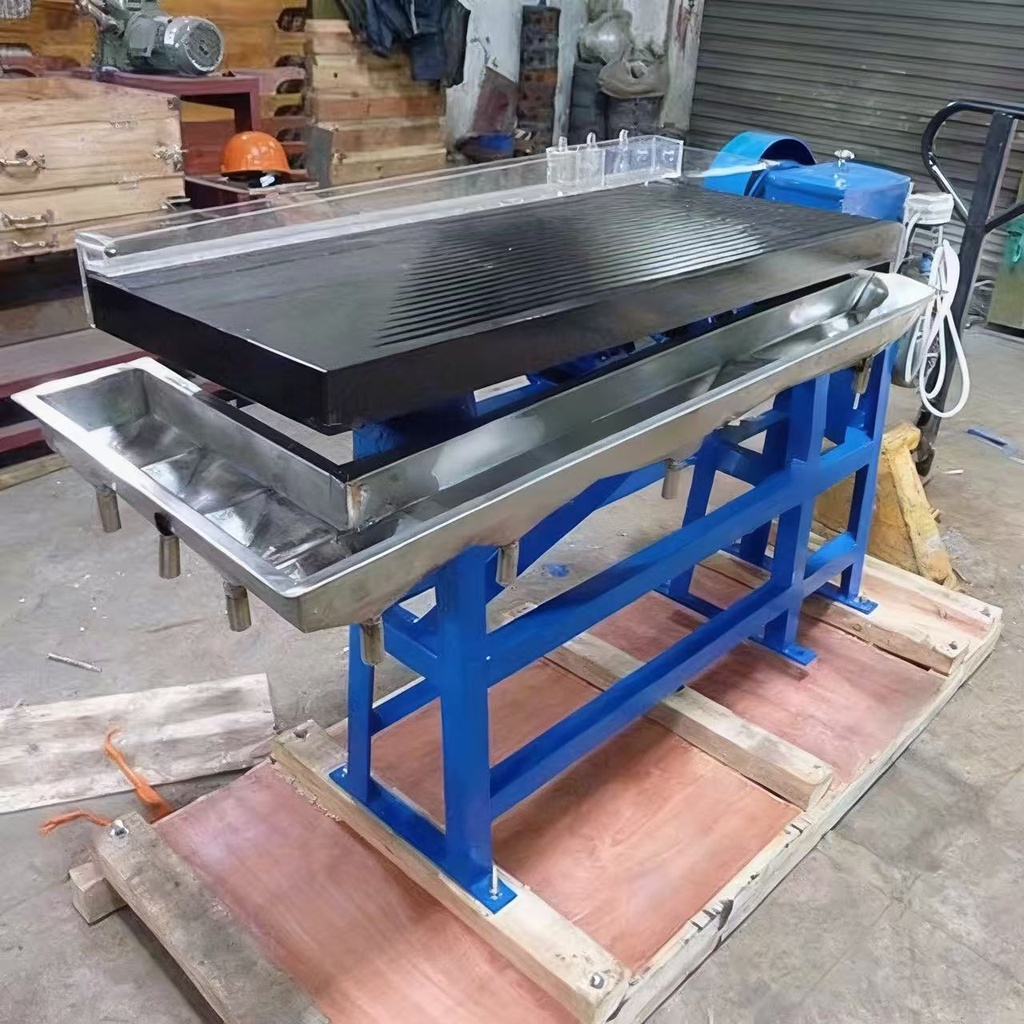

2,The working part of the shaker,It is a bed surface made of aluminum alloy,Its shape is an irregular quadrilateral.
The main surface paint of the bed is gray,Spray black paint 3-4 Next,The Past-Style Rifle Stock Has Been Converted to a Grooved Stock,Lie on the bed,The arrangement of the grooves is parallel to the direction of bed surface oscillation,The slot near the end of the mining area on the bed surface is short,The lower it goes, the longer it becomes,Their end points are arranged at a distance of from the bed surface at the discharge end 50 On the diagonal line in millimeters.
Along the edge of the bed surface,The Upper Corner Near the Headboard Side of the Bed,With feeding box,There Is a Sink Arranged in Line with the Feeding Box,Made entirely of organic glass,Used to add rinse water,The flushing water flows to the bed surface through a rotating diamond-shaped rubber valve fixed at the bottom of the tank,Change the angle position of the diamond-shaped rubber stopper,Adjustable water volume and flow direction,This feeding box is placed on the right corner of the bed, hence the name "right-style.".
Comparison between Aluminum Alloy Bed Surface and Wooden Grooved Bed Surface,Has the following advantages:Clearly divided,High-quality concentrate,The bed surface is beautiful and durable,Small deformation,Without Cracks.
3,The bed surface is installed on two cast iron beams,The stringing beam is fixed with a sliding rod frame on a sliding bearing,And the Bearing Is Fixed on the Angle Steel Frame 30 on.
The Bed Surface Has a Horizontal Tilt,Its tilt angle can be adjusted by 0 Degree ~ arrive 10 Degree,Sliding bearing for adjusting lateral angle,One end of the handwheel shaft in the middle is a screw rod,Compatible with nuts with arc-shaped slots,This nut slides into the connecting rod fixed on the pull rod,When the handwheel rotates, the nut moves to one side, causing the connecting rod, pull rod, and bed surface to rotate together.

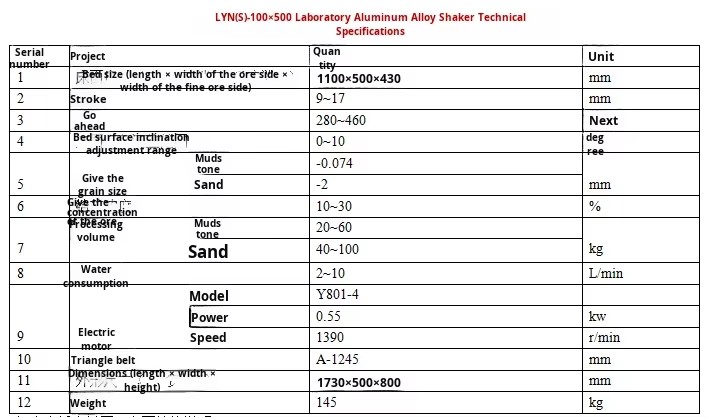

| item | value |
| Place of Origin |
| Weight | 50KG |
| Warranty | 1 Year |
| Core Components | PLC |
| Key Selling Points | Competitive Price |
| Type | Flotation Separator |
| Production Capacity | 20-100kg/h |
| Voltage | 380v |
| Brand Name | JCX |
| Dimension(L*W*H) | 1100*500*430mm |
| Machinery Test Report | Not available |
| Video outgoing-inspection | Provided |
