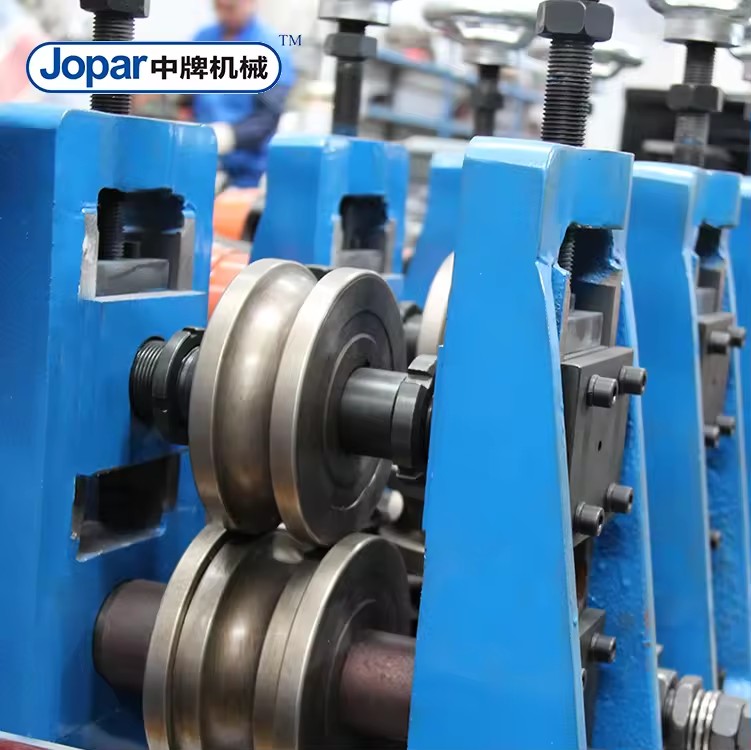

Stainless Steel Pipe Making Machine Round Mould/square Mould

Stainless steel pipe making machine round mould/square mould

TECHNICAL PARAMETERS

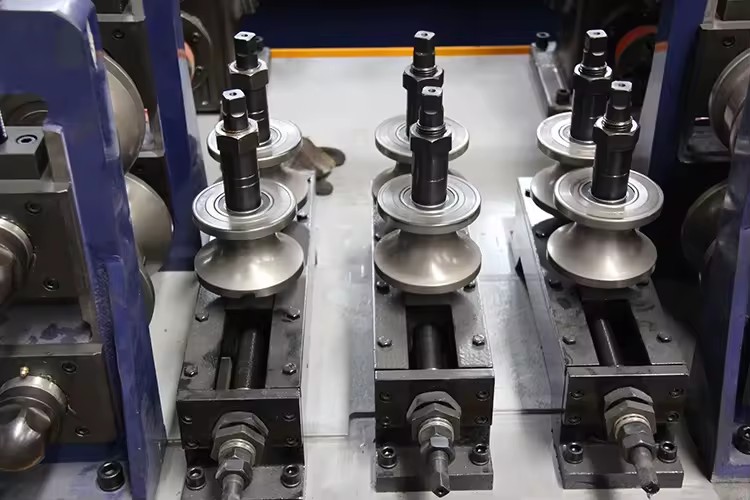

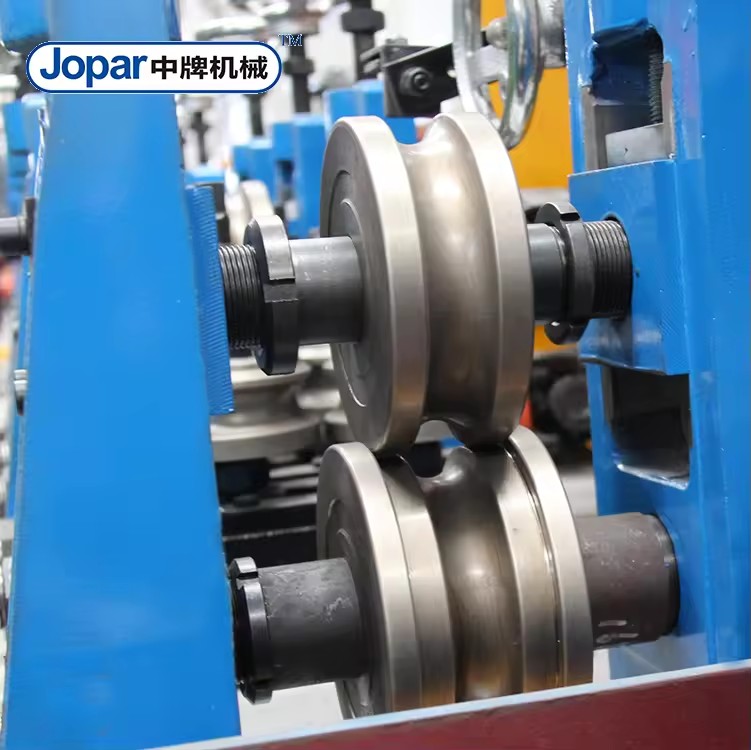

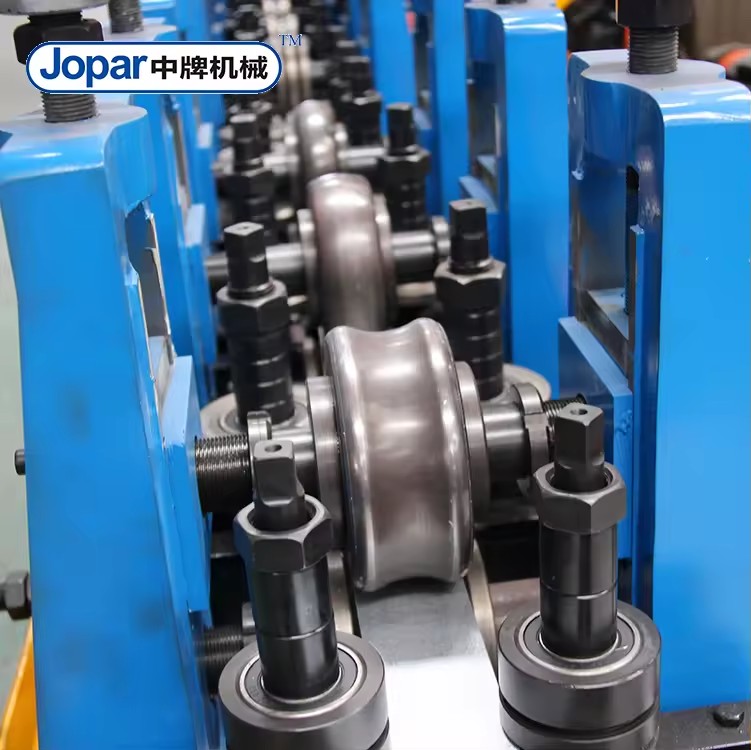

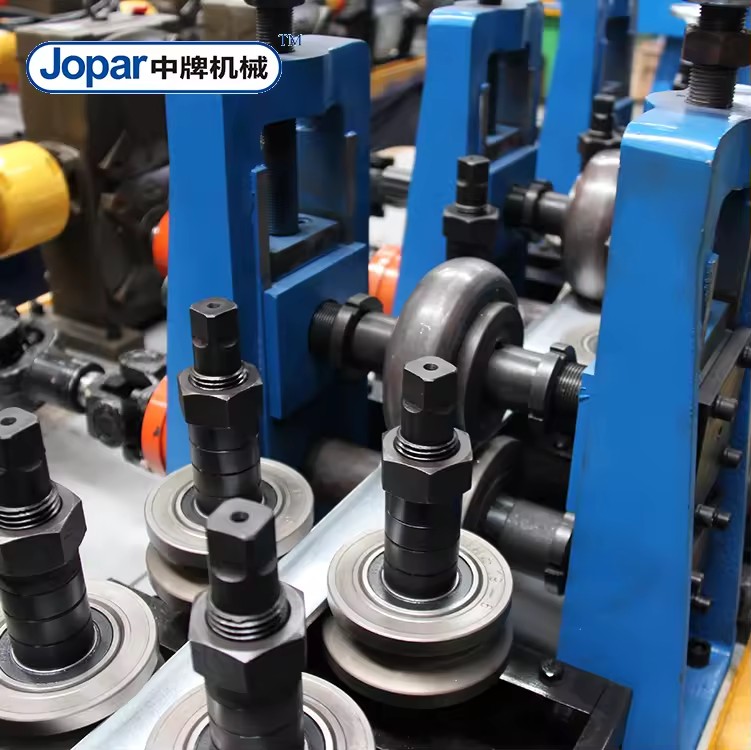

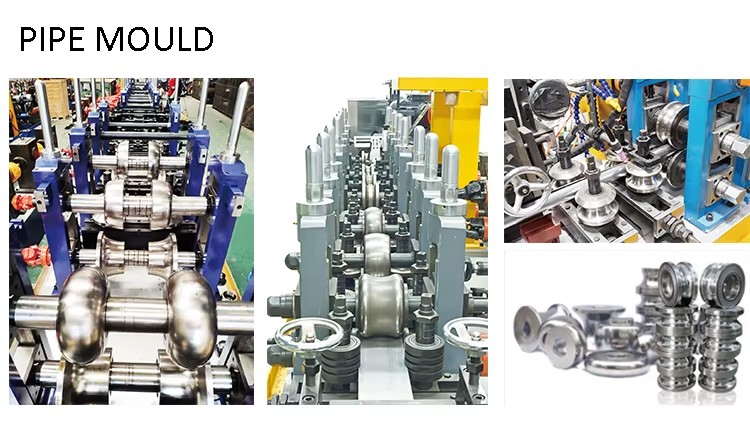

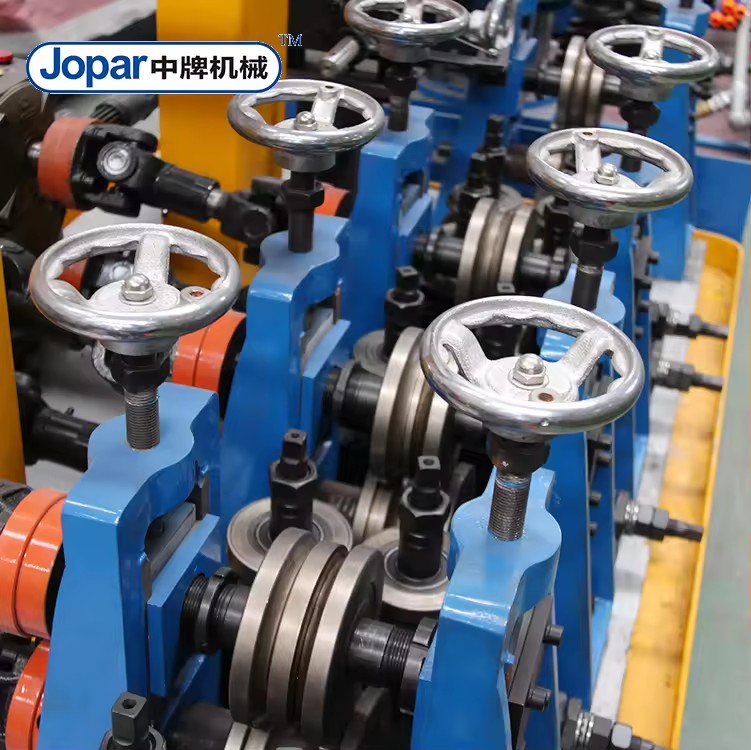

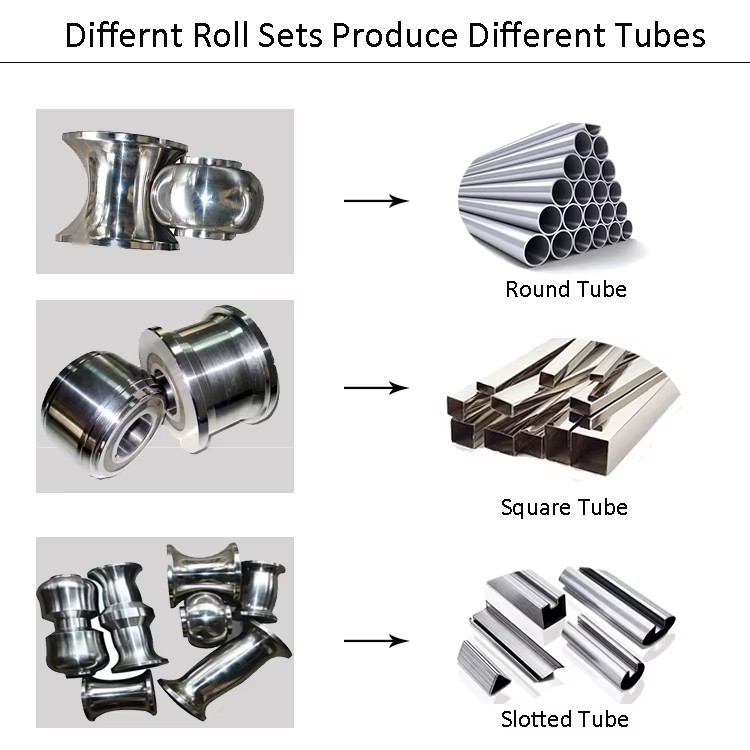

Pipe mould: steel tube, plum tube, flat tube, oval tube, fan-shaped tube, polygonal tube, single and double groove pipe, tube frame, special-shaped mould, etc.

Specification

1.range for round pipe: 5-325mm.

2. range for square pipe:F10*F10-F300*F300.

3. Material for the mould: Cr12Mov/SKD11.

4. Tolerance range: ±0.05mm.

5. Hardness range: 60-63HRC.

6. Selection: To produce first-class pipe mould, we must have first-class raw material. We choose hign-quality tool steel Cr12mov as raw materials, mouild steel Cr12mov material set high wear resistance, toughness, resistance to high pressure, high hardness, hard quenching.

7. Maching process: Raw materials- materials testing- exercise- saws- turning- drilling- turning- CNC precision turning- grinding- quenching- hardness test- internal and external grinding- test- boxing.

8. Features: Mature manufacturing process, experience and standard production management achievements leading provider of technology per crown. CNC machining of, high precise; 10 years experience in RD, the fingerprints, mechanical pattern, on the corner, concave angle phenomena, and to form tolerance of roundness in les than 0.05mm, square tube on the angle does not exceed ±0.05mm.

A: 1.Our products included Stainless steel pipe making machine, Polishing machine, Embossing machine, Slitting machine and Roll sets etc, Also we have much experiences in this field.

A: 2.We have Adopt first class suppliers. like Siemens Motor, ZhuJiang Gearbox, Dongfeng Auto Parts on the machine.

A: 3.We can print your logo or company name on the products by Stamping or Coating

A: 4.We can accept payment terms by T/T(30% deposit, 70% before shipment), D/P or L/C at sight

A: 5.Our delivery time is within 45 days, It depend on your quantity.
