Brief Introduction

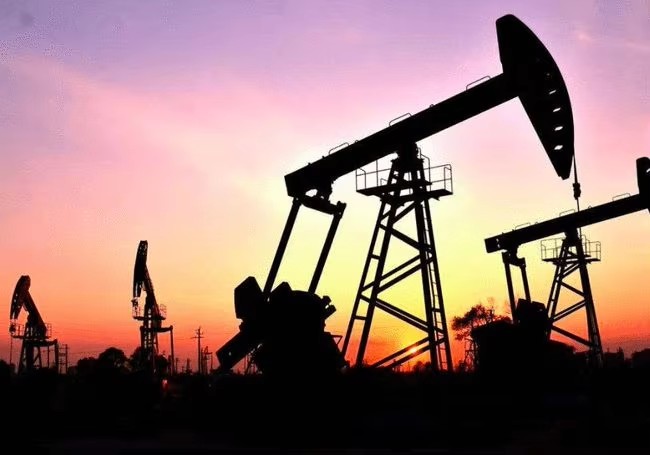

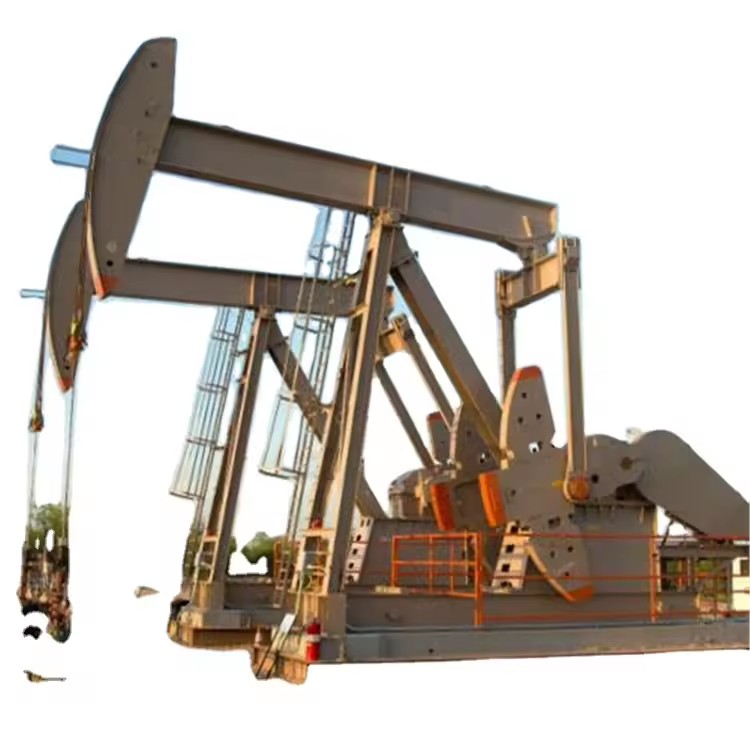

The API pumping unit is one kind of convention beam pumping unit,which selects the crank balanced is the most common,an application scope broadest surface power equipment in field production oil.
API series pumping unit is a conventional beam pumping unit, which adopts the crank balance method. It is a kind of ground power equipment that is more common and widely used in oil production with rods.
The product complies with API Spec 11E "Specification for Pumping Units" and other related standards, and has obtained the API Monogram Use License.

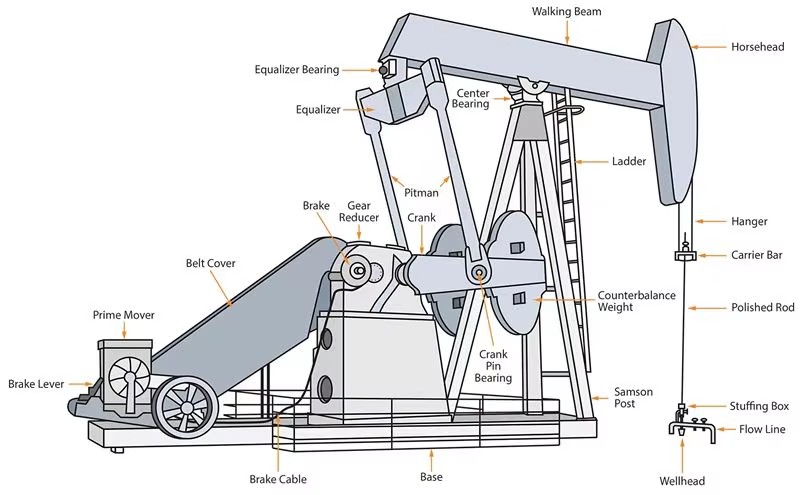

Beam pumping unit is a type of conventional oil production equipment in mechanical balance. All our beam pumping units conform to industry standards and API specifications. The mature products are applicable in all weather conditions and for use in variousapplications. Products can be designed and made upon requests.
1. The unit is reasonable in structure, stable in performance, low in noise emission and easy for maintenance. 2. The horse head can be easily pivoted aside, upward or detached for well service. 3. The belt brake mechanism is complete with fail-safe device for flexible performance, quick brake and reliable operation. 4. The post is of tower structure design, excellent in stability and easy for installation. The heavy load unit deploys a foldable post for ease of packing and transportation. 5. The prime mover can be conventional electric motor, variable frequency motor, diesel engine or gas engine.
Major Technical Parameter
1. Carry out API 11E standards strictly.
2. Reducer with API production qualification.
3. Complete production tooling.
4. The use of forgings in key parts.
5. Engineers available to service machinery overseas
| API C Series Pumping Unit |
| NO | Type | Polished Rod Capacity(lbs) | Stroke Length(in) | Rated Torque(in.lbs) |
| 1 | C-912D-470-240 | 47,000 | 240,211,181 | 912,000 |
| 2 | C-912D-427-216 | 42,700 | 216,185,155 | 912,000 |
| 3 | C-912D-427-192 | 42,700 | 192,165,138 | 912,000 |
| 4 | C-912D-305-192 | 30,500 | 192,165,138 | 912,000 |
| 5 | C-912D-365-168 | 36,500 | 168,144,121 | 912,000 |
| 6 | C-912D-305-168 | 30,500 | 168,144,121 | 912,000 |
| 7 | C-912D-427-144 | 42,700 | 144,123,102 | 912,000 |
| 8 | C-640D-305-192 | 30,500 | 192,165,138 | 640,000 |
| 9 | C-640D-305-168 | 30,500 | 168,144,121 | 640,000 |
| 10 | C-640D-365-144 | 36,500 | 144,123,102 | 640,000 |
| 11 | C-640D-305-144 | 30,500 | 144,123,102 | 640,000 |
| 12 | C-640D-256-144 | 25,600 | 144,123,102 | 640,000 |
| 13 | C-640D-305-120 | 30,500 | 120,102,84 | 640,000 |
| 14 | C-456D-305-168 | 30,500 | 168,144,121 | 57,000 |
| 15 | C-456D-305-144 | 30,500 | 144,123,102 | 40,000 |
| 16 | C-456D-256-144 | 25,600 | 144,123,102 | 57,000 |
| 17 | C-456D-365-120 | 36,500 | 120,102,84 | 40,000 |
| 18 | C-456D-305-120 | 30,500 | 120,102,84 | 25,000 |
| 19 | C-456D-256-120 | 25,600 | 120,102,84 | 25,000 |
| 20 | C-320D-256-144 | 25,600 | 144,123,102 | 320,000 |
| 21 | C-320D-256-120 | 25,600 | 120,102,84 | 320,000 |
| 22 | C-320D-213-120 | 21,300 | 120,102,84 | 320,000 |
| 23 | C-320D-305-100 | 30,500 | 100,85,70 | 320,000 |
| 24 | C-320D-256-100 | 25,600 | 100,85,70 | 320,000 |
| 25 | C-320D-213-86 | 21,300 | 86,71,56 | 320,000 |
| 26 | C-228D-213-120 | 21,300 | 120,102,84 | 228,000 |
| 27 | C-228D-173-100 | 17,300 | 100,86,72 | 228,000 |
| 28 | C-228D-246-86 | 24,600 | 86,71,56 | 228,000 |
| 29 | C-228D-213-86 | 21,300 | 86,71,56 | 228,000 |
| 30 | C-228D-200-74 | 20,000 | 74,64,54 | 228,000 |
| 31 | C-228D-173-74 | 17,300 | 74,64,54 | 228,000 |
| 32 | C-160D-173-86 | 17,300 | 86,74,62 | 160,000 |
| 33 | C-160D-200-74 | 20,000 | 74,64,54 | 160,000 |
| 34 | C-160D-173-74 | 17,300 | 74,64,54 | 160,000 |
| 35 | C-160D-143-74 | 14,300 | 74,64,54 | 160,000 |
| 36 | C-160D-173-64 | 17,300 | 64,54,44 | 160,000 |
| 37 | C-114D-119-86 | 11,900 | 86,72,59 | 114,000 |
| 38 | C-114D-143-74 | 14,300 | 74,62,51 | 114,000 |
| 39 | C-114D-173-64 | 17,300 | 64,54,44 | 114,000 |
| 40 | C-114D-143-64 | 14,300 | 64,52,40 | 114,000 |
| 41 | C-114D-133-54 | 13,300 | 54,45,36 | 114,000 |
| 42 | C-80D-119-64 | 11,900 | 64,53,42 | 80,000 |
| 43 | C-80D-133-54 | 13,300 | 54,45,36 | 80,000 |
| 44 | C-80D-119-54 | 11,900 | 54,45,36 | 80,000 |
| 45 | C-80D-133-48 | 13,300 | 48,40,32 | 80,000 |
| 46 | C-80D-109-48 | 10,900 | 48,37,25 | 80,000 |
| 47 | C-57D-76-54 | 7,600 | 54,41,28 | 57,000 |
| 48 | C-57D-109-48 | 10,900 | 48,37,25 | 57,000 |
| 49 | C-57D-95-48 | 9,500 | 48,37,25 | 57,000 |
| 50 | C-57D-89-42 | 8,900 | 42,33,23 | 57,000 |
| 51 | C-57D-76-42 | 7,600 | 42,33,23 | 57,000 |
| 52 | C-40D-76-48 | 7,600 | 48,37,27 | 40,000 |
| 53 | C-40D-89-42 | 8,900 | 42,33,23 | 40,000 |
| 54 | C-40D-76-42 | 7,600 | 42,33,23 | 40,000 |
| 55 | C-40D-89-36 | 8,900 | 36,28,20 | 40,000 |
| 56 | C-25D-67-36 | 6,700 | 36,28,20 | 25,000 |
| 57 | C-25D-56-36 | 5,600 | 36,28,20 | 25,000 |
| 58 | C-25D-53-30 | 5,300 | 30,20 | 25,000 |
| API 11E Pumping Unit |
| Srl No. | Size | Maximum Rating Hanging Loading(lb) | Length of Strike (in) | Reducer Rating Torque (in.lbs) |
| 1 | 912D-305-192 | 30,500 | 192,165,138 | 912,000 |
| 2 | 912D-365-168 | 36,500 | 168,144,121 | 912,000 |
| 3 | 912D-305-168 | 30,500 | 168,144,121 | 912,000 |
| 4 | 640D-305-192 | 30,500 | 192,165,138 | 640,000 |
| 5 | 640D-305-168 | 30,500 | 168,144,121 | 640,000 |
| 6 | 640D-365-144 | 36,500 | 144,123,102 | 640,000 |
| 7 | 640D-305-144 | 30,500 | 144,123,102 | 640,000 |
| 8 | 640D-256-144 | 25,600 | 144,123,102 | 640,000 |
| 9 | 640D-305-120 | 30,500 | 120,102,84 | 640,000 |
| 10 | 456D-305-144 | 30,500 | 144,123,102 | 456,000 |
| 11 | 456D-256-144 | 25,600 | 144,123,102 | 456,000 |
| 12 | 456D-365-120 | 36,500 | 120,102,84 | 456,000 |
| 13 | 456D-305-120 | 30,500 | 120,102,84 | 456,000 |
| 14 | 456D-256-120 | 25,600 | 120,102,84 | 456,000 |
| 15 | 320D-256-144 | 25,600 | 144,123,102 | 320,000 |
| 16 | 320D-256-120 | 25,600 | 120,102,84 | 320,000 |
| 17 | 320D-213-120 | 21,300 | 120,102,84 | 320,000 |
| 18 | 320D-305-100 | 30,500 | 100,85,70 | 320,000 |
| 19 | 320D-256-100 | 25,600 | 100,85,70 | 320,000 |
| 20 | 228D-213-120 | 21,300 | 120,102,84 | 228,000 |
| 21 | 228D-173-100 | 17,300 | 100,86,72 | 228,000 |
| 22 | 228D-246-86 | 24,600 | 86,71,56 | 228,000 |
| 23 | 228D-213-86 | 21,300 | 86,71,56 | 228,000 |
| 24 | 160D-173-86 | 17,300 | 86,74,62 | 160,000 |
| 25 | 160D-200-74 | 20,000 | 74,64,54 | 160,000 |
| 26 | 160D-173-74 | 17,300 | 74,64,54 | 160,000 |
| 27 | 160D-143-74 | 14,300 | 74,64,54 | 160,000 |
| 28 | 160D-173-64 | 17,300 | 64,54,44 | 160,000 |
| 29 | 114D-119-86 | 11,900 | 86,72,59 | 114,000 |
| 30 | 114D-143-74 | 14,300 | 74,62,51 | 114,000 |
| 31 | 114D-173-64 | 17,300 | 64,54,44 | 114,000 |
| 32 | 114D-143-64 | 14,300 | 64,52,40 | 114,000 |
| 33 | 114D-133-54 | 13,300 | 54,45,36 | 114,000 |
| 34 | 80D-119-64 | 11,900 | 64,53,42 | 80,000 |
| 35 | 80D-133-54 | 13,300 | 54,45,36 | 80,000 |
| 36 | 80D-119-54 | 11,900 | 54,45,36 | 80,000 |
| 37 | 80D-133-48 | 13,300 | 48,40,32 | 80,000 |
| 38 | 80D-109-48 | 10,900 | 48,37,25 | 80,000 |
1. Incoming inspection of raw materials.

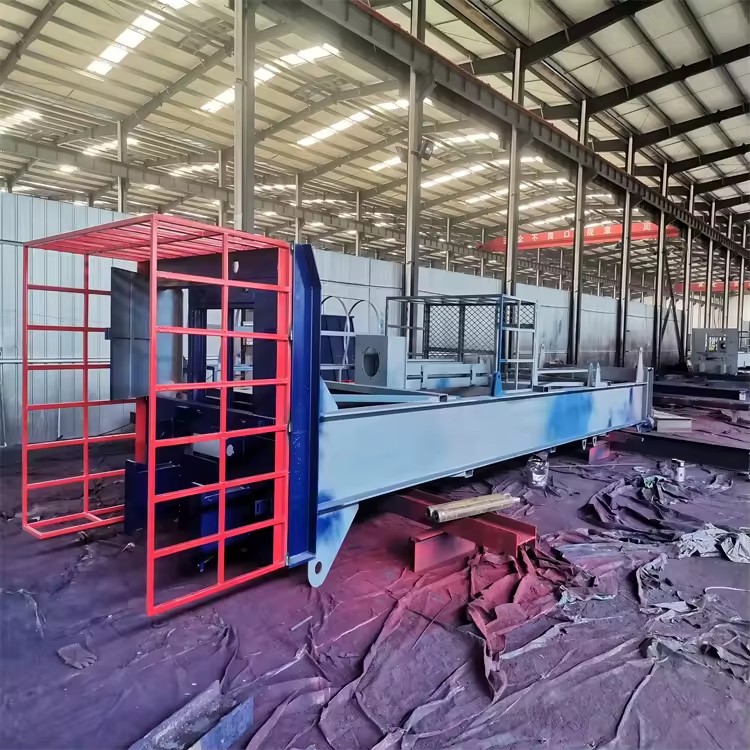

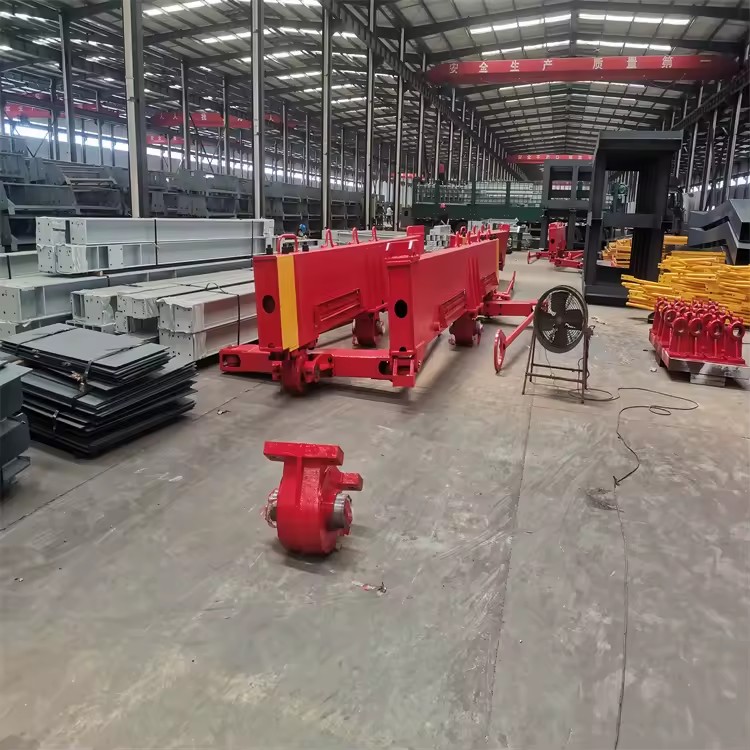

Production Process For Steel Structure
Our Certificate
1- Package for the whole unit and transported with the container, each unit will need 0.5-2 no. of containers
2- Small parts into the iron box.
How to order? Please send us your inquiry with detail item description or with Model number. If there is no packing demand we take it as our regular exported standard packing. We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered. You send us your detail requirement, we provide quotation to you.
Can I expect a quality products? All the production and processing are strictly according to ISO 9001:2008 and API standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV, SGS and TUV.
The information you may like to know before Payment
1. Methods of Payment: T/T (Telegraphic Transfer). 2. Shipping way Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air Bulk order: we suggest by air or by sea. 3. Quality Control We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
