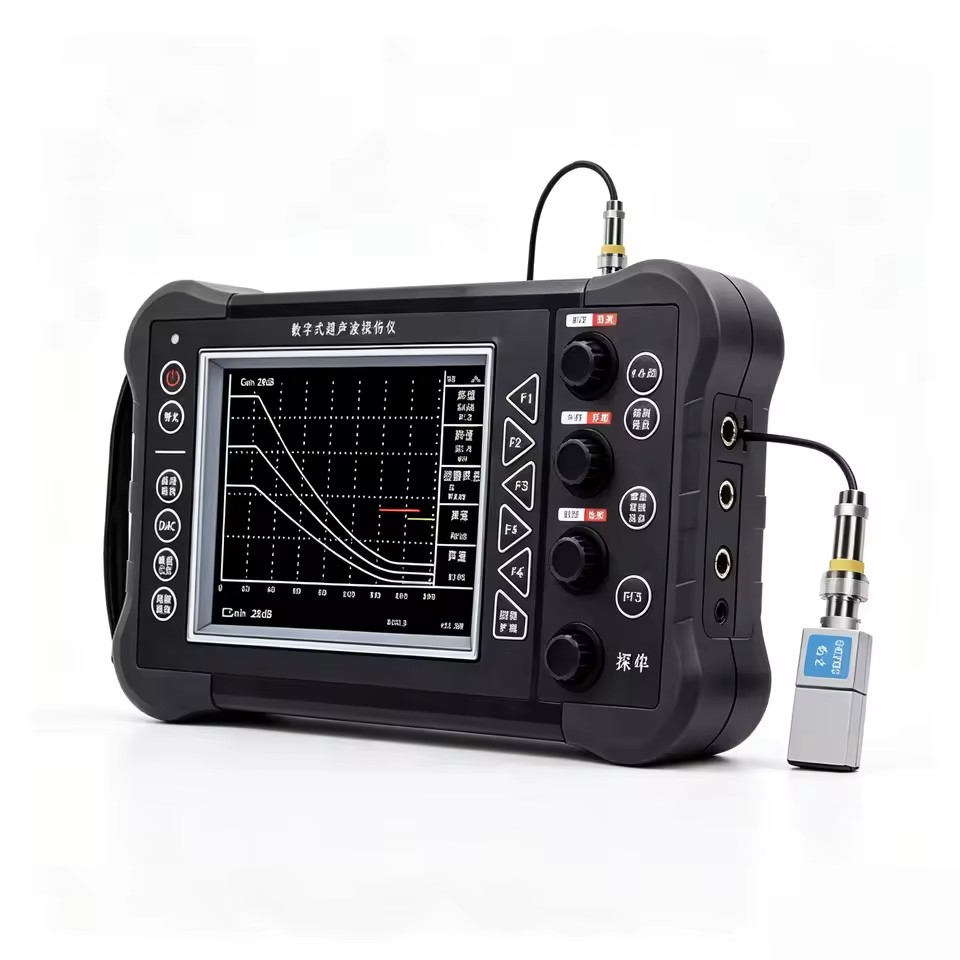

Multi Function DK-900 Digital NDT Equipment Linear Performance Ultrasonic Flaw Detector for Construction Steel Weld

Available for enquiry 0.0 · 0 reviews
USD

$ 3,100.00 3100.0 USD $ 3,100.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Ultrasonic Flaw Detector
Vertical Linearity Error
≤3%
Horizontal Linearity Error
≤0.1%
Flaw Detection Video
No
Selling Units
Single item
Single volume
0 cm3
Product description

Highlights at a glance

  • Digital ultrasonic flaw detector can quickly, conveniently and accurately detect, locate, evaluate and diagnose various internal defects of workpieces without damage, including cracks, weld seams, pores, sand holes, inclusions and folds. It is widely used in laboratories, on-site engineering inspection, university research institutes, construction quality testing, boiler and pressure vessel manufacturing, power industry, construction machinery manufacturing, iron and steel metallurgy, steel structure fabrication, shipbuilding, oil and gas equipment manufacturing and other fields requiring defect detection and quality control.

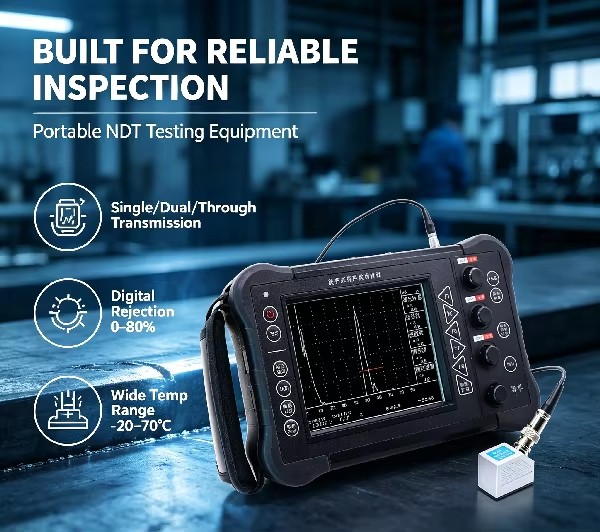

  • Max scanning depth up to 6000mm for steel longitudinal wave inspection Wide frequency band 0.4MHz to 20MHz matches various probes Ultra low linear error ensures stable and accurate detection data High gain up to 120dB with more than 62dB sensitivity margin High resolution over 40dB for tiny defect identification 320MHz high-speed hardware sampling for clear waveform display Three working modes meet single dual crystal and penetration testing demands Built-in lithium battery supports 10 hours long continuous working Light weight only 1.0KG, compact size for portable field inspection Wide temperature and humidity adaptability for harsh industrial environments
  • Scanning Range: 0~6000mm steel longitudinal wave Operating Frequency: 0.4MHz~20MHz Vertical Linear Error: ≤3% Horizontal Linear Error: ≤0.1% Gain: 120dB Sensitivity Margin: >62dB (200mm depth 2 flat bottom hole) Resolution: >40dB (5N20 probe) Dynamic Range: ≥32dB Noise Level: <8% Hardware Sampling Frequency: 320MHz Repetition Frequency: 100~1000HZ Sound Velocity Range: 100~20000 m/s Working Mode: Single crystal flaw detection, dual crystal flaw detection, penetration flaw detection Digital Suppression: 0~80%, no impact on linearity and gain Working Time: Over 10 hours continuous operation with lithium battery Ambient Temperature: -20~70℃ (reference value) Relative Humidity: 20~95%
    • Frequently asked questions

    Usually about 10 days. If we have stock, we can arrange shipment within 3 days.

    12 months warranty. In addition, we can help you repair the faulty controller free of charge.

    Our products are widely recognized and trusted by users. All products comply with ISO, ASTM, AATCC, BS, EN, DIN, JIS and other relevant standards.
    Description images

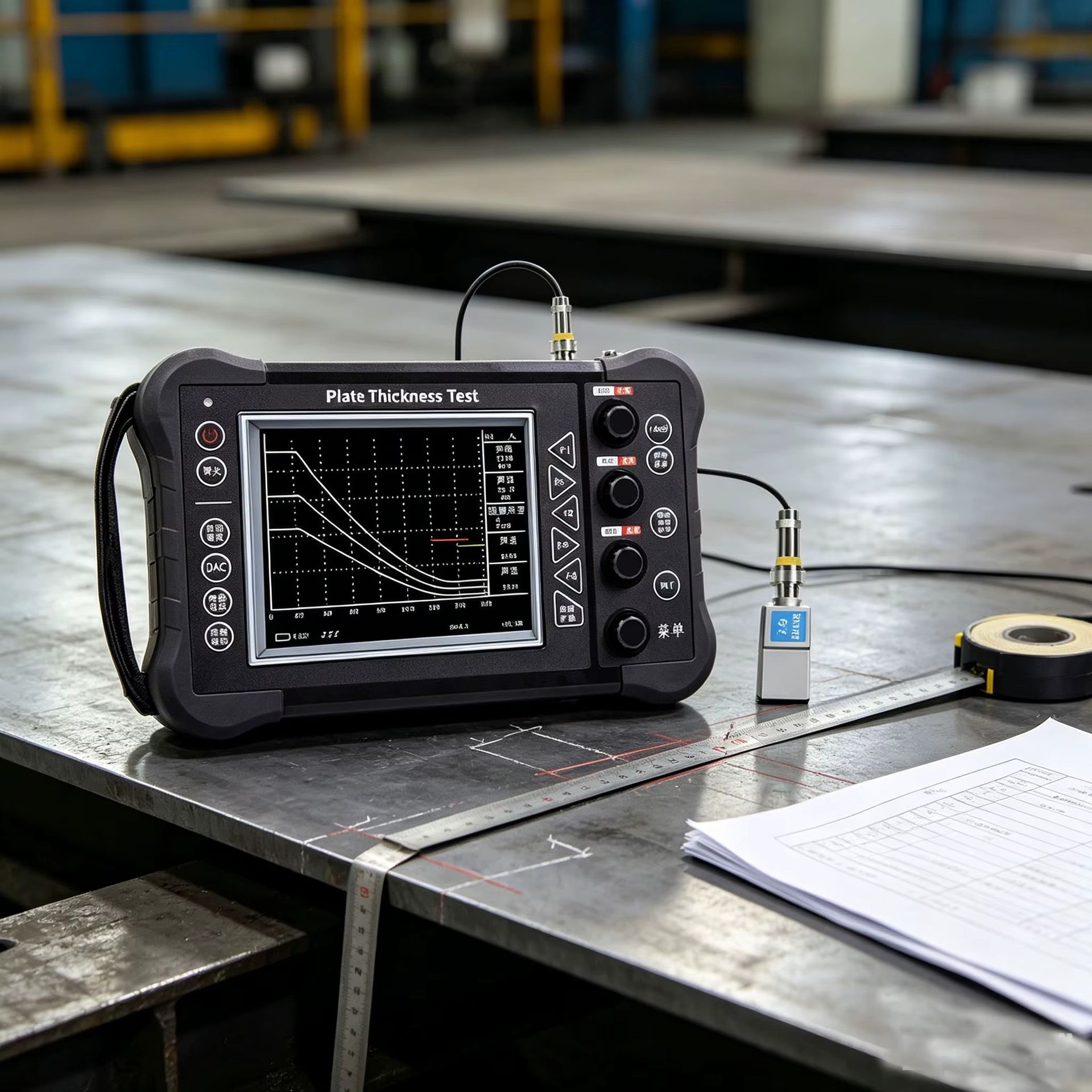

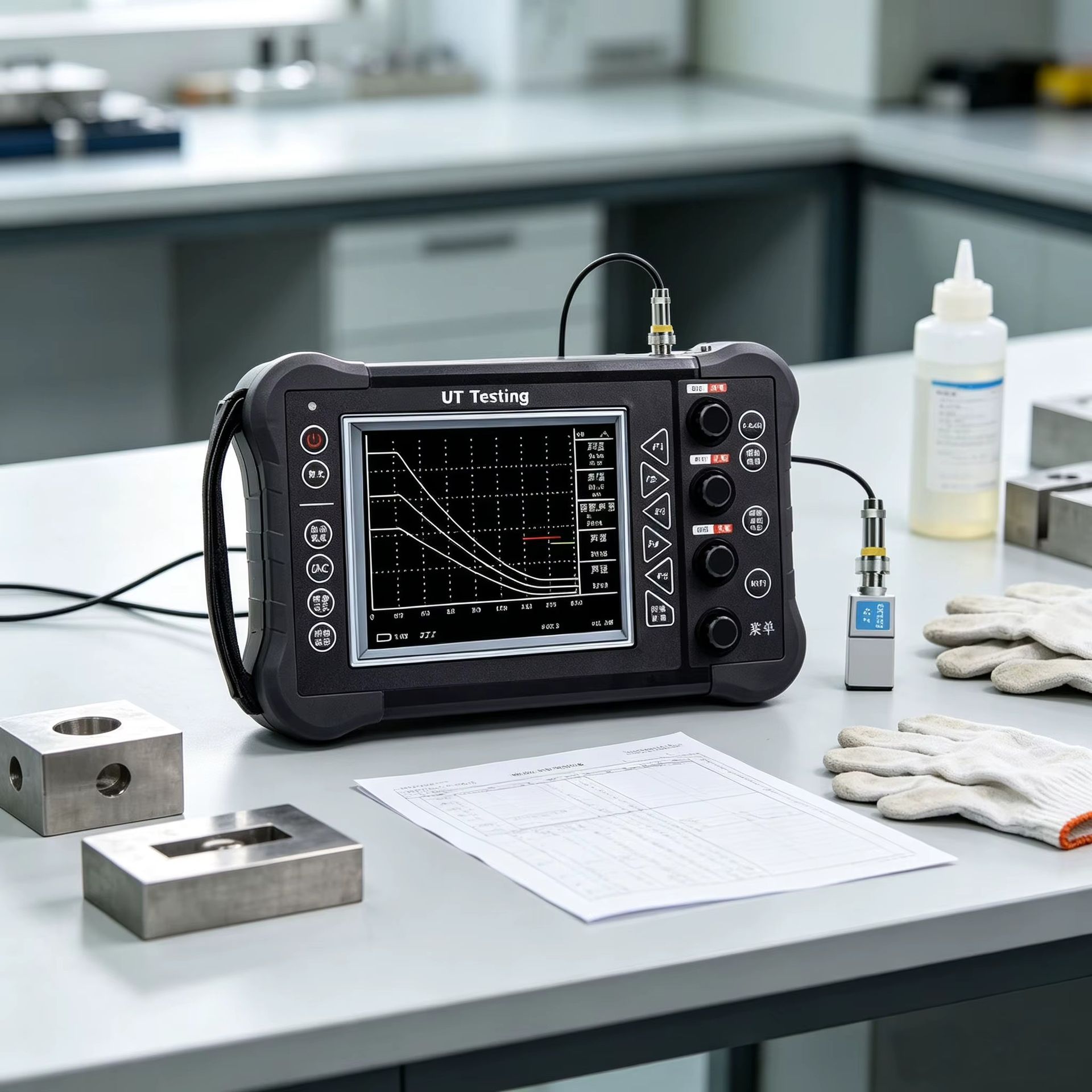

    Product detail

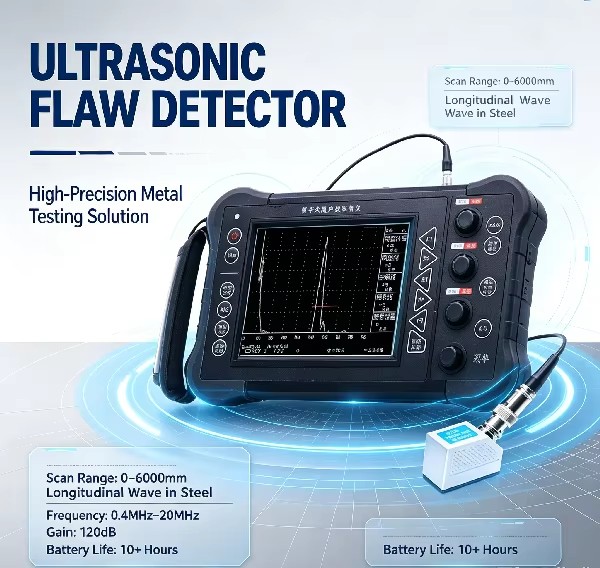

    Product detail
    Product detail
    Product detail
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      10 days

    • Step 3

      Packaging and dispatch

      Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 8 fields
    Type
    Ultrasonic Flaw Detector
    Vertical Linearity Error
    ≤3%
    Horizontal Linearity Error
    ≤0.1%
    Flaw Detection Video
    No
    Selling Units
    Single item
    Single volume
    0 cm3
    Single gross weight
    0.0 kg
    Measurement range (Product option)
    0~6000 mm
    Lead time
    10 days
    Minimum order
    1 Units
