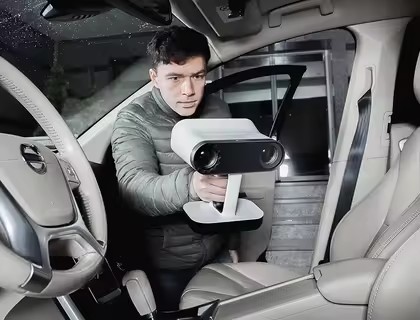

Product Importer Gallery 02 · 096bfa1e8b

Product Importer Gallery 03 · e3c26ce3dc

Product Importer Gallery 04 · 23b6cd8a69

Product Importer Gallery 05 · fca31d0231

Product video

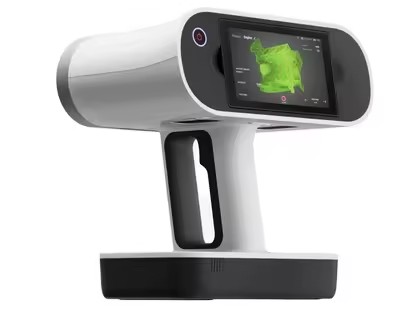

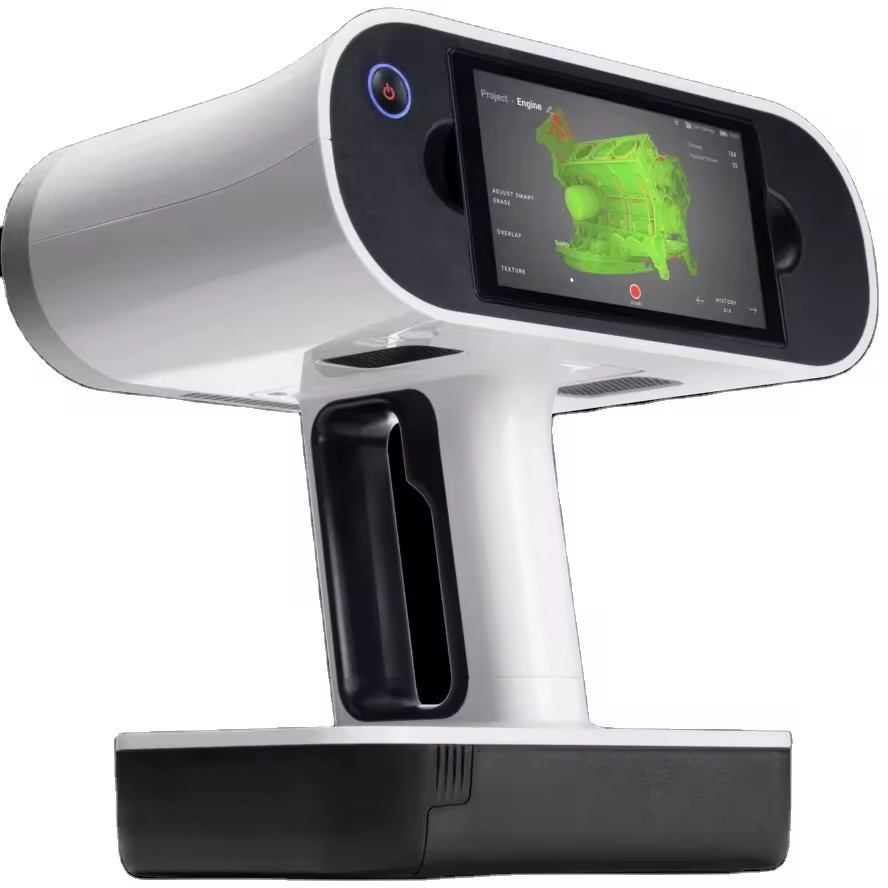

Artec-Leo 3D Laser Scanner USB Stock Handheld Wireless Intelligent Data Capture Gearboxes Castings Automotive Parts Human Body

Name: Artec-Leo 3D Laser Scanner USB Stock Handheld Wireless Intelligent Data Capture Gearboxes Castings Automotive Parts Human Body
SKU: KKFQ-AE73-SSAA
Price: 51890.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 51,890.00 51890.0 USD $ 51,890.00

Minimum order quantity: 2 Units

Key attributes

View all

Type

Handheld

Interface type

USB

Scan element type

CMOS

Products status

Stock

Warranty(Year)

1-Year

After-sales Service

Call Center and on-line Technical Support

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Ocean + Express via FLY Logistics · Approx. shipping fee: $ 27.52 for 2 pieces · Transit time: Est. 16-23 days

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

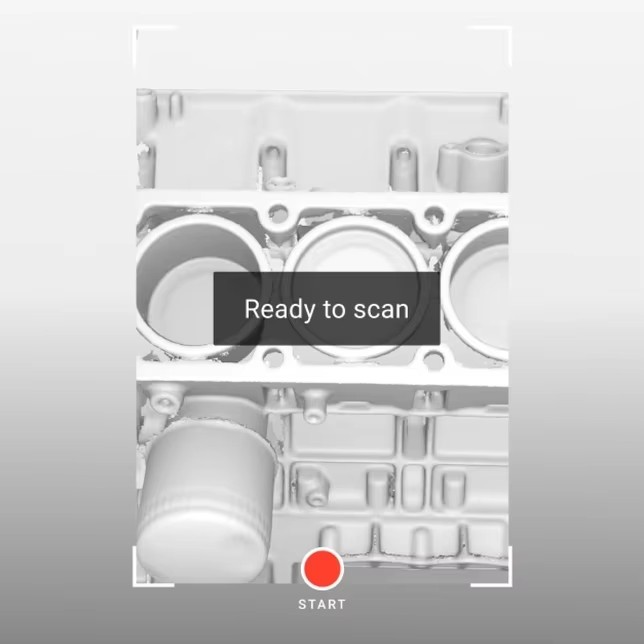

Leo does the heavy lifting: You just point & shoot.

Smart data capture, no targets needed.

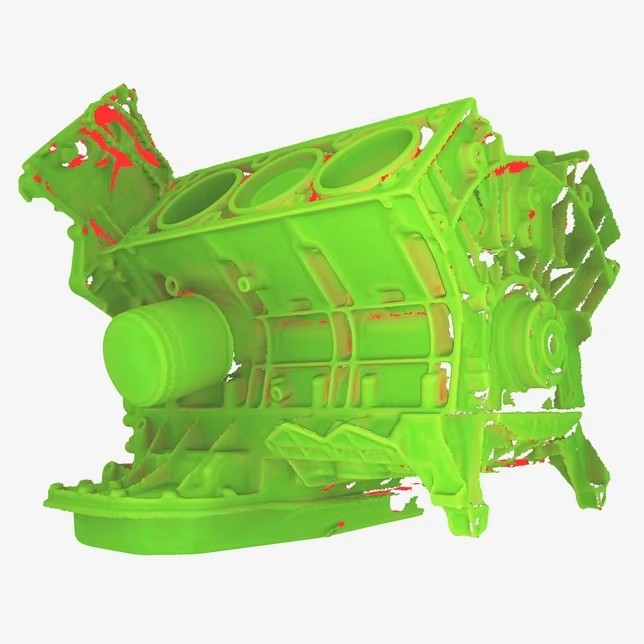

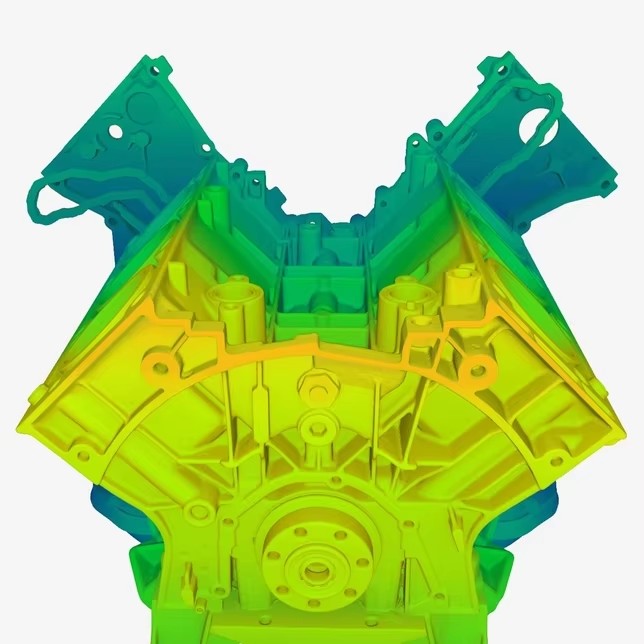

Distance color map to aid scanning.

Never miss a spot.

Versatile, reliable software

Specification
ACCURACY & RESOLUTION	3D point accuracy	up to 0.1 mm
3D resolution	up to 0.2 mm
3D accuracy over distance	up to 0.1 mm + 0.3 mm/m
ALGORITHMS	HD Mode	Yes
Hybrid geometry and texture tracking	Yes
Data processing algorithms	Geometry and texture based
FIELD OF VIEW	Auto background removal	Yes
Working distance	0.35 – 1.2 m
Volume capture zone	160,000 cm³
Linear field of view, H×W @ closest range	244 × 142 mm
Linear field of view, H×W @ furthest range	838 × 488 mm
TEXTURE	Angular field of view, H×W	38.5 × 23°
Ability to capture texture	Yes
Texture resolution	2.3 mp
Colors	24 bpp
CAPTURE RATE	Ability to use Photo Texture	Yes
3D reconstruction rate for real-time fusion	up to 22 fps
3D reconstruction rate for 3D video recording	up to 44 fps
3D reconstruction rate for 3D video streaming	up to 80 fps
Data acquisition speed	up to 35 mln points/s
3D exposure time	0.0002 s
2D exposure time	0.0002 s
IGHT SOURCE	3D light source	VCSEL
2D light source	White 12 LED array
Position sensors	Built-in 9 DoF inertial system
Display / touchscreen	Integrated 5.5" half HD, CTP. Optional WiFi / Ethernet video streaming to external device
Multi-core processing	Embedded processors: NVIDIA® Jetson™ TX2 Quad-core ARM® Cortex®-A57 MPCore Processor NVIDIA Maxwell™ 1.33 TFLOPS GPU with 256 NVIDIA® CUDA® Cores
Interface	Wi-Fi, Ethernet, SD card
Internal hard drive	512 GB SSD
COMPUTER REQUIREMENTS	Supported OS	Scanning: No computer required Data processing: Windows 7, 8, 10 x 64
Recommended computer requirements	Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with 8+ GB VRAM, CUDA 6.0+
Minimum computer requirements	HD: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 4 GB VRAM
SD: Intel Core i5, i7 or i9 and 32GB RAM, GPU with 2 GB RAM
A computer is needed only for data processing. Scanning does not require a computer.
OUTPUT FORMATS	3D mesh	OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB
CAD	STEP, IGES, X_T
Measurements	CSV, DXF, XML
POWER SOURCE & DIMENSIONS	Power source	Built-in exchangeable battery, optional AC power
Dimensions, HxDxW	31 × 162 × 230 mm
Weight	2.6 kg / 5.7 lb

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 2 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

31 days
Step 3

Packaging and dispatch

Ocean + Express via FLY Logistics · Approx. shipping fee: $ 27.52 for 2 pieces · Transit time: Est. 16-23 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 25 fields

Type

Handheld

Interface type

USB

Scan element type

CMOS

Products status

Stock

Warranty(Year)

1-Year

After-sales Service

Call Center and on-line Technical Support

Color

White, Black

Place of origin

Luxembourg

Max paper size

3D accuracy over distance, up to 0.1 mm + 0.3 mm/m

Optical resolution

3D point accuracy, up to 0.1 mm

Scan speed

Up to 35 mln points/s

3D accuracy over distance

up to 0.1 mm + 0.3 mm/m

Texture tracking

Yes

Data processing algorithms

Geometry and texture based

Auto background removal

Yes

Data acquisition speed

up to 35 mln points/s

Weight

2.6 kg / 5.7 lb

Working distance

0.35 to 1.2 m

Volume capture zone

160,000 cm3

H*W @ closest range

244 * 142 mm

H*W @ furthest range

838 *488 mm

Selling Units

Single item

Single package size

30.0X50.0X30.0 cm

Single gross weight

8.0 kg

Model number

Artec Leo

Lead time

31 days

Minimum order

2 Units
