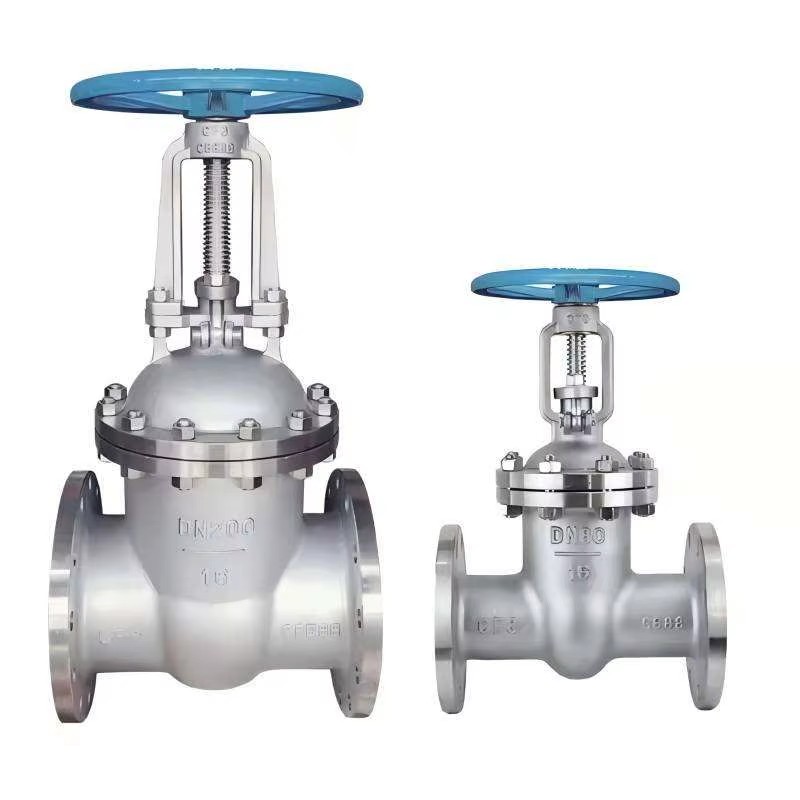

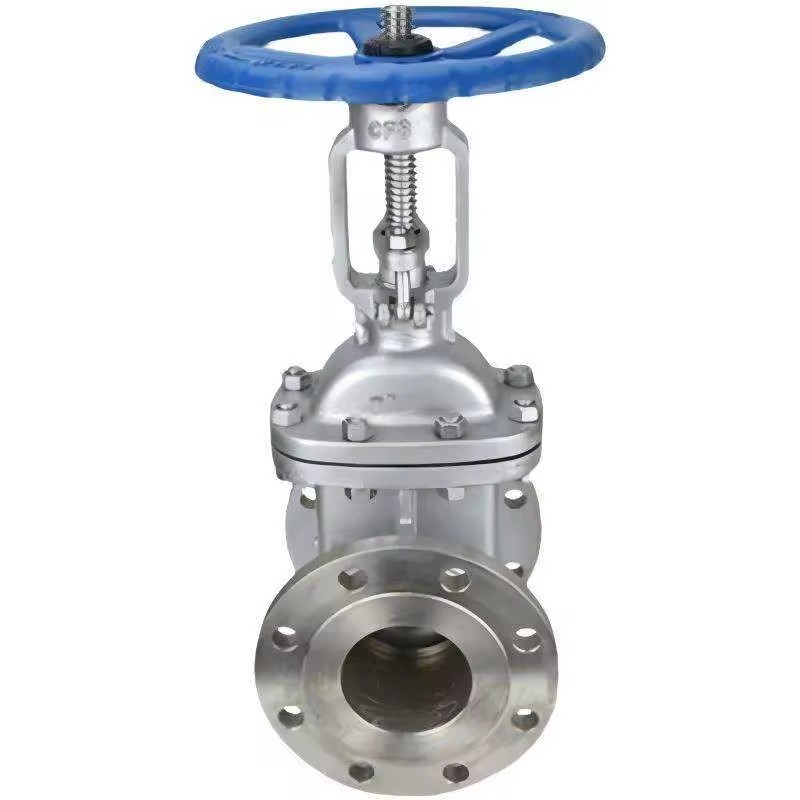

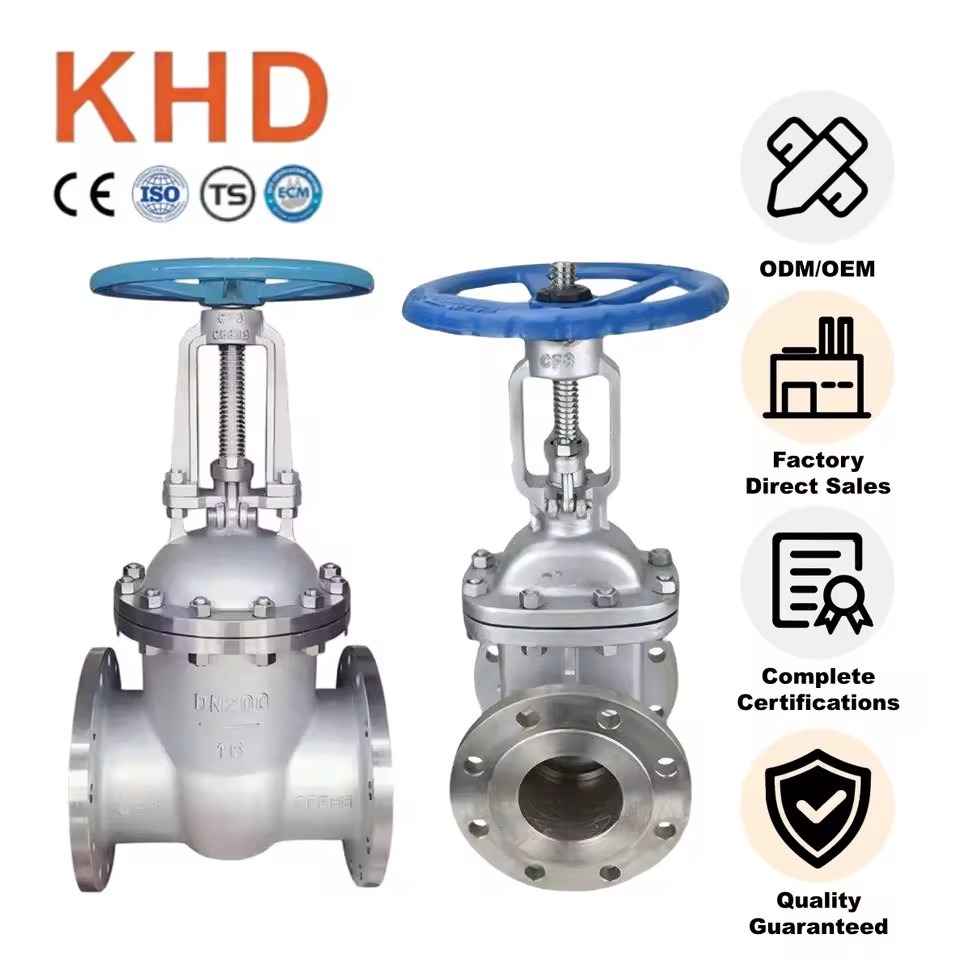

Name: KHD Industrial Manual Flange Gate Valve Stainless Steel High Temperature Control Valve Sluice Gate Valve for Water Gas Oil
SKU: B2B-11337
Price: 100.0 USD
Availability: PreOrder

Product description

Name	Materail
Body/Bonnet	CF8	CF3	CF8M	CF3M	WCB	LCB	WC6	WC9	C5
Wedge	CF8	CF3	CF8M	CF3M	WCB	LCB	WC6	WC9	C5
Stem	F304	CF304L	F316	F316L	2Cr13	F304	F304	F304	F304
Stem Nut	Aluminium Bronze
Packing	PTFE	Graphite
Gasket	PTFE	Graphite
Gland	CF8	CF3	CF8M	CF3M	WCB	LCB	WC6	WC9	C5
Bolt	Stainless Steel	35CrMoA
Nut	Stainless Steel	45,35 CrMoA
Handwheel	Cast Steel

Structural advantages and characteristics

1、Meets the domestic and foreign advanced standard requirement,the seal is eliable,the performance is fine,handsome appearance.

2、The damper plate,the valve seat packing surface is too vertical(stellite)with the iron-base alloy built-up welding or the department the cobalt base hardally built-up welding to become,wear-resisting,thermostable,anti-corosive,the anti-abrasion performanceis good,the service lifeislong.

3、Using wedge-type flexible gate structure,medium and large caliber set bearings,switches flexible,open and close easily.

4 、Stem quenched and the nitrogen treatment,with good corosion resistance,scratch resistance and wear resistance.

5 、Can be used with a variety of standard pipe flanges and flange sealing surface types to meet various project needs and user requirements.

6、Valve body materials,variety,packing,gasket can be based on actual working conditions or the user requests a reasonable option,can be applied to all kinds of pressure,temperature and medium conditions.

Standards and norms
Design and Manufacture	Structure Length	Pressure -temperature rating	Connection flange	Test and Inspection
GB12234	GB12221	GB/T12224	JB/T 79 GB9113 HG 20592～20635	JB/T 9092 GB13927

Performance parameter	Entry name	Entry name
Serial Number	PN16	PN25	PN40	PN64	PN100	PN160
1	PN(MPa)	1.6	2.5	4.0	6.4	10	16
2	Shell strength test pressure(MPa)	1.5 Times the nominal pressure at room temperature
3	High-pressure sealing Test pressure(MPa)	1.1Times the nominal pressure at room temperature
4	Operating pressure at room temperature(MPa)	According to GB/T12224 pressure temperature rating

Certifications & compliance

Complies with EU standards

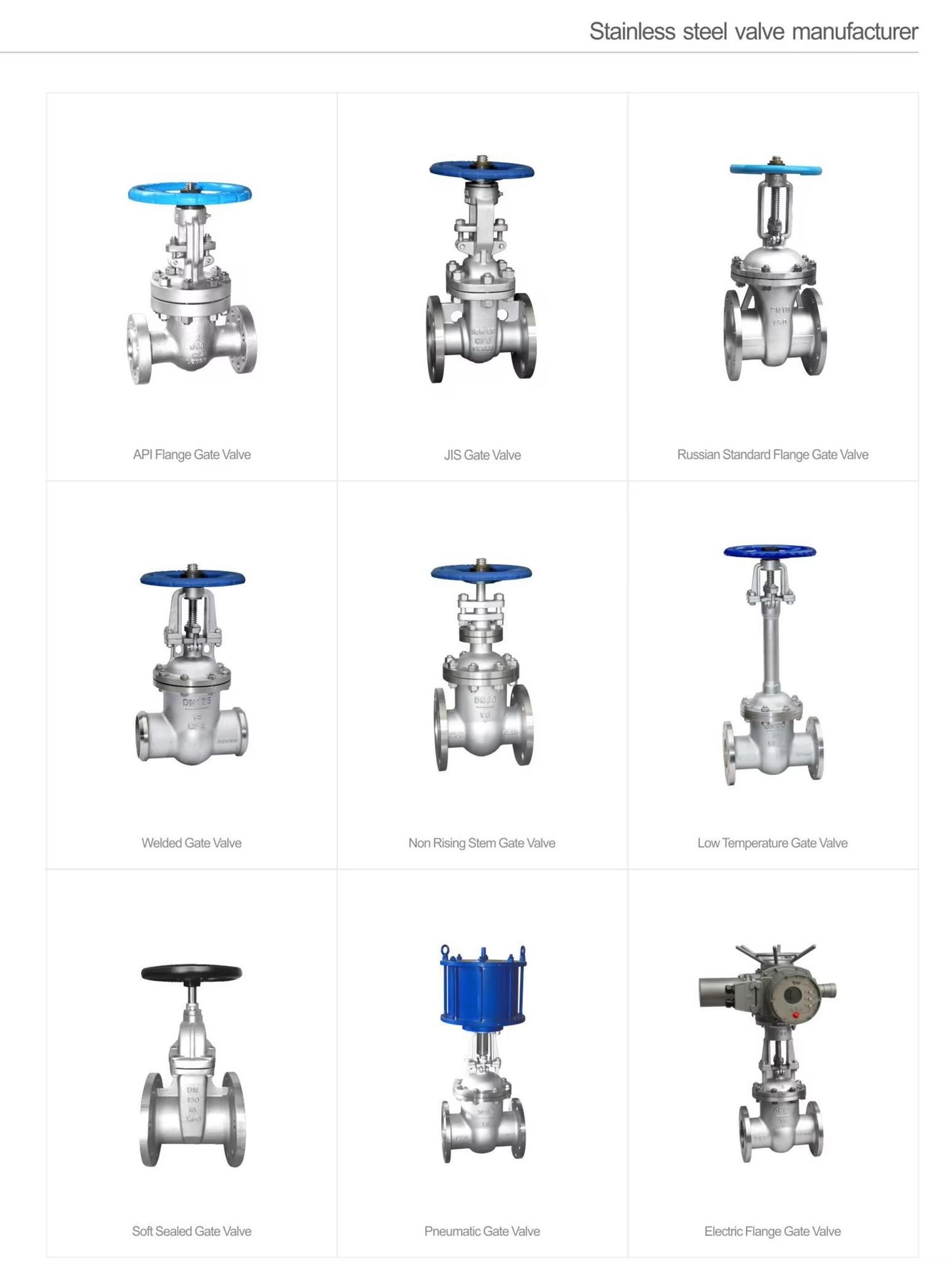

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

3 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 24 fields

Media

Oil

Temperature of media

Medium Temperature, Low Temperature, High Temperature

Power

Manual

Port Size

1/2''-28''

Application

Oil

Structure

Gate

Warranty

1 years

Customized support

OEM, ODM, OBM

Place of origin

Zhejiang, China

Color

GRAY

Temperature

196C~450C

Packing

Wooden Packing

Standard

API 6A / ANSI / ASME

Working medium

Air Water Oil

Body

Ss304/ss316/ss316l

OEM

Welcom OEM

Body Material

Stainless steel

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Material (Product option)

Stainless Steel, Alloy

Pressure (Product option)

High Pressure, Low Pressure, Medium Pressure, Vacuum

Size (Product option)

1 in, 1 1/4 in, 1 1/2 in, 2 in, 2 1/2 in, 18in, 24in

Certifications & Compliance

Lead time

3 days

Minimum order

1 Units
