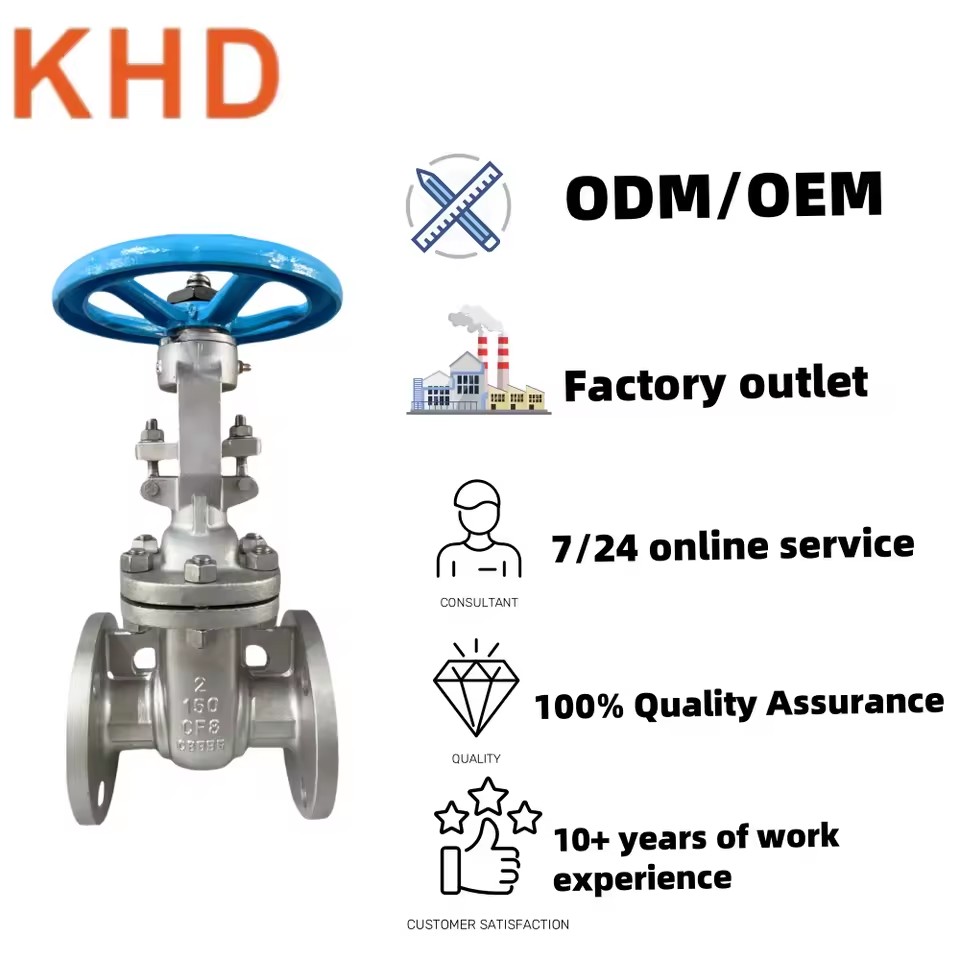

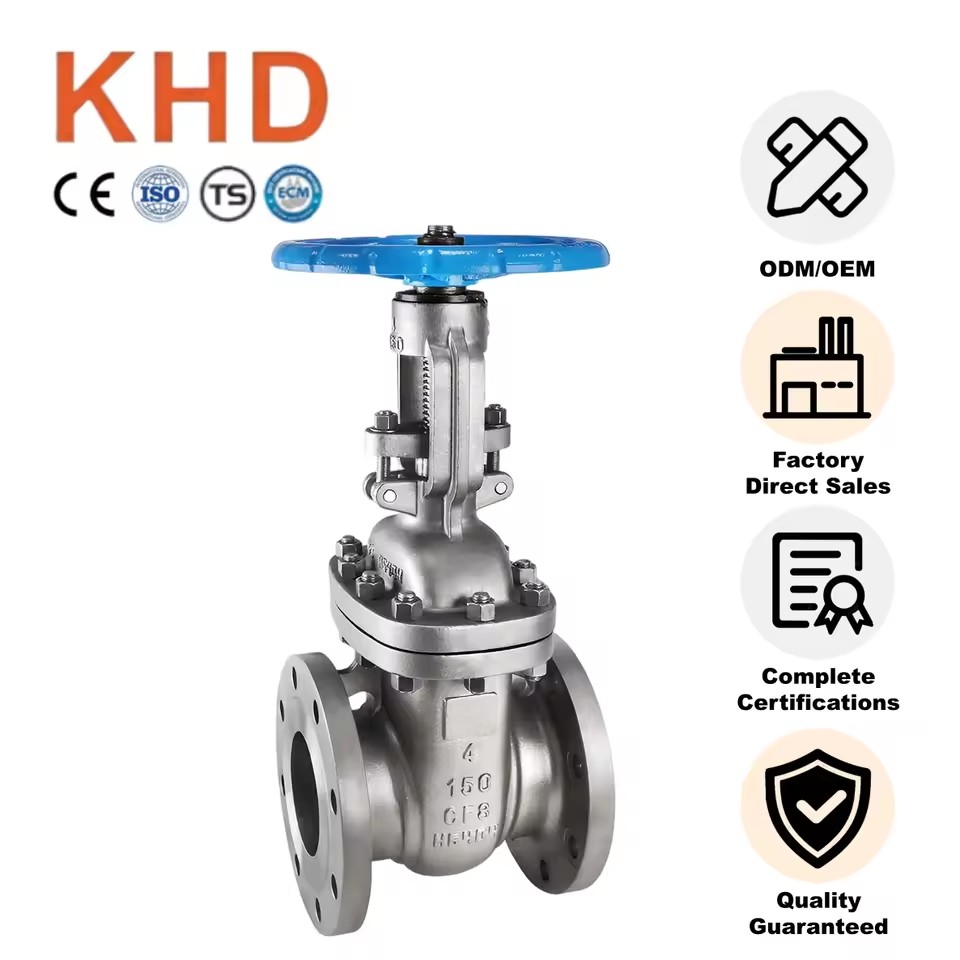

Name: KHD API ANSI Stainless Steel Low Temperature Pneumatic Electric Water Gas Oil Gate Valve Manual Hydraulic Gate Valve
SKU: B2B-11324
Price: 50.0 USD
Availability: PreOrder

Product description

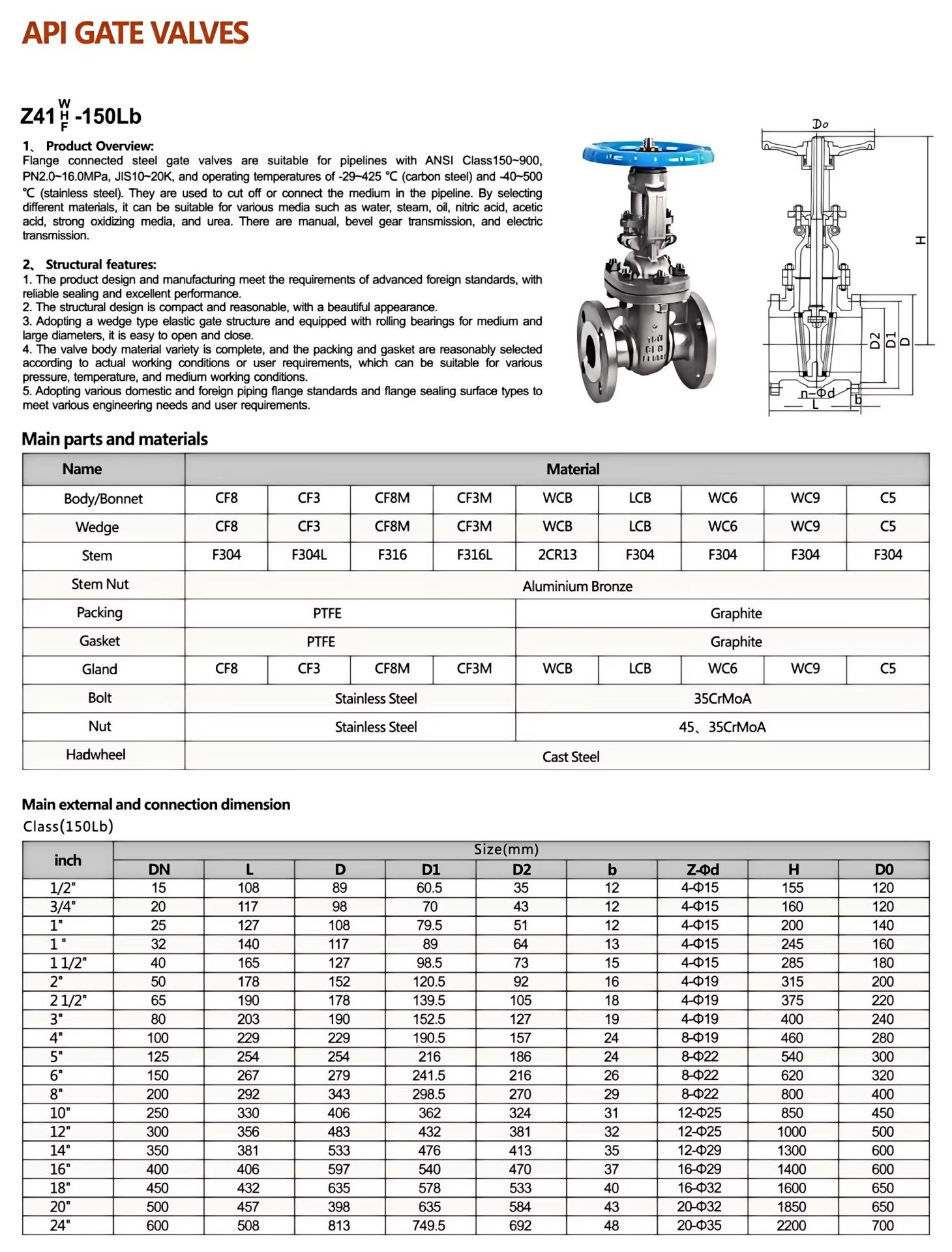

Name	Materail
Body/Bonnet	CF8	CF3	CF8M	CF3M	WCB	LCB	WC6	WC9	C5
Wedge	CF8	CF3	CF8M	CF3M	WCB	LCB	WC6	WC9	C5
Stem	F304	CF304L	F316	F316L	2Cr13	F304	F304	F304	F304
Stem Nut	Aluminium Bronze
Packing	PTFE	Graphite
Gasket	PTFE	Graphite
Gland	CF8	CF3	CF8M	CF3M	WCB	LCB	WC6	WC9	C5
Bolt	Stainless Steel	35CrMoA
Nut	Stainless Steel	45,35 CrMoA
Handwheel	Cast Steel

Specification inch	150LB Size (mm)
L	D	D1	D2	b	Z-∅d	H	D0
1/2	108	89	60.5	35	12	4-15	155	120
3/4	117	98	70	43	12	4-15	160	120
1	127	108	79.5	51	12	4-15	200	140
1	140	117	89	64	13	4-15	245	160
1.5	165	127	98.5	73	15	4-15	285	180
2	178	152	120.5	92	16	4-19	315	200
2.5	190	178	139.5	105	18	4-19	375	220
3	203	190	152.5	127	19	4-19	400	240
4	229	229	190.5	157	24	4-19	460	280
5	254	254	216	186	24	8-22	540	300
6	267	279	241.5	216	26	8-22	620	320
8	292	343	298.5	270	29	8-22	800	400
10	330	406	362	324	31	12-25	850	450
12	356	483	432	381	32	12-25	1000	500
14	381	533	476	413	35	12-29	1300	600
16	406	597	540	470	37	16-29	1400	600
18	432	635	578	533	40	16-32	1600	650
20	457	398	635	584	43	20-32	1850	650
24	508	813	749.5	692	48	20-35	2200	700

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

25 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 23 fields

Media

Oil

Temperature of media

Medium Temperature, Low Temperature, High Temperature

Power

pneumatic

Port Size

1/2''-28''

Application

phamaceutical, papemaking, coal mining, cement

Structure

Gate

Warranty

1 years

Customized support

OEM, ODM, OBM

Place of origin

Zhejiang, China

Color

GRAY

Temperature

196C~450C

Packing

Wooden Packing

Standard

API 6A / ANSI / ASME

Working medium

Air Water Oil

Body

Ss304/ss316/ss316l

OEM

Welcom OEM

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Material (Product option)

Stainless Steel, Alloy

Pressure (Product option)

High Pressure, Low Pressure, Medium Pressure, Vacuum

Size (Product option)

1/2 in, 3/4 in, 1 in, 2 in, 1/4 in, 3/8 in, 18in, 24in, 1 1/4in, 1 1/2in, 2 1/2in

Certifications & Compliance

Lead time

25 days

Minimum order

1 Units
