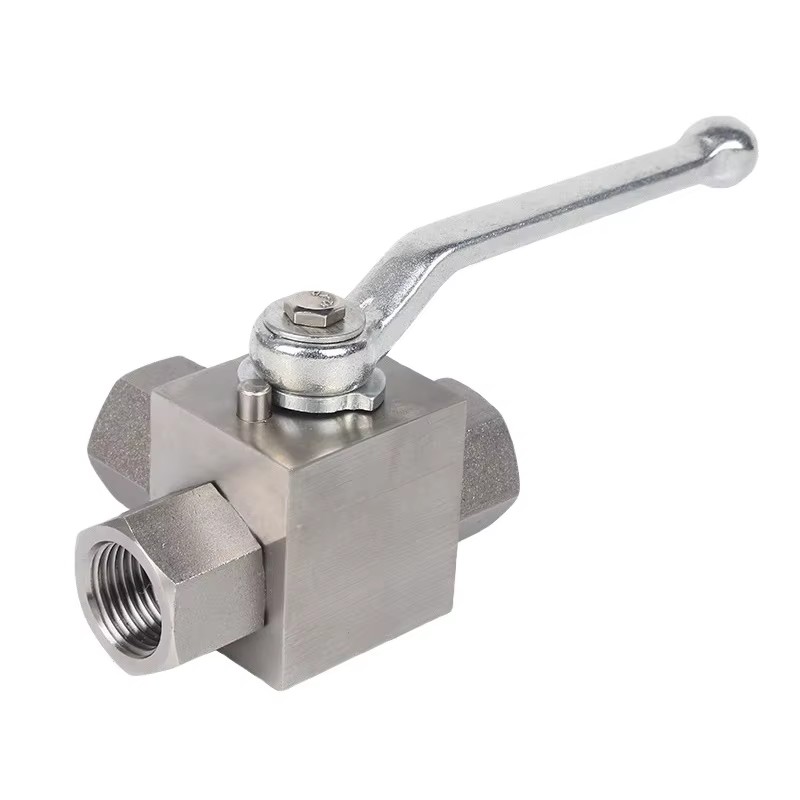

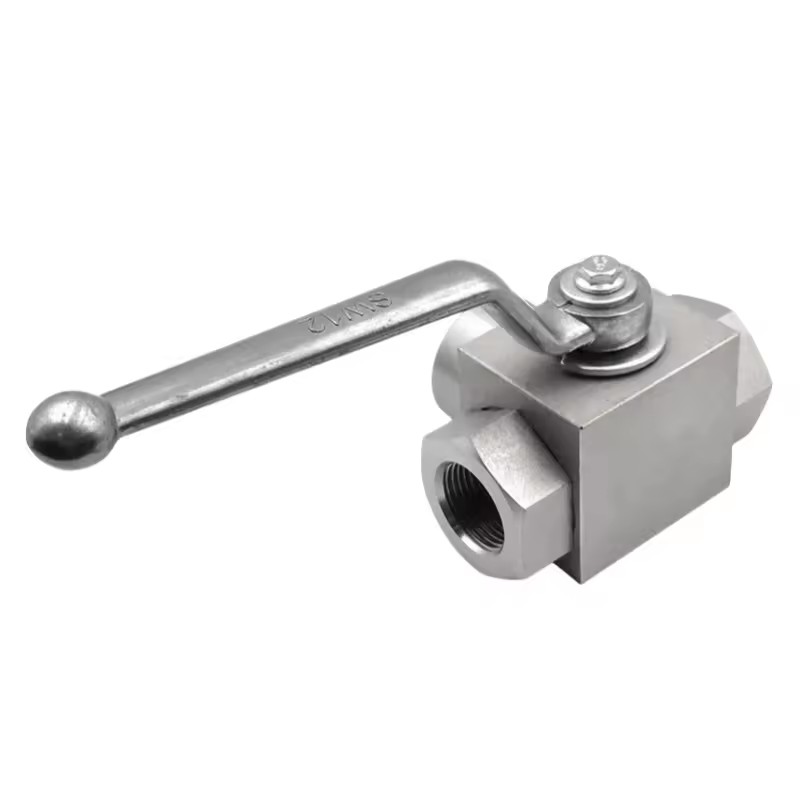

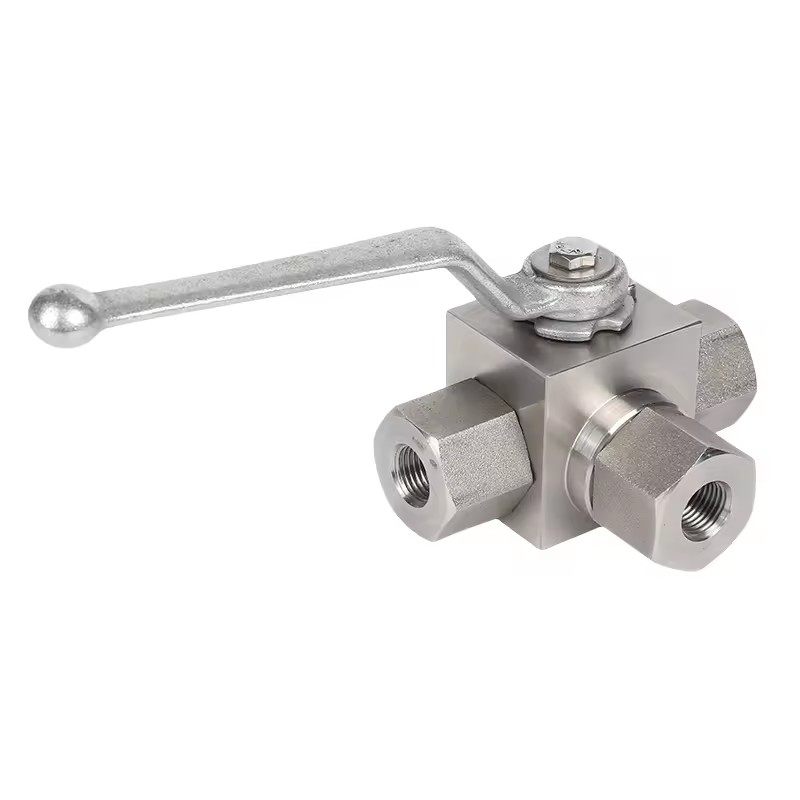

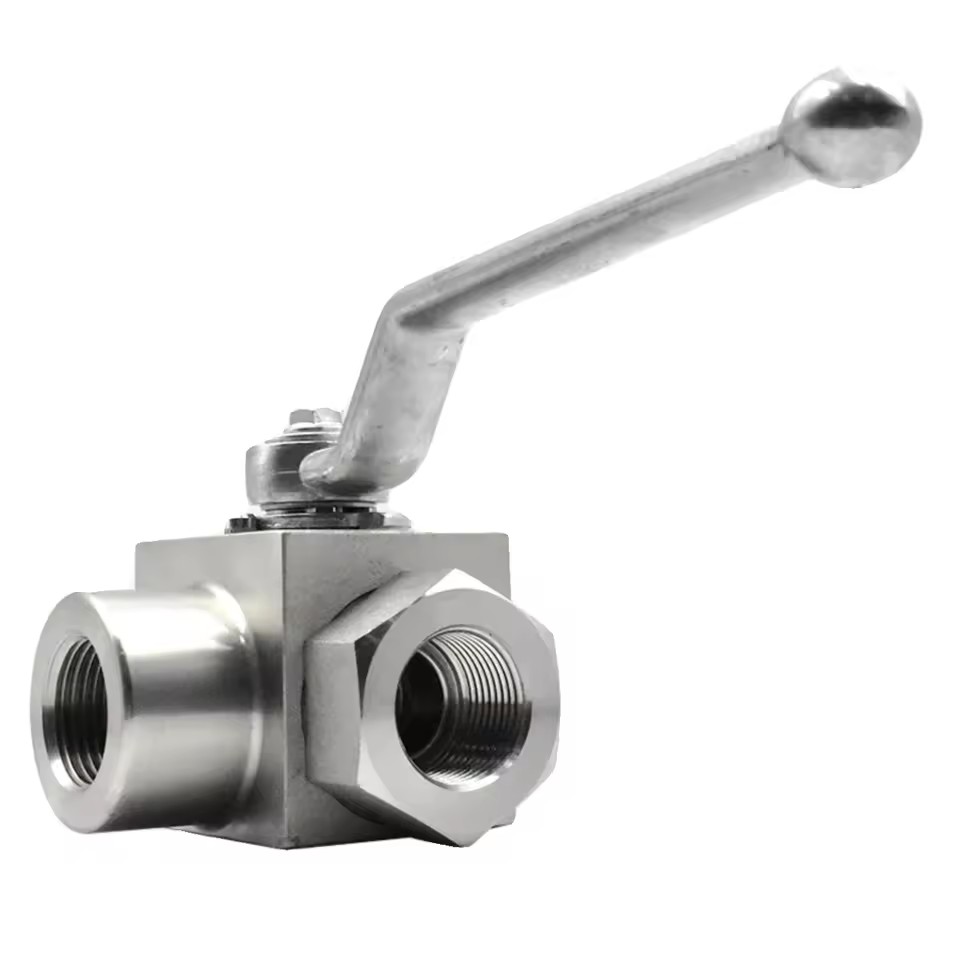

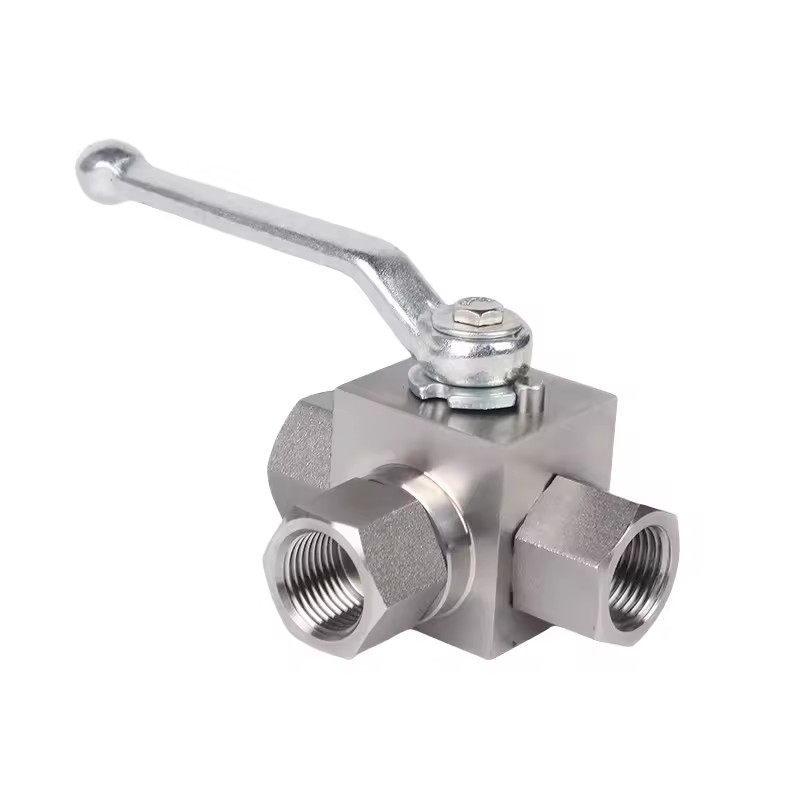

KHB3K Hydraulic Switch Water Valve L Type 1/4" 3/8" 1/2" 3/4" 1" Female Thread Stainless Steel High Pressure 3-Way Ball Valve

• Connection Size
  • 1/8"~2"
  • M14~M42
• Operating Pressure
  • 4500PSI
• Operating Temp. Range
  • 22-140F
• Media
  • Water
• Sealing Material
  • PTFE
• Connection Type
  • NPT
• Power
  • Manual
  • Handle Ball Valve
• Ball Material
  • Stainless Steel
• Port Size
  • 1/8" to 2''
  • M14~M42
• Application
  • General
• Temperature of media
  • Normal Temperature
• Structure
  • Ball
• Customized support
  • OEM
  • ODM
• Warranty
  • 1 years
• Place of origin
  • Zhejiang
  • China
• Model number (Specification)
  • KHB3K(Female thread)
• Certifications
  • ISO9001
• Thread
  • NPT G BSP
• Medium
  • Water Oil Gas
• Valve type
  • 3-way
• Working pressure
  • 4500 PSI
• Standard or Nonstandard
  • Standad
• Sample
  • Accept with negotiation
• Selling Units
  • Single item
• Single volume
  • 0 cm3
• Single gross weight
  • 0.0 kg
• Material (Product option)
  • Carbon Steel
  • stainless steel(SS304)
  • stainless steel(SS316)
• Pressure (Product option)
  • High Pressure
• Size (Product option)
  • 1/2 in
  • 3/4 in
  • 1 in
  • 1 1/4 in
  • 1 1/2 in
  • 2 in
  • 2 1/2 in
  • 1/4 in
  • 3/8 in
  • KHB3K(M14*1.5)male
  • KHB3K(M16*1.5)male
  • KHB3K(M18*1.5)male
  • KHB3K(M22*1.5)male
  • KHB3K(M27*2)male
  • KHB3K(M33*2)male
  • KHB3K(M14*1.5)female
  • KHB3K(M18*1.5)female
  • KHB3K(M22*1.5)female
  • KHB3K(M27*1.5)female
  • KHB3K(M30*1.5)female
  • KHB3K(M36*2)female
  • KHB3K(M42*2)female
  • KHB3K(M16*1.5)female

This combination is unavailable.
