Crawler Diesel-Powered Mine Drilling Rig with Engine & Motor Integrated Drilling Equipment

Available for enquiry 0.0 · 0 reviews
USD

$ 32,910.00 32910.0 USD $ 32,910.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
MINING BOREHOLE DRILLING
Type
DOWN THE HOLE DRILLING RIG
Drilling Depth
Economical depth 25m
Drilling Diameter
100mm, 115mm, 90mm, 105mm, 110mm, 80MM
Power Type
Diesel
Core components
Motor, Engine
Product description

KG520/KG520H Surface Drilling Rig Drilling Dia.: Φ105-152mm(4"-6")

Specifications
Model#*KG520**KG520H*
Weight6500kgs7000kgs
Dimension6800×2200m×2850mm6800×2400m×2850mm
Diesel EngineYuchai YC4DK100-T304,73kw/100hp /2200 r/min
Drilling Hardnessf=6-20
Drilling DiameterΦ105-152mm(4"-6")
Depth of Economical Drilling25m / 7.6ft
Air Consumption15-22m³/min(460-777cfm)
DTH HammerStandard K4 (Optional:K5)
Drilling RodStandard Φ76X3000mm (Optional:Φ89X3000mm)
Drilling BitStandard Φ115mm-K4 (Optional:Φ105/110/120/125/130mm-K4,Φ136/140/146/152mm-K5,)
Rotary Speed0-100rpm
Rotary Torque (Max.)4000N.m(Max.)
Lifting Force25KN
Method of FeedMotor + Roller Chain
Feed Stroke4150mm
Traveling Speed0-4km/h
Climbing Capacity≦30°
Ground Clearance440mm
Pitch Angle of BeamDown 135°,Up 50°,Total 185°
Swing Angle of BoomLeft 50°,Right 50°,Total 100°
Pitch Angle of Drill BoomDown 50°,Up 25°,Total 70°
Swing Angle of BoomLeft 45°,Right 45°,Total 64°
Leveling Angle of Track±10°
Compensation Length of Beam900mm
Maximum Height of Horizontal Hole3500mm
Minimum Height of Horizontal Hole350mm
Description images

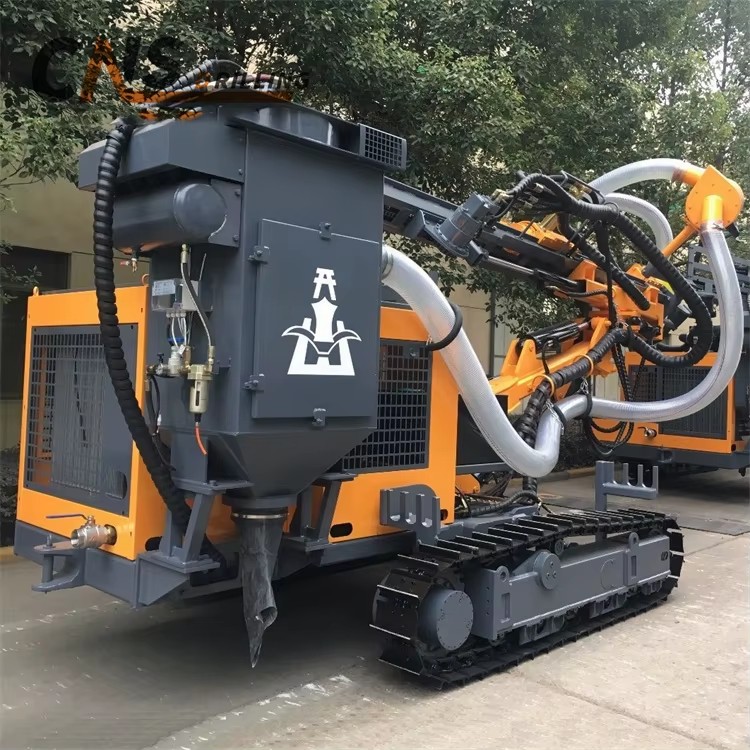

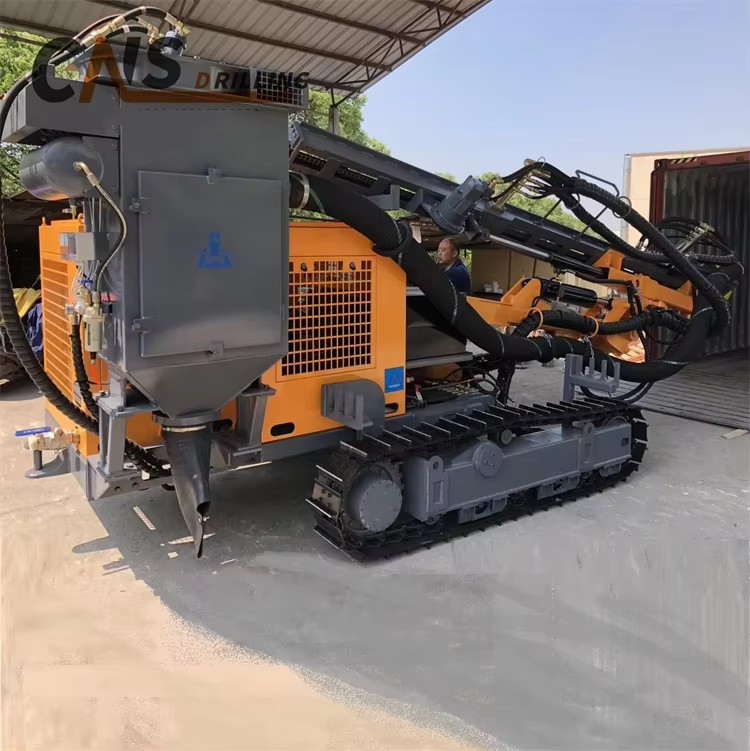

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    20 days

  • Step 3

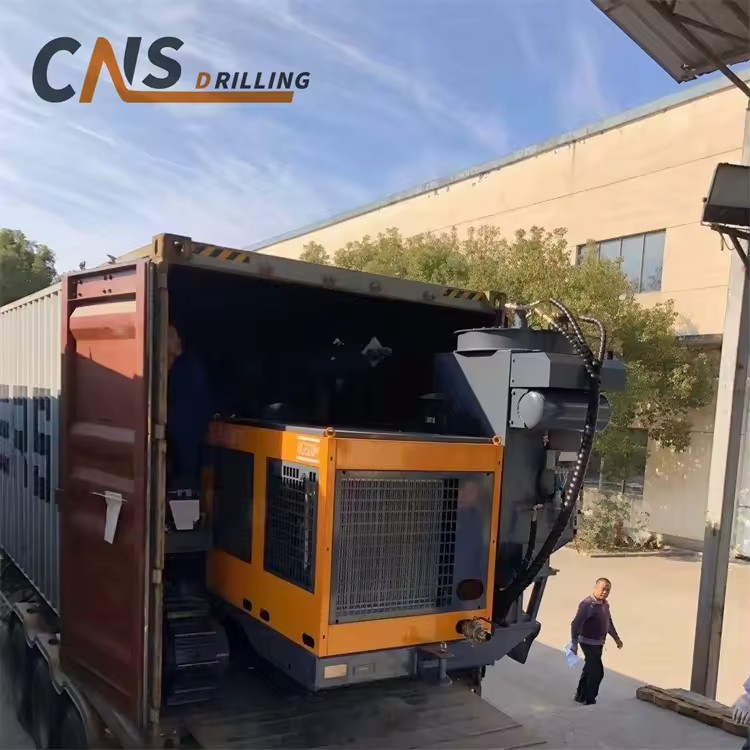

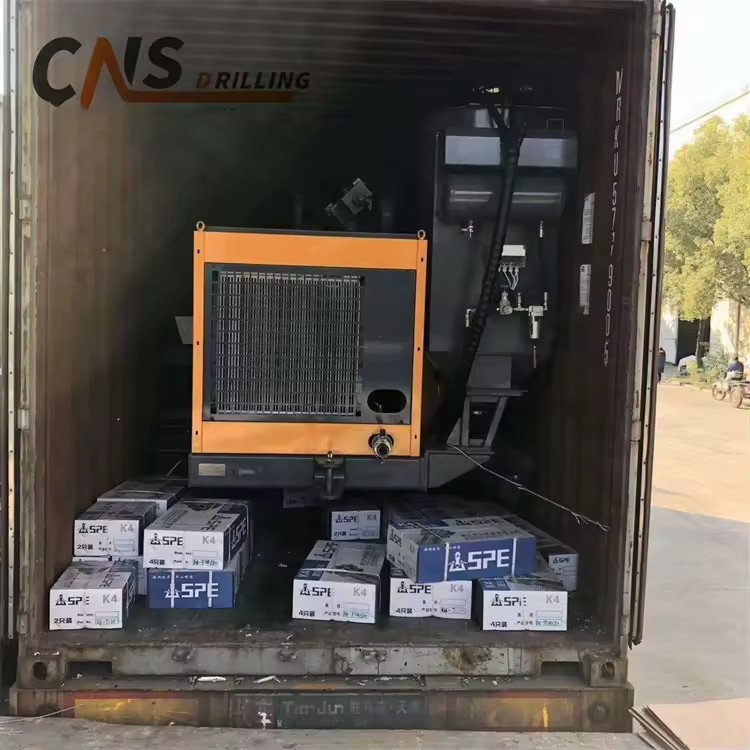

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 27 fields
Usage
MINING BOREHOLE DRILLING
Type
DOWN THE HOLE DRILLING RIG
Drilling Depth
Economical depth 25m
Drilling Diameter
100mm, 115mm, 90mm, 105mm, 110mm, 80MM
Power Type
Diesel
Core components
Motor, Engine
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Long Service Life
Place of origin
Zhejiang, China
Weight
6500 kg
Dimension (L*W*H)
6800*2200*2850MM
Mobility
Crawler
Application
MINE DRILLING RIG
Engine
YUCHAI 73KW
Economic Drill depth
25MM
SUGGEST COMPRESSOR
18-22 M3/MIN,17-20 BAR
DRILLING ROD
DIA.76/89*3000MM
Function
Borehole Hole Drilling Rig
Drilling method
DTH DOWN THE HOLE
DUST COLLECT
DRY TYPE
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
KG520
Power (W) (Product option)
73KW
Lead time
20 days
Minimum order
1 Units
