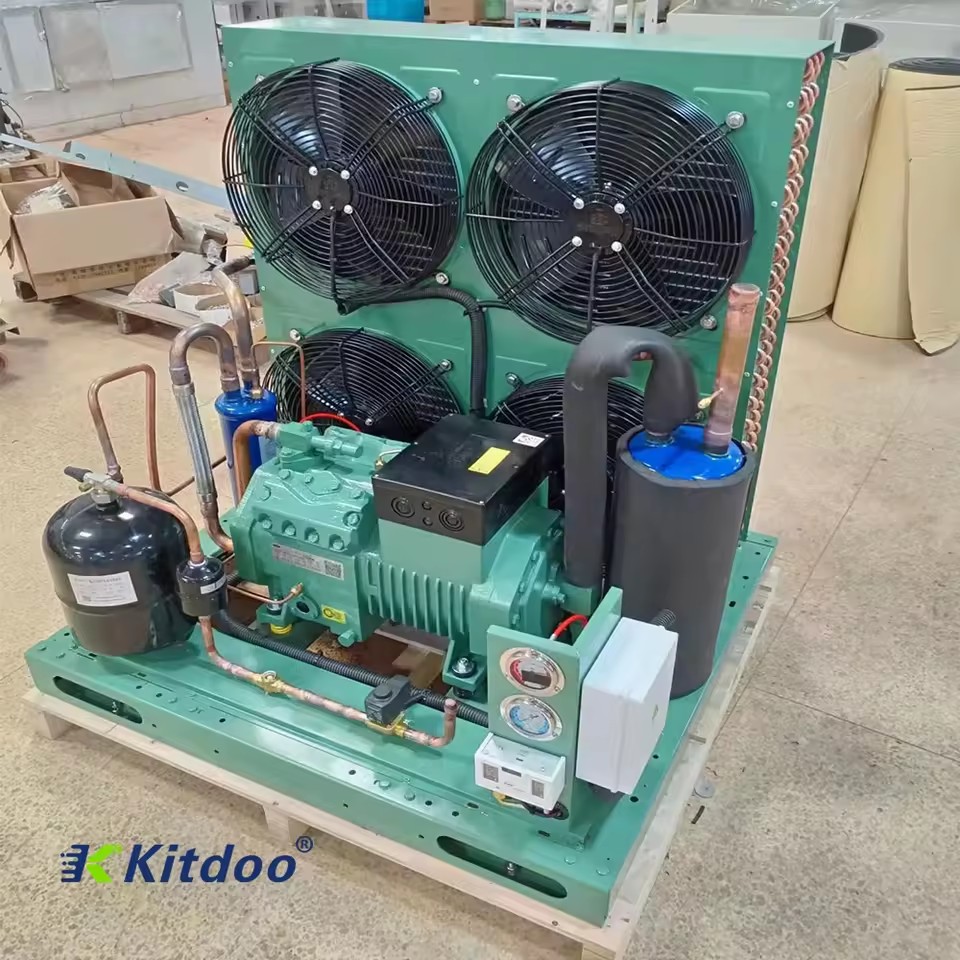

Energy Saving 380V Low Temperature Refrigerating Unit New Automatic Cold Room Condensing Unit R410A

Product Importer Gallery 01 · 307e9c28ab

Product Importer Gallery 02 · 9cf6fdec69

Product Importer Gallery 03 · ceaec89021

Product Importer Gallery 04 · 5563c070ed

Product Importer Gallery 05 · 2a16ca30ab

Product video

Certifications CE

Energy Saving 380V Low Temperature Refrigerating Unit New Automatic Cold Room Condensing Unit R410A

Name: Energy Saving 380V Low Temperature Refrigerating Unit New Automatic Cold Room Condensing Unit R410A
SKU: KF3R-MY4D-KBPV
Price: 1320.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews 2 sold

USD

$ 1,320.00 1320.0 USD $ 1,320.00

Minimum order quantity: 1 Units

Key attributes

View all

Cooling capacity

10KW(13.41hp)

Temperature

20-8c

Voltage

380 V, 220 V

Compressor Type

Scroll

Refrigerant

R22/R410/R404A/R454B

Compressor brand

Bitzer

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

$7,999 / unit

Product Description

Technical parameters of Semi-Hermetic medium and high temperature compressor condensing unit
Matching compressor model	2CC-4.2M	4FC-5.2/Y	4EC-6.2/Y	4DC-7.2/Y	4CC-9.2M	4VCS-10.2M	4TCS-12.2N	4PCS-15.2N	4NCS-202N
Nominal cooling capacity of unit	8700/9520	9900/10520	12200/13300	14900/15770	18000/19140	19800/20500	23900/24800	28500/29800	33000/34400
Unit in put power (KW)	3.6/4.21	4.2/4.7	5.1/5.9	6.4/7.1	7.6/8.6	7.9/8.9	9.4/10.6	11/12.3	13/14.4
Power Supply	3PH-380V-50Hz
Cryogen	R22/R404A
Air volume(m³/h)	5350	8860	8390	11500	11200	14400	14200	21000	20500
Fan diameter *number	450*2	450*2	450*2	500*2	500*2	500*2	500*2	630*2	630*2
Reservoir volume (L)	6	8	8	12	12	14
Diameter of liquid connecting pipe of unit (mm)	12	12	12	16	16	16	22	22
Diameter of air return connecting pipe of unit (mm)	22	22	22	28	28	28	28	35	35
Unit size (L*D ·h)mm	260680700	1260680Y900	260680900	5608801000	560881000	56080105	5608801105	19109601205	9109601205
Operating temperature range of unit	Evaporation temperature range:7~-15℃,Inlet air temperature<43℃
Technical parameters of Semi-Hermetic medium and low temperature compressor condensing unit
Matching compressor model	4EC-4.2/Y	4DC-5.2/Y	4VCS-6.2/MY	4TCS-8.2M	4PCS-10.2/MY	4NCS-122N	4J-13.2N	4H-15.2/Y	4G-20.2M
Nominal cooling capacity of unit	5700/5840	6700/7170	9000/9090	1090/1330	12700/2940	15000/14990	16300/17670	18800/20900	22000/24100
Unit in put power kw	3.9/4.2	4.5/5.1	5.3/6.0	6.7/7.4	7.6/8.5	9.2/10.2	9.4/12.1	12.2/14.5	14.2/16.5
Power Supply	3PH-380V-50Hz
Cryogen	R22/R404A
Air volumem m³/h	3780	5655	5535	8813	8549	11861	11640	114400	14200
Fan diameter *number	350*2	450*2	450*2	450*2	450*2	500*2	500*2	550*2	550*2
Reservoir volume (L)	6	8	8	14	14	14	14	23	23
Diameter of liquid connecting pipe of unit (mm)	12	12	12	16	16	16	16	22	22
Diameter of air return conneting pipe of unit (mm)	22	28	28	35	35	35	35	42	42
Unit size (LDh)mm	1060'680'600	1260'680700	1260680'700	1260680'900	1260'680'900	560880000	15608801000	56080′1005	1560801005
Operating temperature range of unit	Evaporation temperature range:-10~-40℃,Inlet air temperature<43℃

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

15 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 25 fields

Cooling capacity

10KW(13.41hp)

Temperature

20-8c

Voltage

380 V, 220 V

Compressor Type

Scroll

Refrigerant

R22/R410/R404A/R454B

Compressor brand

Bitzer

Core components

Compressor, Condenser

Warranty

1 Year

Key selling points

High-Accuracy, High Productivity

Video outgoing-inspection

Provided

Place of origin

China, Guangdong

Weight (kg)

100

Model number (Specification)

2hp-30hp

Color

blue/black/green

Function

Cooling Refrigeration Unit

After-sales Service Provided

Online Support

Shipping port

Guangzhou/Foshan/Shenzhen

Application

Cold Storage Room Freezer Room

Application refrigerant

R22/R404A/R410/R454B

Cold room temperature

+5 to -25 degree

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Power(W) (Product option)

10kW(13.41hp)

Certifications & Compliance

Lead time

15 days

Minimum order

1 Units
