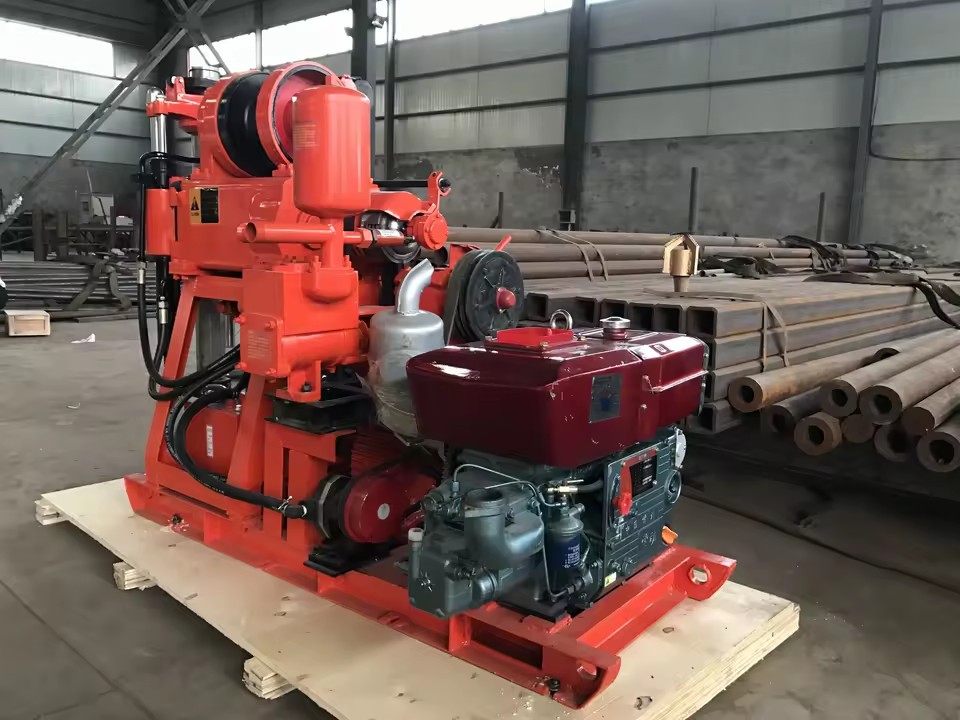

Water Well Machine GK-200 Mud Pump Diamond Core Drilling Rig

Available for enquiry 0.0 · 0 reviews
USD

$ 6,260.00 6260.0 USD $ 6,260.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Water Well
Type
Core Drilling Rig
Drilling Depth
200m, 200m(656.17ft)
Drilling Diameter
300 mm(11.81in), 91mm-300mm
Power Type
Diesel
Voltage
220v
Product description

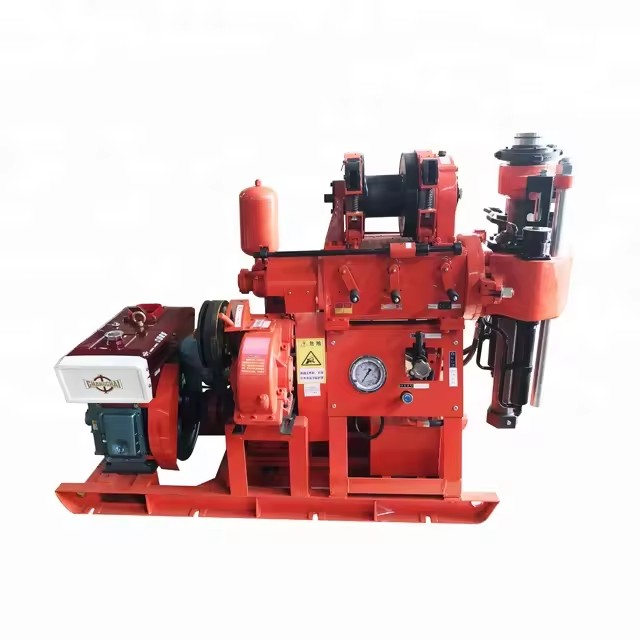

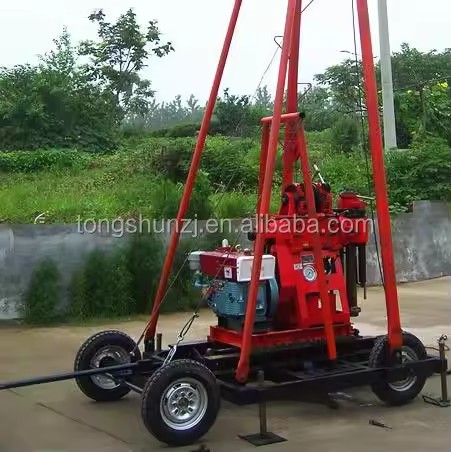

Water Well Machine GK-200 Diamond Core Drilling Rig

West Of Beikou Village,, Shijiazhuang, Hebei, (Mainland)

Drill Rig introduces

Drill Rig Specification

Drill rig specification
Drilling depth200m
Drilling Diameter91mm,110mm,130mm,150mm,300mm
Drilling rod diameter50mm
Drilling Angle90°-75°
Dimensions(L×W×H)1750×850×1300 (mm)
Weight880kg/set
Swivel Head
Spindle Speed115, 230, 505, 790, 1010 r/min
Spindle stroke450mm
Spindle Dia.Φ59mmx53mmx4350mm Kelly rod
Upward displacement speed of drilling vertical spindle0.05m/s
Downward displacement speed of drilling vertical spindle0.067m/s
Spindle pull-down max15KN
Spindle lifting capacity max25KN
Vertical maximum output torque1.5KN.m
Hoist
Max. Lifting capacity(single rope)20KN.m
Lifting rotating speed20; 40; 90; 168r/min
Hoisting drum linear velocity (two levels)0.17; 0.35; 0.73; 1.5m/s
Drum Diameter140mm
Wire rope diameter9.3mm
Wire rope capability40m
Gear Pump
ModelYBC-12/125
Rated pressure12.5Mpa
Displacement20ml/r
Rated Speed2000r/min
Mud Pump
TypeBW-160
Displacement160 L/min
Working pressure1.3 Mpa
Stroke85mm
Drive shaft speed951 r/min
Drive power5.88KW
Diameter of inlet pipe45mm
Diameter of outlet pipe38mm

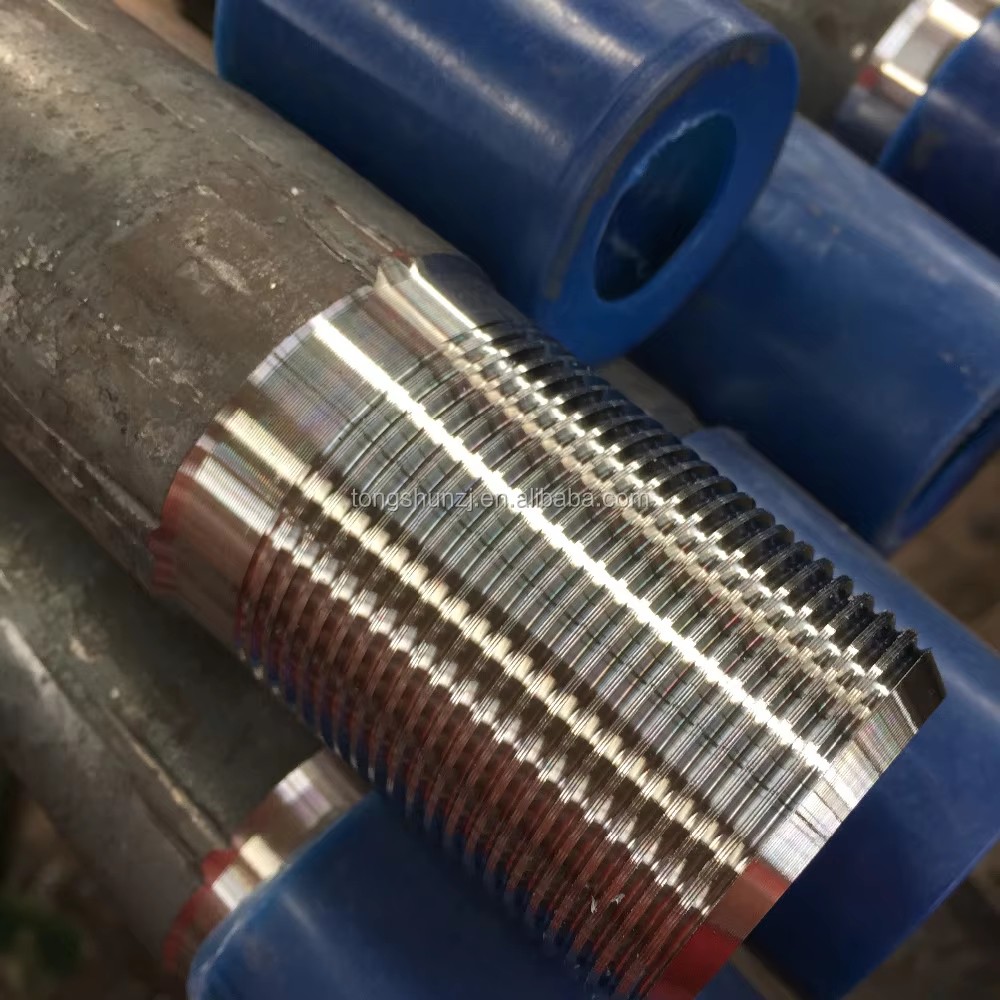

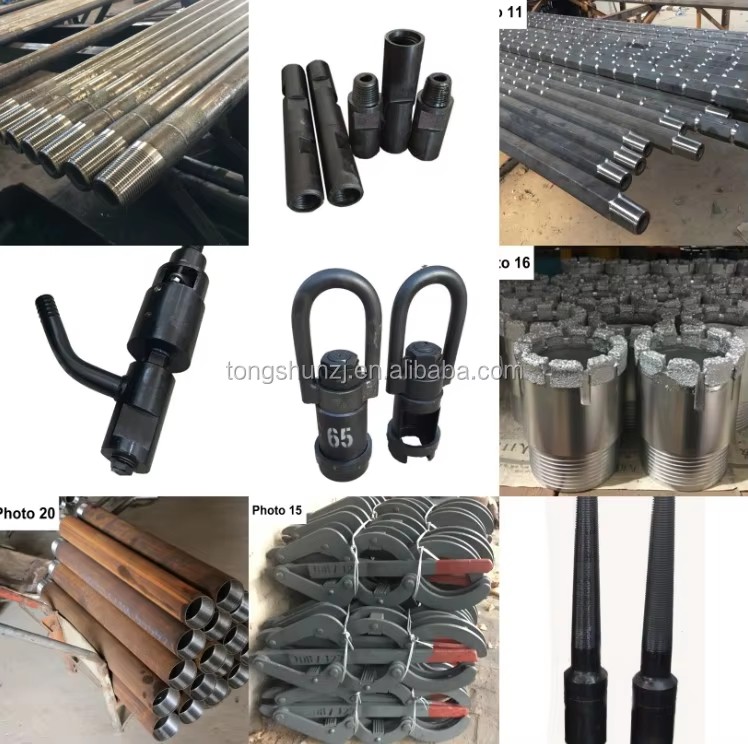

Drill Pipe Specification

Size42mm50mm60mm
GradeR780R780R780
Wall Thickness6.5mm6.5mm7.1mm
Length3m/4.5m3m/4.5m3m/4.5m
Connection57mm65mm75mm
Applicationwater well drilling, geological exploration, oil well drilling
Drill Pipe DiameterThickness TypeSteel GradeWall Thickness(mm)Connection Tool Joint Diameter(mm)ThreadWeight
1.6''External UpsetDZ506.5575.7
R7806.5575.7
2''Internal&External UpsetDZ506.565/687
R7806.565/687
2 3/8''Internal&External UpsetR7806 / 7.1175/78NC269.4
E75,G1057.1175/78NC269.4
2 7/8''Internal&External UpsetR780995/105NC3114.2
E75,G1059.1195/105NC3114.2
3 1/2''External UpsetN80,R7809.5 / 10121/125NC3818.6,19
E75,G1059.35121/125NC3819
  • 1. Strictly according to API 5DP standard
  • 2. Pipe body material: High quality alloy seamless pipe
  • 3. Tool joint: 40Cr, 35CrMo
  • 4. Suitable for water well, geothermal well.

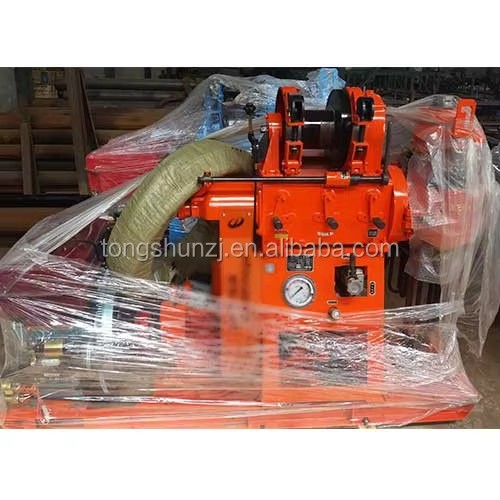

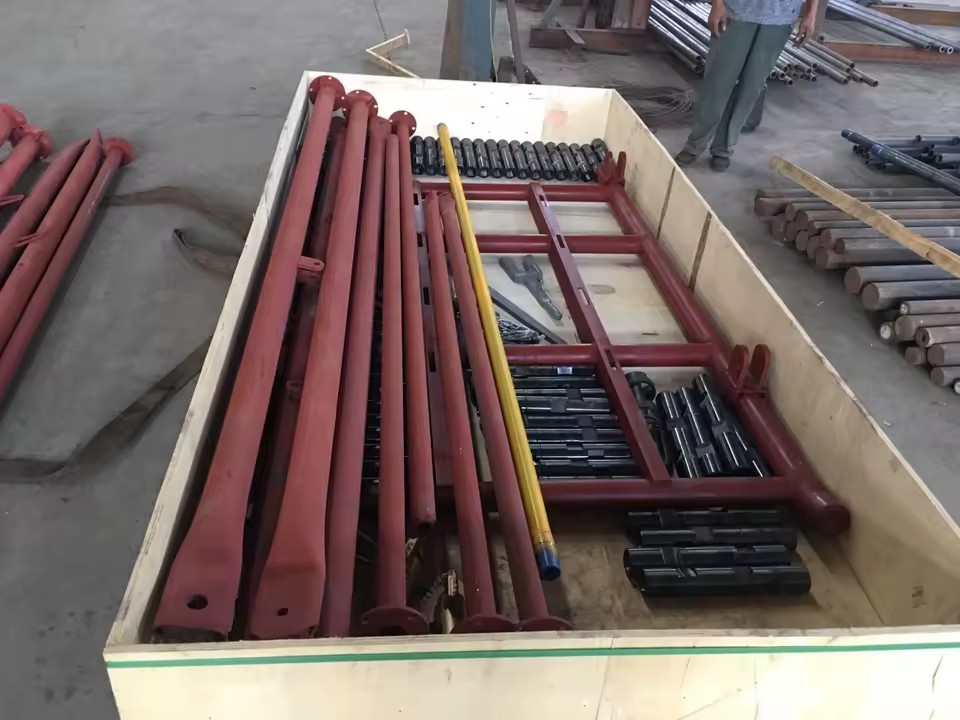

  • 1. The drill pipes/casing pipe will be packed into bundles as 3x3, 3x4, 4x4 etc, and loading into containers after black painting and thread protectors installation.
  • 2. For 20’ container, the max loading weight is 21 metric tons
  • 3. For 40’ container, the max loading weight is 27 metric tons.
  • 4. Usual loading port is XINGANG port in Tianjin, main port in north of.

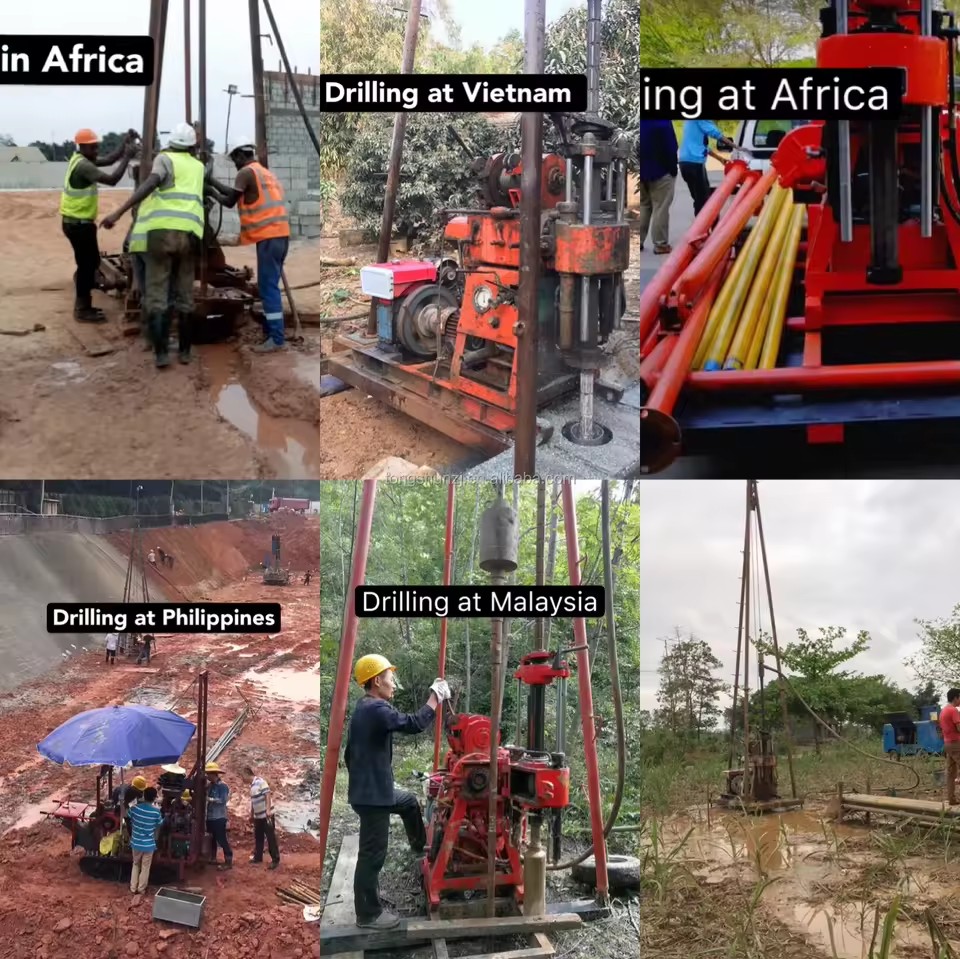

    • Our Case

    • As long as purchase Tongshun's products, from the date on finish and certify products

    Warranty: 2-3 years.

    After service: Life-time.

    • During the warranty period

    Due to non-human factors, we will provide free spare parts and technical guidance.

    • Beyond the warranty period

    We charge the cost of spare parts, but we provide technical guidance and other after-sale service for free.

    Whole-hearted service for pre-sales and after-sales everyday!

    Tongshun has the final power of interpretation.

    Tong Shun Drilling Tool Factory, formerly known as Beikou Geological Machinery Fitting Factory, founded in 1983.Is mining drill pipe, core tube,lock tool joint the professional manufacturing and sales enterprises. located in Hebei Province, on the verge of Beijing and Tianjin, there are good conditions of export. The factory covers an area of 10000 square meters, with more than 80 technical personnel.

    With quality cast brand, promote the development of integrity!

    Your Success is our goal!

    Description images
    Water Well Machine GK-200 Mud Pump Diamond Core Drilling Rig
    Water Well Machine GK-200 Mud Pump Diamond Core Drilling Rig
    Water Well Machine GK-200 Mud Pump Diamond Core Drilling Rig
    Water Well Machine GK-200 Mud Pump Diamond Core Drilling Rig
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      10 days

    • Step 3

      Packaging and dispatch

      Packaging details are available on request.

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 30 fields
    Usage
    Water Well
    Type
    Core Drilling Rig
    Drilling Depth
    200m, 200m(656.17ft)
    Drilling Diameter
    300 mm(11.81in), 91mm-300mm
    Power Type
    Diesel
    Voltage
    220v
    Core components
    Motor, Engine
    Warranty
    6 Months
    Machinery test report
    Provided
    Video outgoing-inspection
    Provided
    Key selling points
    Competitive Price
    Place of origin
    China, Hebei
    Weight
    880 KG(1940.07lb)
    Dimension (L*W*H)
    1433mm*697mm*1273mm(56.42in*27.44in*50.12in)
    Mobility
    easy
    After-sales Service Provided-1
    Video technical support
    After-sales Service Provided-2
    Free spare parts
    After-sales Service Provided-3
    Online support
    After-sales Service Provided-4
    Field installation, commissioning and training
    After-sales Service Provided-5
    Field maintenance and repair service
    Drill rod
    50mm
    Application
    Rock Core Drilling Rig

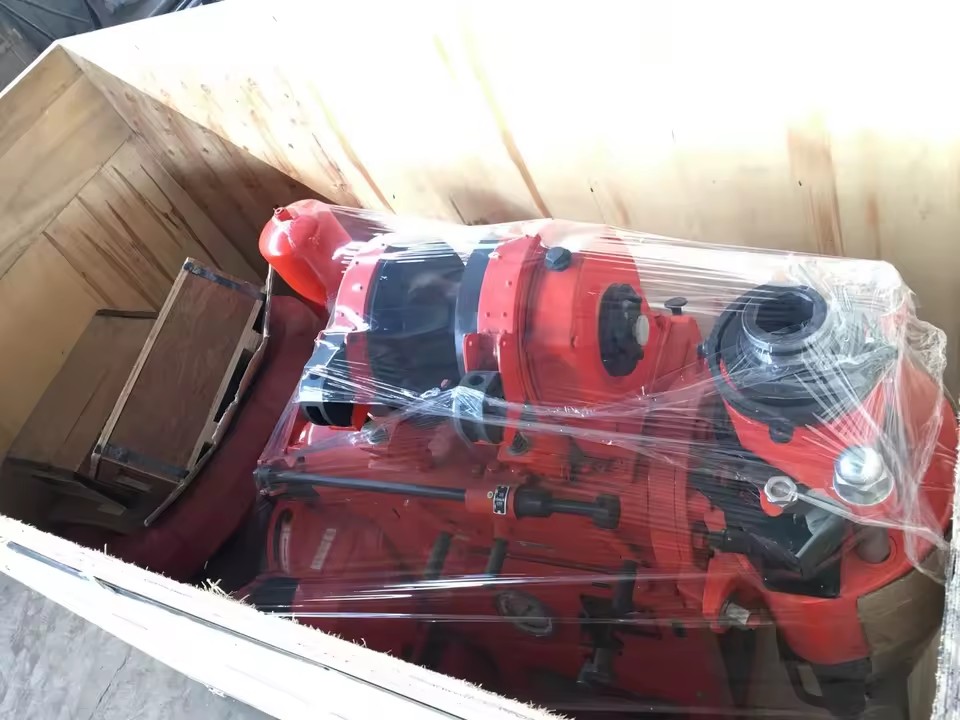

    Packaging Details
    Packing in bundle.
    Port of dispatch
    Tianjin port of China
    Selling Units
    Single item
    Single volume
    0 cm3
    Single gross weight
    0.0 kg
    Supply Ability
    5000 sets per Month
    Model number
    GK-200
    Power (W) (Product option)
    16KW(21.46hp)
    Lead time
    10 days
    Minimum order
    1 Units
