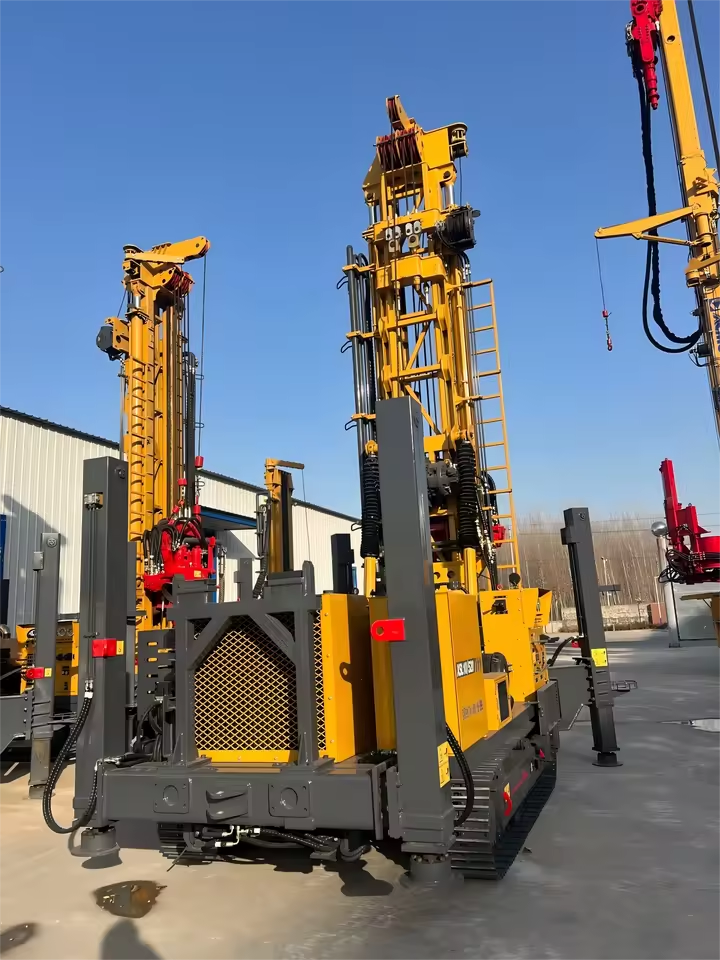

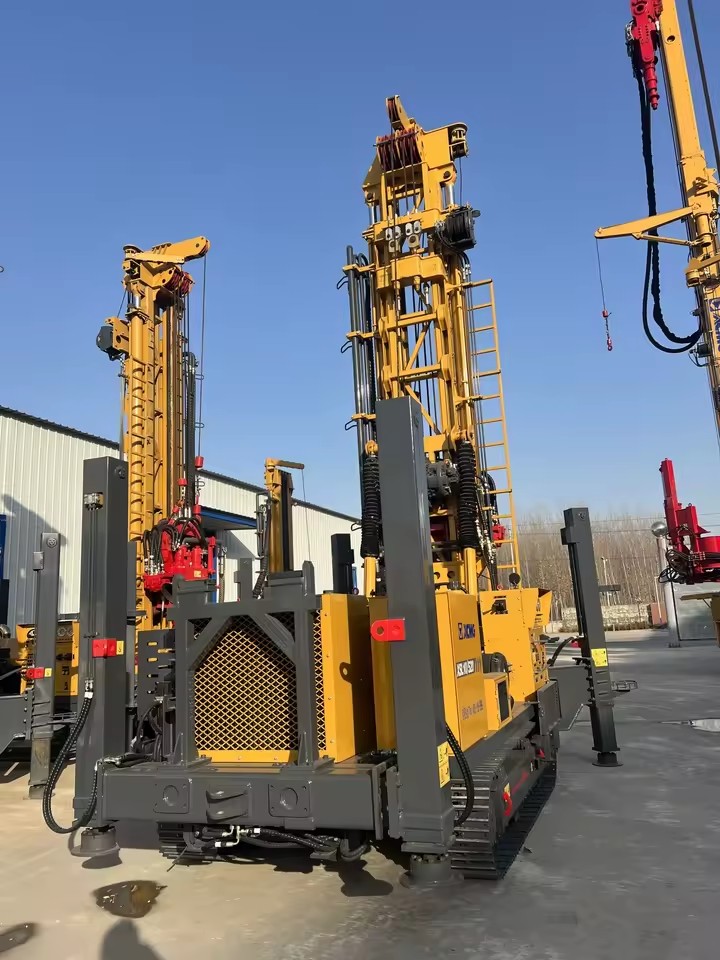

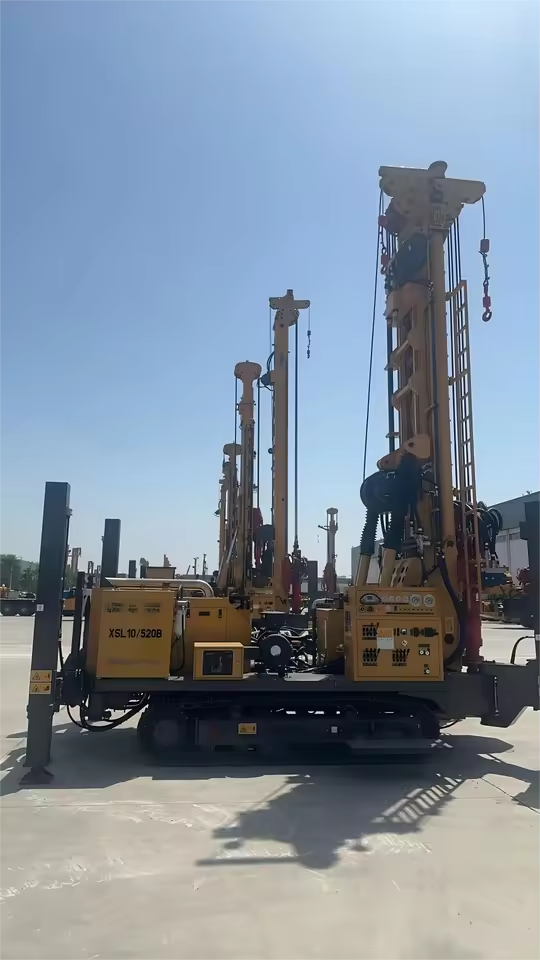

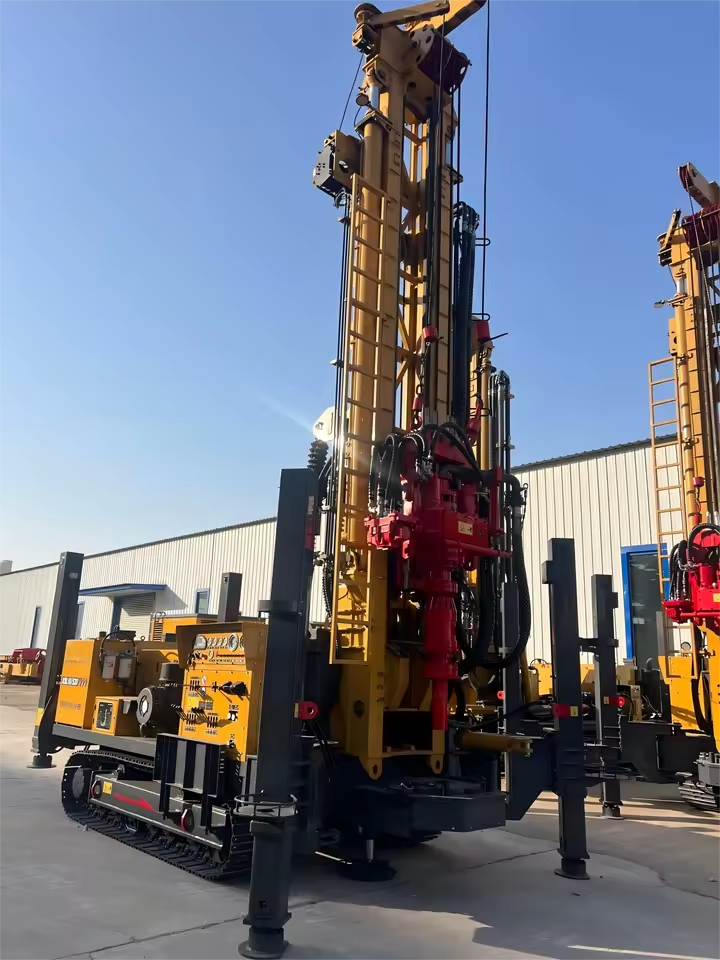

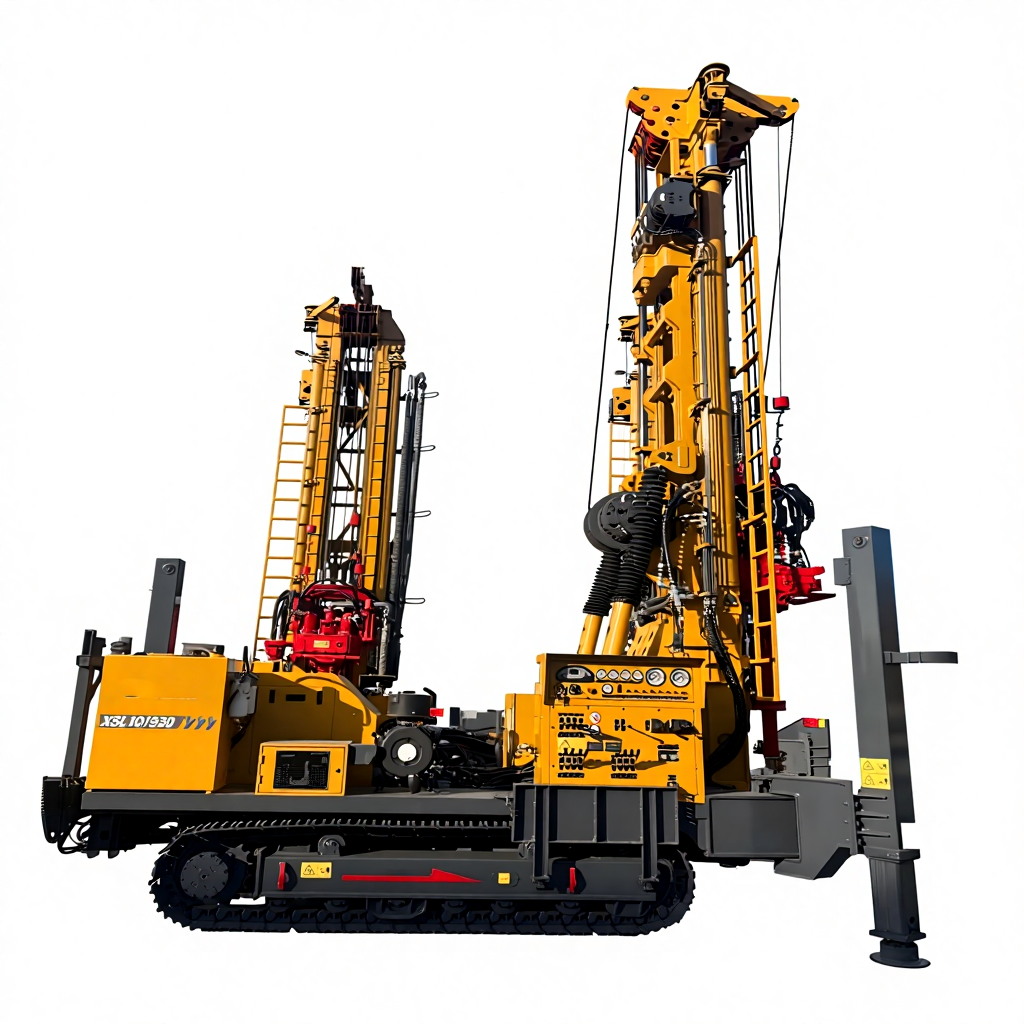

Product Importer Gallery 01 · 715a060d43

Product Importer Gallery 02 · 9f22aa3929

Product Importer Gallery 03 · 7579b8b7b5

Product Importer Gallery 04 · 190f99d9ed

Product Importer Gallery 05 · 177e5cd232

Product Importer Gallery 06 · bdf86a949d

Product video

1000m Deep Water Well Drilling Rig Mine Drilling Machine XSL10/520B for Core Exploration

Name: 1000m Deep Water Well Drilling Rig Mine Drilling Machine XSL10/520B for Core Exploration
SKU: K6J9-7ZZB-3A4J
Price: 143020.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 143,020.00 143020.0 USD $ 143,020.00

Minimum order quantity: 1 Units

Key attributes

View all

Usage

Water Well

Type

Core Drilling Rig

Drilling Depth

Max.1000m

Drilling Diameter

5200mm

Power Type

Diesel

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Approx. shipping fee: $ 10,000.00 for 1 unit · Estimated delivery: Nov 13–Jan 15 (72–135 days)

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Parameter	Unit	XSL10/500B
Drilling capability	Drilling depth	m	1000(φ89)
Max. diameter of working floor	mm	φ500
Feeding system	Max. lifting capacity	kN	520
Max. feeding capacity	kN	160
Max. lifting speed	m/min	31
Max. feeding speed	m/min	46
Stroke	mm	7000
Top drive	Max. torque	N.m	20000/10000
Max. speed	r/min	70/140
I.D	mm	φ105
Deck engine	Type	YCA08260-T301
Rated power	kW	191
Tool winch	Hoisting capacity	kN	15
Breakout device	Max. breakout torque	N.m	40000
Mud pipe	I.D	mm	φ76
Max. pressure	MPa	8
Chassis	Highest speed	km/h	3
Max. climbing gradient	%	39
Max. ground clearance of crawler	mm	1300
Max. inner distance between front support legs	mm	3000
Max. inner distance between back support legs	mm	2840
Working dimension	mm	6800325012900
Transportation dimension	mm	1273022503030
Weight	t	19.5
Vise clamping range	mm
Foam pump
Max.flow	L/min	35
Max.pressure	Mpa	4
Mud pipe
I.D	mm	Φ76
Max.pressure	Mpa	8
Chassis
Drive mode	Crawler chassis
Rated power	kw
Highest speed	km/h	3
Max.climbing gradient	%	39
Working dimension	mm	6450×3290×9420
Transportation dimension	mm	9100×2250×3030
Weight	t	18

$59,700-99,500 / unit

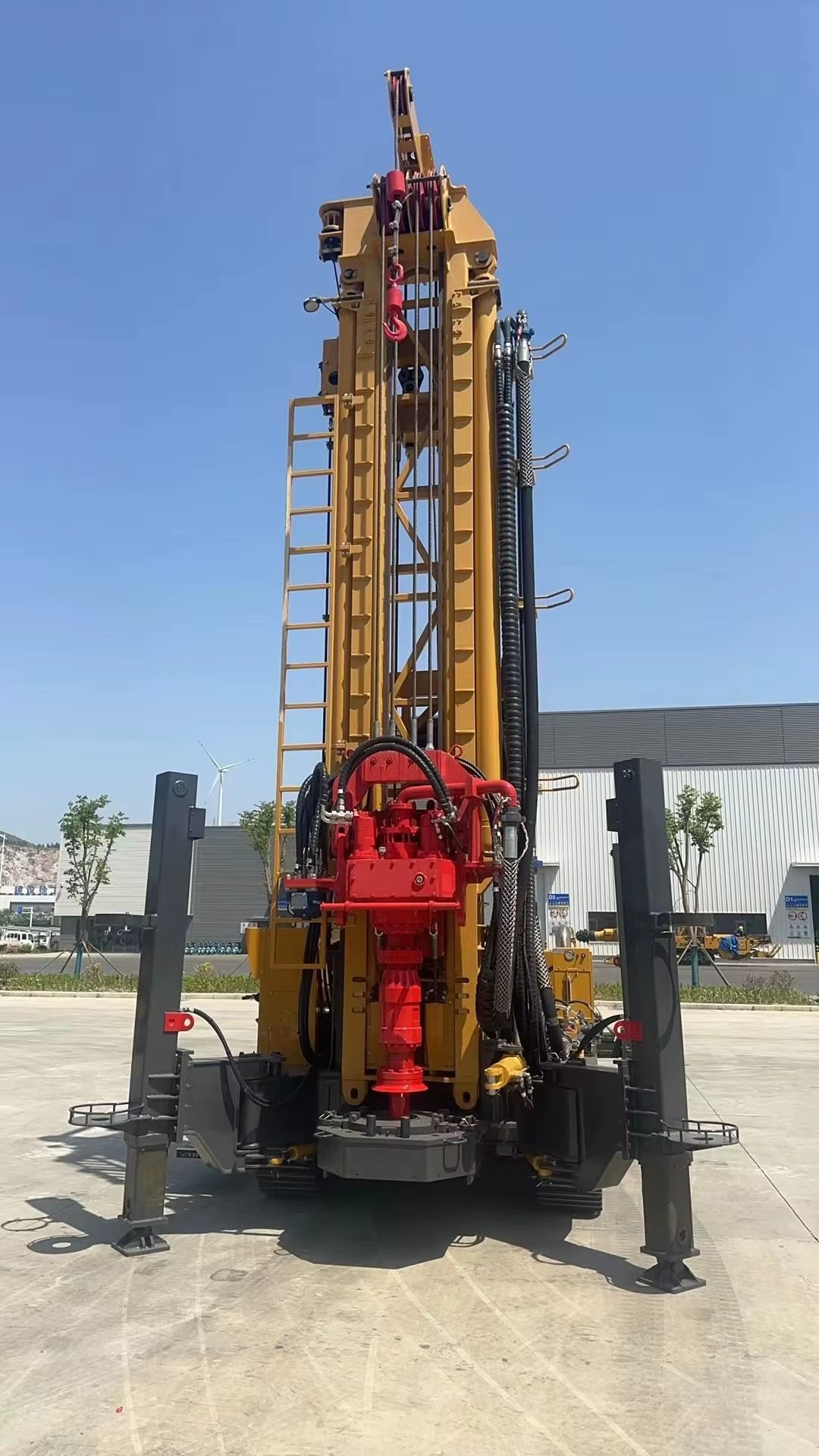

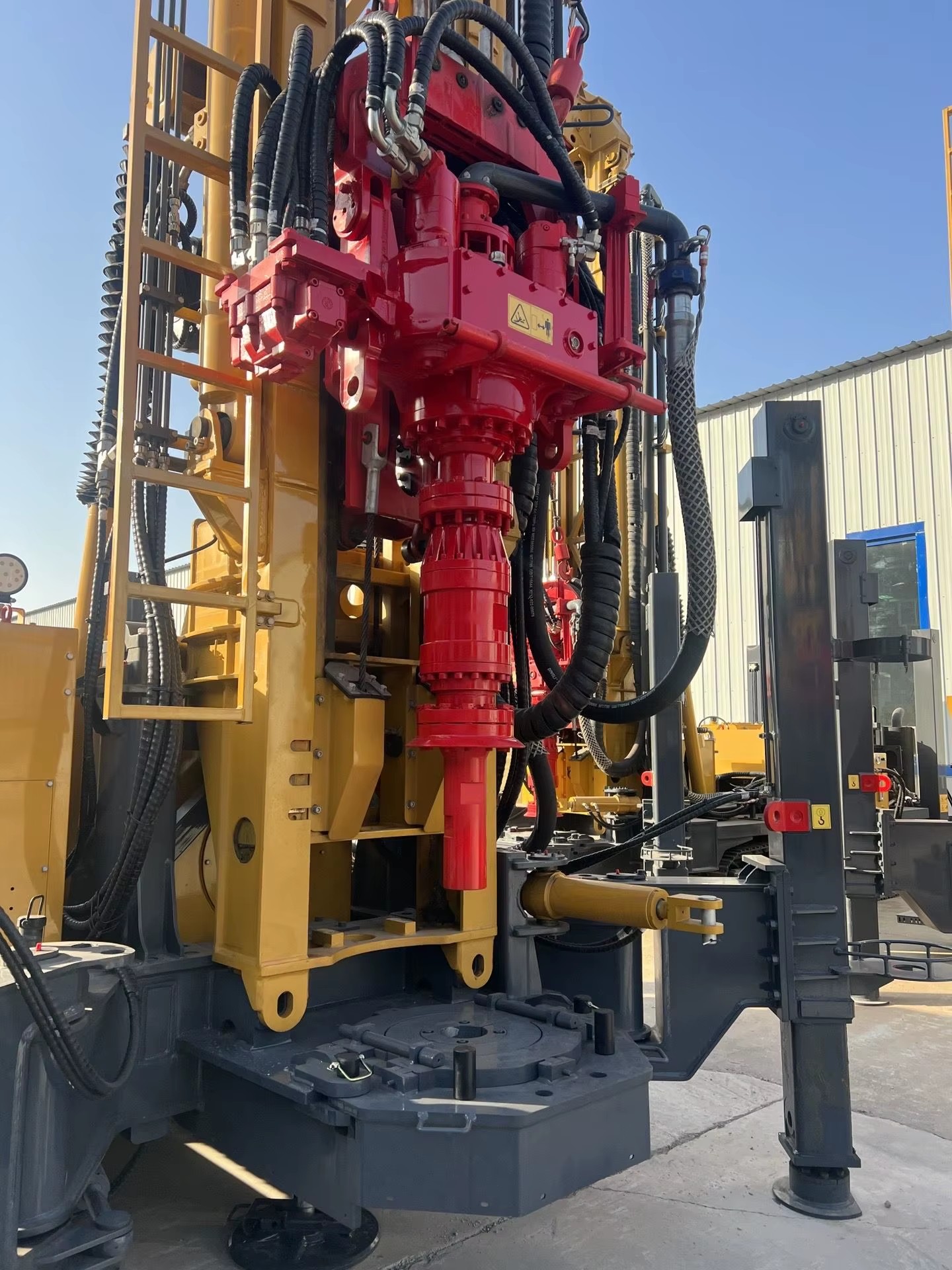

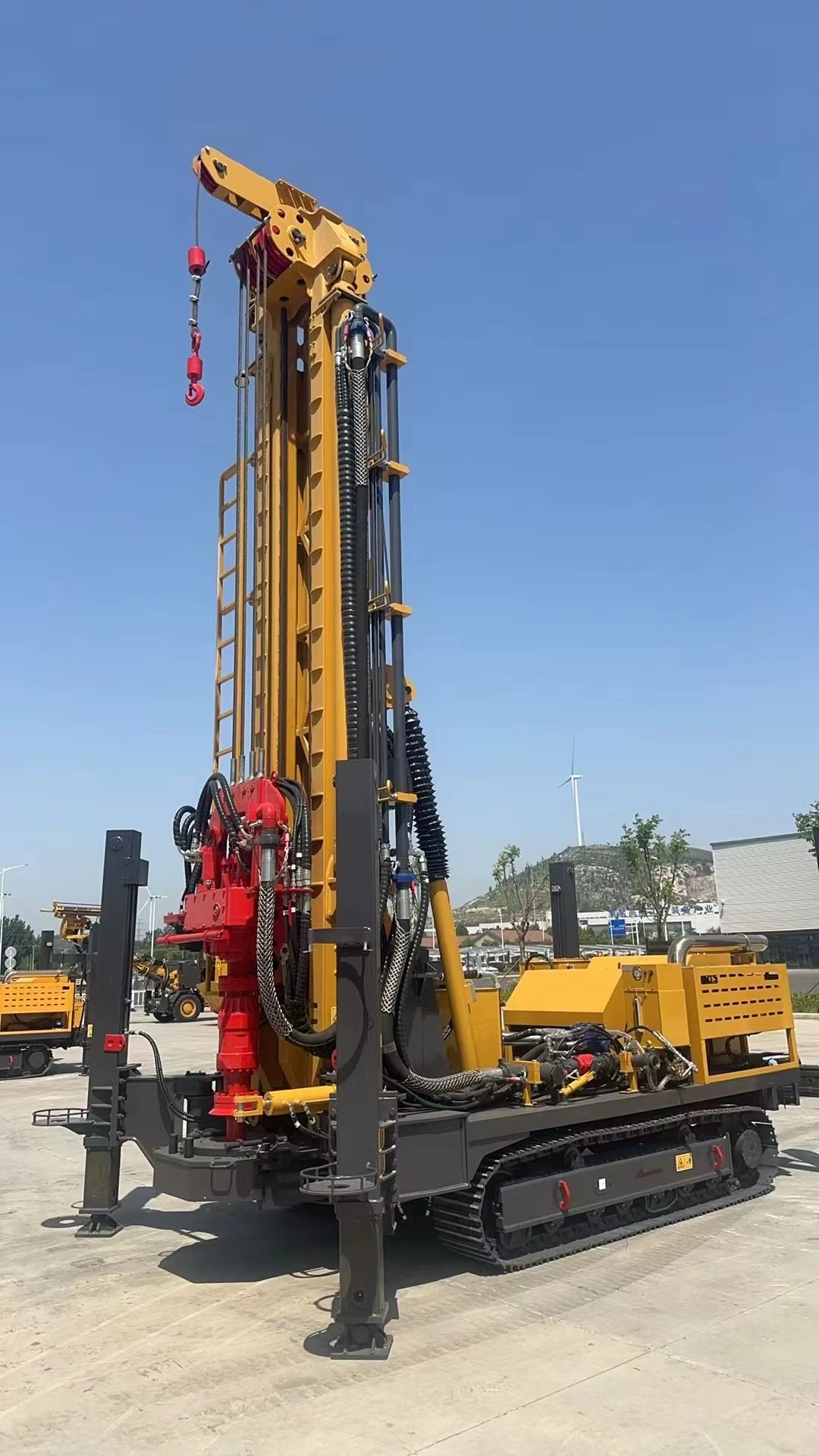

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

10 days
Step 3

Packaging and dispatch

Approx. shipping fee: $ 10,000.00 for 1 unit · Estimated delivery: Nov 13–Jan 15 (72–135 days)

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 22 fields

Usage

Water Well

Type

Core Drilling Rig

Drilling Depth

Max.1000m

Drilling Diameter

5200mm

Power Type

Diesel

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Competitive Price

Place of origin

China, Hunan

Weight

17600 KG

Dimension (L*W*H)

7450*2250*2900mm

Max. lifting capacity (Specification)

520kN

Max. feeding capacity

160kN

Engine model

YCA08260-T301

Rated power

191kw

Selling Units

Single item

Single package size

10000X10000X10000 cm

Single gross weight

10000.0 kg

Model number

XSL10/520B XSL10/520B XSL10/520B

Power (W) (Product option)

191KW

Lead time

10 days

Minimum order

1 Units
