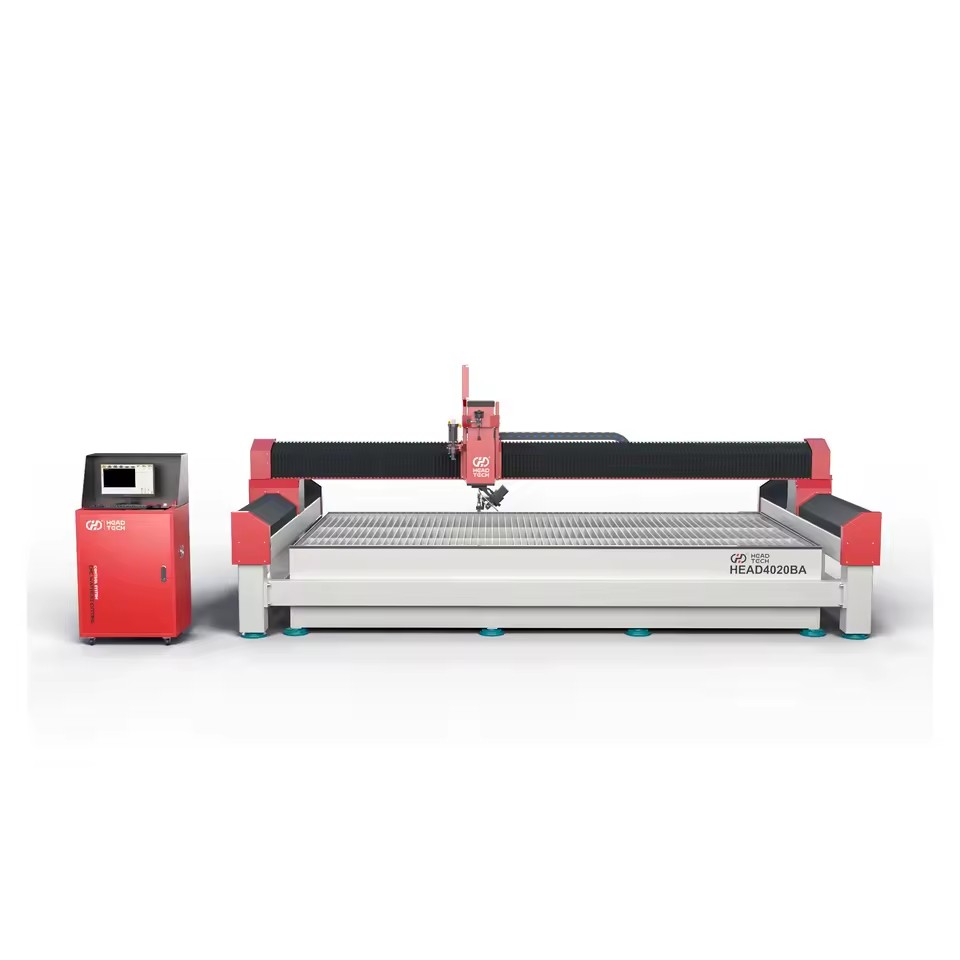

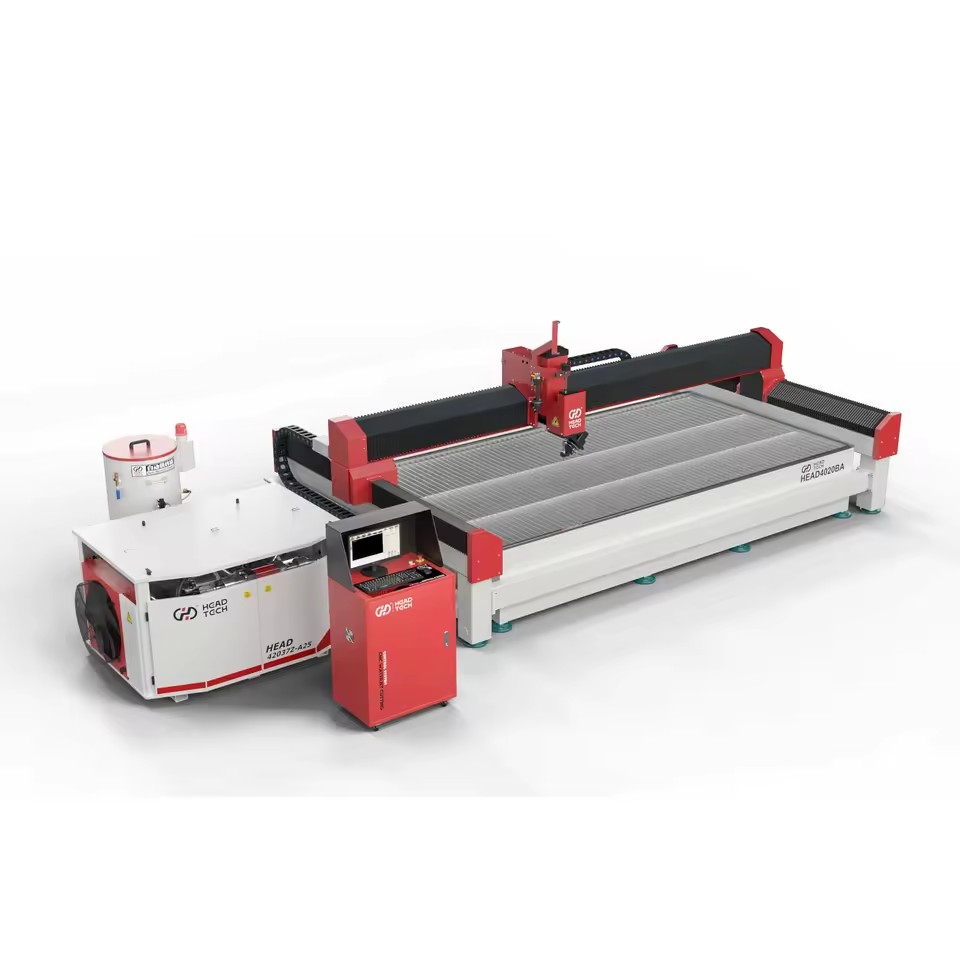

HEAD 4020 5-Axis CNC Waterjet Cutting Machine for Stone High Precision Factory Price Water Jet Cutter

Available for enquiry 0.0 · 0 reviews
USD

$ 91,540.00 91540.0 USD $ 91,540.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Voltage
380 V
Number of axes
5
Repeatability (x/y/z) (mm)
±0.01
Core components
PLC, Motor, Pressure Vessel, Gear, Engine
Machinery test report
Provided
Warranty
1 Year
Product description

Highlights at a glance

  • 1. Advanced 5-Axis Precision Our AC/AB 5-axis heads eliminate taper and support ±60° tilts. Achieve ±0.01mm repetitive accuracy for complex 3D parts in stone, metal, or composites.
  • 2. Ultra-High Pressure Power Equipped with 420-600MPa intensifier pumps, HEAD boosts cutting speed by 20%+. Engineered with premium components for stable, 24/7 industrial-scale operation.
  • 3. Pure Cold Cutting Zero Heat-Affected Zone (HAZ). No thermal deformation or hardening. Perfectly cut titanium, glass, and ceramics without the need for secondary finishing.
  • 4. Smart CNC Control User-friendly software with CAD/DXF support and "one-click" path planning. Includes auto-abrasive delivery and wireless remotes for seamless workflows.
  • 5. Industrial Durability Stainless steel protection and oil-immersed rails resist corrosion and dust, drastically extending machine life and reducing maintenance costs.
  • 6. Global Support Custom table sizes and remote IoT diagnostics ensure maximum uptime and high ROI worldwide.

00:00

Frequently asked questions

A waterjet can cut virtually any material, including metals (titanium, stainless steel, copper), stone, glass, ceramics, composites, and rubber. While it excels at thicknesses between 1mm and 150mm, it can cut materials over 200mm by slowing down the cutting speed exceeding the capabilities of most laser or plasma cutters.

The primary advantage is Cold Cutting. Unlike lasers, waterjets generate no heat, meaning there is no Heat-Affected Zone (HAZ). This prevents material warping, hardening, or chemical changes. Waterjets also handle reflective materials (copper, aluminum) and ultra-thick materials that lasers cannot process.

Standard accuracy is approximately ±0.1mm. Traditional 3-axis waterjets naturally produce a slight taper (the bottom of the cut is wider than the top). However, our AC/AB 5-axis systems use dynamic compensation to tilt the head, resulting in perfectly vertical edges and higher precision.

Operating costs generally consist of four parts: Abrasive (Garnet sand): Typically 60%70% of the cost. Consumables: Nozzles, orifices, and high-pressure seals. Electricity: To power the high-pressure pump. Water: For both cutting and cooling the hydraulic system.

Lifespan depends on water quality and operating pressure: Orifice (Jewel): 4060 hours. Nozzle (Mixing Tube): 6080 hours. High-Pressure Seals: 5001,000 hours. Using a water filtration system can significantly extend the life of these components.

Not at all. Modern waterjets use intuitive CNC software that supports direct imports of DXF/DWG files. The software automatically calculates the best pressure and speed based on the material and thickness. Most operators can become proficient after 3 to 5 days of training.
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    60 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 26 fields
Voltage
380 V
Number of axes
5
Repeatability (x/y/z) (mm)
±0.01
Core components
PLC, Motor, Pressure Vessel, Gear, Engine
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Dimension(L*W*H)
4500*2500*180
Key selling points
Competitive Price
Rated power
37
Place of origin
China, Liaoning
Weight (kg)
6500
Table travel (x) (mm)
4000
Table travel (y) (mm)
2000
Table travel (z) (mm)
150
Cutting accuracy(mm)
±0.1mm
Main Motor
SIEMENS Motor
After-sales Service Provided
1 Year
Function
Cutting Metal Stone Steel Glass
Keyword
5 Axis Waterjet Cutting Machine
Type
Water Jet Cutters
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
HEAD4020BA
Effective cutting range (mm)
4000×2000
Lead time
60 days
Minimum order
1 Units
