5 Axis CNC Water Jet
Technical Data for water jet cutting machine
Model No.
HLWJ-2515P
HLRC-4020P
Working area
mm
2600*1600
4100*2100
X-axis stroke
2500
4000
Y-axis stroke
1500
2000
Z-axis stroke
80-120
Max. angle of C axis rotation
°
+/- 360
0
Max. angle of A axis swing
0+/- 60
Cutting accuracy
+/- 0.1
Repeatable accuracy
+/- 0.05
Traverse speed
mm/min
6000/15000
Main motor power
kw
37
Dimension (L x W x H）
350x220x210
540x283x210

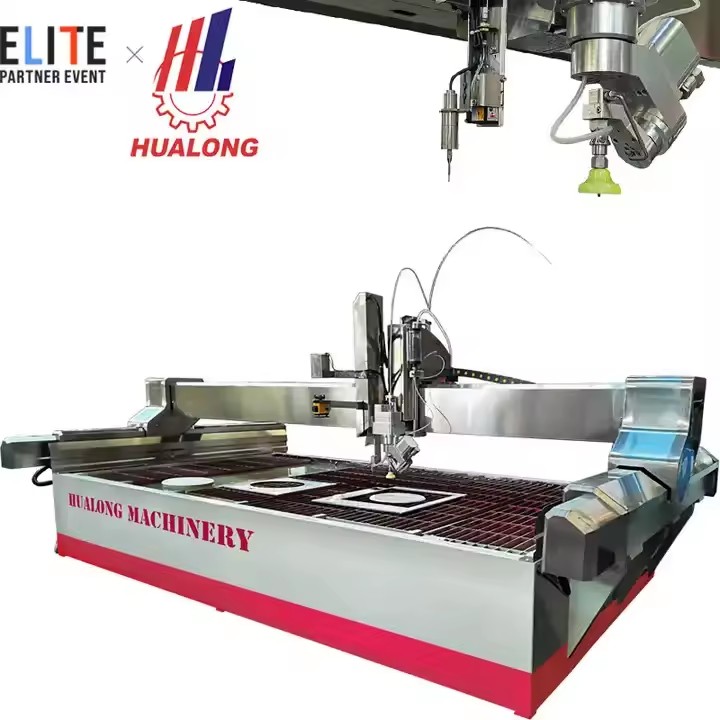

Waterjet cutting enables you to get sleek, precise line cuts in a wide range of materials and thicknesses. At, we offer 5-axis waterjet cutting equipments that give your projects the power of precision from custom waterjet cutting.

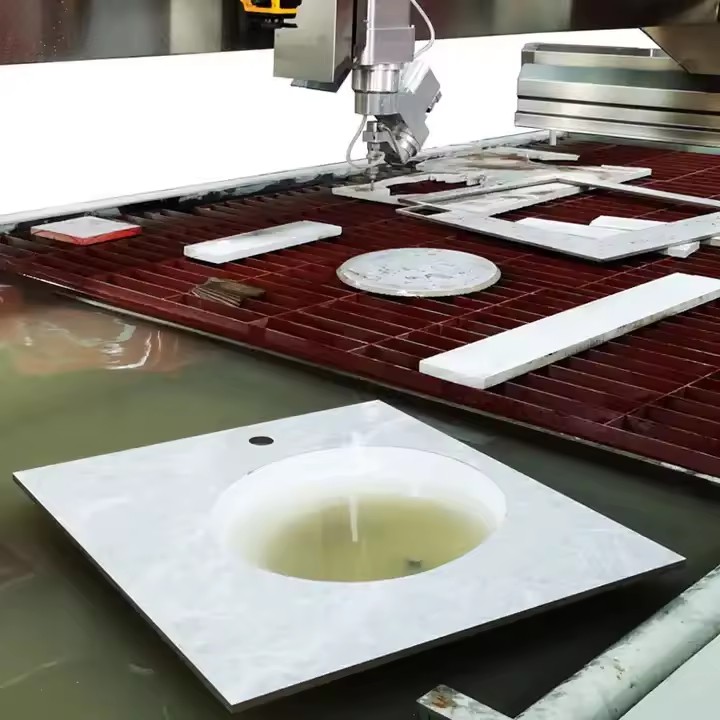

The HLWJ Series water jet cutting system is our newest water jet cutter for sale. This system is updated with automatic photograph and automatic CAD pattern generation technology, while maintaining a simple operationg interface. Beside the usual appliction in a variety of industry, it's a snap for it to make bathroom countertop and basin combination processing. The waterjet cutting efficiency and results are exceptional.
* Automatic photograph
* Automatic leveling
* Automatic generate CAD pattern
* Automatic detect height
* Automatic set tool length
* Automatic cut
Main Features
1) Processable any curve cutting, flexible, convenient and versatile.
2) Notch is fast and smooth, no dust, no thermal deformation and no pollution.Tension-free processed parts due to minimal cutting force.3) Narrow kerf – The amount of material removed by the water jet stream is typically about 0.5-1.0 mm wide. Cut width optimizes material use, increasing cost effectiveness.
4) Cut Recovery - Pick back up where Jet stopped.
5) Programmable Z axis height. Z axis retracts between pierces.
6) Servo motor, linear sledge and vehicles, helical rack and pinions is used for providing a rapid and smooth axial movement.
7) High-Performance drive system, which permit high-precision production of parts as well as the highest processing speed.
8) Driver system sealed against water,dust and grit. Long working life.
Technical Data
for water jet cutting machine
Adopt imported core parts, durable and safe, pressurize water and continuously output water, so as to convert into supersonic water jet at cutting head. Maximum output pressure up to 4137bar(60000psi)400MPa, Sustainable cutting pressure up to 380MPa.
Transfers the abrasive to the abrasive regulator.
Air valve to prevent jams and breakages
Auto control with CNC auxiliary function
Self sealing
Slightly adjust the flow.
A less mantained, more stable and better working cool and guarantee the hydraulic system can be used in a stable
circular manner at 42-45°C，while at 55-57°C if by water chiller.
Movable Operator Station
The station comes equipped with NcStudio V10 Waterjet cutting CNC system, 19" LCD, pump interface,keyboard and mouse.
Compatible G code, PLT, DXF file generated by CAD/CAM software of UG, Mastercam, Casmate, Art Cam, Autocad, CorelDraw etc.
Remote Control (optional)
For operating the movement of 5 axises conviniently.
* Stone/Ceramic industries such as used for countertops, art puzzles, flooring Inlays and mosaics.* Glass industry, such as
bathroom glass, shop window glass, automotive glass and appliance glass.
* Metal industries such as Decoration, decoration in the stainless steel and other metal cutting process, equipment cover
cutting,Cutting of metal parts.
* Gasket Cutting
* Foam Product Cutting.
Water Jet Software
Brand
Weihong
Original
A mature motion control solutions, to solve the high pressure water jet taper, towing and other technical problems, and realize
perfect dynamic five-axis cutting
Easy to operate and to learn.
"Seamless Basin" vision solution
Brand: Weihong
With a 20-megapixel camera, excellent vision algorithms and fitting algorithms, the vision acquisition contour
scheme is embedded
with a CNC system, which achieve a high degree of automation.After the image is taken by camera, the smooth cutting process with
high precision can be carried out immediately.

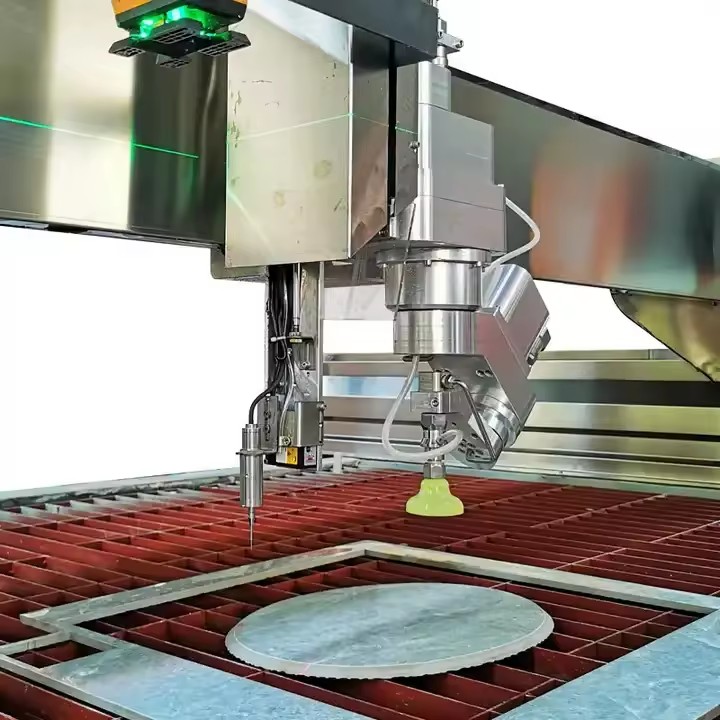

Laser Sensor
Original
Automatic scanning precision altimeter function, ensure the knife head distance workpiece surface constant
Linear Guide
* Linear sledge and vehicles, helical rack and pinions is used for providing a rapid and smooth axial movement.* The linear slides
and rails, helical rack and pinions in all systems are protected with automatic greasing pump in order to prevent rust and to
continue sensibility.
Servo Motor
Origin
Nr of revolutions
0-1500 rpm
Drive X axis moving accuracy and reposefully.
Main Motor
Produced by: ND
Power: 37 kw
Efficiency: 93.9%
To generate motion energy throught electtical energy for high pressure pump

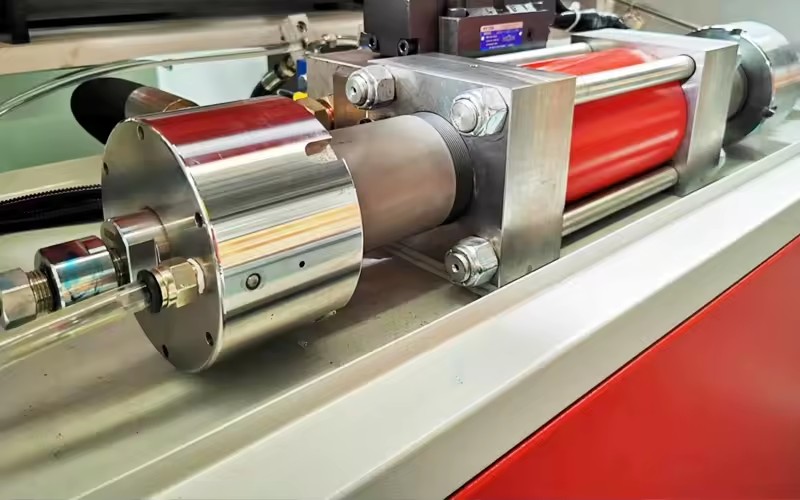

Intensifier
To produce high pressure water continuously.
Main parts come from Ashcroft,.Stable performance and operation
Elec-magnet Valve
Brand: HytekOrigin
Indicate and change advantage
