XY-44 Water Well Drilling Rig Oil Well Drilling Rig for Oilfield

Available for enquiry 0.0 · 0 reviews
USD

$ 17,660.00 17660.0 USD $ 17,660.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Water Well
Type
Rotary Drilling Rig
Drilling Depth
Max.500m
Drilling Diameter
300 mm, 100 mm, 200 mm, 1000mm
Power Type
Diesel
Voltage
Diesel engine
Product description

1. XY-44A is a core drilling machine, more rational rang of rotating is available and its rotating speed has 8 grades. With powerful drilling capacity, the rated drilling depth comes up to 1,000m with wire line 71mm drill rod.

2. The drill is aligned a water brake for Steady and smooth deep hole drilling. 3. Supplying oil with a simplex gear pump, it is easy for installation and operation; The hand-operated oil pump can be put in use to hoist the drilling tools in hole upon the power engine failing to operate.

4. It is easy to get to know the conditions in hole with an antivibration meter. Less in operating handles, the rig can be operated credibly and flexibly. 5. It is compact in construction, rational in overall arrangement, moderate in weight, convenient in assembling and wide in range of rotation speed.

Applications: 1. Core drilling with carbide and diamond bit.

2. Engineering geological prospecting.

3. Water well drilling. 4. Basic pile foundation engineering in large diameter.

Drilling depth300mm
End hole caliber75mm
Drilling Rod diameter60mm
Drilling angle90°~65°
Drill rig moving stroke450mm
spindle speed ( Diesel Engine)Forward 60 97 169 187 276 301 284 487 521 847 1180 1490r/min Reverse 65 201r/min
spindle speed ( Electric Motor)Forward 50 81 141 155 230 251 320 406 434 706 984 1247r/min Reverse 54 167r/min
Spindle stroke600mm
Spindle max. pressure force90KN
Spindle inner diameter96mm
Lifting capacity120KN
Main Hoist
Max.Single line lifting capacity45KN
Max.Single line lifting speed0-45m/s
Wirerope caliber17.5-18.5mm
Hoist capacity of wireline90-110m
Roller Diameter140mm
Wirerope Diameter6mm
Wirerope length450m
Mud pump
TypeBW-250
Displacement250 L/min
Work pressure80kg/cm²
Water inlet pipe diameter75 mm
Water outlet pipe diameter50 mm
Power
Diesel engineYC4E135-1 100KW
Electric motorY225S-4 37KW
Description images

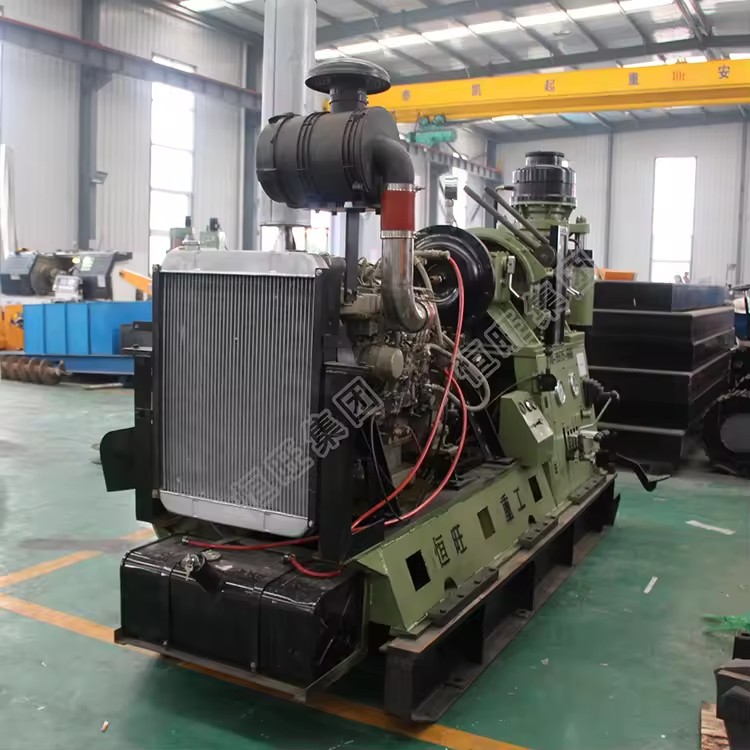

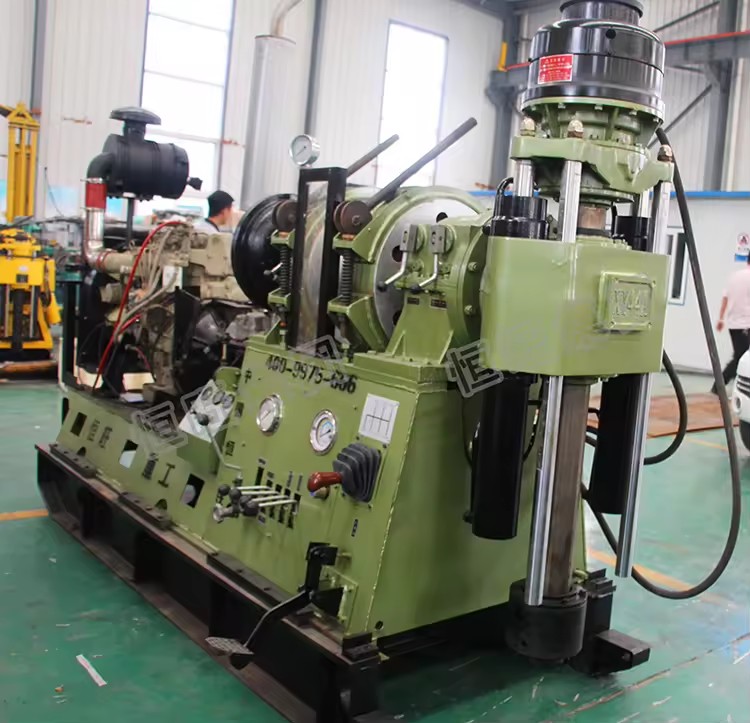

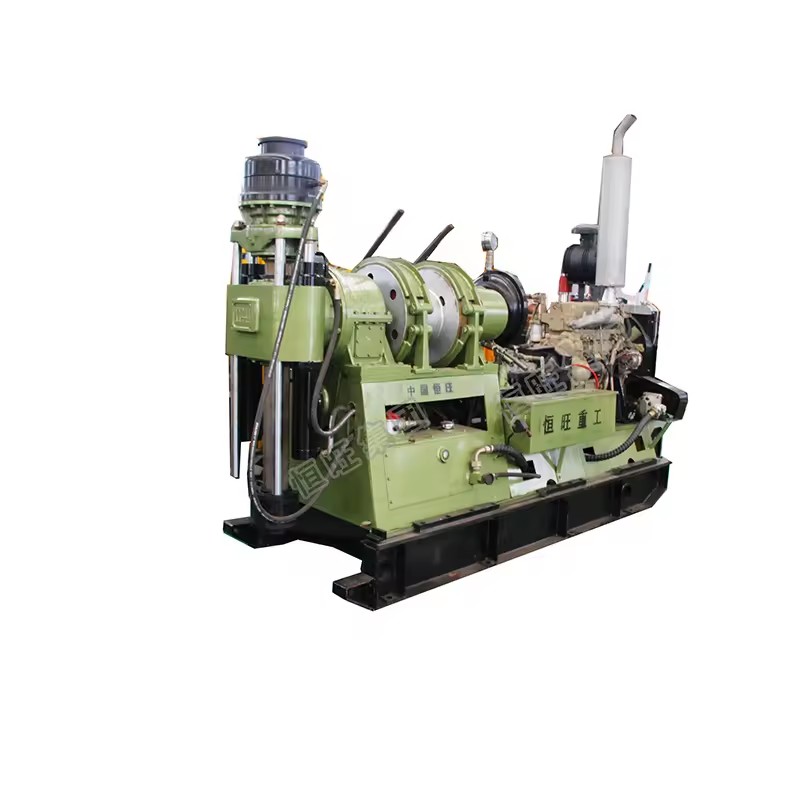

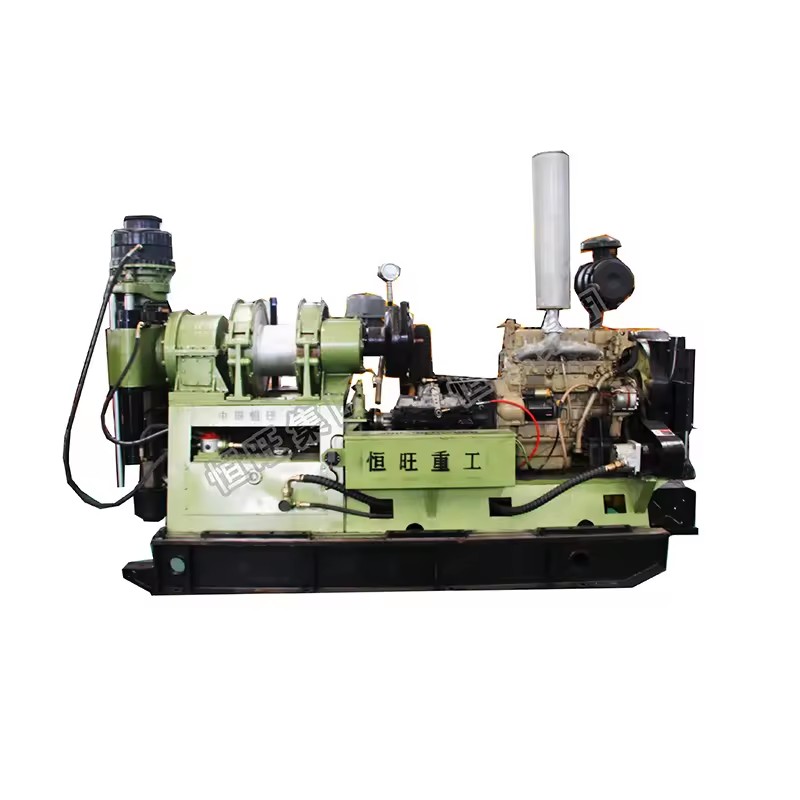

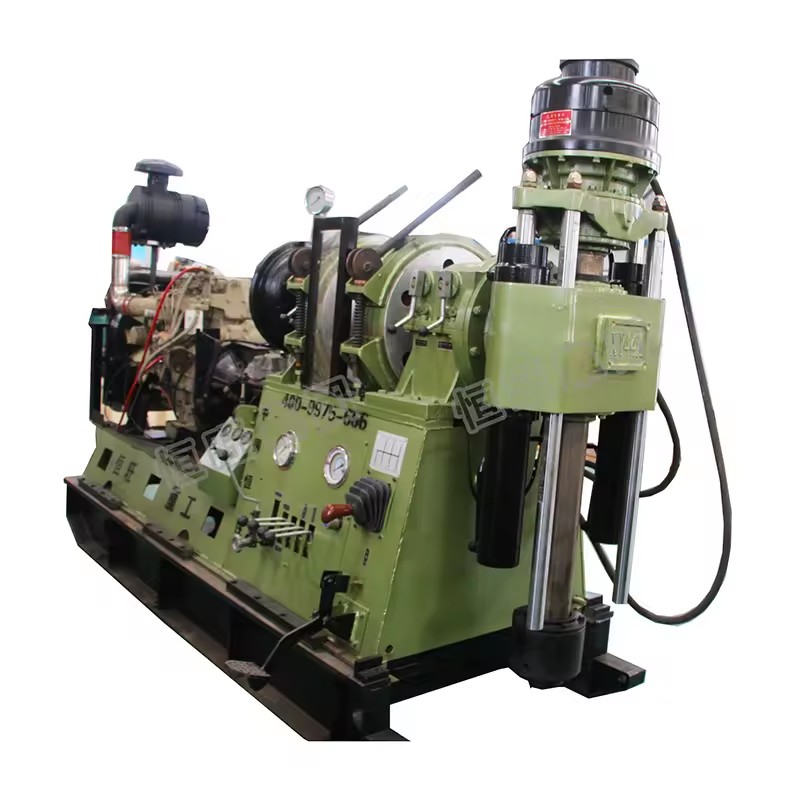

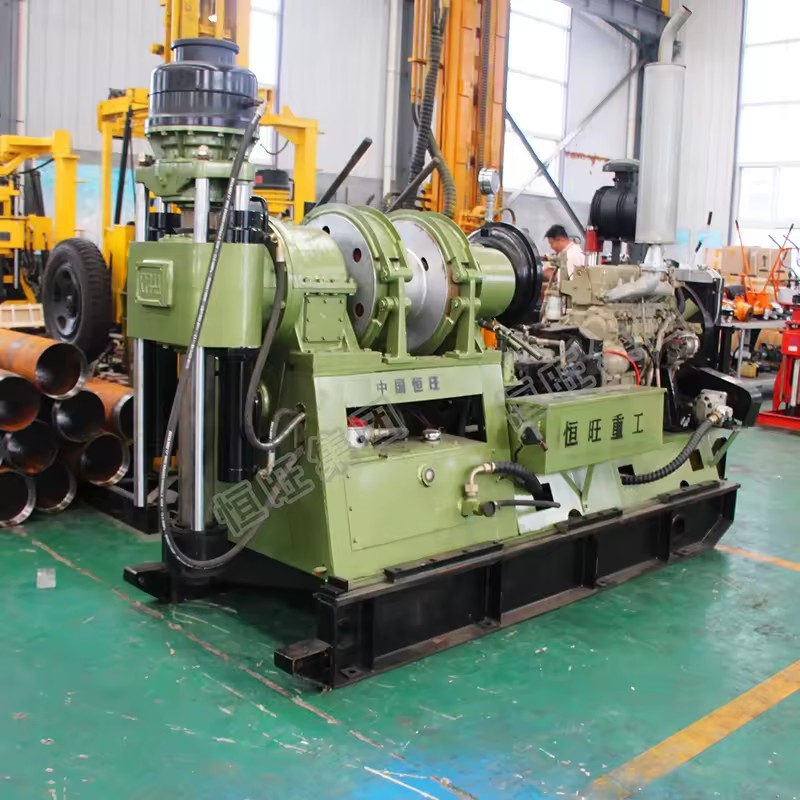

XY-44 Water Well Drilling Rig Oil Well Drilling Rig for Oilfield
XY-44 Water Well Drilling Rig Oil Well Drilling Rig for Oilfield
XY-44 Water Well Drilling Rig Oil Well Drilling Rig for Oilfield
XY-44 Water Well Drilling Rig Oil Well Drilling Rig for Oilfield
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    15 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 30 fields
Usage
Water Well
Type
Rotary Drilling Rig
Drilling Depth
Max.500m
Drilling Diameter
300 mm, 100 mm, 200 mm, 1000mm
Power Type
Diesel
Voltage
Diesel engine
Core components
Motor, Engine, Pump
Warranty
1 Year, 1 years
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
High Safety Level
Place of origin
China, Shandong
Weight
2300 KG
Dimension (L*W*H)
3050*1100*1920mm
Max Drilling Depth
1400m
Geology condition
soil, sand, rock, etc
Color
Customised
Efficiency
20m /h
Max. Torque
3800 N.M
Max. lifiting capacity
Max. lifiting
Spindle max. pressure force
90 kn
Certification
ISO
Packaging Details
Standard wooden case packing
Port of dispatch
Qingdao
Selling Units
Single item
Single package size
270X90X150 cm
Single gross weight
740.0 kg
Supply Ability
400 sets per Month Water Well Drilling Rig
Model number
XY-44
Power (W) (Product option)
100kw
Lead time
15 days
Minimum order
1 Units
