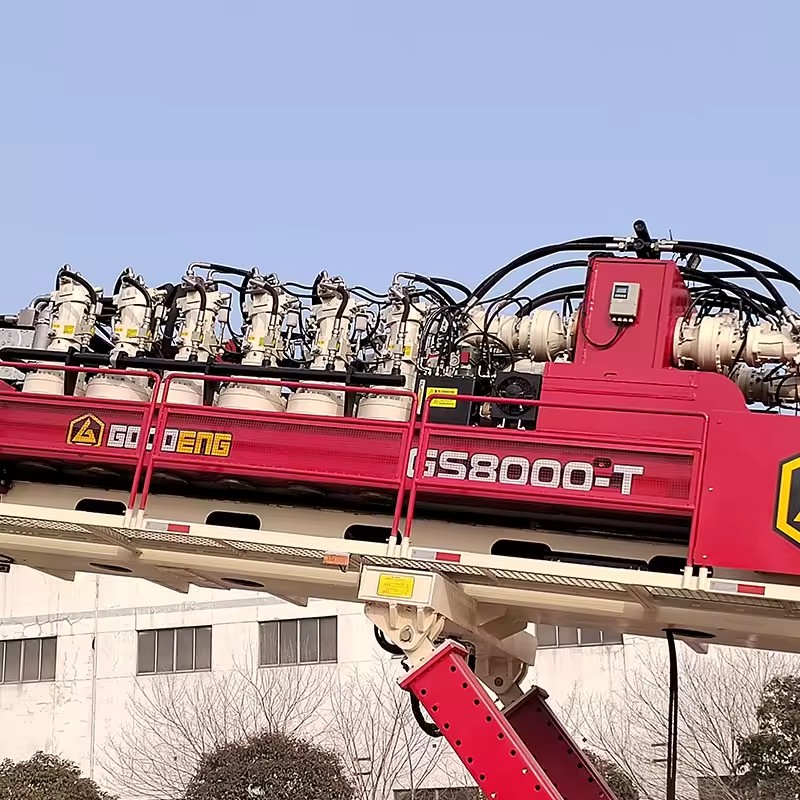

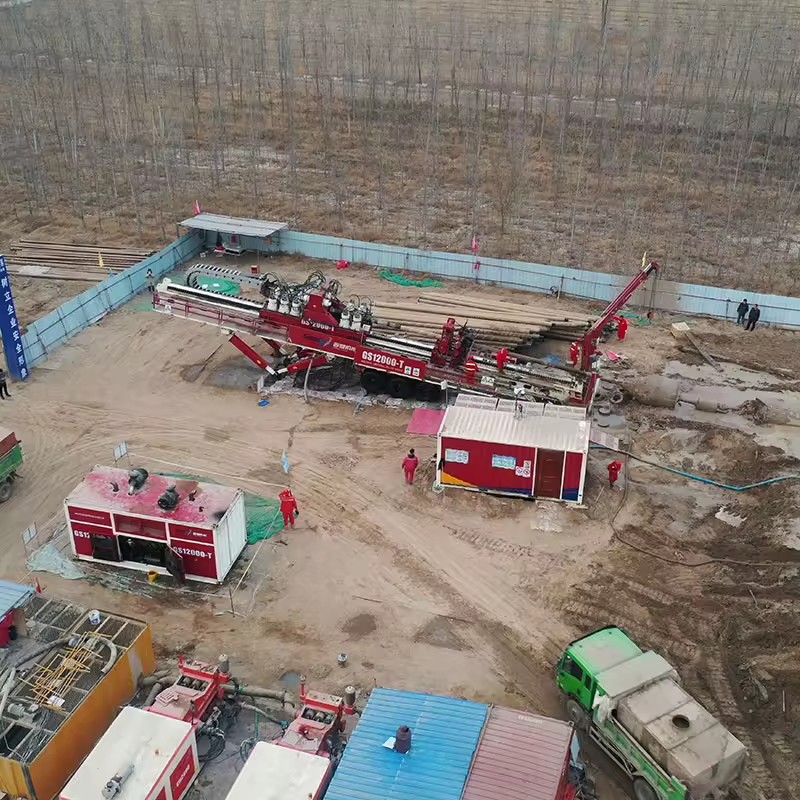

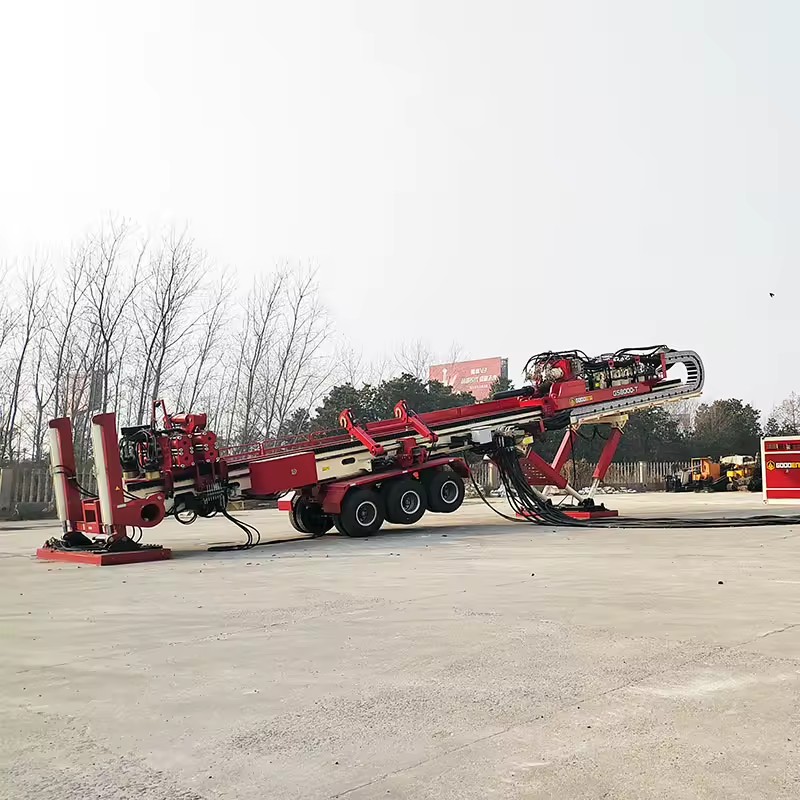

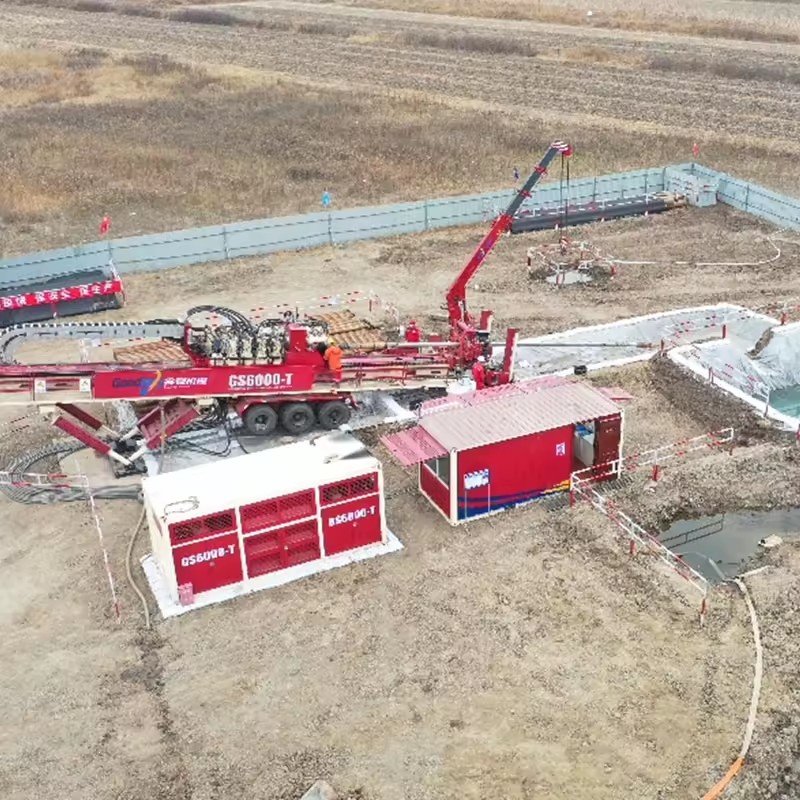

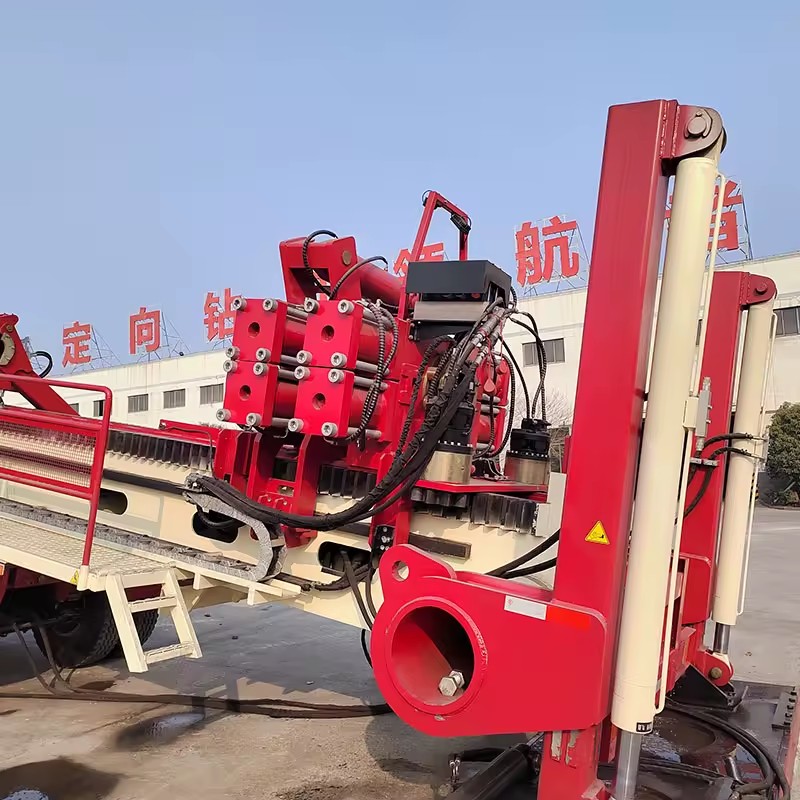

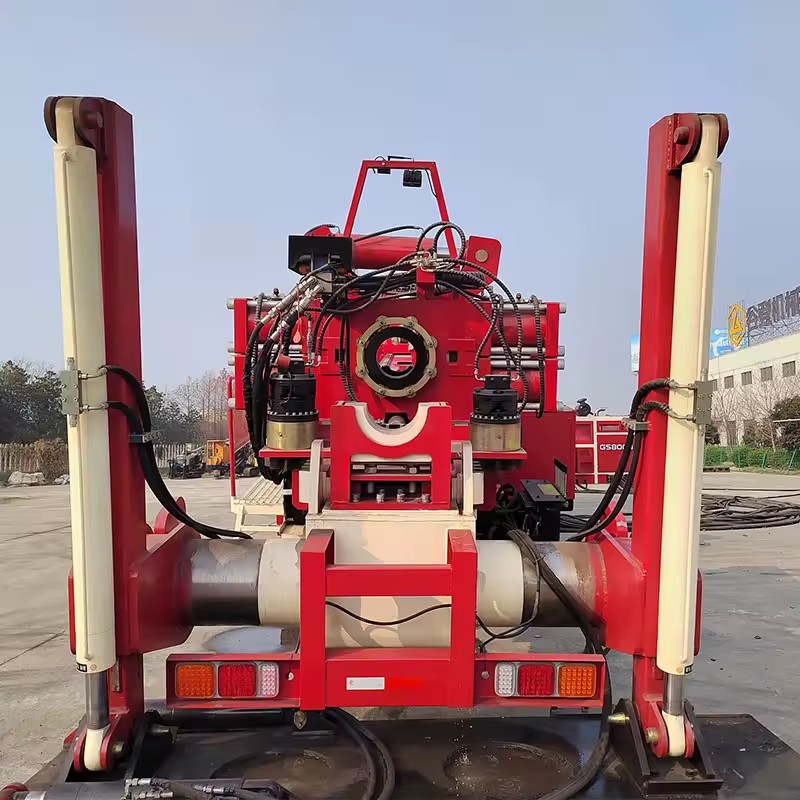

Large Series 800 Ton HDD Machine for 40/48 Inch Oil/Gas Pipeline Installation

Available for enquiry 0.0 · 0 reviews
USD

$ 2,145,020.00 2145020.0 USD $ 2,145,020.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
underground pipeline laying
Type
Drilling Rig
Drilling Depth
Max.40m
Drilling Diameter
2000mm
Power Type
Diesel
Voltage
24 V
Product description
Rig Weight67000kgDimension(L×W×H)21600×2700×3900mm
Power Station weight16500kgPower Station Dimension6050×2500×2600mm
Operation Room weight3000kgOperation Room Dimension6050×2500×2600mm
Max. Thrust & Pullback Force8100KNMax. Thrust & Pullback Speed42m/min
Max. Torque240000N·mMax. Rotation Speed90rpm
Max. Clamp Force4400kNMax. Unscrewing Force of Pipe Jaw700000N·m
Engine Power3×410kWMax. Working Pressure35MPa
Main Spindle Floating Distance110mmMud Pipe Channel Diameter4"
Drill Pipe DiameterΦ168mm-Φ254mmMax. Length of Drill Pipe9.6m
Entry Angle9°-16°Max. Mud Pressure20MPa
Suggest Back-reaming DiameterΦ2000mm(soil depended)Suggest Crossing Length3000m(soil depended)
Description images

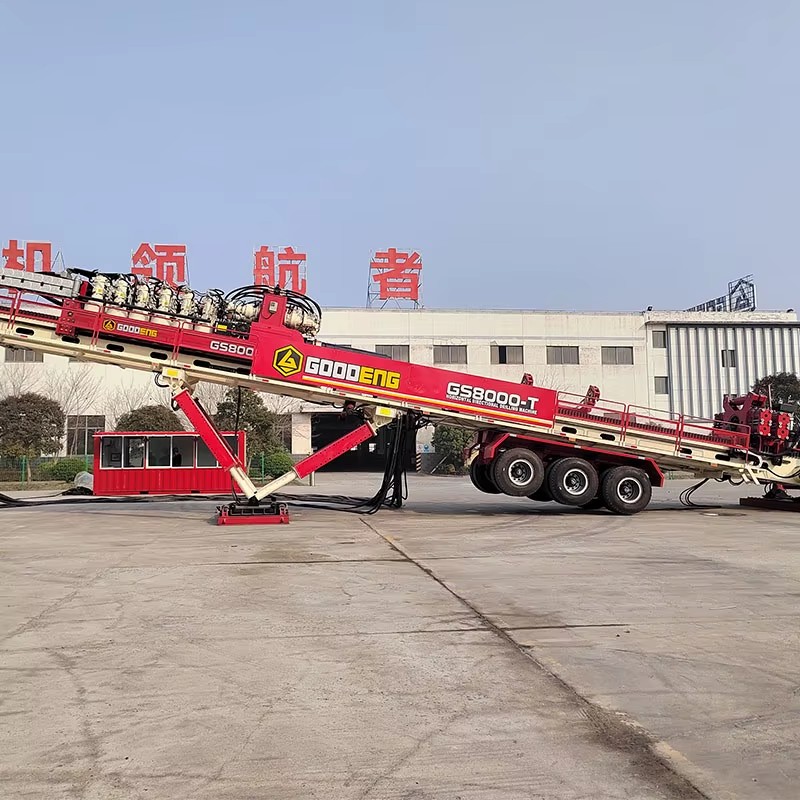

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 28 fields
Usage
underground pipeline laying
Type
Drilling Rig
Drilling Depth
Max.40m
Drilling Diameter
2000mm
Power Type
Diesel
Voltage
24 V
Core components
Motor, Engine, Pump
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Automatic
Place of origin
China, Jiangsu
Weight
67000 KG
Dimension (L*W*H)
216000*2700*3900mm
Mobility
YES
Engine Power
565*2 kW
Max.Thrust&Pullback Force
8100 KN
Max.Thrust&Pullback Speed
42m/min
Max.Torque
240000 N.m
Max.Rotation Speed
90 r/min
Max.Flow of Mud Pump
1800/2500L/min
Key word
GS8000-TS 800ton Hdd Rig
Drill rod
168/254*9600mm
Selling Units
Single item
Single package size
2160X270X390 cm
Single gross weight
67000.0 kg
Model number
GS8000-TS
Power (W) (Product option)
565*2 KW
Lead time
30 days
Minimum order
1 Units
