Product description
Water jet is kind of using high pressure water cutting machine, belong to the category of could cutting, has the avantage such as compact structure, no sparc and not produce thermal deformation or heat effect. A high pressure water jet cutting machine is a tool used for slicing metal and other materials using a jet of water at high velocity and pressure. Featuring a low noise, no pollution, high precision and high reliability, our water jet cutting machine has been used in a variety of applications, including mining, automobile manufacturing, paper manufacturing, food, art and architecture. Water jet machines can be used to cut rubber, foam, plastic, composite, stone, tile, marble, glass and other materials.
The main parts of water jet cutting machine
Separated body between cutting table and load-bearing platform prevents interfering cutting accuracy from long-term stress variation to load-bearing platform.
Motor and ball screw are directly connected by flexible coupling. It can absorb vibration energy reversible and with higher drive accuracy compared with other torsional rigid coupling
The machine body is with casting structure and concrete structure. The metal parts have been specially processed to eliminate traces of deformation and to maintain long-term mechanical precision.

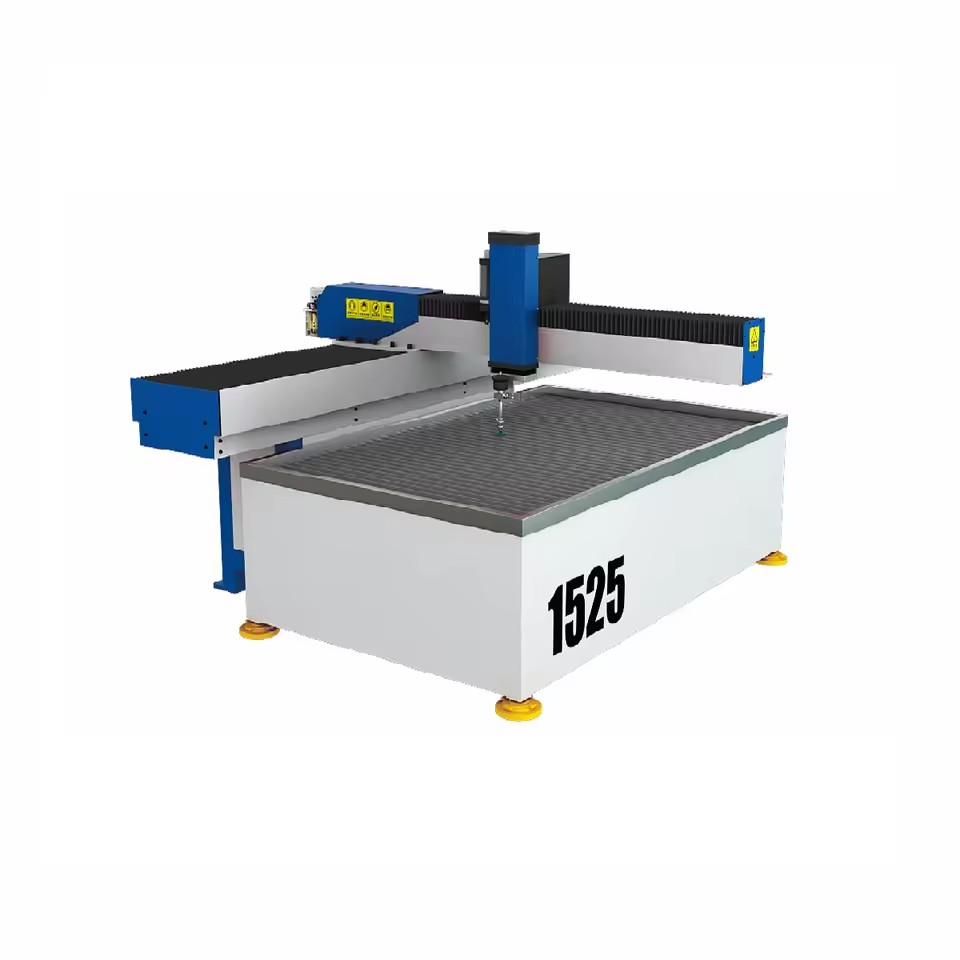

X beam of cutting table applies the one-off extrusion forming aluminum alloy, the most advanced technology in water jet cutting machine,light weight,strong steel,not deformed.
• 50 HP High 420 MPa pressure for smooth finish cutting at high speed. • Main heart of Supercharger, "Intensifier" is "". • User friendly & minimum maintenance cutting design with make "Water Switch Seal Kit" & other parts. • All parts of machine are processed on Highly accurate YASKAWA servo motor (). Which gives you trouble free operation & long life of parts. • Use special water cutting machine software, a day to achieve a comprehensive grasp •Non-standardized model design customization，Customizable submersible adjustable water level platform, equipment working noise is lower than 75Db.
SPECIFICATIONS FOR WATER JET CUTTING MACHINE
Max. pressure
420MPA
Max. flow rate
3.7L / min
Electrical source voltage
3 phases 220/380 Voltage, 50/60Hz, 37KW, 50HP
Max. diameter of nozzle / orifice
1.02mm / 0.33mm
Max. delivery capacity of oil pump
106L / min
Max cutting
1-10 cutting (1 for standard machine)
>>>Try to Read This · Our Service
1. Maintenance free of charge for 12 months. 2. We will provide the consumable parts at an agency price. 3. 24 hours online service, free technical support. 4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me. 5. We have manual instruction and Videos for software Installation, operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training, including working principle of machine, Auto CAD drawing, common problems and solution, etc.
1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time. 2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool. Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof. 3. The outmost is Wooden Case With Fixed Formwork. 4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
5. We will take photos for you to confirm that all machine and accessories have been packed, and record the loading and unloading methods
Before delivery, we would do the test about 20-30 working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.
Product Description
Water jet is kind of using high pressure water cutting machine, belong to the category of could cutting, has the avantage such as compact structure, no sparc and not produce thermal deformation or heat effect. A high pressure water jet cutting machine is a tool used for slicing metal and other materials using a jet of water at high velocity and pressure. Featuring a low noise, no pollution, high precision and high reliability, our water jet cutting machine has been used in a variety of applications, including mining, automobile manufacturing, paper manufacturing, food, art and architecture. Water jet machines can be used to cut
rubber, foam, plastic, composite, stone, tile, marble, glass and other materials.
• 50 HP High 420 MPa pressure for smooth finish cutting at high speed.

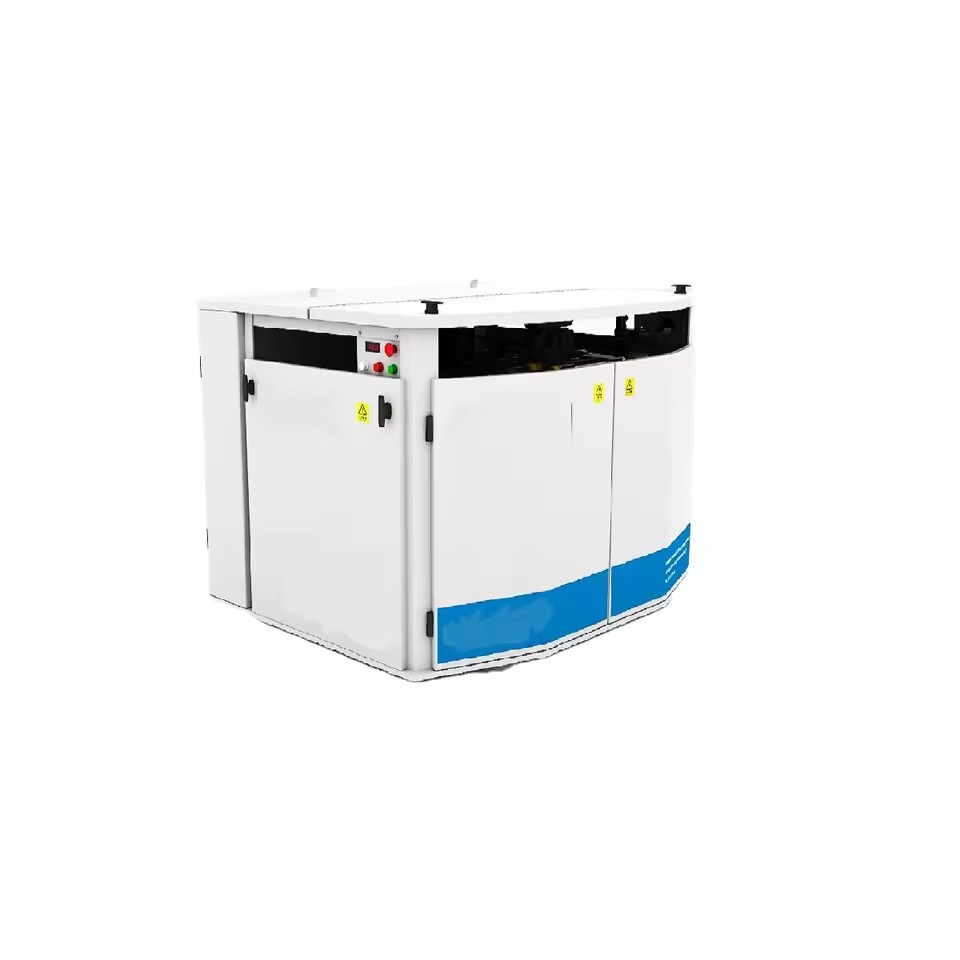

• Main heart of Supercharger, "Intensifier" is "".
• User friendly & minimum maintenance cutting design with make "Water Switch Seal Kit" & other parts.
• All parts of machine are processed on Highly accurate YASKAWA servo motor (). Which gives you trouble free operation & long life of parts.

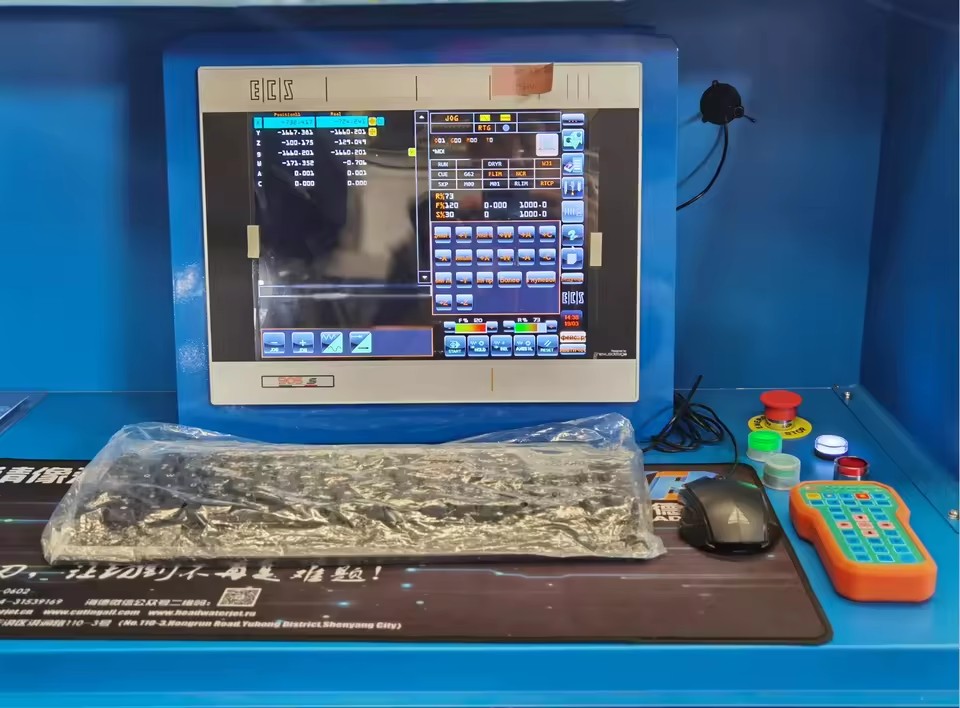

• Use special water cutting machine software, a day to achieve a comprehensive grasp
•Non-standardized model design customization，Customizable submersible adjustable water level platform, equipment working noise is lower than 75Db.
Specification
Cutting Samples
Service & FAQ
1. Maintenance free of charge for
12 months.
2. We will provide the consumable parts at an agency price.
3.
24 hours online service
free technical support.
4. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
5. We have manual instruction and
Videos for software Installation
operation and machine's using and maintenance; We will send professional technician to customers' factory, provide them two-weeks training
including working principle of machine, Auto CAD drawing, common problems and solution, etc
Company Profile
00:00
>>>Brief Introduction Of waterjet company
HD waterjet is specialized in designing,researching and developing, manufacturing Ultra High Pressure (UHP) Waterjet Cutting System over
12
years.We have independent workshop of
2,000
square meters and water jet laboratory to achieve a sufficiently complete production process.
Our sales team has
30
people who serve tens of customers 24 hours a day, gaining
100%
customer praise rate.And the technical team of more than
10
people obtains several technical patents every year, produced the largest waterjet equipment, HEAD45100 and HEAD20120.The production team of dozens of people is rigorous and serious.There are more than
500
steps procedure to finish one set water jet cutting machine.
According to the latest statistics, has independently exported to
97
countries, become the top of export waterjet companies.We have the highest Credit limit in waterjet industry with CE & ISO & EAC & SGS certificate to guarantee the highest quality and fund security.
At the same time, is the first platform for global market customization cutting solution, providing more than
6,000
cutting solutions for customers. We have more than ten customer service centers in the world including many countries such as and providing one-to-one after-sales service.After-sales engineers with
years of experience fly to
20
countries to serve more than
200
customers worldwide every year, providing strong after-sales protection. help customers expand new business to occupy local market share, creating a trillion value for customers
Packing & Delivery
1. Our
Wooden Case
is after fumigation treatment. Needn't timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.
Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
5.
We will take photos for you to confirm that all machine and accessories have been packed, and record the loading and unloading methods
Before delivery
we would do the test about
20-30
working hours for machine, and use standard packing to each configuration. We choose famous export company and transport company, making shipment more convenient and safer.
