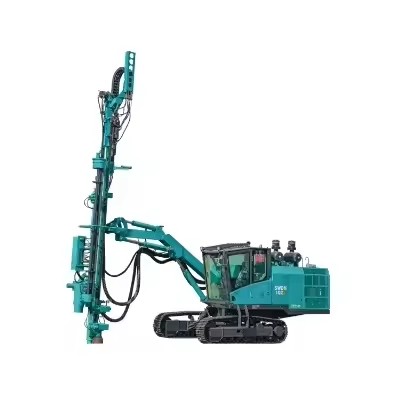

Hammer Drill Rig SWDH102S 168kw Hard Rock Drilling Rig With Factory Price

Available for enquiry 0.0 · 0 reviews
USD

$ 247,410.00 247410.0 USD $ 247,410.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Ore
Type
Drilling Rig
Drilling Depth
Max.200m, 30m
Drilling Diameter
76-127mm(2.99-5in)
Power Type
Diesel
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox, Other
Product description
Technical parameters of top hammer drill rig
Main parametersSWDH89SSWDH102SSWDH115F
Working parameters
Hole Rangemm64-11576-12776-127
Drill Rod ModelT38,T45,T51T45,T51T38,T45,T51
Drill Rod Lengthmm366036603050
Economic Drilling Depthm242421
Hydraulic Rock Drifter
Impact powerkW141820
Rotation torqueNm70010001300
Rotation SpeedNm0-1800-1500-175
Diesel Engine
ModelCAT C7.1CAT C7.1QSB4.5
PowerkW/rpm168/2200168/220097/2200
Fuel tankL450450300
Air Compressor
Pressurebar810
F.A.Dm3/min810
Drill Arm
TypeFolding armFolding armSingle straight arm
Lifting angleo+70~-10+70~-1030~+45
Folding angleo65~16565~165
Swing angleo+20~-30+20~-30+30~-30
Advance Part
Advance lengthmm730073006700
Compensation strokemm120012001200
Forward angleo140140140
Flip angleo20~9020~9020~90
Max. advance ratem/s0.80.80.8
Max. PropulsionkN252525
Walking Ability
Max.Walking Speedkm/h4.24.24.2
Max. TractionkN10010080
Gradeabilityo25°25°25°
Track frame swing angleo7~+127~+1210~+10
Ground clearance of chassismm400400400
Dimensions
Weightkg150001500012000
Length*width*height (working)m92x2.6x8.692x2.6x8.66.68x2.42x7.98
Length*width*height (Transport)m11.2x2.6x3.511.2x2.6x3.58x2.42x3.4
Description images

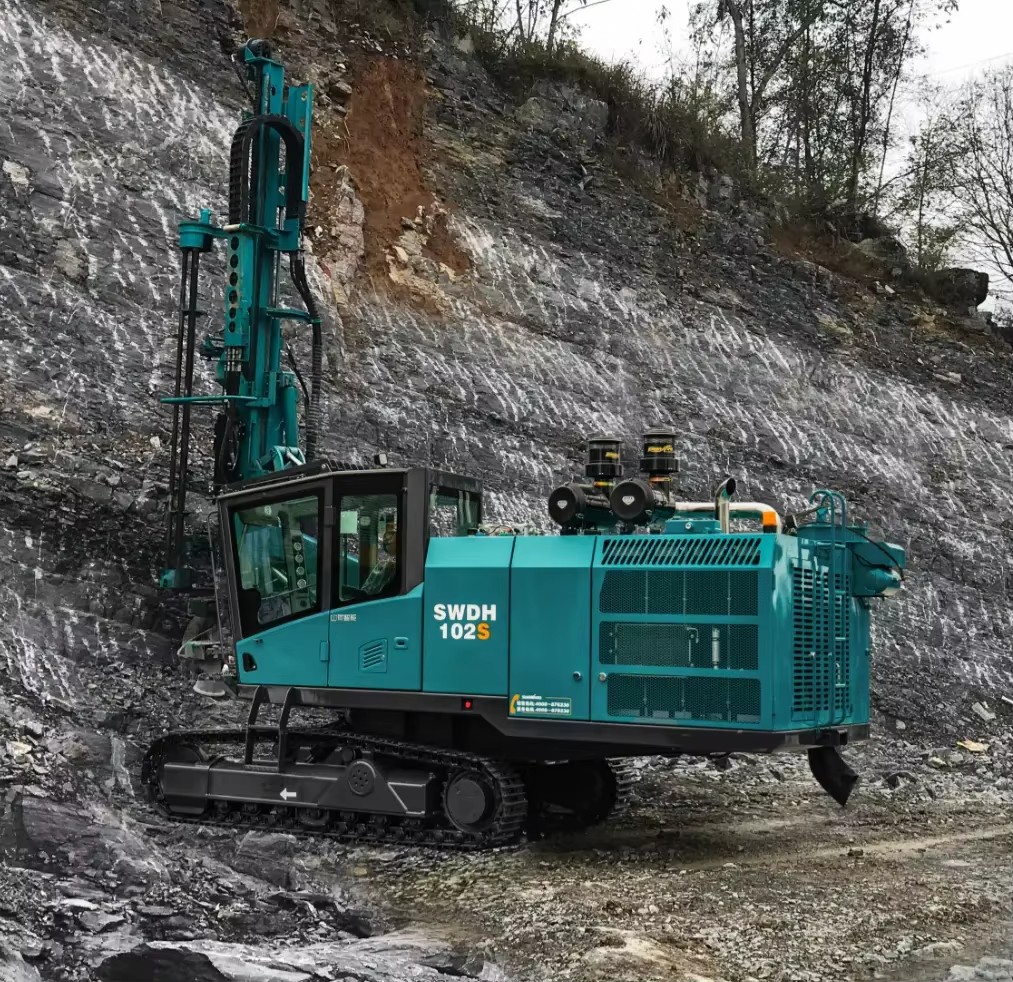

Product detail

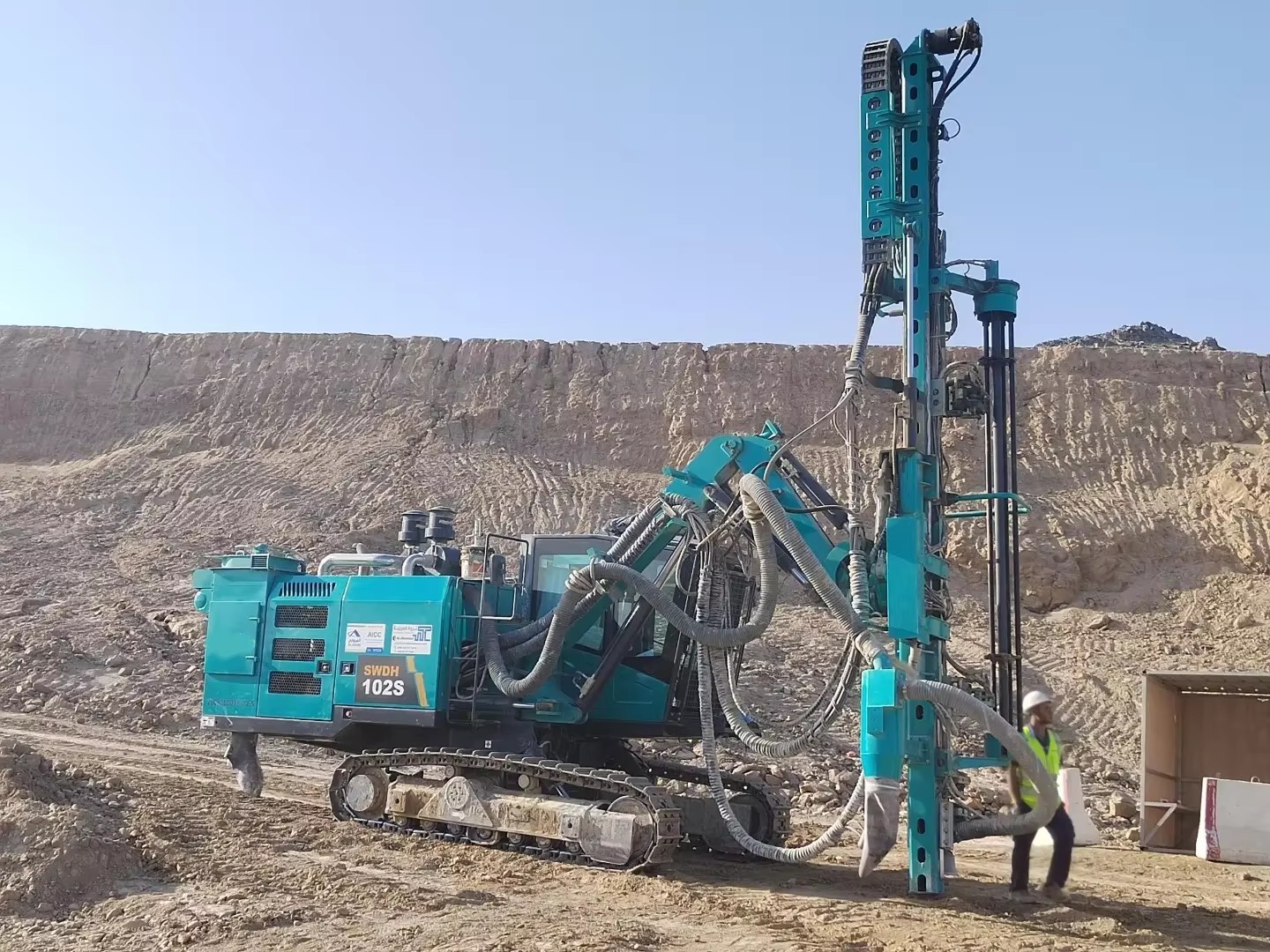

Product detail

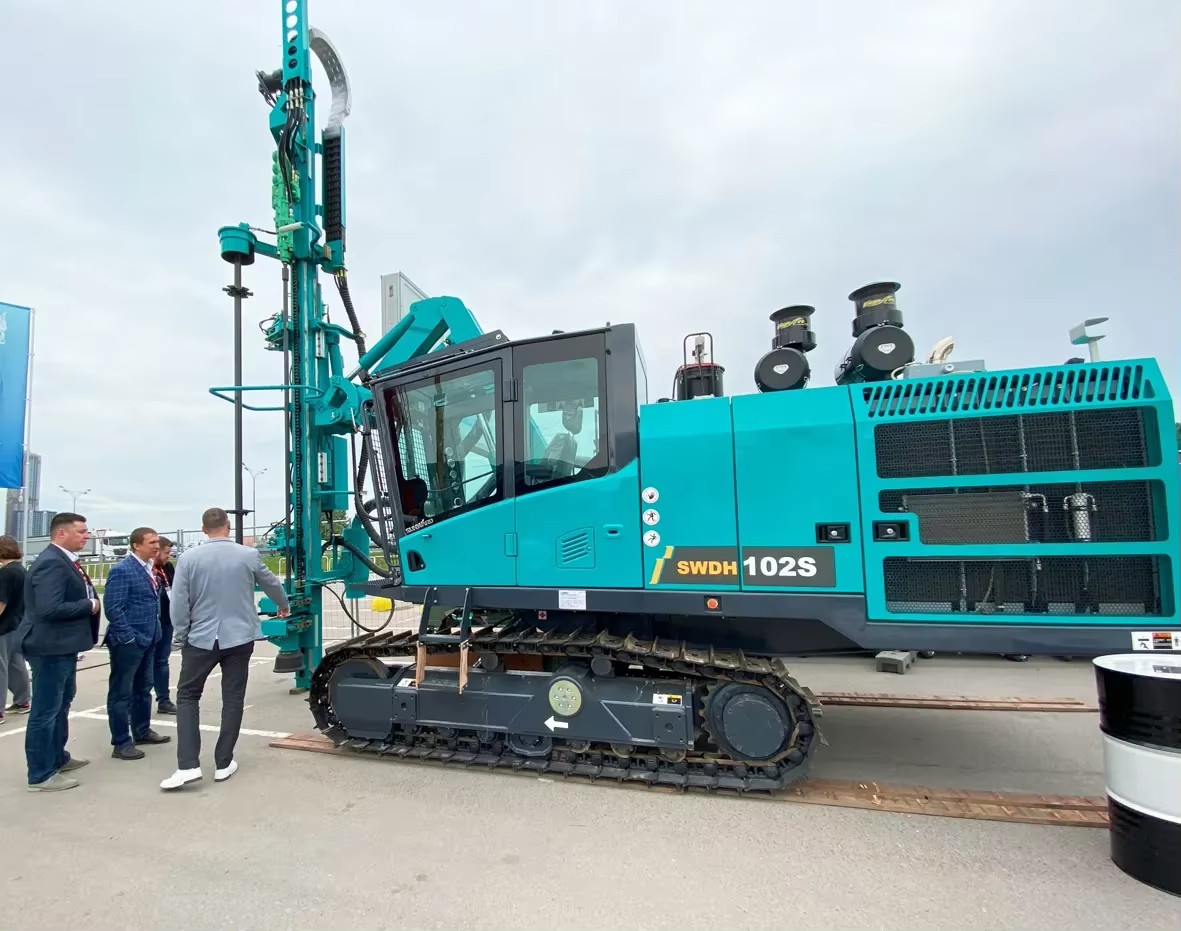

Product detail

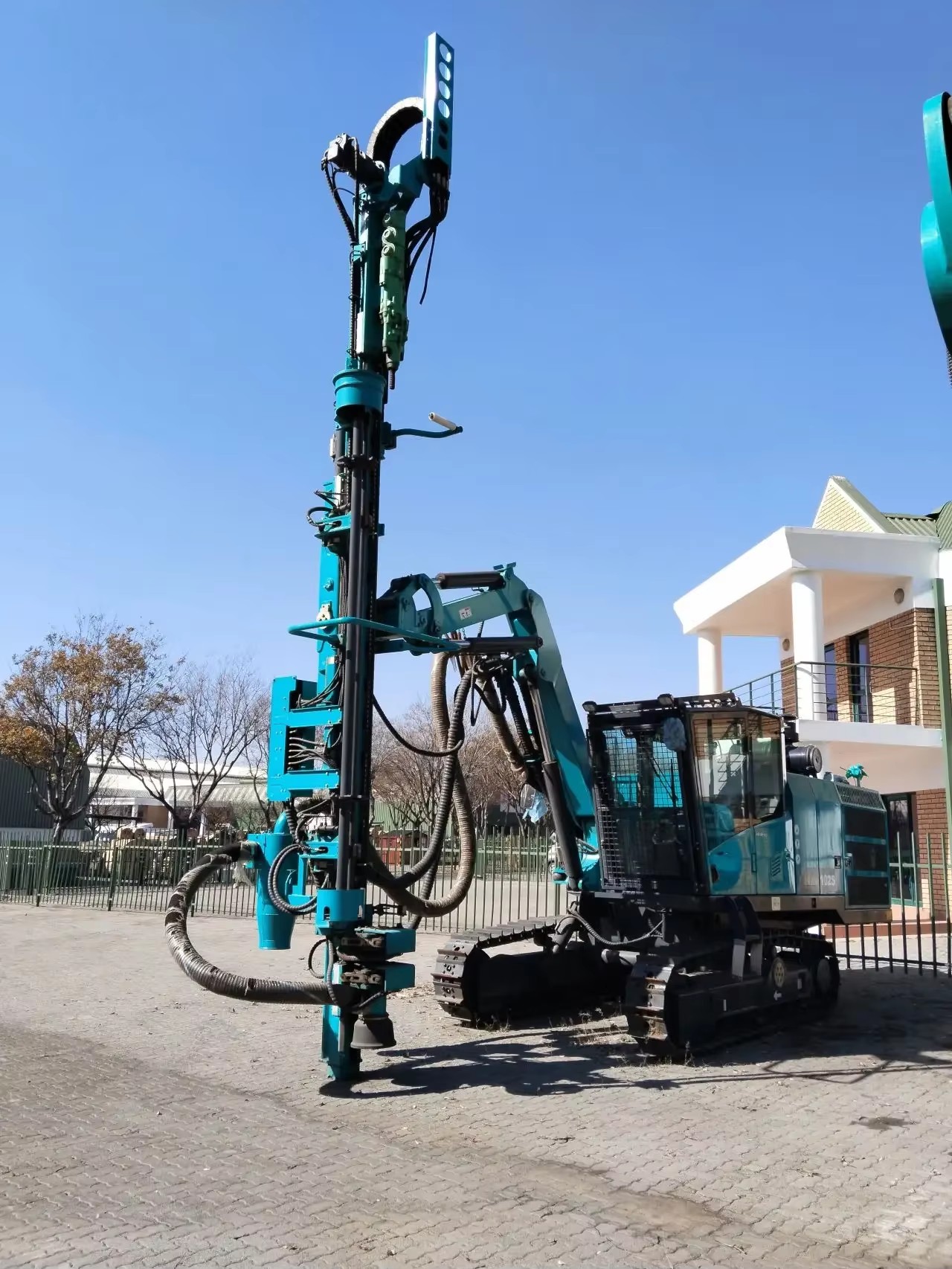

Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    32 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 24 fields
Usage
Ore
Type
Drilling Rig
Drilling Depth
Max.200m, 30m
Drilling Diameter
76-127mm(2.99-5in)
Power Type
Diesel
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox, Other
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Easy To Operate
Place of origin
China, Hunan
Weight
15000 KG(33069.34lb)
Dimension (L*W*H)
9.2*2.6*8.6m(30.18*8.53*28.22ft)
Hole range
76-127mm
Engine
Yuchai
Rotation torque
1500 Nm
Impact pressure
10 bar
Rated power
Euro 3 168kw/2200rpm
Walking speed
1.6- 2.9 km/h
Selling Units
Single item
Single package size
920X260X860 cm
Single gross weight
15000.0 kg
Model number
SWDH102S
Power (W) (Product option)
179kw/2200rpm
Lead time
32 days
Minimum order
1 Units
