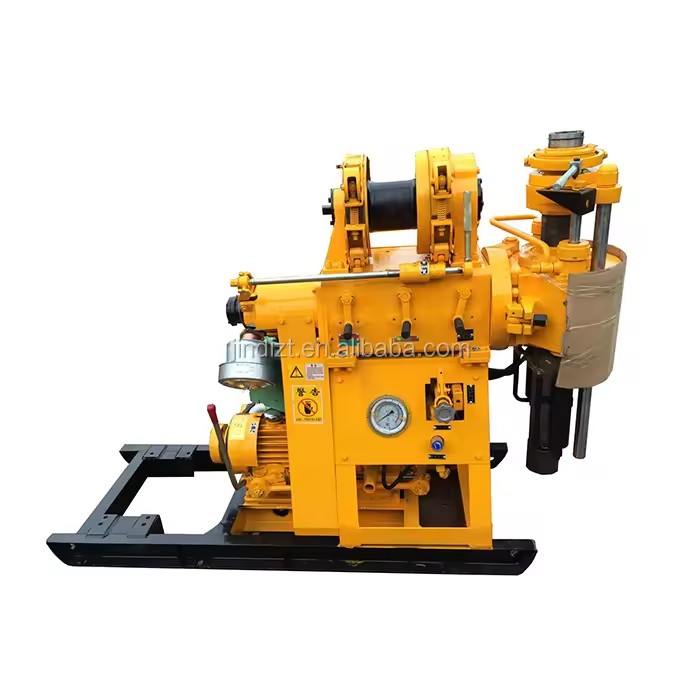

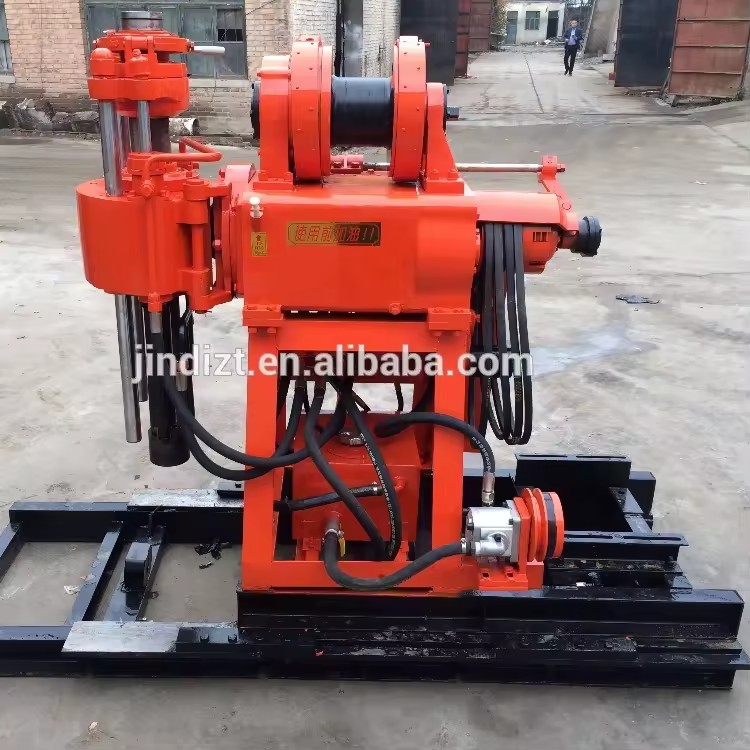

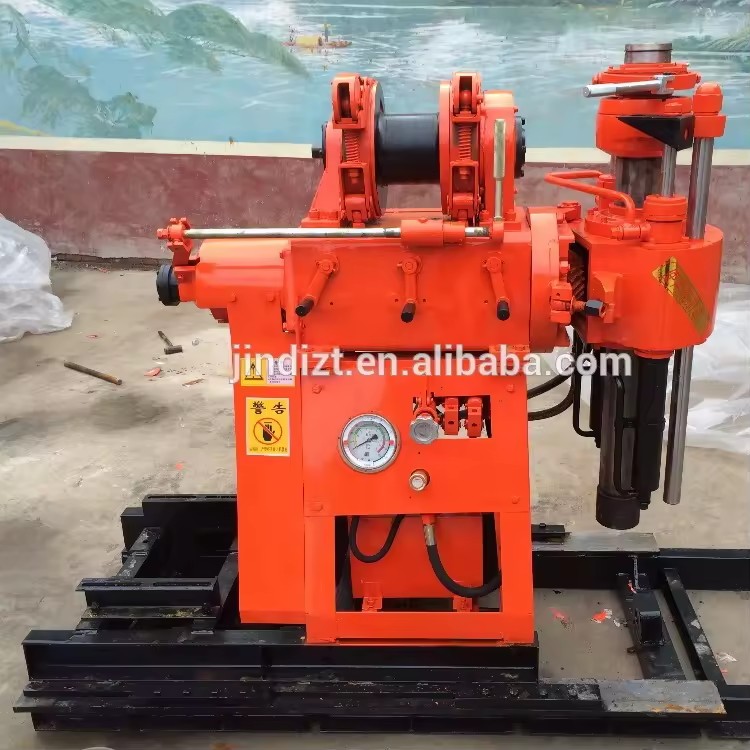

Drill Machine Price Competitive Bore Well Drilling Rig for Mining

Available for enquiry 0.0 · 0 reviews
USD

$ 4,880.00 4880.0 USD $ 4,880.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Water Well
Type
Rotary Drilling Rig
Drilling Depth
Max.200m, 30-200m
Drilling Diameter
60 mm(2.36in), 300 mm(11.81in), 50 mm(1.97in), 75mm(2.95in)
Power Type
Diesel
Voltage
380V
Product description

drill machine/bore well drilling machine price

1.1 Rig Application

1.1.1 The rig is suitable for survey and prospecting, geophysical exploration, roads and buildings and other exploration and play blasthole drilling bits projects.

1.1.2 Drilling bits can be chosen according to different strata.

1.2 Rig Features

1.2.1 hydraulic automatic feed mechanism, improve drilling efficiency, reduce manual labor workers.

1.2.2. Ball holding mechanism instead of using the chuck, can implement non-stop down the lever, easy to operate, safe and reliable.

1.2.3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.

1.2.4 The handle centralized, easy to operate.

1.2.5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.

Borehole diameter75,91,110,130,150,300mm
Drilling depth200,150,100,70,50,30m
Drill pipe diameter42,50,60mm
Angle range90°-75°
Size ( L*W*H )1433*697*1273mm
Weight(without power unit)525kg

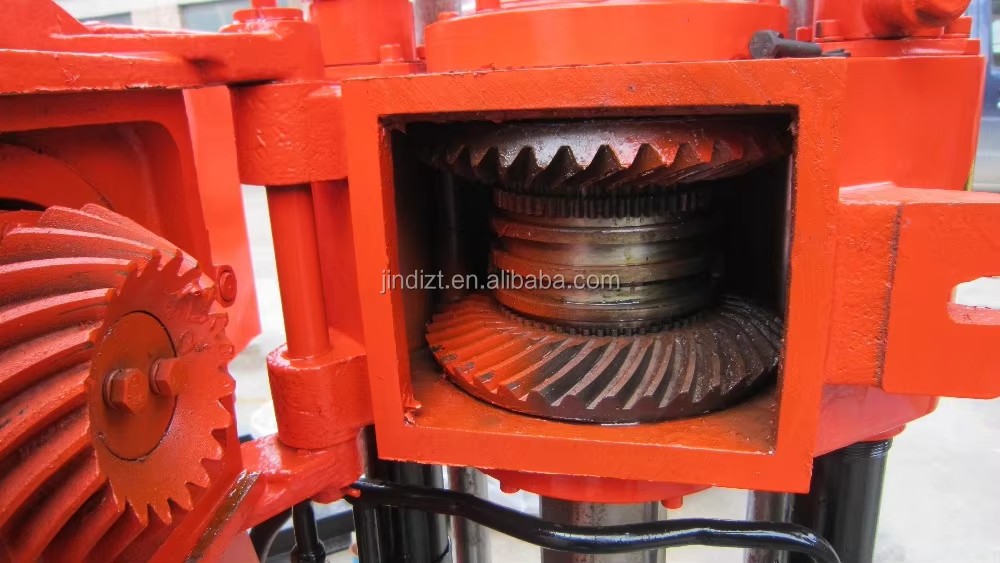

Gyrator
Spindle speed(4-speed)71, 142, 310, 620r/min
Spindle stroke450mm
Upward max speed of spindle(no load)0.05m/s
Downward max speed of spindle(no load)0.067m/s
Max feeding force of spindle15KN
Max lifting force of spindle25KN
Max output torque of spindle1.25KN.M
Hoist(winch)
Max.lifting capacity(single rope)15KN
speed19, 38, 84, 168r/min
Hoist drum linear velocity(two levels)0.166, 0.331, 0.733, 1.465m/s
Drum dia140mm
Wire rope dia9.3m
Wire rope capability35m
Brake dia252mm
Brake belt width50mm
Oil pump
ModelYBC-12/125
Rated pressure12.5Mpa
Displacement12ml/r
Rated speed2000r/min
Power(diesel engine or motor)

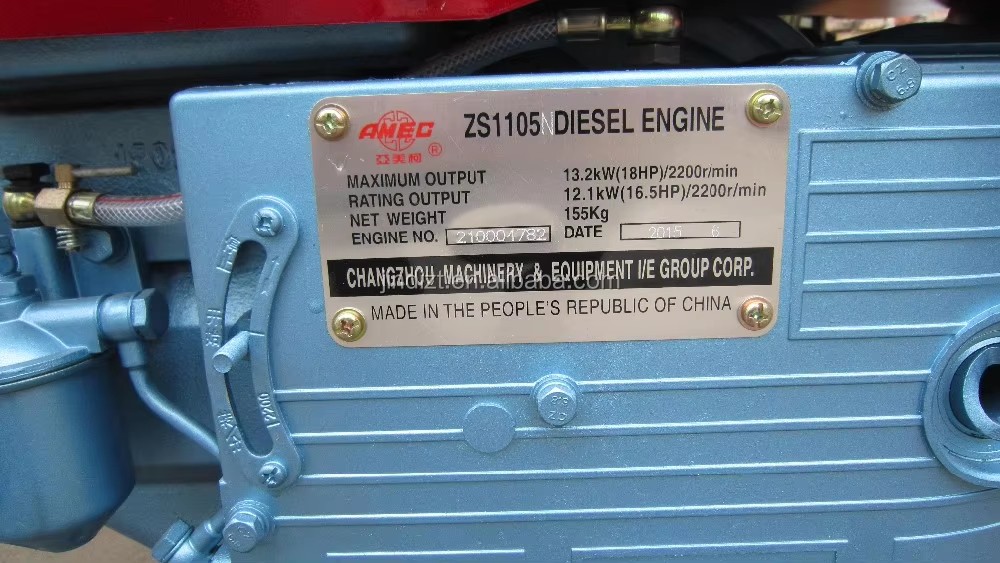

Model(diesel engine)ZS1115
Rated power16.2kw
Rated speed2200r/min
model (motor)Y160-4
Rated power11kw
Rated speed1460r/min

What's app+8615831102969

Description images
Drill Machine Price Competitive Bore Well Drilling Rig for Mining
Drill Machine Price Competitive Bore Well Drilling Rig for Mining
Drill Machine Price Competitive Bore Well Drilling Rig for Mining

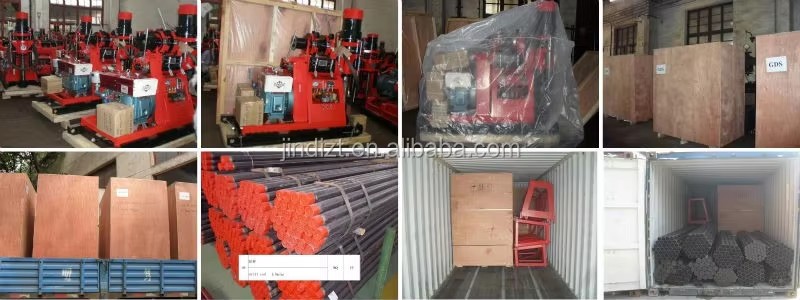

Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    5 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 27 fields
Usage
Water Well
Type
Rotary Drilling Rig
Drilling Depth
Max.200m, 30-200m
Drilling Diameter
60 mm(2.36in), 300 mm(11.81in), 50 mm(1.97in), 75mm(2.95in)
Power Type
Diesel
Voltage
380V
Core components
Gear, Engine, Pump, Gearbox
Warranty
12 month
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Easy To Operate
Place of origin
China, Hebei
Weight
1000kg, 560 KG(1234.59lb)
Dimension (L*W*H)
2*0.98*1.5m(6.56*3.22*4.92ft)
After-sales Service Provided
Engineers available to service machinery overseas
Drilling Angle
0-90
Size
2000x980x1500 mm
Spindle speed
93,207,306,399,680,888 r/Min
Drill pipe diameter
50mm
Model
XY-280
Engine
Diesel Power
Spindle stroke
510mm
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
XY-200
Power (W) (Product option)
16.2kw(21.72hp)
Lead time
5 days
Minimum order
1 Units
