Product video
Certifications CE & ISO

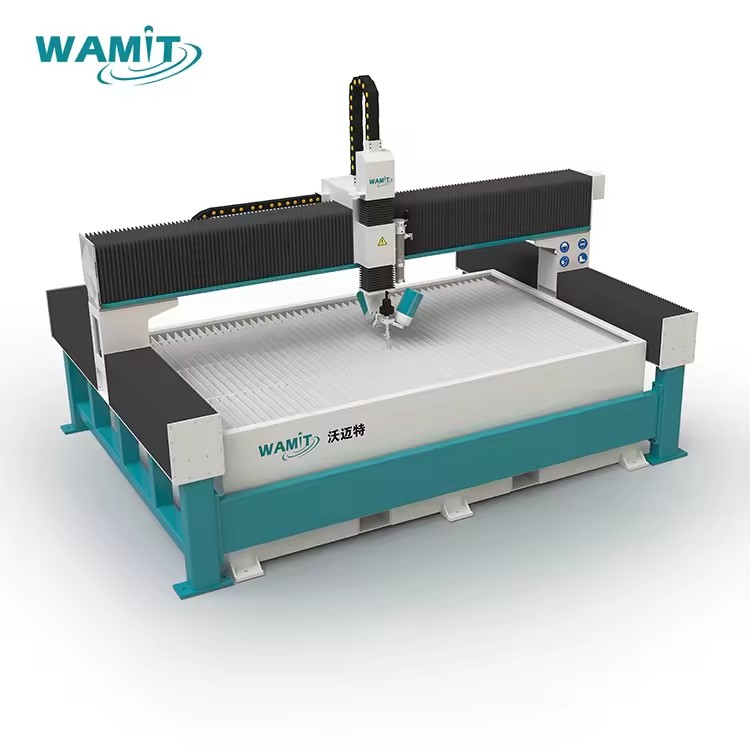

3020 AV Five Axis Ceramic Tile Marble CNC Water Jet Cutting Machine High Pressure Stone Water Jet Cutter

Available for enquiry 0.0 · 0 reviews
USD

$ 55,330.00 55330.0 USD $ 55,330.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Voltage
380 V
Number of axes
3 or 5
Repeatability (x/y/z) (mm)
±0.05
Core components
Pump
Machinery test report
Provided
Warranty
1 Year
Product description

Max Pressure

600mpa / 420mpa

Max Cutting Thickness

300mm

CNC System & Software

FLOWEDGE / ECS

Servo Motor

Panasonic / INOVANCE

Electrical Components

Schneider

PLC

SIEMENS

Linear Guide & Ball Screw

HIWIN

Rack & Pinion

YYC

Auto-lubrication System

HERG

Certification

CE & ISO

Model

WMT300 2030

WMT300 2040

WMT300 2060

WMT300 3015

WMT300 3020

WMT300 4020

Table Size

X axis(mm)

2200

3200

4200

Y axis(mm)

6200

1700

Cutting Size

2000

3000

4000

6000

1500

Z axis(mm)

150

Cutting Accuracy

±0.1mm

Repeated Positioning Accuracy

±0.05mm

Driving Mode

Alternating Current Servo

Maximum Operating Speed

50000mm/min

Product Parameter

Product Display

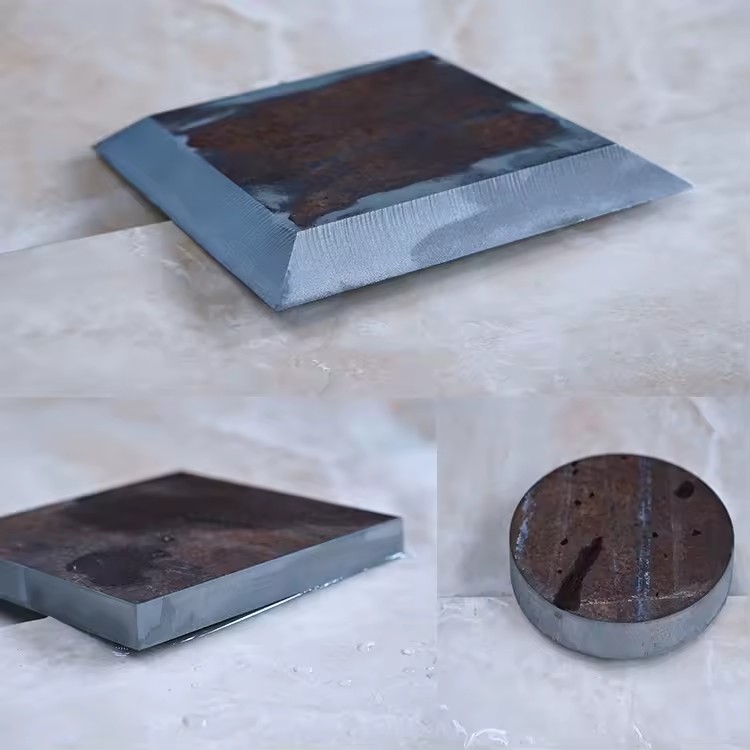

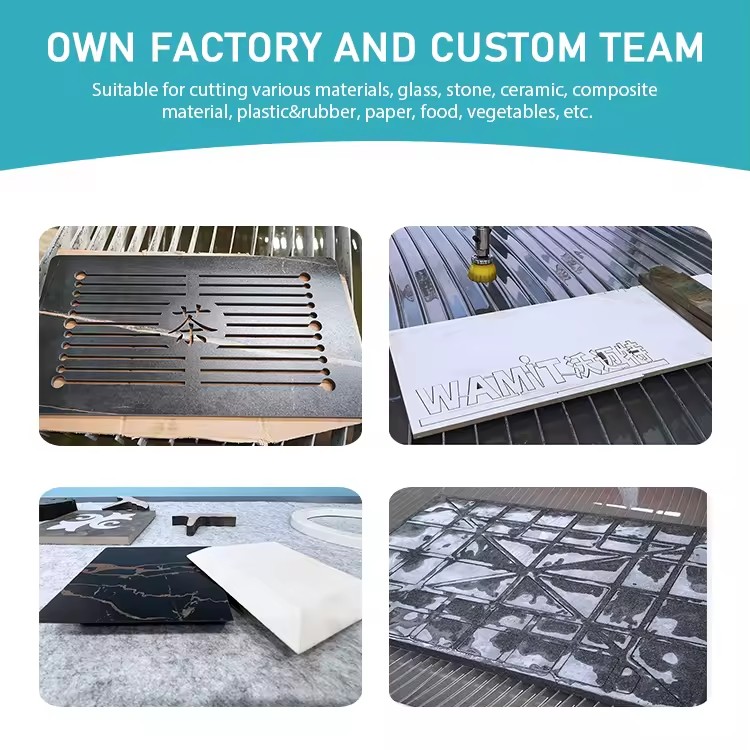

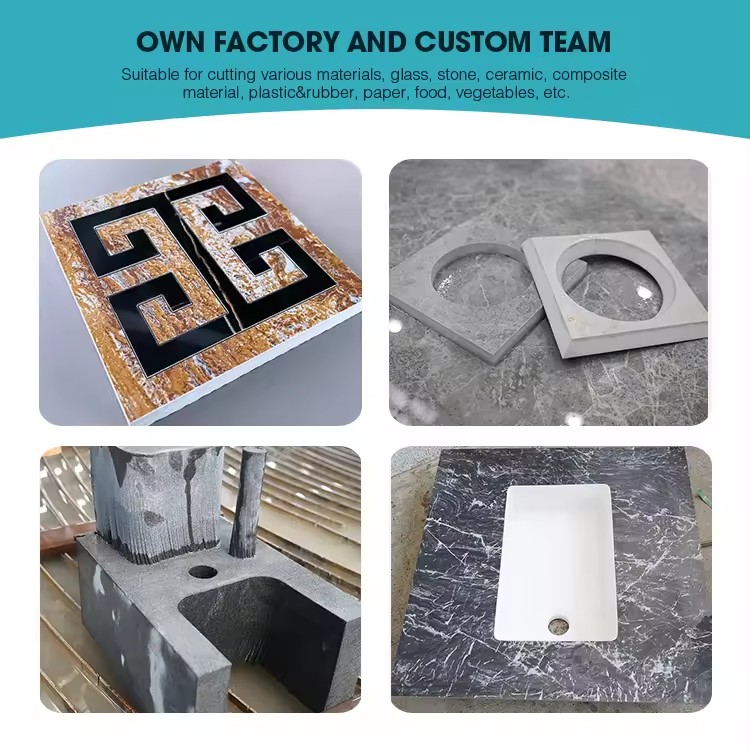

Cutting Samples

Company Profile

Packing&Shipping

FAQ

Q: What is the advantage of water jet cutting machine?

A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects; cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine.

Q: How to choose the cutting table?

A:You need to offer the size of the materials you want to process or the size of the cutting table.

Q:How to solve the incision problem of water cutting?

A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required

precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.

Q:Is the equipment easy to operate?

A

waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.

Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    40 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 31 fields
Voltage
380 V
Number of axes
3 or 5
Repeatability (x/y/z) (mm)
±0.05
Core components
Pump
Machinery test report
Provided
Warranty
1 Year
Video outgoing-inspection
Provided
Dimension(L*W*H)
420*320*250cm(165.35*125.98*98.43in)
Key selling points
High-Accuracy
Rated power
47kw(63.03hp)
Place of origin
China, Shandong
Weight (kg)
3200
Table travel (x) (mm)
3000
Table travel (y) (mm)
2000
Table travel (z) (mm)
150
Cutting accuracy(mm)
±0.1
Max pressure
600MPa / 420MPa
Max cutting thickness
300mm
CNC System & Software
TAIWAN HIWIN
SERVO MOTOR
Japanese brand / INOVANCE
Electrical Components
Schneider
PLC
Siemens
Linear Guide & Ball Screw
HIWIN
Rack & Pinion
YYC
Auto-lubrication System
HERG
Certification
CE & ISO
Selling Units
Single item
Single package size
590X390X250 cm
Single gross weight
2800.0 kg
Model number
WMT300 3020
Effective cutting range (mm)
3000×2000
Lead time
40 days
Minimum order
1 Units
