Product video

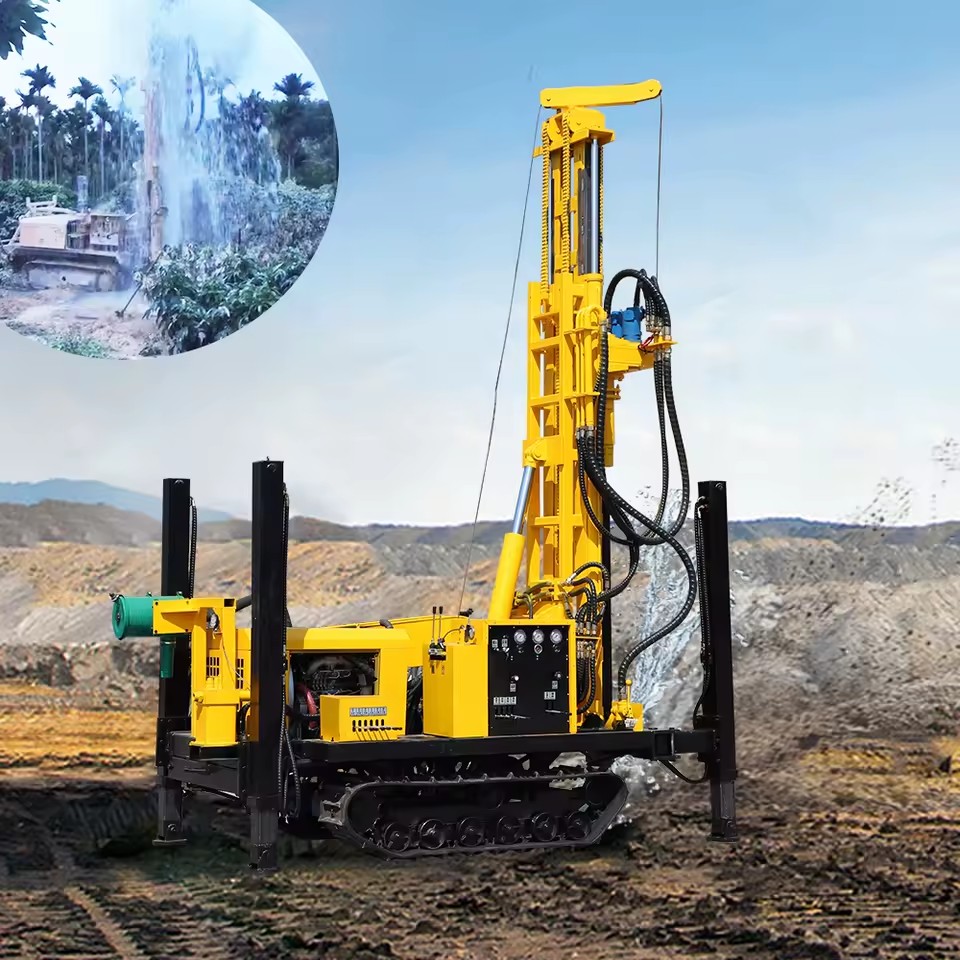

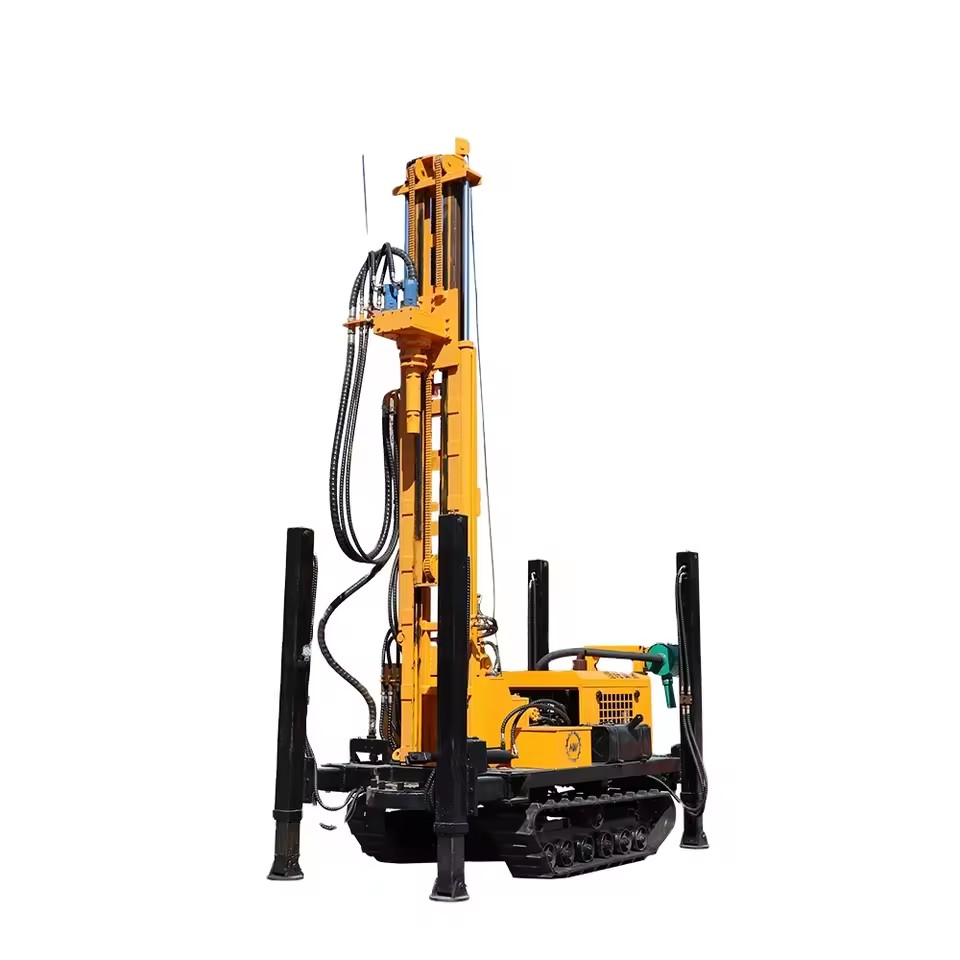

Deep Water Well Drilling Machine/water Well Drilling Rig/oil Drilling Equipment

Available for enquiry 5.0 · 1 reviews
USD

$ 14,970.00 14970.0 USD $ 14,970.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Water Well
Type
Rotary Drilling Rig
Drilling Depth
Max.200m, 220m
Drilling Diameter
60 mm(2.36in), 300 mm(11.81in), 50 mm(1.97in), 75mm(2.95in), 100 mm(3.94in), 200 mm(7.87in), 130-300mm
Power Type
Diesel
Core components
Motor, Engine, Pump
Product description

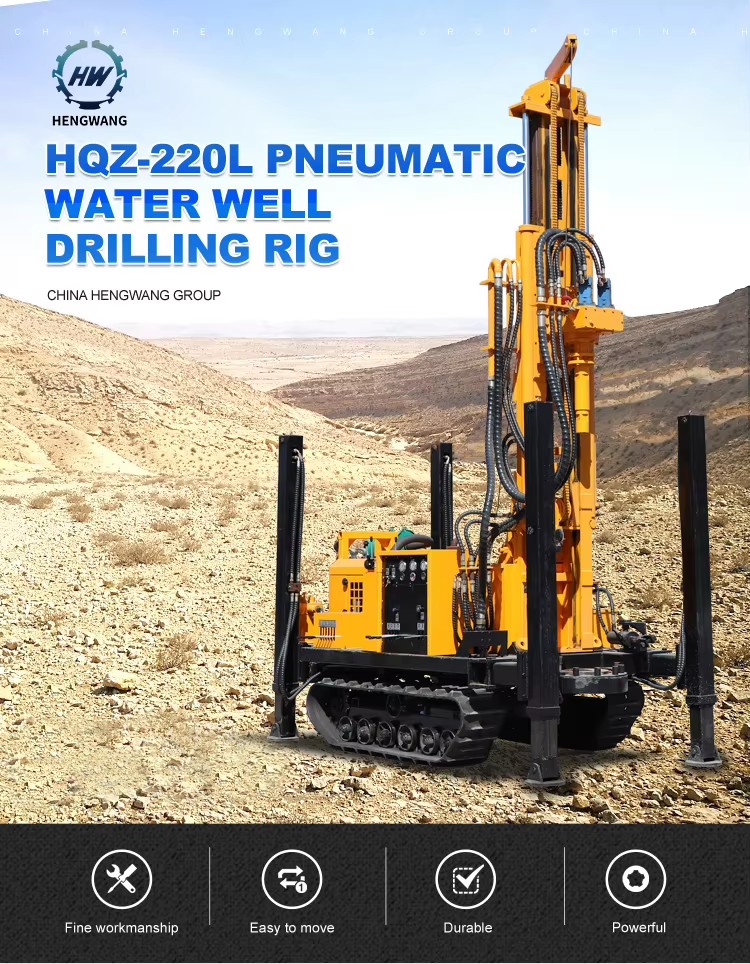

HQZ220L Pneumatic Drill Rig

Specification for water well drilling rig
NoModelHQZ220L
1Overall weight （T )4.2
2Dimension (mm )3800*1700*2350
3Drilling diameter (mm )130-294
4Drilling depth (m )220
5One-time advance length of the drill(mm)3000
6Traveling speed （km/h )2.5
7Climbing ability (max )30
8Minimum Ground Clearance (mm）250
9Working Air Pressure (mpa )1.7-2.5
10Air consumption (m³/min)15-27
11Main machine power （kw)Yunnei 60Kw
12Rotary Speed (rpm)48 - 70
13Rotary torque (Nm )4200-5600
Description images

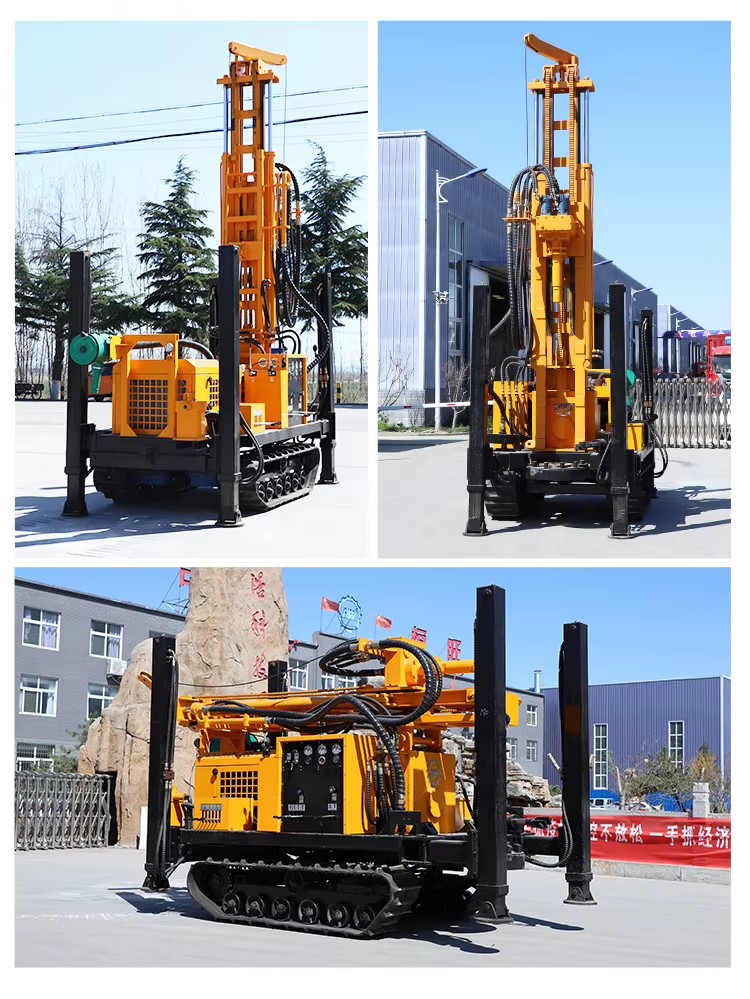

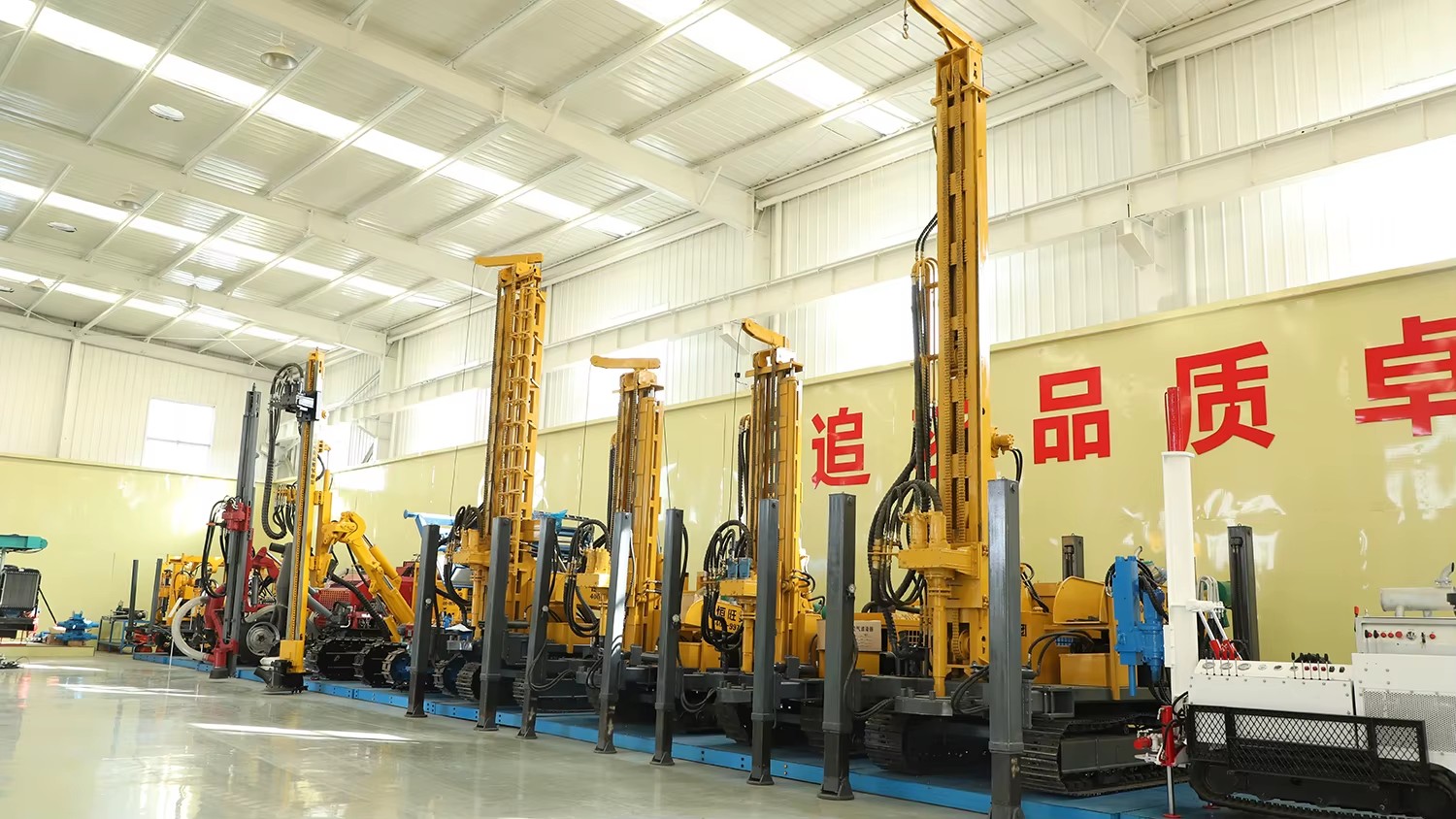

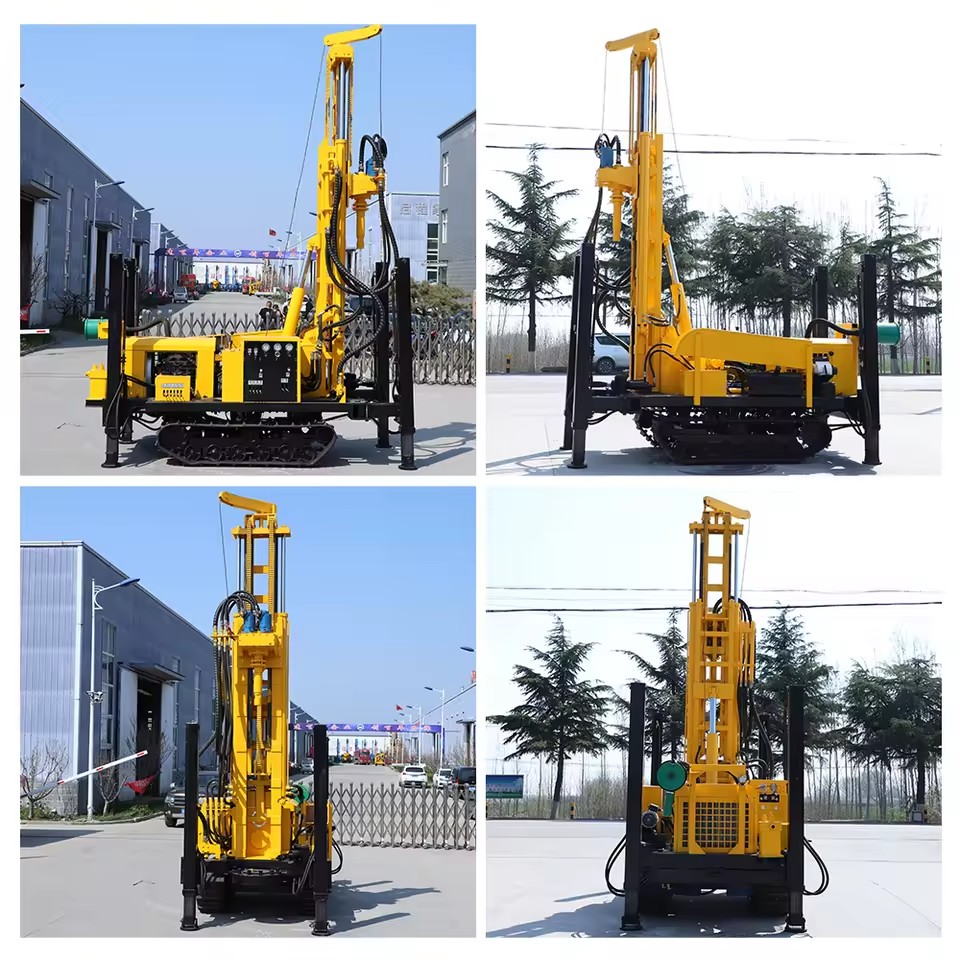

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    7 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 31 fields
Usage
Water Well
Type
Rotary Drilling Rig
Drilling Depth
Max.200m, 220m
Drilling Diameter
60 mm(2.36in), 300 mm(11.81in), 50 mm(1.97in), 75mm(2.95in), 100 mm(3.94in), 200 mm(7.87in), 130-300mm
Power Type
Diesel
Core components
Motor, Engine, Pump
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Energy Saving
Place of origin
China, Shandong
Weight
4200 kg(9259.42lb)
Dimension (L*W*H)
3800*1700*2350mm(149.61*66.93*92.52in)
Mobility
Crawler
Engine Power
60Kw
Application
rocks, Mountains
Drill rod length
3/4/4.5/6m
Air consumption
15-27m3/min
Applicable Industries
Home Use, Building Material Shops, Farms, Construction works, Energy & Mining
Showroom Location
None
Condition
New
Marketing Type
Ordinary Product
Warranty of core components
1 Year

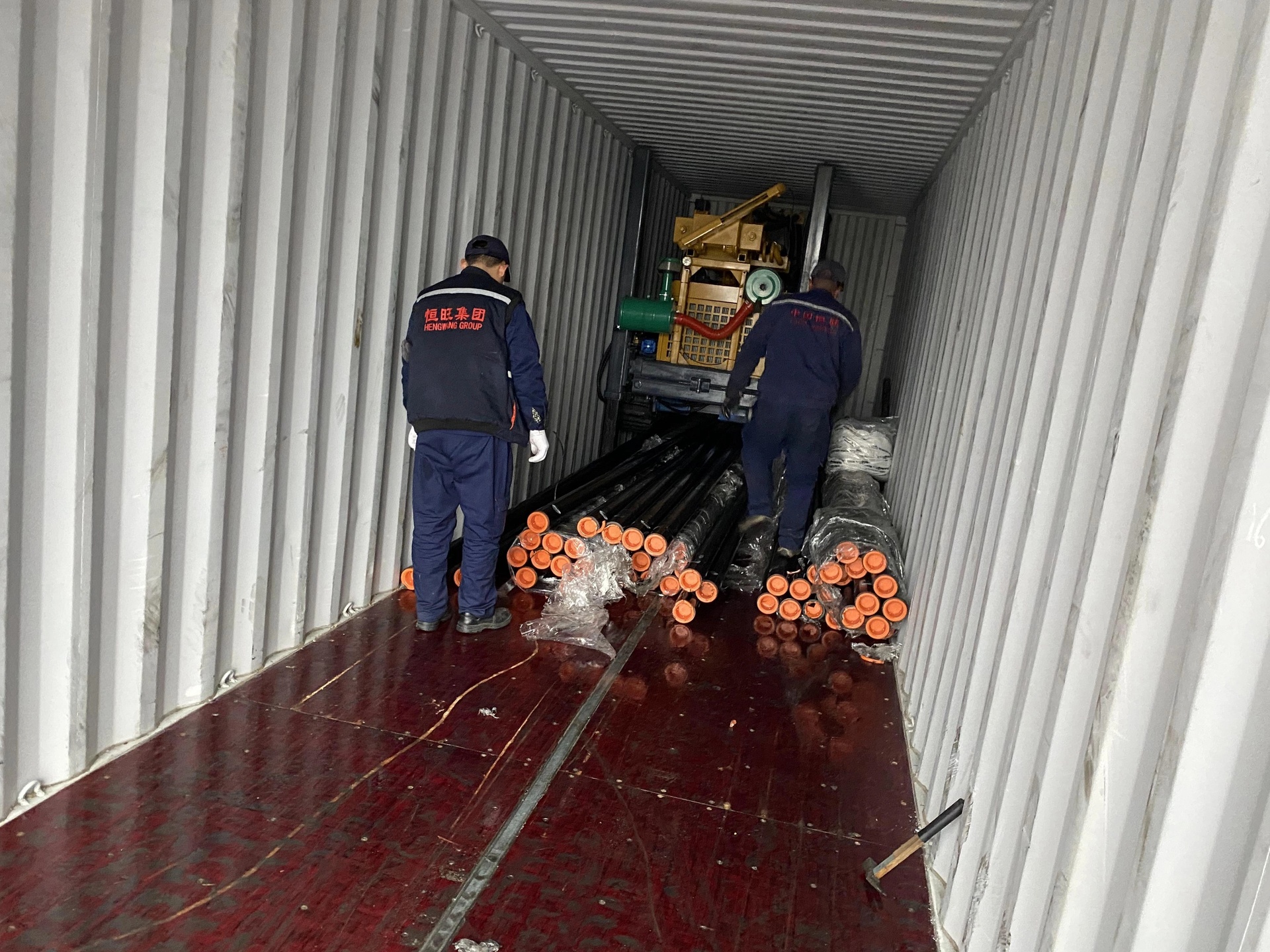

Packaging Details

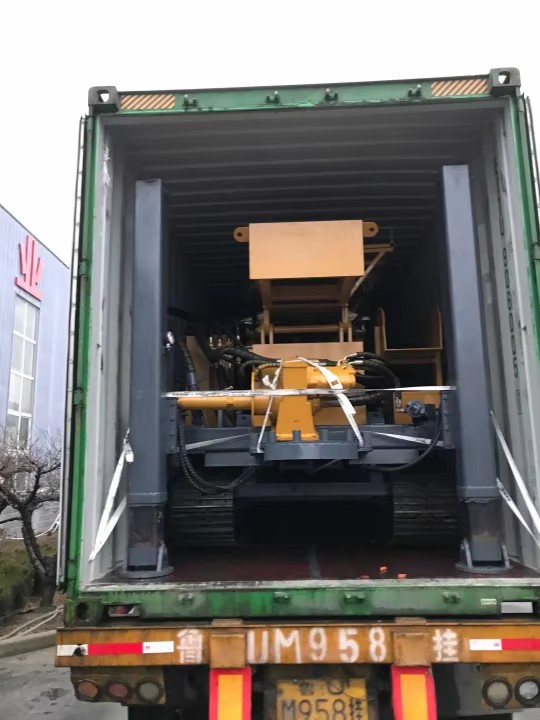

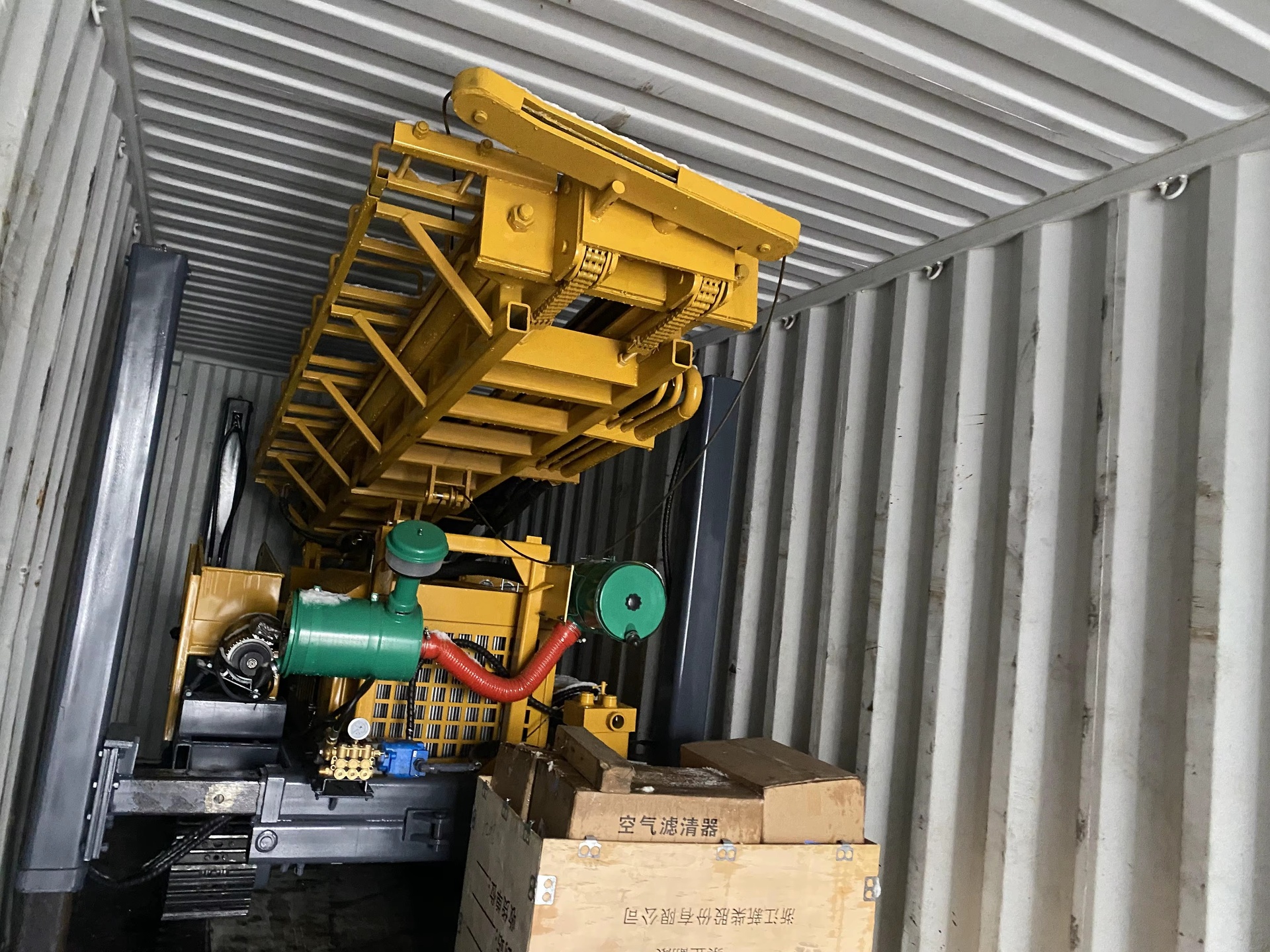

drilling rig machine use for 20 ft or 40ft container to package
Port of dispatch
QingDao/Shanghai
Selling Units
Single item
Single package size
380X170X235 cm
Single gross weight
4200.0 kg
Supply Ability
50 sets per Week
Model number
HQZ-220L
Power (W) (Product option)
60KW(80.46hp)
Lead time
7 days
Minimum order
1 Units
