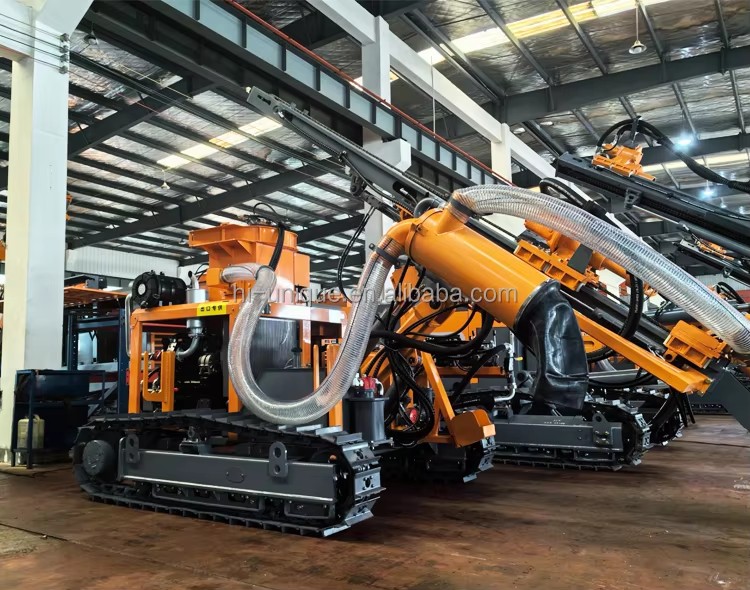

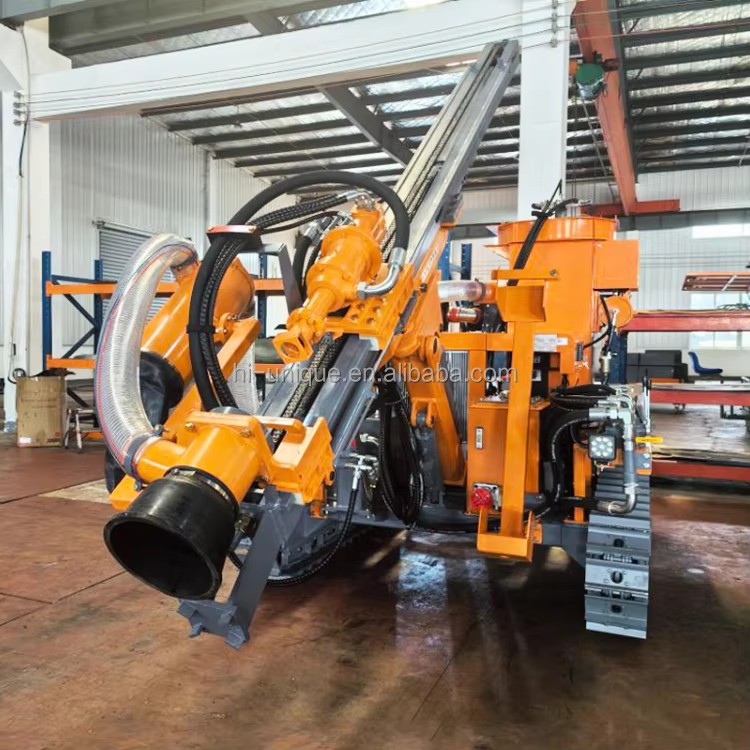

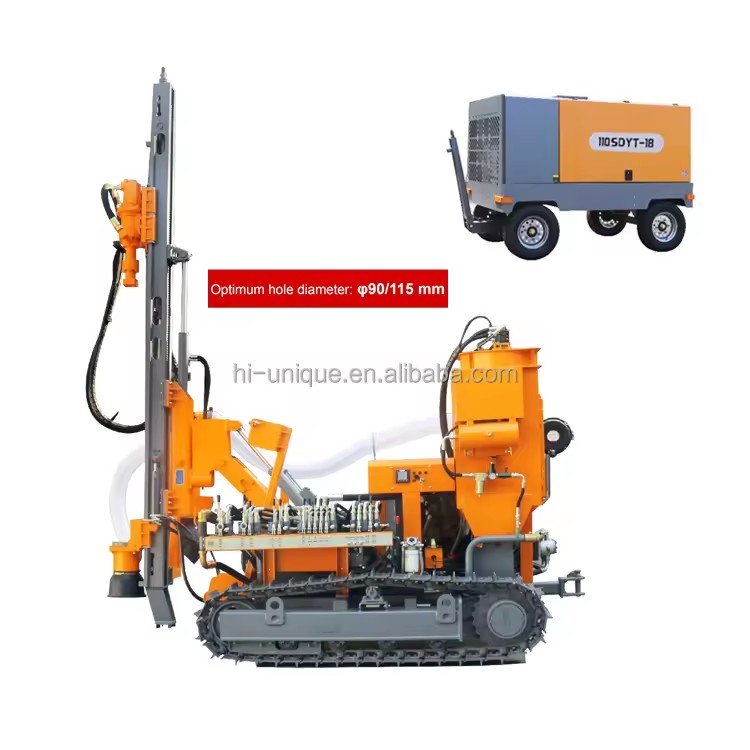

Drilling Hydraulic Down the Hole Hard Rock Drilling Rig Mining Rig

Drilling hydraulic down the hole hard rock drilling rig mining rig

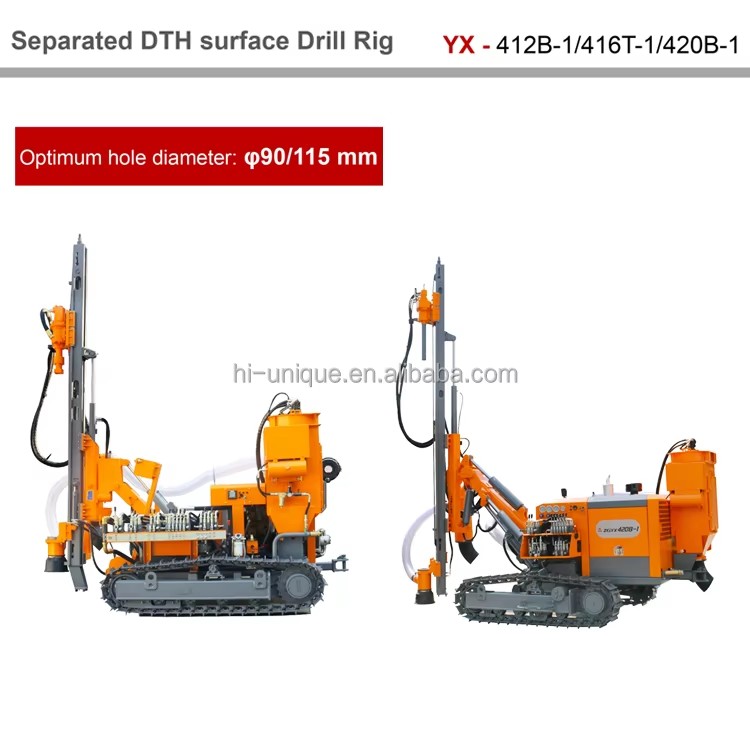

Feature of Integrated Surface DTH Drilling Rig: 1. Promoting a length of 5 meters, effectively reduce the loading and unloading drill pipe and other auxiliary time, improve work efficiency; 2. Disc type auto rod-loading system is used and auto rod-loading can reach the depth of 35m. 3. Equipped with amplitude mechanism, the carriage has total swing angle of 130° (97° to the right and 33° to the left) to freely complete horizontal and vertical holes transition without changing pivot. The lowest elevation horizontal hole is 550mm and the highest elevation is 4,200mm. 4. It adopts Caterpillar electronic fuel injection engine to provide high power and reliable performance. 5. High Working pressure large-Capacity air compression system (22m3/min, 20bar) guarantees fast drilling of the hammer. 6. Automatic leveling function of the travelling mechanism enables the drilling rig to be more adapted to rugged mountain roads in the mine. 7. Double rod lifting mechanism guides the rig all the way to prevent deflection in the drilling process (It guides the hammer during trepanning and the drill rod during drilling). 8. The drilling rig adopts imported hydraulic parts and electric appliance.

Technical Parameters

Group was founded in 1983, which has been dedicated to making the most suitable products and services for construction enterprises for more than 30 years, focused on providing comprehensive solutions for engineering construction, expanding the field, healthy development, built mainly with development and production of construction machinery, across regions, and cross-industry conglomerates. Group wholeheartedly serves concrete machinery industry at home and abroad, provides high quality products, fast after-sales service, and goes to a better future with you hand in hand!

Service and Support

has the 12 workshops to produce every part of rock drills and we can produce spare parts to delivery thern to you within 2 days.

was founded in 1973, more than 40 years dedicated to building construction enterprises make the most suitable products and services.

After-sales Service: Training how to install and use the machine; Engineers avilable to service machinery overseas.

Q1: What’s your delivery time?

A: 15 days to produce, within 3 days if in stock.

Q2: What’s methods of payments are accepted?

A: We agree T/T,L/C, One touch, West Union,Money Gram,Paypal.

Q3: What about the shipments and package?

A: 40' container for 2 sets, 20' container for 1 set

Machine in nude packing, spare parts in standard export wooden box.

Q4: Have you got any certificate?

A:We have got ISO,CE certificate.

Q5: How to control the quality?

A: We will control the quality by ISO and CE requests.

Q6: Do you have after-sale service and warranty service?

A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.

Warranty is one year for the machine.
