Name: Insulated Stove Chimneys Pipe Stainless Steel Fireplace Mantel Parts Fireplace Chimney Pipe Accessories
SKU: B2B-22516
Price: 160.0 USD
Availability: PreOrder

Product description

Product Name	Single-wall/Double Wall Stove Chimney With Twist Lock System
Material	SUS304/SUS316/Carbon Steel/Galvanized
Size	5'',6'',7'' Can Be Customized
Color	Silver Or Black
Diameter	80mm,100mm,125mm,150mm,200mm,250mm
Length	500MM,1000MM

Chimneys employ various kinds of stainless steels: AISI 304, 316, 430, 304L, 316L, and 904L, as well as flexible stainless steel liners.
Type	Grade	Use Case	Fuel	Key Feature
Single-Wall	304/316L	Interior	Wood	Lightweight
Double-Wall	304/316L	Residential/Commercial	Multi-fuel	Insulated

characteristic	Single-wall chimney pipe	Double-wall chimney pipe
Maximum temperature resistance	300℃	700℃
Thermal insulation performance	No additional insulation, external insulation layer required	Built-in 50mm insulation cotton, heat loss
Installation Environment	Indoors only	Indoor/outdoor, high-altitude wells, narrow spaces

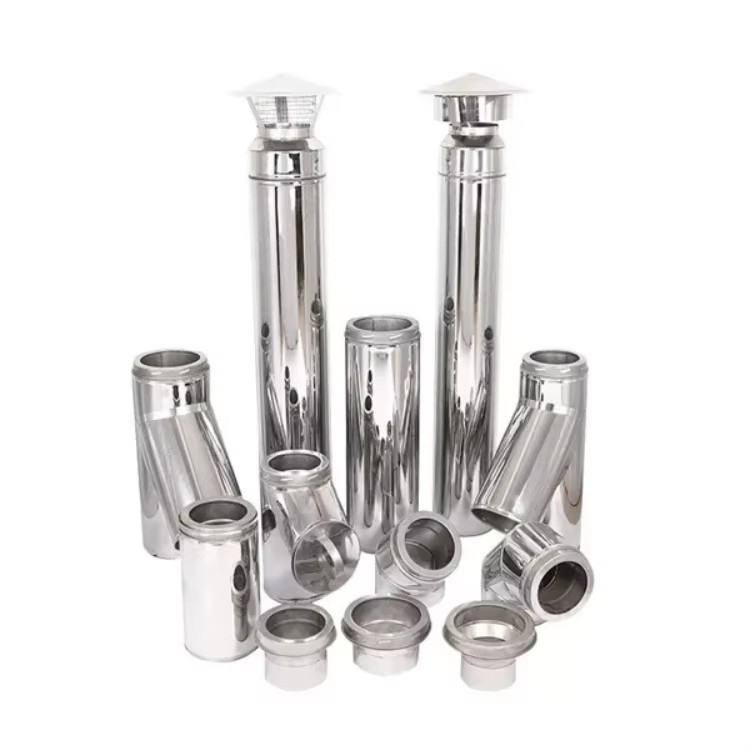

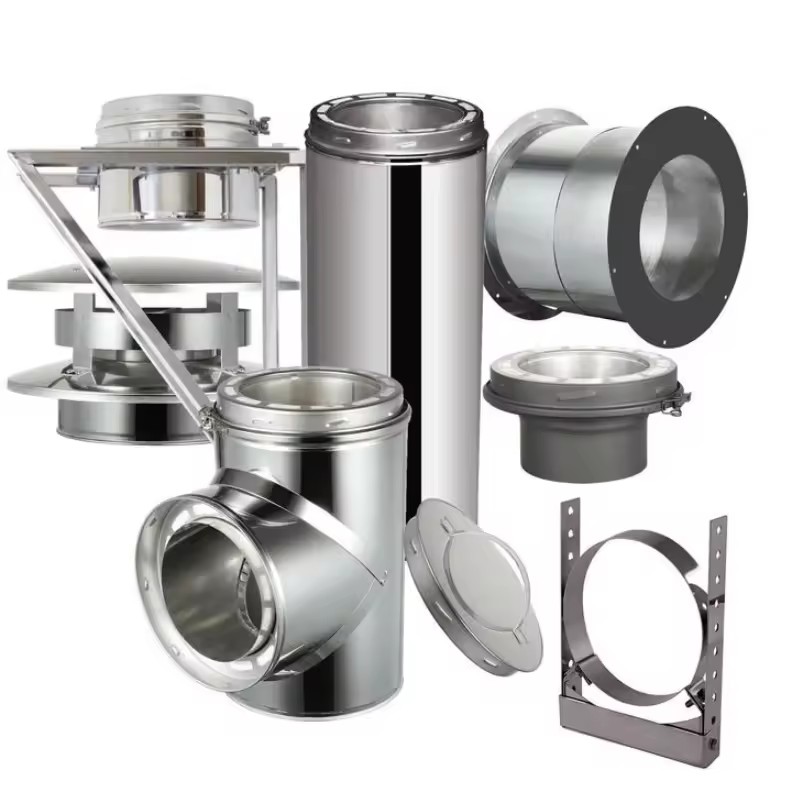

Stainless steel chimney complete accessories system
Connector system	Socket flange (PN16 standard), sealing ring (silicone rubber/fluororubber heat-resistant material), stainless steel clamp (304/316 material)
Direction control components	30°/45°/90° elbows, eccentric reducers, Y-type tees (with drainage ports)
Terminal components	Rainproof pipe cap (anti-backdraft design), spark arrestor (compliant with NFPA standards), condensate collection tank
Support system	Self-supporting bracket (standard configuration every 3 meters), seismic support (meet IBC specifications), telescopic compensator (solve thermal displacement problems)
Safety devices	Explosion-proof diaphragm (for boiler outlet only), inspection port (with removable cover)

$14-17.30 / piece

Product Name	Double Wall Stove Chimney With Twist Lock System
Material	SUS304/SUS316/Carbon Steel/Galvanized
Size	5'',6'',7'' Can Be Customized
Color	Silver Or Black
Diameter	80mm,100mm,125mm,150mm,200mm,250mm
Length	500MM,1000MM

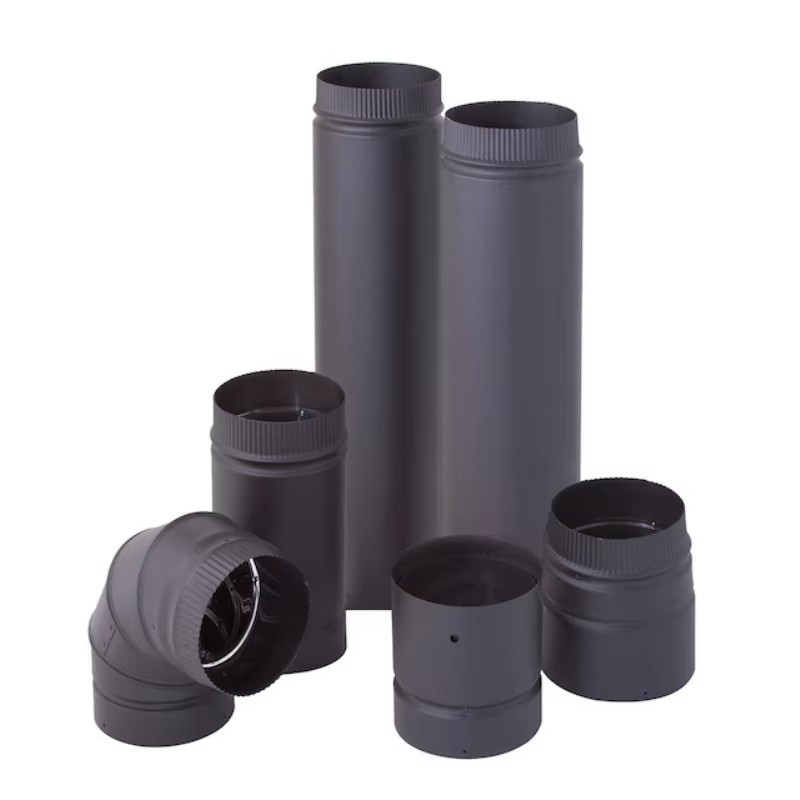

Single-Wall Chimney Pipe
parameter	General specification range (metric)	General specification range (imperial)
diameter	80–200 mm	3–8 inch
Common diameter	100 mm, 120 mm, 150 mm	4", 5", 6"
length	0.5–1.5 m	20–60 inch
wall thickness	0.4–0.8 mm	0.016–0.031 inch

Double-Wall Chimney Pipe
parameter	General specification range (metric)	General specification range (imperial)
inner diameter	100–300 mm	4–12 inch
Common inner diameter	150 mm, 200 mm	6", 8"
outer diameter	160–350 mm	6.3–13.8 inch
length	0.6–1.2 m	24–48 inch
Wall thickness (inner layer)	0.5–1.0 mm	0.02–0.04 inch

Core accessories specifications (compatible with single-wall/double-wall systems)
Accessory Type	Applicable diameter range	Special function design	Materials and craftsmanship

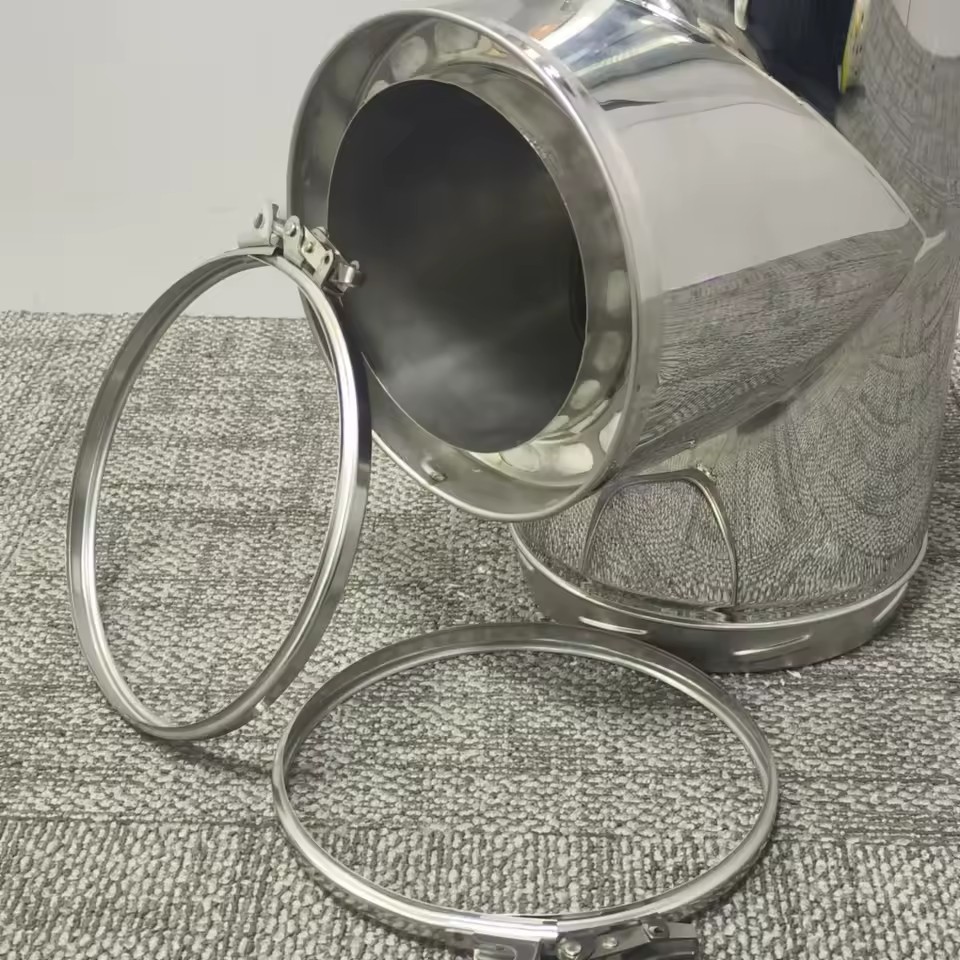

Elbow	45°/90° corners	Sealing buckle to prevent smoke leakage	304/316L stainless steel
80–250 mm (3–10")	Adjustable angle (0–30° fine adjustment)	Laser welding airtight

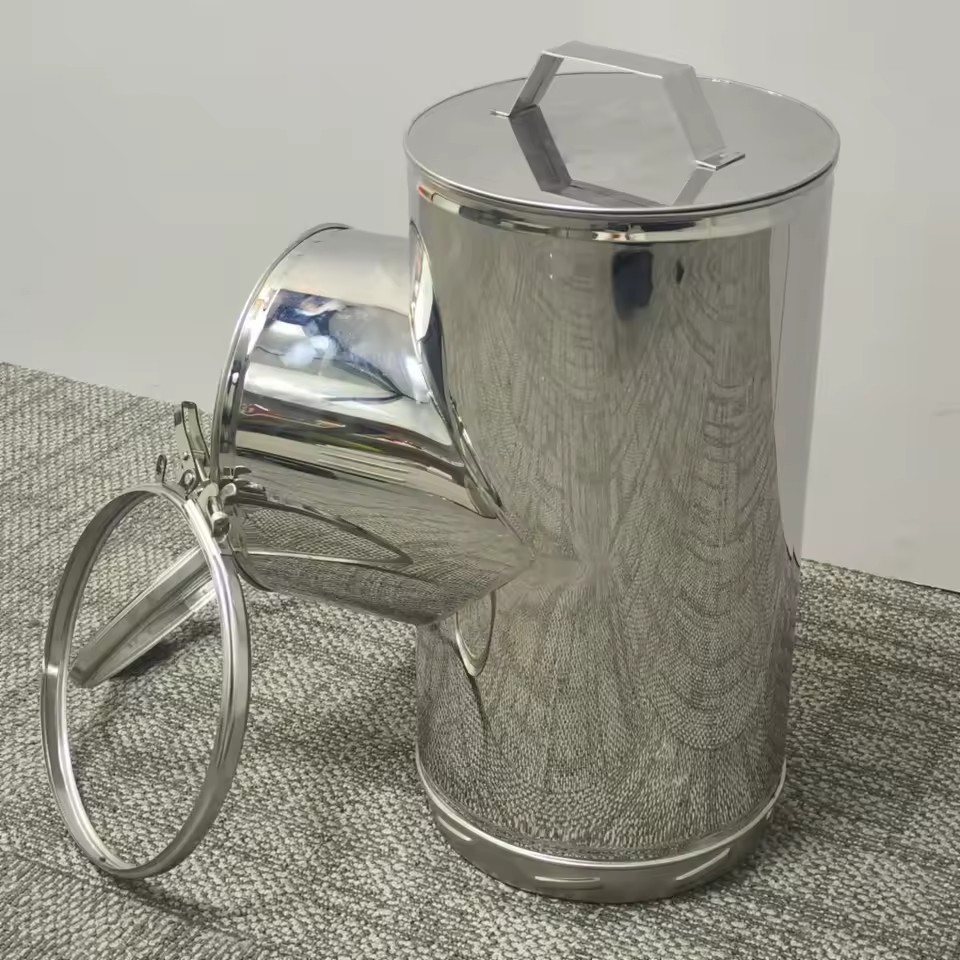

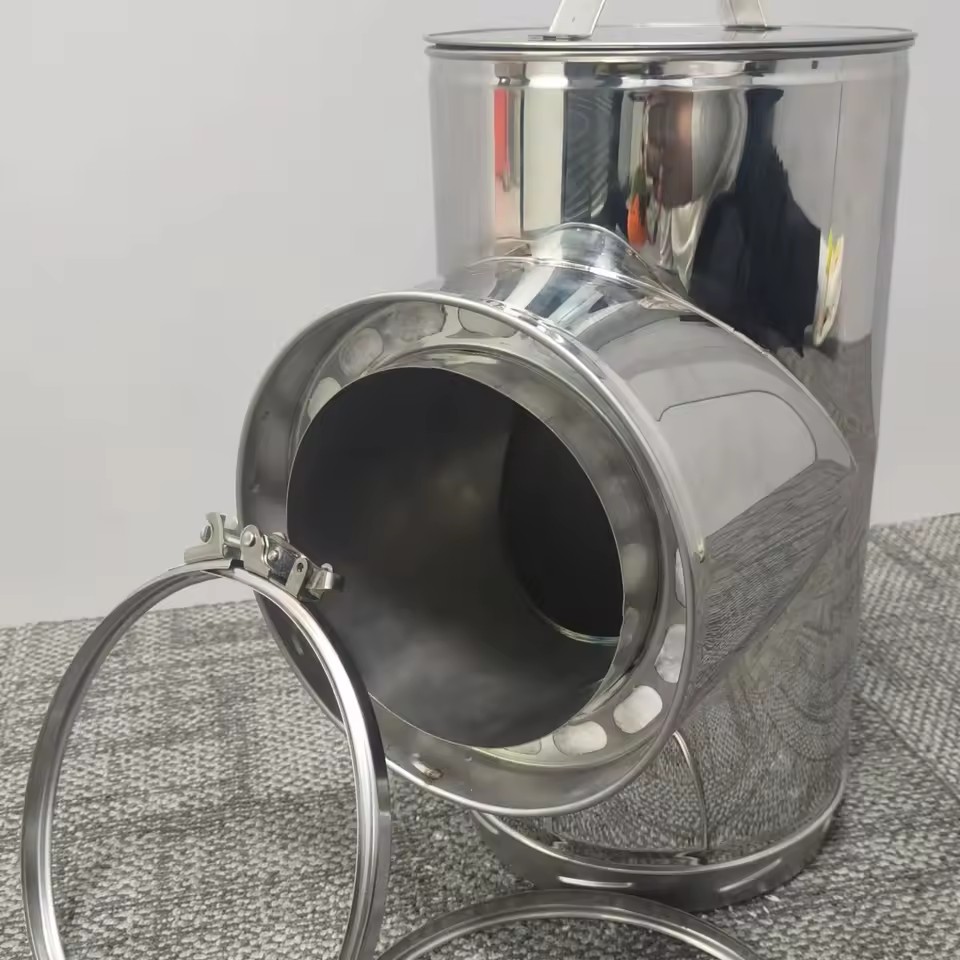

Tee	Same as main pipe diameter	Removable cleaning port design	Thickened 0.6 mm stamping
Support Bracket	Full-size universal	Wind-resistant and earthquake-resistant structure	Galvanized steel + stainless steel bolts
Rain Cap	Match by outer diameter	Anti-wind and anti-splash rain	Stamping grille + deflector
Locking Band	Adjustable diameter ±10 mm	High temperature resistant sealing ring	304 stainless steel belt + ceramic fiber

Q: Why is stainless steel generally chosen for chimney parts? A: Stainless steel is chosen because it is durable, corrosion-resistant, and capable of withstanding extreme temperatures. Such constituents work well for chimneys confronted with severe heat and are corrosive by nature owing to combustion. Q: What chimney systems are meant to carry stainless steel parts? A: Stainless steel parts are suitable for wood, pellet, gas, or oil systems in every respect. Always confirm with our about suitability. Q: Can stainless steel chimney parts still be used in masonry chimneys? A: Yes indeed; stainless steel liners are commonly used in masonry chimneys to improve safety and efficiency. A stainless steel liner helps to radiate heat and keeps acidic by-products of combustion from attacking the chimney. Q: Are stainless steel chimney liners easy to install? A: The installation of a chimney liner can be a DIY project for some homeowners. However, professional installation is highly recommended to get proper fitting, performance, judgment, and local codes. Q: What sizes do stainless steel chimney parts come in? A: Stainless steel parts are made in many diameters and lengths to cover a great variety of chimney sizes and configurations. Measure the actual dimensions of your chimney before purchasing for best results. Q: How can stainless steel chimney parts be cleaned? A: Regular cleaning can be done by using chimney brushes and rods suitable for your chimney system. However, it is advisable to engage a professional chimney sweep yearly for thorough maintenance. Never use harsh chemicals containing acids or abrasives, which could deteriorate stainless steel surfaces. Q: Will stainless steel parts against creosote build-up? A: They do not build up creosote, although having a smooth interior surface and good ventilation reduces buildup immensely. Regular maintenance is the key factor to keeping creosote levels low. Q: How often should stainless steel chimney parts be inspected? A: Annual inspections should be considered, or more regularly if it is heavily used, to catch wear and damage at the earliest.

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 2 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 23 fields

Type

Fireplace Accessories

Material

Stainless Steel, SUS304

Application

Office Building

Design Style

Modern

Warranty

1 Year

After-sale Service

Online Technical Support, Return and Replacement

Project Solution Capability

Others, graphic design

Installation

Freestanding

Place of origin

China, Tianjin

Model number (Specification)

BL-SP

Material thickness

0.5MM,0.6MM,0.8MM,1MM

Packing

Wooden Box, Carton

Standard size

0.5M Or 1M

Installation type

Twist Lock System

Usage

Chimney Pipe Venting Flue

Diameter

150/200/250/300mm

Design

Customers' Requirements

Fuction

WiFi Smart Device (ON

Selling Units

Single item

Single package size

18X18X18 cm

Single gross weight

3.0 kg

Color (Product option)

Black, sliver

Certifications & Compliance

Lead time

7 days

Minimum order

2 Units
