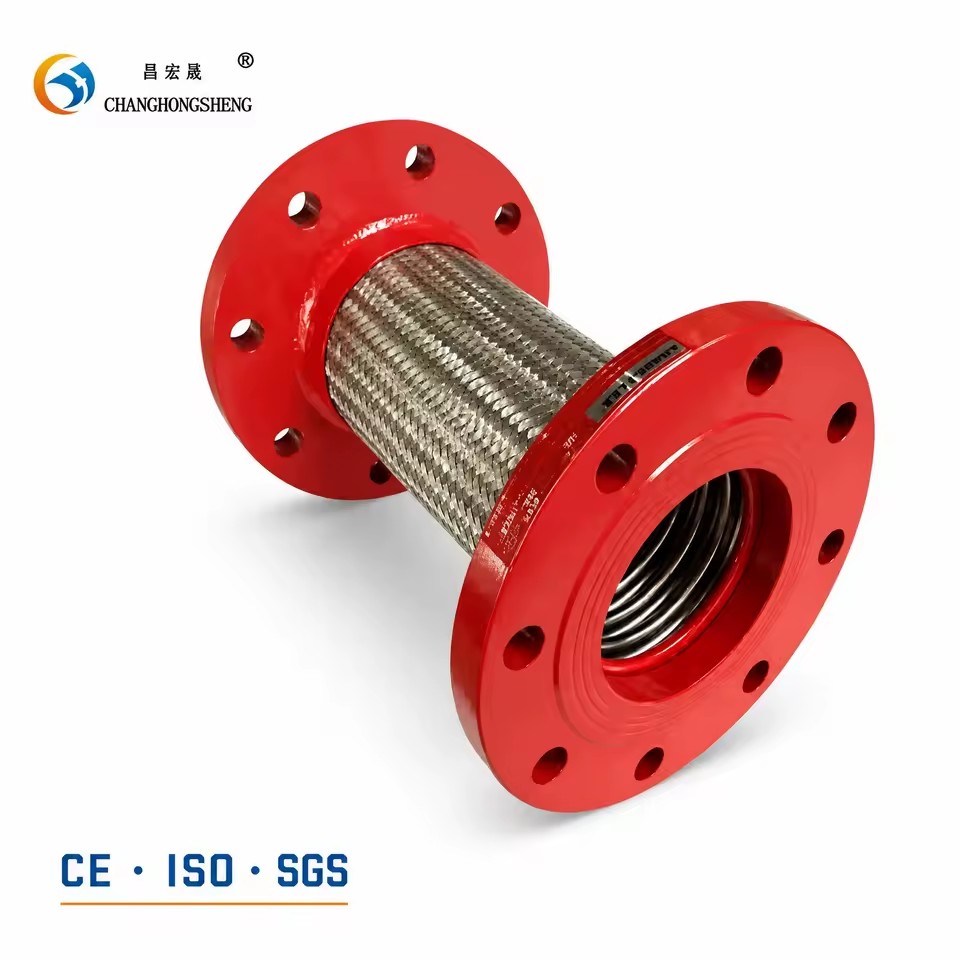

Name: Industrial Flanged Braided Metal Vibration-Reducing Corrugated Pipe Connector Flexible Metal Hose for Pump Pipeline Systems
SKU: B2B-10864
Price: 20.0 USD
Availability: PreOrder

Product description

SIZE:DN8-DN400

Service life up to 3 years Support drawing design,technical and video.

Provide detailed operation installation videos, and add an additional 100% quality control inspection.

Provide free after-sale service for new products, and pay the freight and tariff for after-sale products if there is quality problem

Nominal diameter DN	Inner diameter	Outer diameter	Minimum bending radius	Working pressure
(mm)	Bellows	Braid mesh	Static	Dynamic	Single braid mesh	Double braid mesh
8	8.8	13.2	14.4	50	110	15	20
10	11.7	16.5	17.7	65	145	185	20
15	13.5	19.5	21.1	80	180	18	20
20	20	27	28.6	120	270	10	15
25	27	34.5	36.1	160	360	6.3	10
32	32	40	41.6	175	400	4	6.3
40	39.6	52	53.6	225	510	4	6.3
50	49.7	62	63.6	280	640	3	5
65	61.2	80.2	81.8	410	915	3	5
80	79	96.3	97.9	486	1030	3	5
100	101.2	119.6	121.2	610	1340	2.5	4
125	124.1	145.3	146.9	700	1540	2.5	4
150	149.4	180.8	182.4	810	1780	2.5	4
200	176	240	243.2	1000	2000	2.5	4
250	248	290	294	1250	2500	2.5	4
300	298	350	354	1500	3000	1.6	2.5
350	347	400	404.8	1750	3500	1.6	2.5
400	397.6	460	464.8	2000	4000	1.6	2.5

Certifications & compliance

Complies with EU standards

Description images

Industrial Flanged Braided Metal Vibration-Reducing Corrugated Pipe Connector Flexible Metal Hose for Pump Pipeline Systems

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

1 day
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 31 fields

Pipe Class

Not Rated

Connectivity

Flange

Pressure

High Pressure

Surface Treatment

Smooth

Pipe Features

Corrosion-resistant, Flexible, Chemical Resistant, Uv Resistant

Technic

Forged

Shape

Equal

System of Measurement

inch

Head code

Round

Mounting hole diameter

0.25 in

Overall Length

4 in

Customized support

OEM, ODM, OBM

Warranty

3 Years

Model number (Specification)

JZBW

Place of origin

China, Henan

Height

300mm

Material of flange

carbon steel, Cast Iron, cast steel, SS304/316/321

Parts

flange, bellows, internal sleeve, tie-rod, pipe end, nut

Working temperature

50~300°

Material of bellow

ss304,321,316,316L, Incoloy825,800,Inconel625

Size

DN32-DN3600

Warranty time

18 months

Online time

24 hours

Certificate

CE, BV, ISO

Selling Units

Single item

Single package size

30X10X25 cm

Single gross weight

3.0 kg

Pipe size

DN25-DN400

Material (Product option)

Stainless Steel

Type (Product option)

Flange, Union

Certifications & Compliance

Lead time

1 day

Minimum order

1 Units
