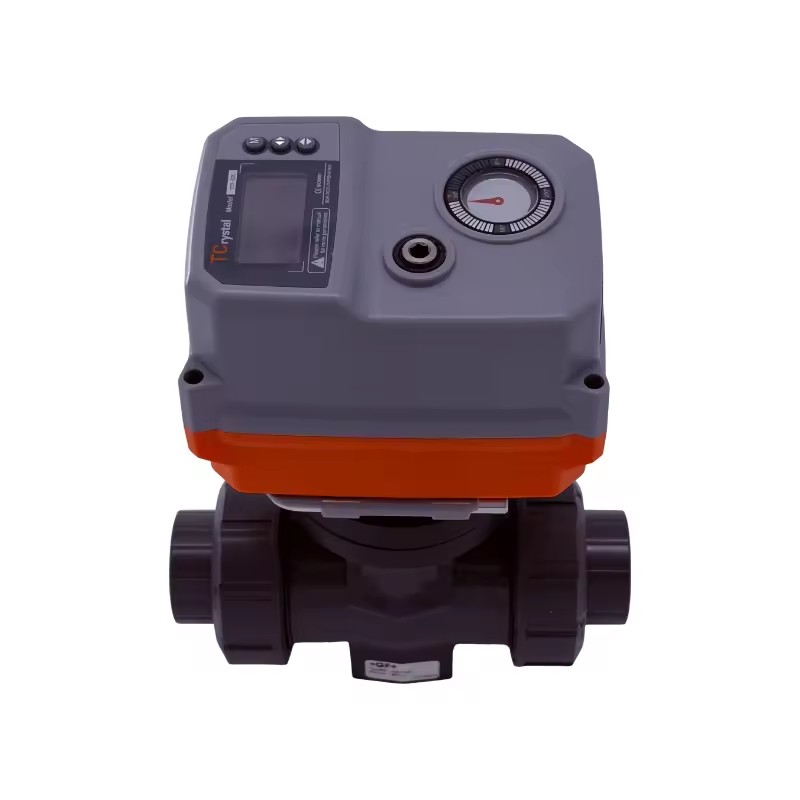

Industrial Electric Actuator Valve for Ball Valve Water Flow Control IP67 OEM Supply High-Performance Brushless Motor Overload

• Connection Size
  • 1 in
  • 1/2 in
  • 2 in
  • 3/4 in
• Operating Pressure
  • Maximum 0.6 MPa (PN6)
• Operating Temp. Range
  • 20°C to 45°C
• Media
  • Gas
  • Liquid
• Sealing Material
  • Silicon rubber
• Connection Type
  • Thread
• Power
  • electric
• Ball Material
  • PVC
  • Cpvc
• Port Size
  • 2 inch
  • 1 in
  • 3/4 in
  • 1/2 in
• Flow rate
  • Varies with valve size and application
• For Maximum Pipe Size
  • 38 mm
• Application
  • General
  • Demanding quick opening and quick closing
• Temperature of media
  • 0°C to 100°C
• Structure
  • Ball
• Customized support
  • OEM
  • ODM
  • OBM
• Place of origin
  • China
  • Tianjin
• Model number (Specification)
  • TCR-01N-N11
• Assembly Valve
  • 2-way
  • 3-way ball valve & butterfly valve
• Feedback Modes
  • B3S
  • B3C
  • BD3S/KT32S
  • B2S
  • BD3C
  • B3P
  • B3R
• Motor Type
  • High-performance brushless motor
• Protection Function
  • IBuilt-in overload protection
• Service life
  • More than 20,000 cycles
• Parallel Operation
  • Multi actuators can operate in parallel
• Parts
  • Actuator housing
  • Valve body
  • Seal
• Applications
  • Water billing
  • Instrument-control equipment
• Optional Functions
  • High-speed Switch
  • Failsafe Series
  • Faulty Alarm
  • Heater
  • Multiturn
• Selling Units
  • Single item
• Single package size
  • 30X30X40 cm
• Single gross weight
  • 5.0 kg
• Pressure (Product option)
  • 0.6 MPa
• Size (Product option)
  • 1 1/2 in
• Material (Product option)
  • AC/DC24V
  • AC220V
  • AC/DC95-265V

This combination is unavailable.
