Name: Industrial Durable Stainless Steel High Efficiency Easy Operation Fruit & Vegetable Tray Dryer Machine
SKU: B2B-17155
Price: 100.0 USD
Availability: PreOrder

Product description

Introduction to Drying Machines

Drying machines are essential equipment used across various industries for removing moisture from materials, ensuring their preservation and usability. They come in different capacities, from 8 layers up to 96 layers, each designed to meet specific industrial needs. This comprehensive guide will explore nine key aspects of drying machines, focusing on their design, operation, efficiency, maintenance, safety features, environmental impact, economic considerations, innovation trends, and industry applications.

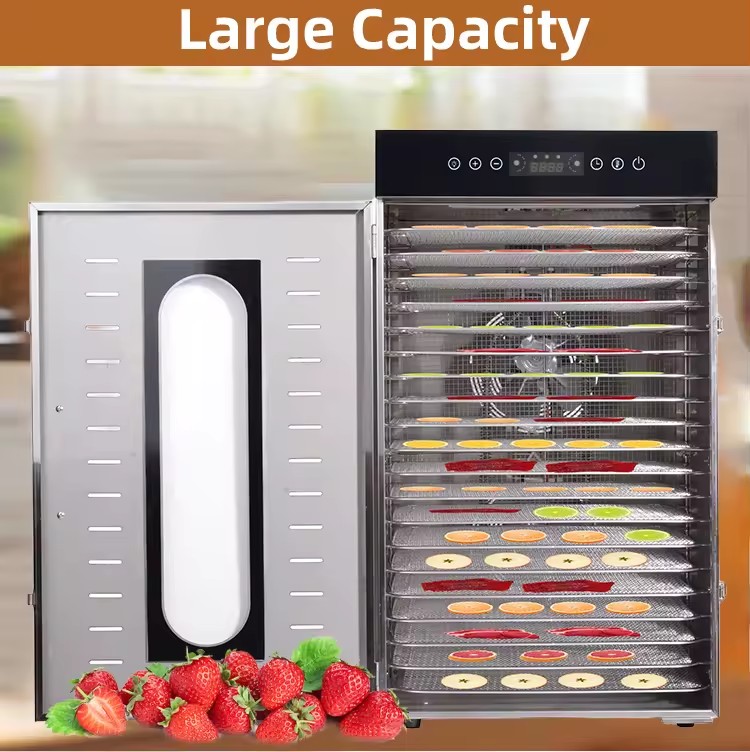

Design and Structure The design of a drying machine significantly affects its performance and efficiency. Each layer within the dryer contributes to the overall capacity and effectiveness of the drying process. The material type, often full stainless steel, ensures durability and resistance to corrosion, making it suitable for handling various substances without contamination. The internal volume ranges from 0.02m³ for smaller units like FD-08B to 0.52m³ for larger models such as FD-96D. This variance allows users to select a model that best fits their production scale and requirements.

Operational Mechanism

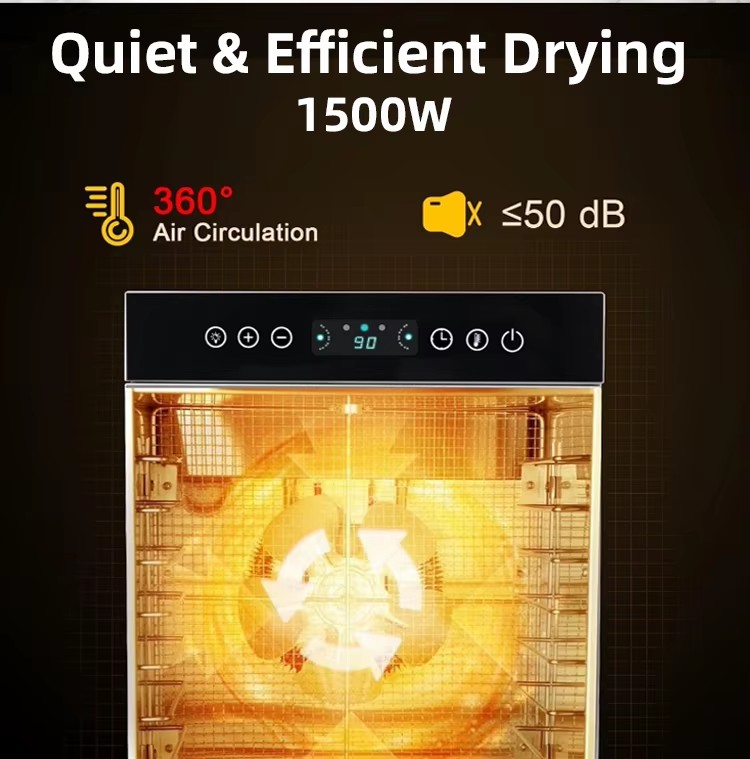

Understanding how drying machines operate is crucial for optimizing their use. These machines employ heating power ranging from 400W for smaller units to 8000W for larger ones, which heats the air inside the chamber to temperatures between 30°C and 90°C. The fan motor circulates this heated air through the layers of trays, where materials are placed, facilitating even drying. Frequency settings of 50/60HZ ensure compatibility with different electrical systems worldwide.

Maintenance Requirements Regular maintenance is vital for prolonging the lifespan and maintaining the performance of drying machines. Key maintenance tasks include cleaning the trays after each use to prevent residue buildup, checking and lubricating the fan motors periodically, and inspecting the heating elements for any signs of wear or damage. Additionally, ensuring proper ventilation around the machine helps prevent overheating and maintains optimal operating conditions.

Applicable raw materials

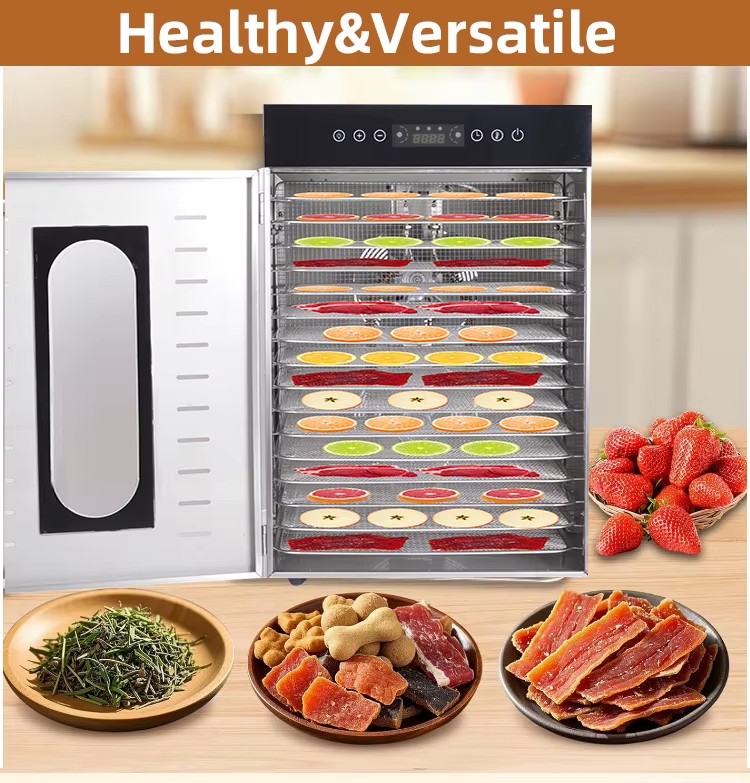

This multifunctional fruit dryer can not only be used for drying fruits but also can be widely used for dehydrating the following raw materials: Fruits: such as apples, bananas, mangoes, strawberries, kiwis, and other fresh fruits. Vegetables: such as carrots, pumpkins, spinach, tomatoes, bell peppers,s and other vegetables. Meat: can make beef jerky, pork jerky, y, and other meat products. Seafood: drying seafood such as fish fillets and shrimps. Nuts and seeds: almonds, walnuts, pumpkin seeds, etc. Flowers: used to make dried flowers, scented tea, etc. Through precise temperature control and timing functions, the equipment can meet the optimal drying conditions for different types of ingredients, ensuring that their nutrients and flavors are retained to the greatest extent. At the same time, since all parts that come into contact with food are made of food-grade materials, hygiene and safety are also fully guaranteed. Whether it is homemade healthy snacks or commercial-scale food processing, this dryer can provide an ideal solution.

The main structure of the vegetable dryer machine

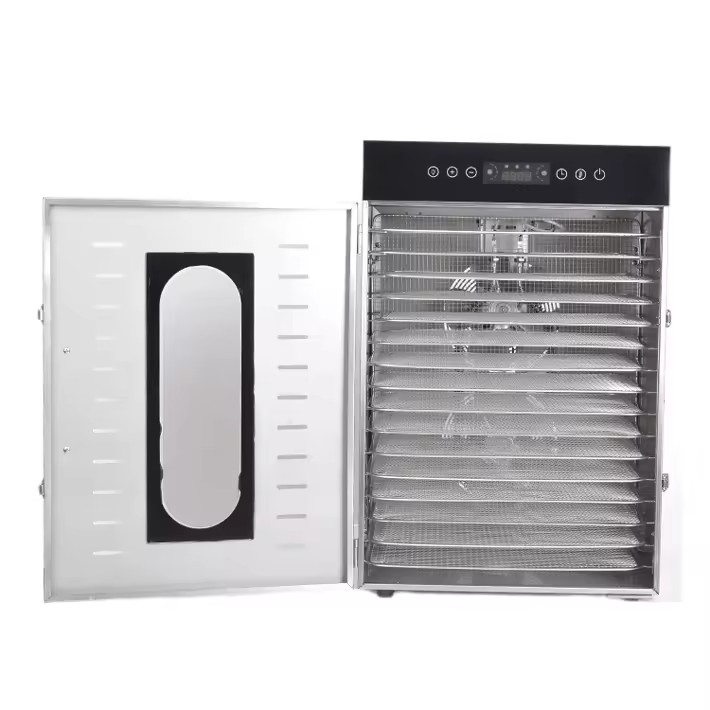

Feeding device: trays are placed one by one to feed wet materials evenly into the dryer to ensure that the materials enter the drying chamber continuously and evenly.

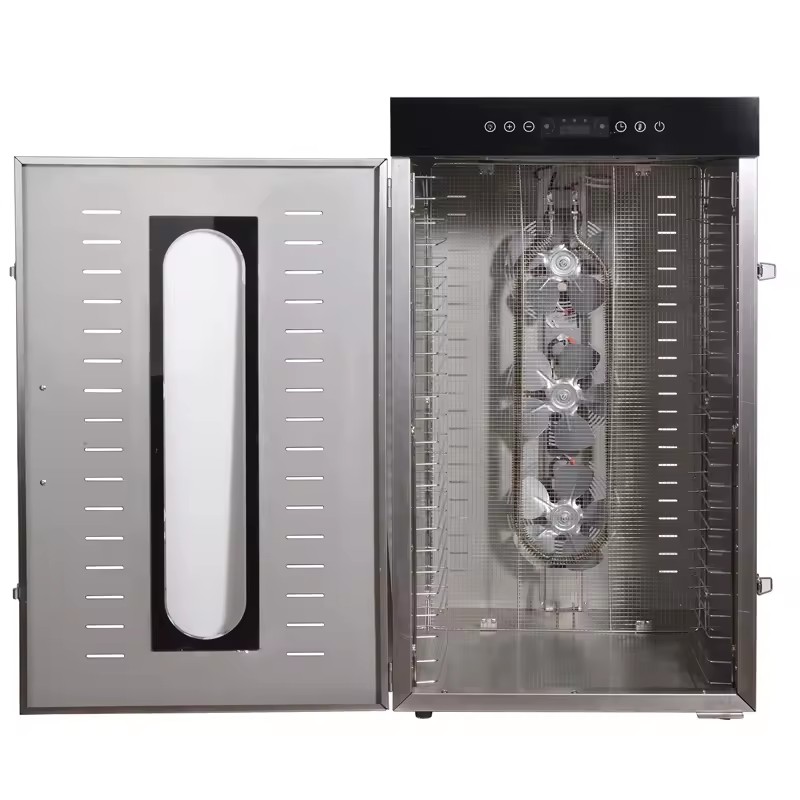

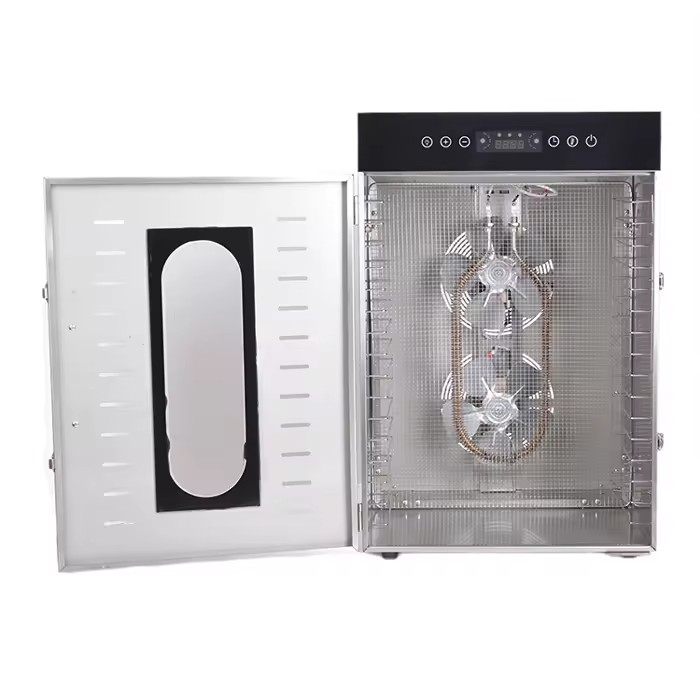

Drying chamber: The drying chamber is the core part of the dryer. Each layer has an independent hot air circulation system to ensure that the materials are heated evenly. The design of the drying chamber directly affects the drying efficiency and product quality.

Heating system: The heating system provides the heat energy required for drying. Common heat sources include electric heating, steam heating, gas heating and microwave heating. The choice of heating system depends on the characteristics of the material and production requirements.

Ventilation system: The ventilation system distributes hot air evenly to each layer through fans and air ducts to ensure that the materials are heated evenly. At the same time, the ventilation system is also responsible for discharging moisture and maintaining a dry environment in the drying chamber.

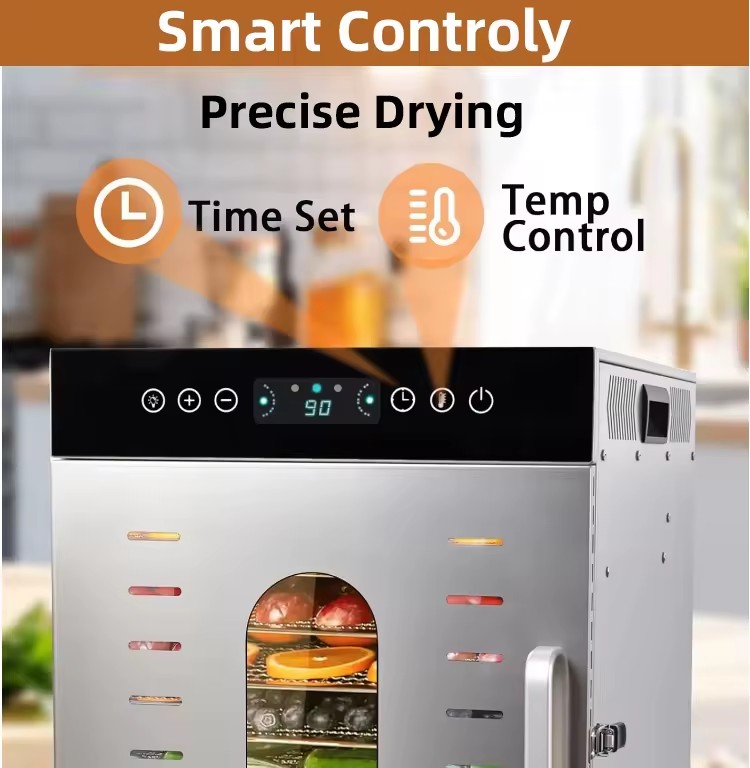

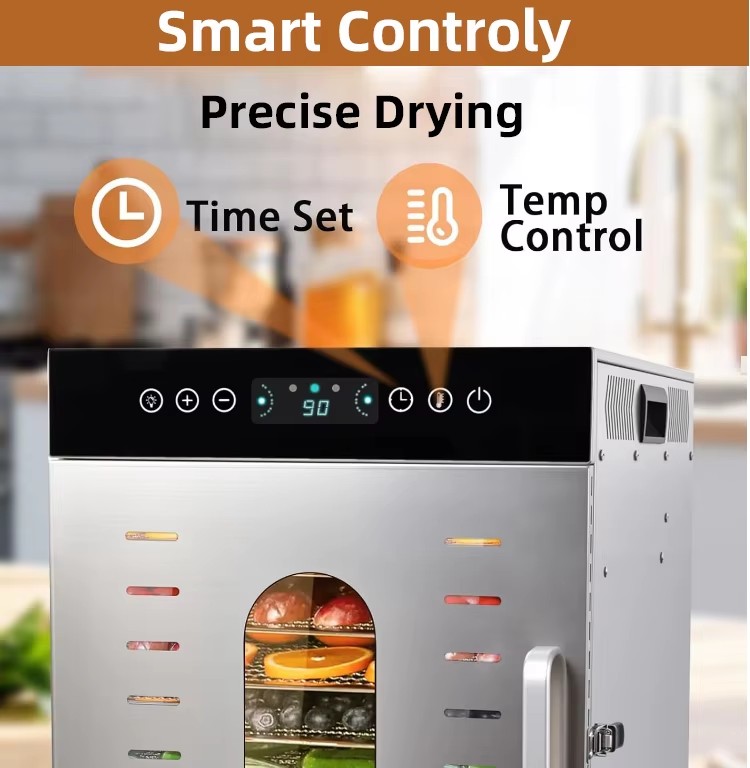

Control system: The control system is used to adjust the temperature, wind speed, conveyor belt speed, and other parameters of the dryer to ensure a stable and efficient drying process. Most modern dryers use intelligent control systems to achieve remote monitoring and automatic operation.

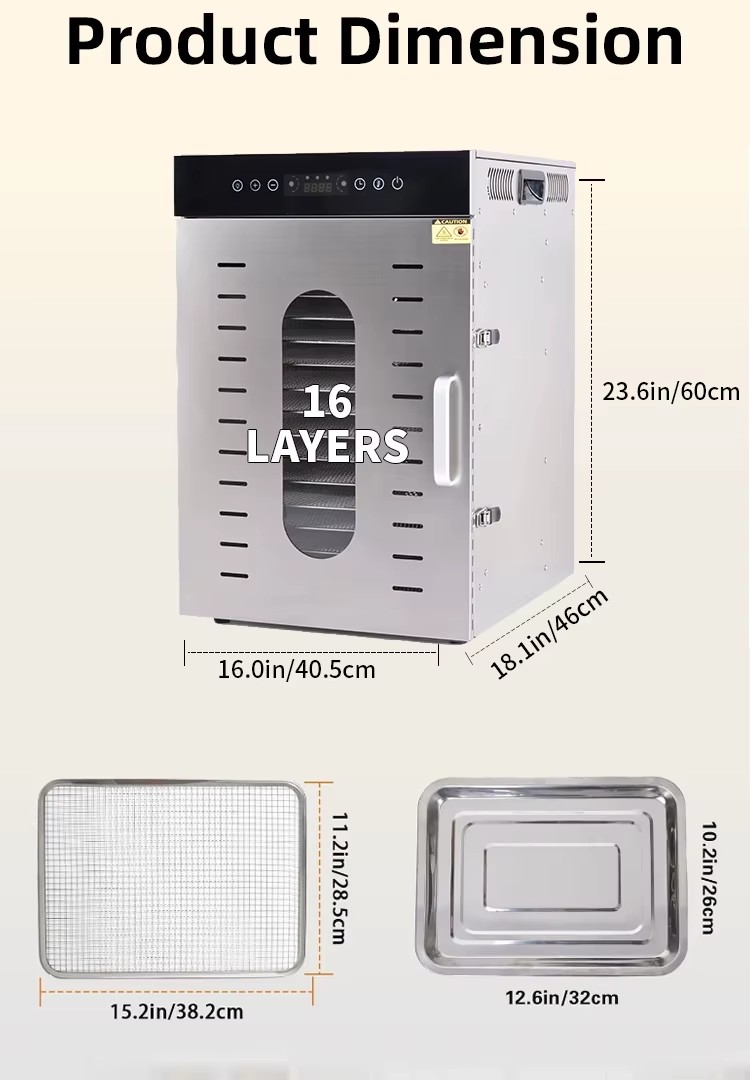

Product parameter table

Item No.	Material Type	Capacity (Layers)	Internal Volume	Yield (kg)	Fan Motor (pcs)	Frequency (HZ)	Heating Power (W)	Voltage (V)	Tray Size (CM)	Tray Distance (cm)	Temperature (℃)	G.W/N.W (kgs)	Size of Package (MM)	Volume (CBM)
FD-08B	Full S.steel	8	0.02m³ (20L)	10-15	1	50/60	400	110/220/240	19.5*28	3	30-90	7.75/6.9	360420455	0.07
FD-10B	Full S.steel	10	0.02m³ (20L)	10-15	1	50/60	400	110/220/240	19.5*28	3	30-90	8/7.15	360420455	0.07
FD-12B	Full S.steel	12	0.04m³ (40L)	20-30	1	50/60	1000	110/220/240	28.5*38.5	3	30-90	12.45/11.2	460510535	0.13
FD-16B	Full S.steel	16	0.06m³ (60L)	30-45	2	50/60	1500	110/220/240	28.5*38.5	3	30-90	16.2/14.7	460510670	0.16
FD-20B	Full S.steel	20	0.07m³ (70L)	35-55	2	50/60	1500	110/220/240	28.5*38.5	3	30-90	17.9/16.25	460510765	0.18
FD-24B	Full S.steel	24	0.08m³ (80L)	40-60	3	50/60	2000	110/220/240	28.5*38.5	3	30-90	20.45/18.75	460510875	0.21
FD-16D	Full S.steel	16	0.08m³ (80L)	40-60	2	50/60	1500	110/220/240	40*40	3	30-90	38/32	540640680	0.24
FD-24D	Full S.steel	24	0.13m³ (130L)	65-100	3	50/60	2000	110/220/240	40*40	3	30-90	48/40	540640895	0.31
FD-32DV	Full S.steel	32	0.16m³ (160L)	80-120	4	50/60	3000	110/220/240	40*40	3	30-90	76/64	5406401220	0.42
FD-48DV	Full S.steel	48	0.26m³ (260L)	130-200	6	50/60	4000	110/220/240	40*40	3	30-90	96/80	5406401680	0.58
FD-96D	Full S.steel	96	0.52m³ (520L)	260-400	12	50/60	8000	110/220/240/380	40*40	3	30-90	192/160	10606601780	1.25

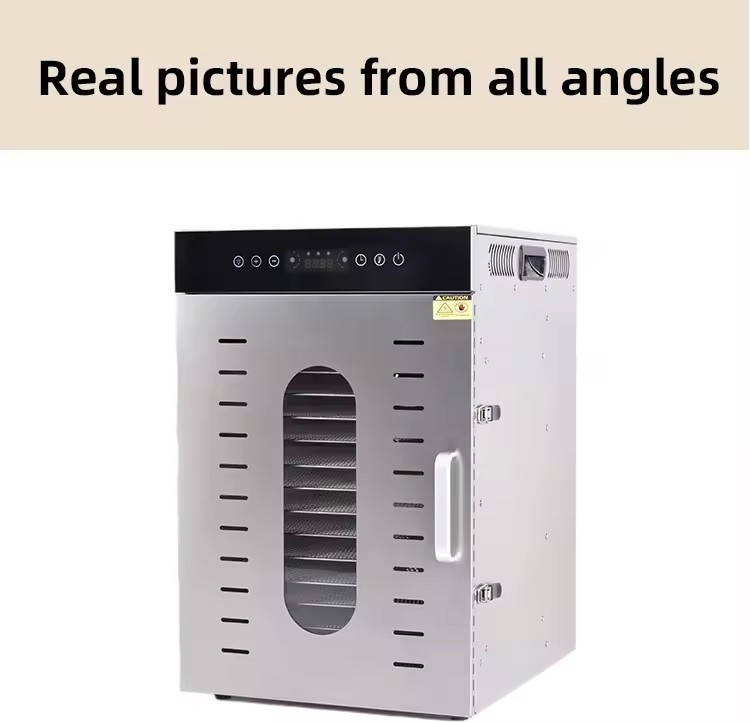

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

15 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 25 fields

Application fields

Dairy Products Factory, Beverage Factory, Seasoning Plant, Snack Food Factory, bakery, Meat Processing Plants, Vegetable Processing Plant, Frozen Food Factory, Commercial Catering, Fruit Processing Plant, Winery

Type

Tray Dryer

Material

Stainless Steel, Carbon Steel, SUS304L

Voltage

380 V, 220 V, 110 V, 480V

Core components

Motor

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Weight (kg)

150

Place of origin

China, Henan

Dimension(L*W*H)

36*42*45

Function

Food Vegetable Fruit Dehydrator

Application scope

vegetable dryer

Heating source

Electric Heat

Feature

High Efficiency Low Cost

Processing Types

Food Process Equpiment

Machine name

Vegetable Dryer

Applicable raw materials

Mango Grape Peach Plum Cherry

Usage

Food Industry Equipment

MOQ

1 Set

Selling Units

Single item

Single package size

50X30X86 cm

Single gross weight

35.0 kg

Drying Capacity (kg)

5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 110, 120, 130, 140, 150, 200, 180

Power(W) (Product option)

1000 W, 2000 W, 3000 W, 4000 W, 5000 W, 500 W, 300 W, 400 W, 600 W, 200 W, 100 W, 800 W, 900 W, 700 W

Lead time

15 days

Minimum order

1 Units
