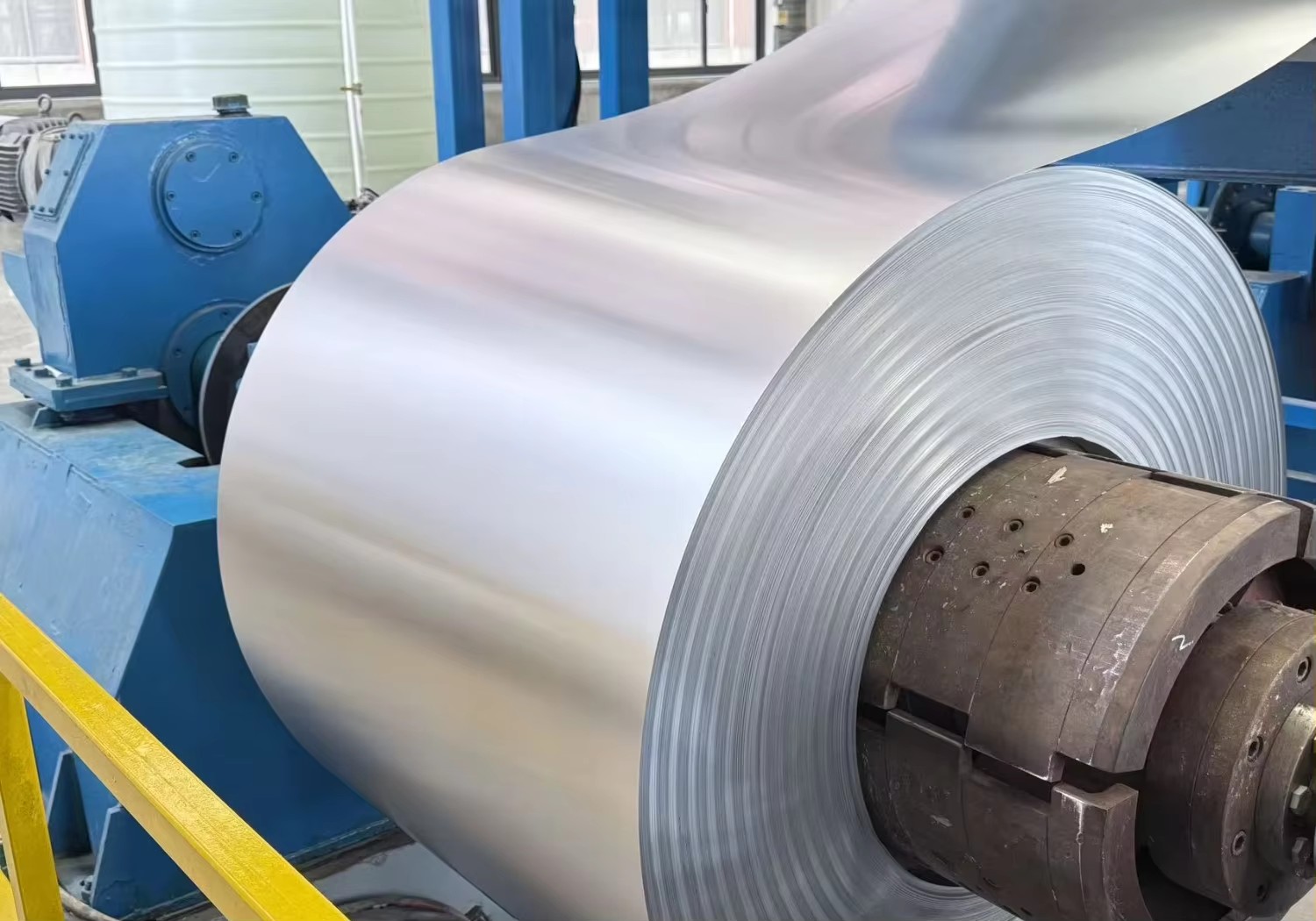

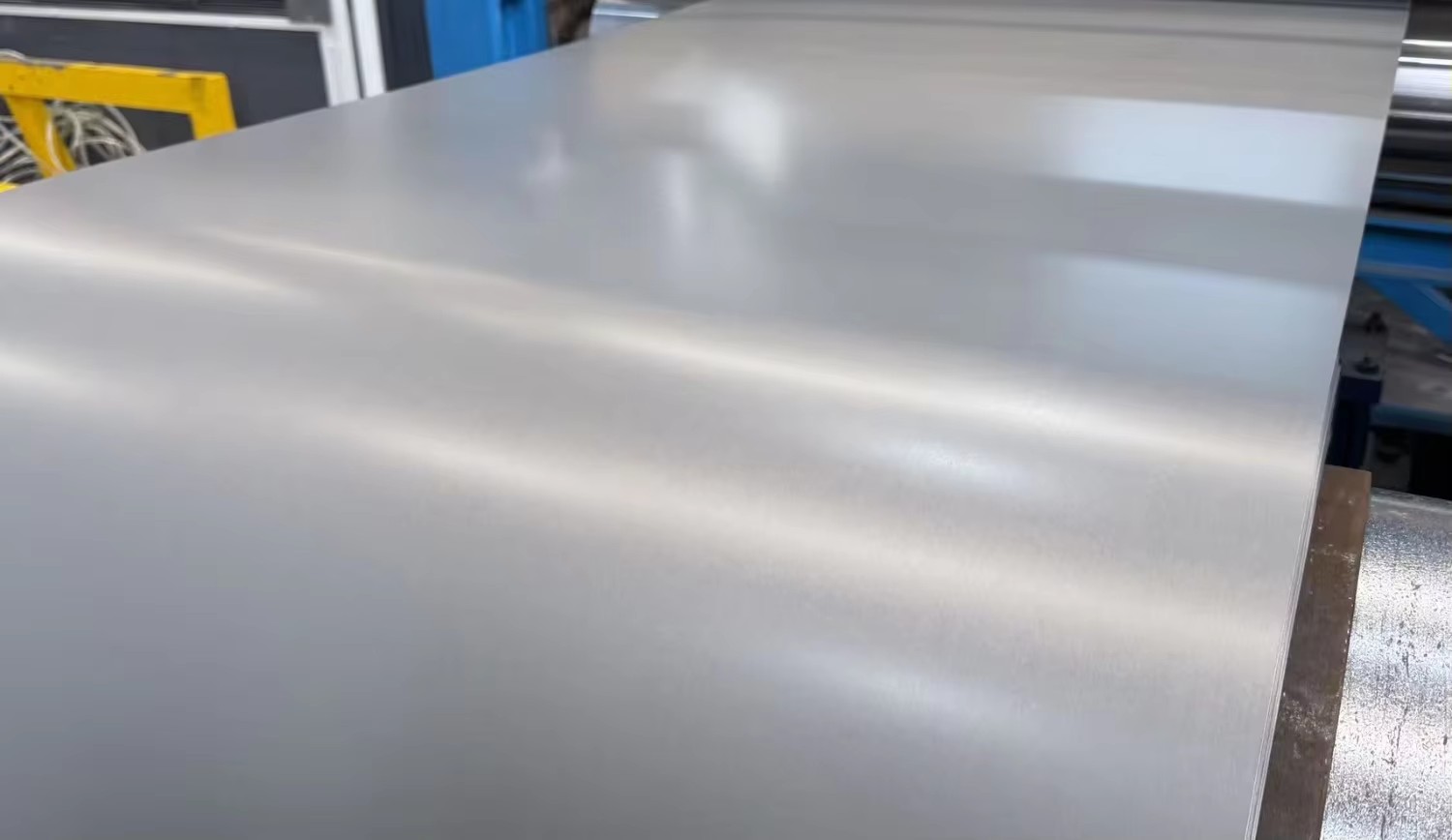

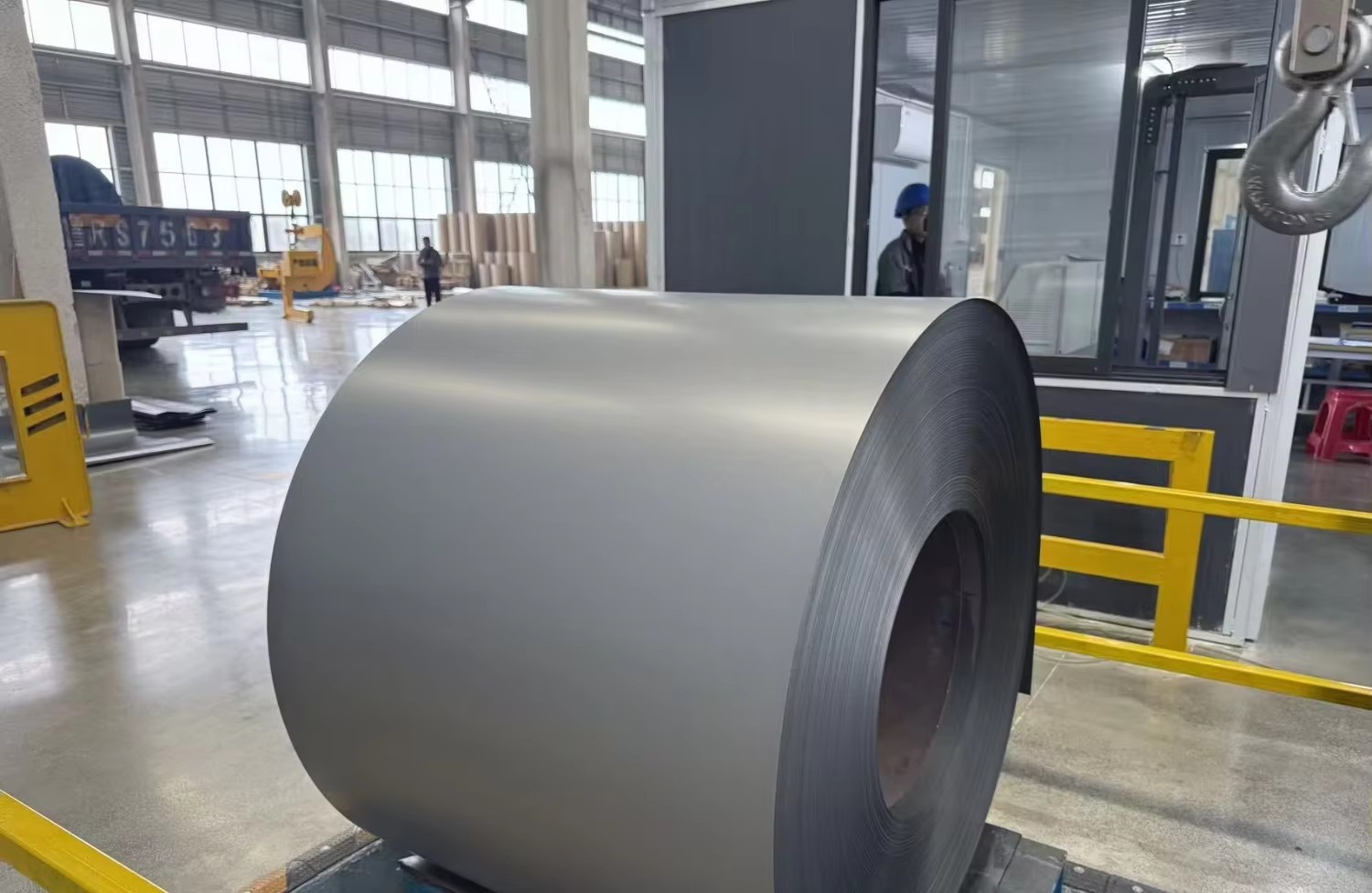

Name: In-stock Full Hard Hot Rolled Tinplate Sheets Suitable for Bending Deep Drawing Stamping; Electrolytically Tinned Iron Coating
SKU: 2XX3-29VX-X5XA-01
Price: 1150.0 USD
Availability: PreOrder

Product description

产品类型	镀层成分	牌号/钢级	核心应用
Hot Dipped Galvanized (GI / HDG)	Pure Zinc	DX51D+Z, DX52D+Z, DX53D+Z, DX54D+Z, SGCC, SGCD, SGCE, CS-B, CS-C	Roofing, appliance back panels, HVAC ducts, storage racks
Aluzinc / Galvalume (GL)	55% Al-43.4% Zn-1.6% Si	DX51D+AZ, SGLCC, SGLCD, SGL400, SGL440, SGL570	Coastal buildings, livestock farms, solar mounting, high-temp environments
Aluminized Steel	Pure Al or Al-Si Alloy	DX51D+AS, SA1C, SA1D	Automotive exhaust pipes, oven liners, heat-resistant parts
Electrolytic Tinplate (ETP)	Pure Tin	T-1, T-2, T-2.5, T-3, T-4, T-5, T-5.5, DR-7, DR-8, DR-9, DR-10	Food cans, beverage cans, aerosol cans, milk powder cans, bottle caps
Tin-Free Steel / ECCS (TFS)	Metallic Cr + Chromium Oxide	T-1CA, T-2CA, T-3CA, T-4CA, T-5CA	Can ends, crown caps, cosmetic packaging, battery shells
Electro Galvanized (EG / SECC)	Pure Zinc (Single/Double Side)	SECC, SECD, SECE, SECF, SECG, DC01+ZE, DC04+ZE	Appliance panels, PC cases, automotive interior trim, precision electronic housings
Galvannealed (GA)	Zn-Fe Alloy	DX51D+ZF, DC54D+ZF	Automotive body panels, high-strength structural parts

Application	Coating Type	Key Performance	Compliance
Bakeware Non-stick	PTFE	Temp 260~300℃, Abrasion ≥3,000, Superior non-stick	FDA, RoHS, REACH
Silicone	Temp 220~250℃, Abrasion ≥2,000	FDA, RoHS
Ceramic Composite	Temp 280℃, Hardness 4~5H, Fluorine-free	PFAS/PFOA-free, EU Food Grade
Roofing & Wall	HDP	Warranty 8~15yr, Salt spray ≥500h, QUV 2000h≥70%	JC/T 2607-2021
PVDF	Warranty 15~25yr, Salt spray ≥800h, QUV 3000h≥80%	JC/T 2607-2021
PE	Warranty 5~8yr, Salt spray ≥300h, Cost-effective	JC/T 2607-2021
Food Cans	Epoxy-phenolic	Retort 127℃, Integrity ≤15mA, General purpose	GB/T 14251-2017
Epoxy-amino	Retort 127℃, Integrity ≤12mA, Anti-sulfur	GB/T 14251-2017
Acrylic	Retort 121℃, Integrity ≤10mA, Premium anti-sulfur	GB/T 14251-2017
Appliance Panels	Modified Polyester	Thickness 20~28μm, T-bend ≤2T, Deep drawing	RoHS, REACH
Polyurethane	Thickness 22~30μm, T-bend ≤1T, Precision forming	RoHS, REACH
PVDF	Thickness 25~35μm, Salt spray ≥1000h, Self-cleaning	RoHS, REACH

Coating	Temp/Warranty	Hardness/Salt Spray	Thickness/Weight
PTFE	260~300℃	2~3H / ≥24h	15~25μm
Silicone	220~250℃	3H / ≥4h	12~20μm
Ceramic	280℃	4~5H / ≥48h	18~28μm
HDP	8~15yr	≥HB / ≥500h	≥25μm
PVDF(Arch)	15~25yr	≥H / ≥800h	≥23μm
PE	5~8yr	≥HB / ≥300h	≥20μm
Epoxy-phenolic	Retort 127℃	/ ≤15mA	3.5~6.0g/㎡
Epoxy-amino	Retort 127℃	/ ≤12mA	4.0~6.5g/㎡
Acrylic	Retort 121℃	/ ≤10mA	3.0~5.5g/㎡
Mod. Polyester	2~3H / ≥48h	20~28μm
Polyurethane	3~4H / ≥72h	22~30μm
PVDF(App)	4~5H / ≥1000h	25~35μm

Description images

In-stock Full Hard Hot Rolled Tinplate Sheets Suitable for Bending Deep Drawing Stamping; Electrolytically Tinned Iron Coating

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

15 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 19 fields

Type

Tin-plated tinplate

Thickness (Specification)

0.45,0.5,0.2,0.4,0.25,0.38,0.18,0.3,0.15,0.14

Coating

tin coating

Standard

Other

Hardness

Full hard

Spangle Type

Zero Spangle

Skin Pass

Yes

Oiled or Non-oiled

Non-oiled

Technique

Hot Rolled Based

Application

household appliances, Metal products, sanitary ware

Processing Service

Rough processing (such as leveling and slitting)

Delivery Time

None

Place of origin

Tangshan

Grade

Genuine product

Model number (Specification)

006

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Specification

0451030c, 051030c, 021030c, 041030c, 0251030c, 0381030c, 0181030c, 031030c, 015850C, 014800c

Lead time

15 days

Minimum order

1 Units
